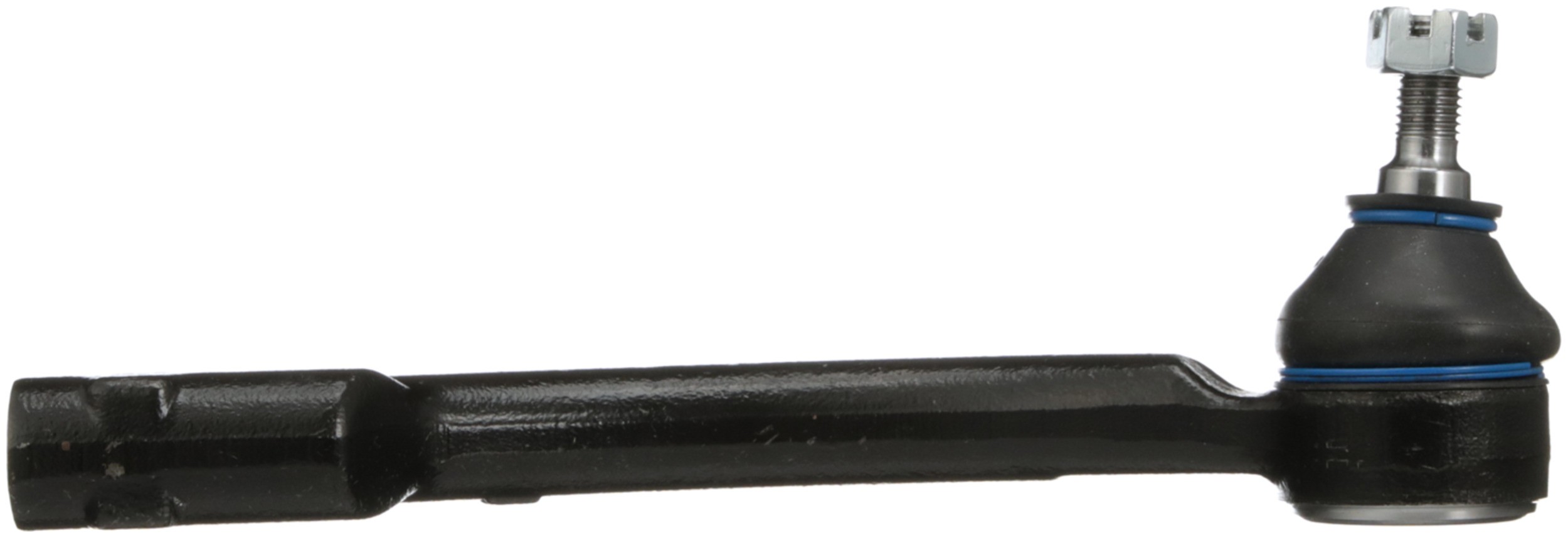

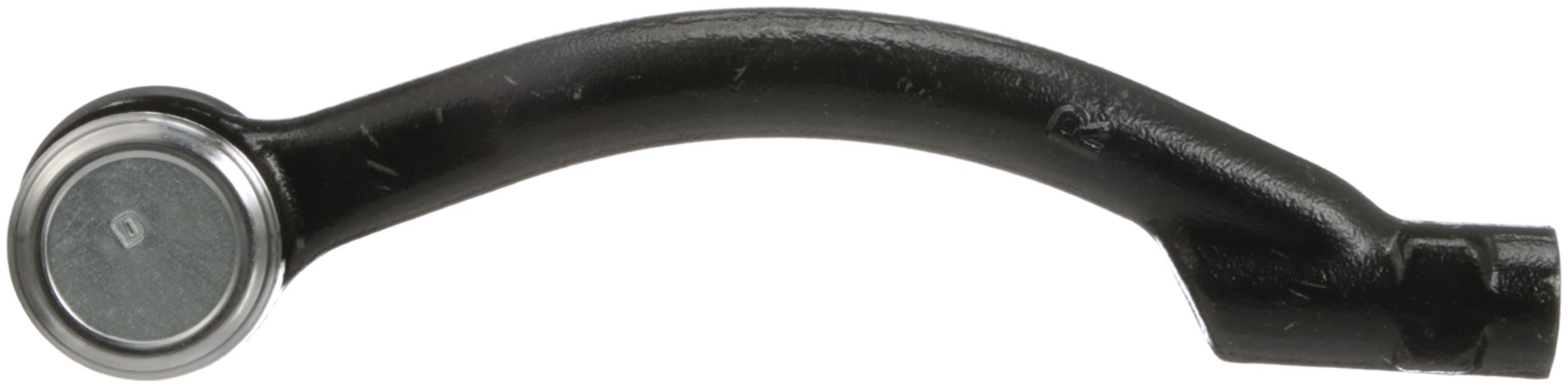

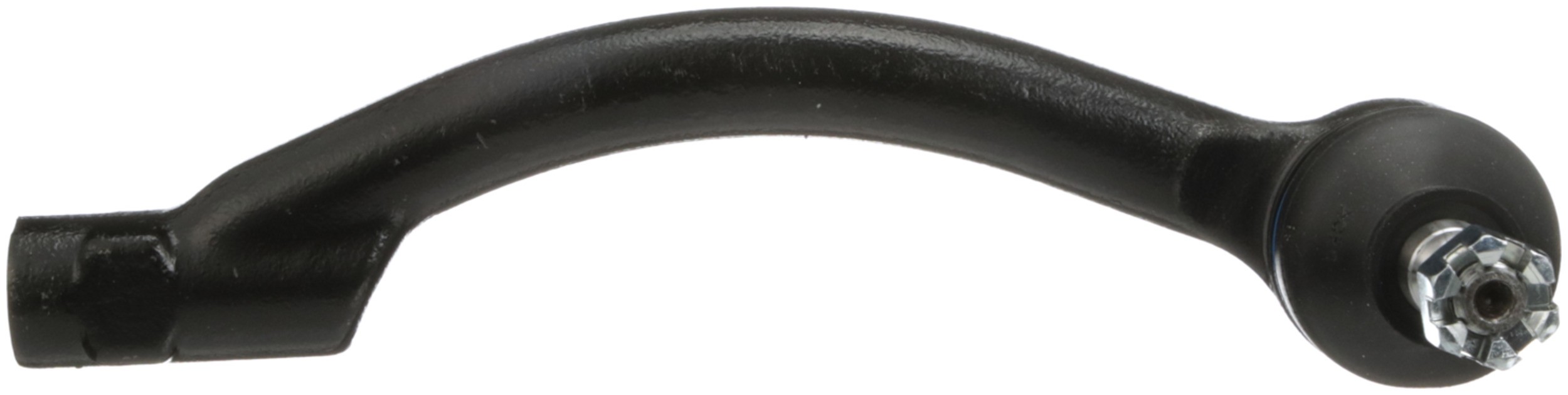

Delphi TA6317 Steering Tie Rod End

Delphi TA6317 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Stud Length	0.591 IN
1786	0.591 IN
1786	15.00 MM
36	0.748 IN
627	1.65 LB
36	19.00 MM
662	0.591 IN
662	15.00 MM
Color	Black
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Length – Stud Centre to End	198.00 MM
Length – Stud Centre to End	7.795 IN
Stud Length	15.00 MM
Width	58.5 MM
Height	71.40 MM
End 1 Gender	Male
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
