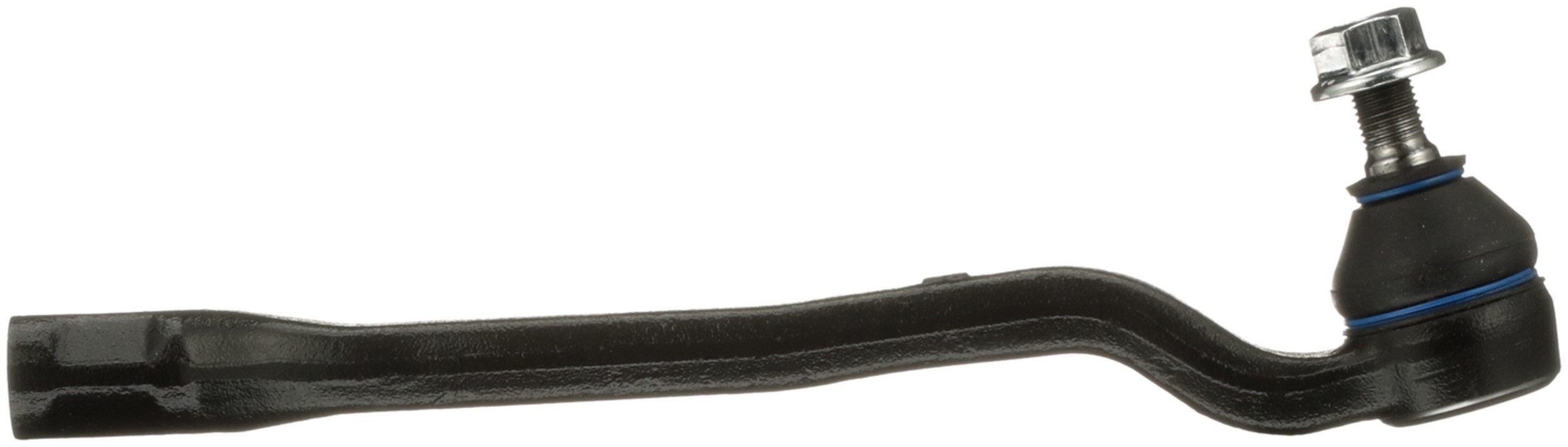

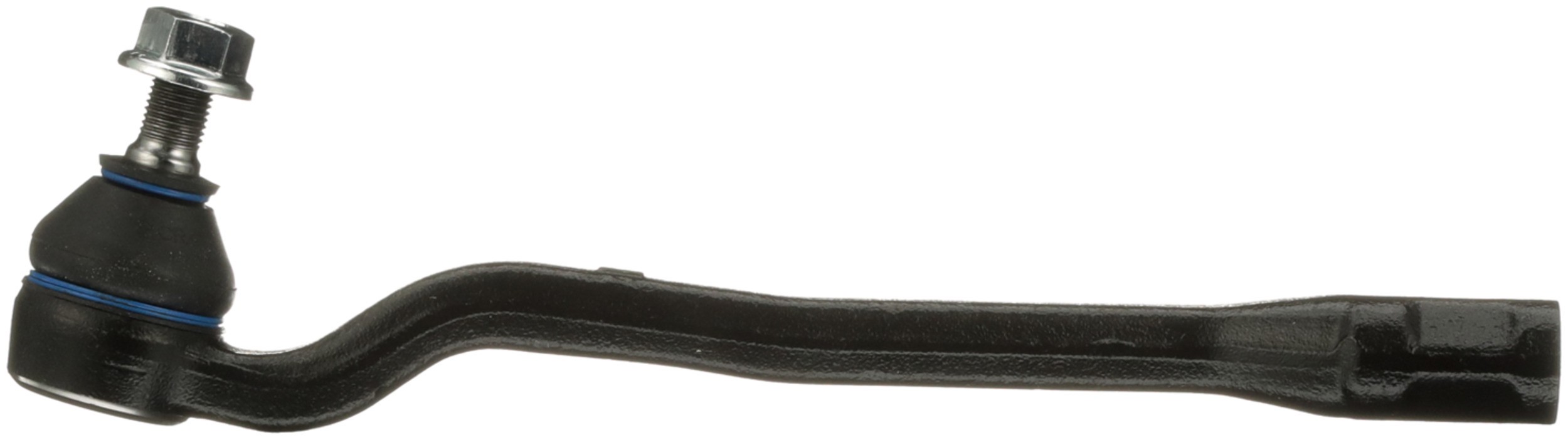

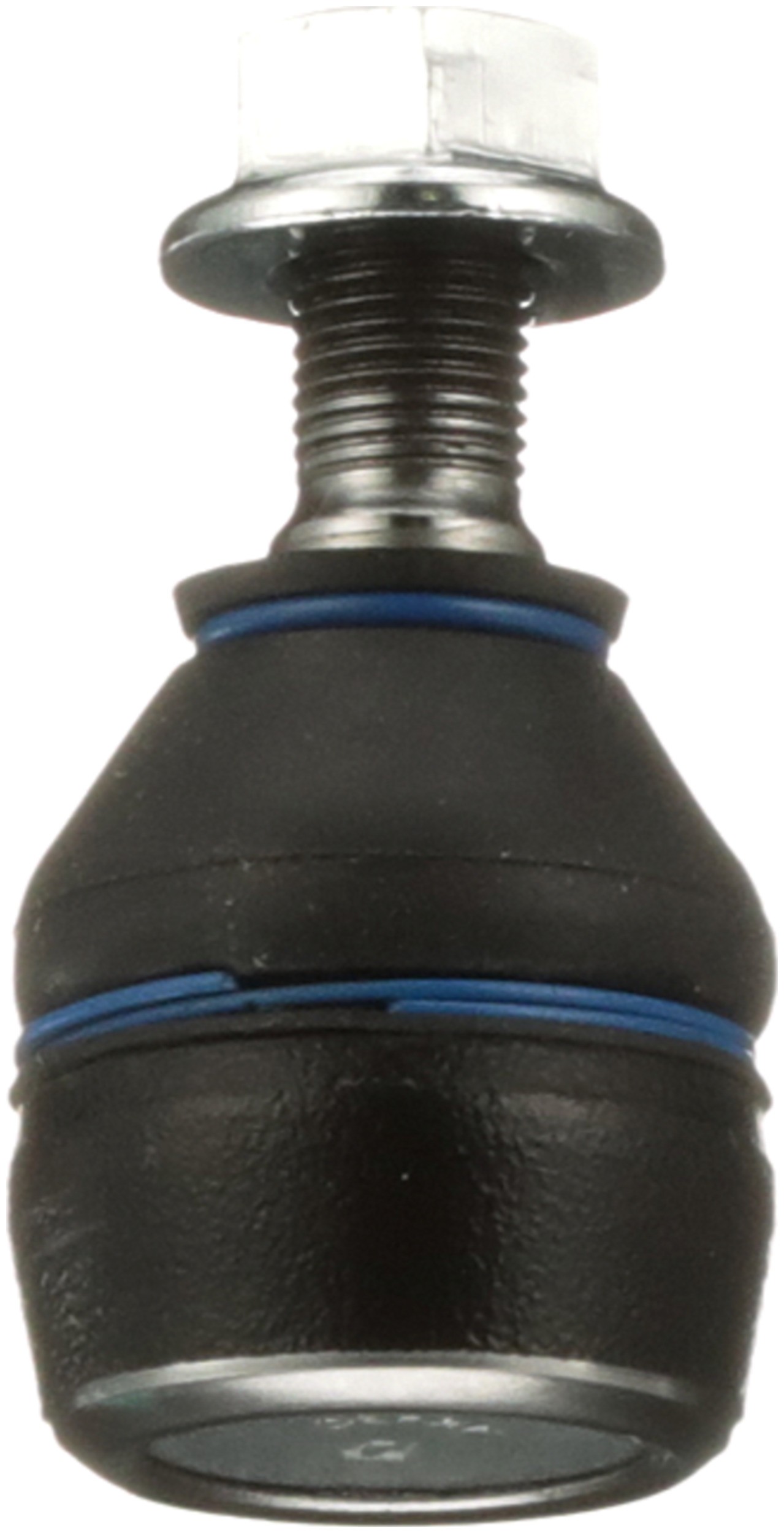

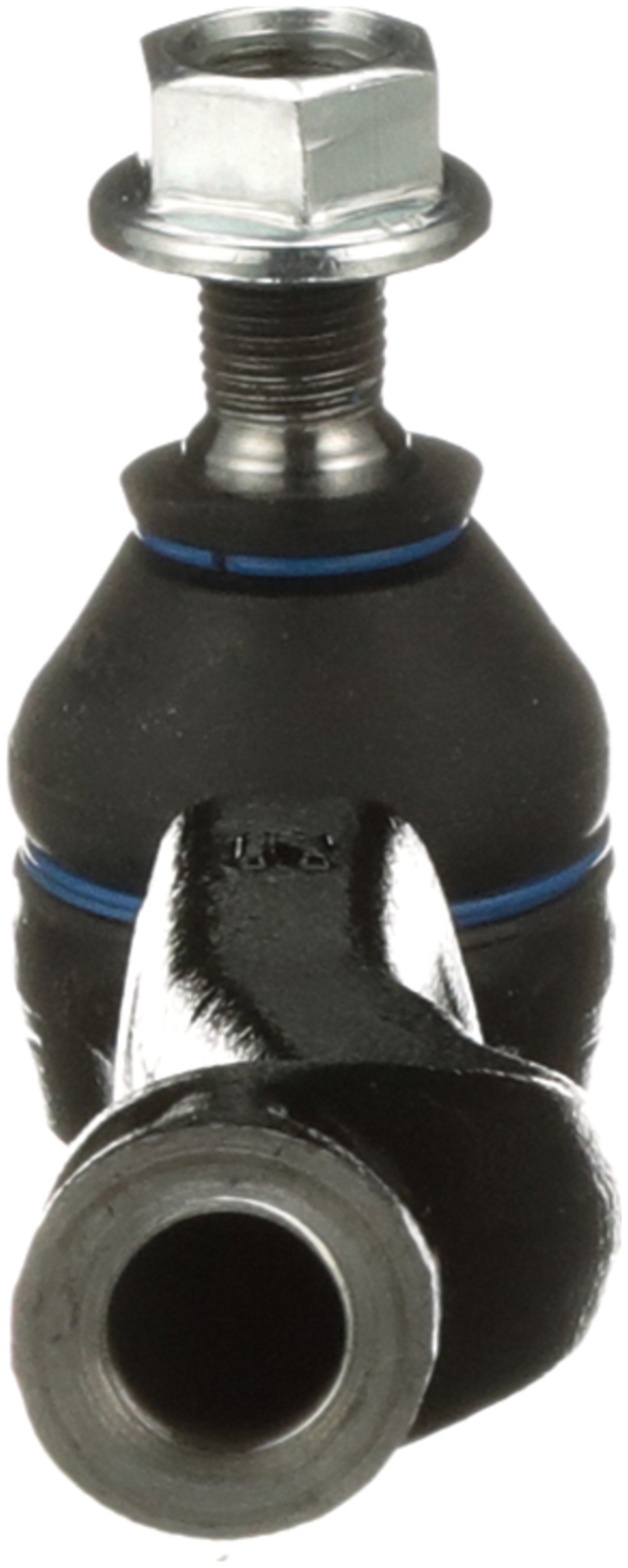

Delphi TA6359 Steering Tie Rod End

Delphi TA6359 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
9091	Steel
Color	Black
9090	Rubber
881	Threaded
End 1 Gender	Male
Position(s)	Left Outer
662	15.00 MM
662	0.591 IN
627	1.55 LB
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
36	18.00 MM
36	0.709 IN
1786	15.00 MM
Grease Fitting Included	No
1786	0.591 IN
Length – Stud Centre to End	253.00 MM
Length – Stud Centre to End	9.961 IN
Height	68.00 MM
Width	40 MM
Stud Length	15.00 MM
Stud Length	0.591 IN
End 2 Gender	Female
Pre-greased	Yes
Adjustable	No
Greaseable	No
Bearing Material	Plastic
