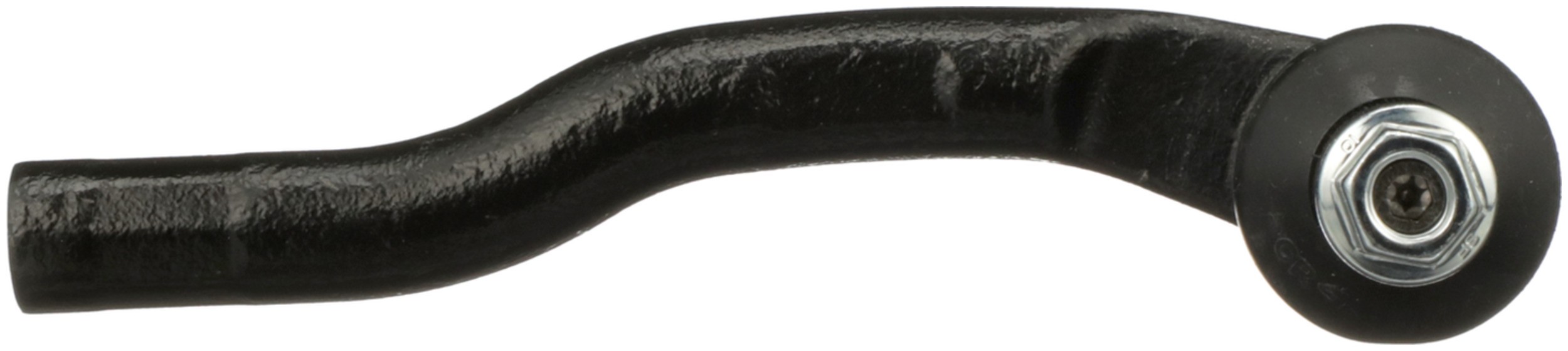

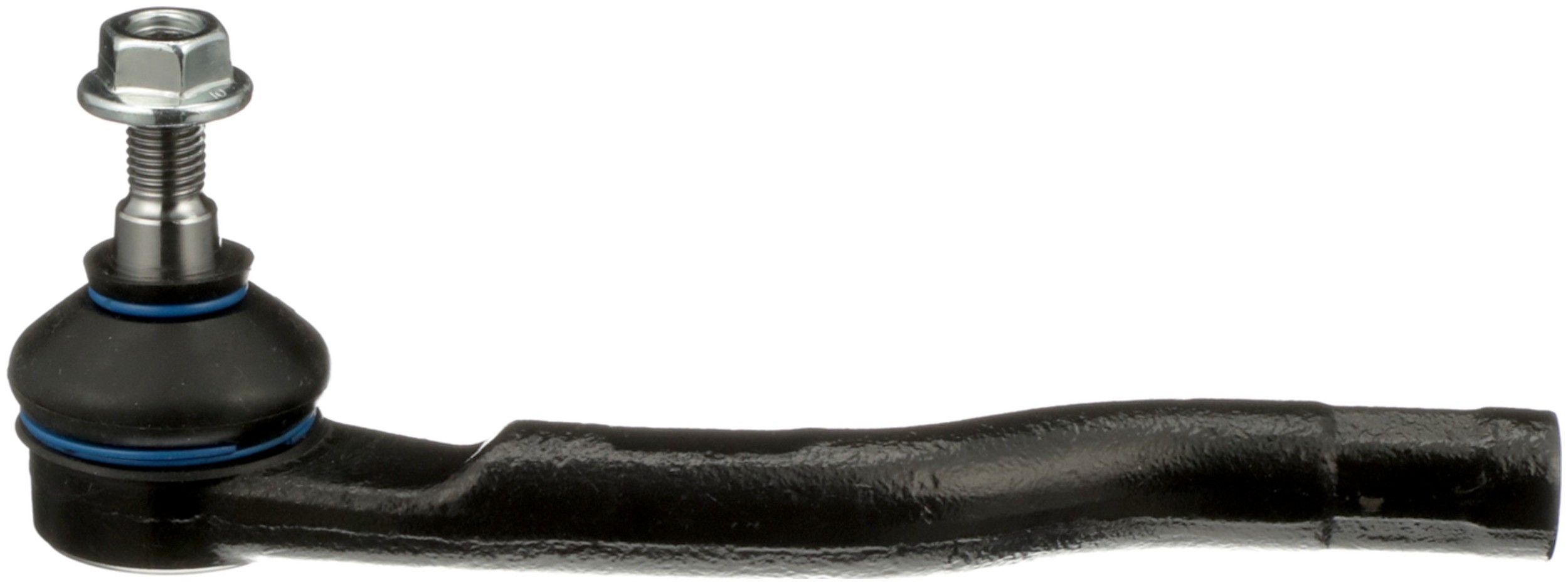

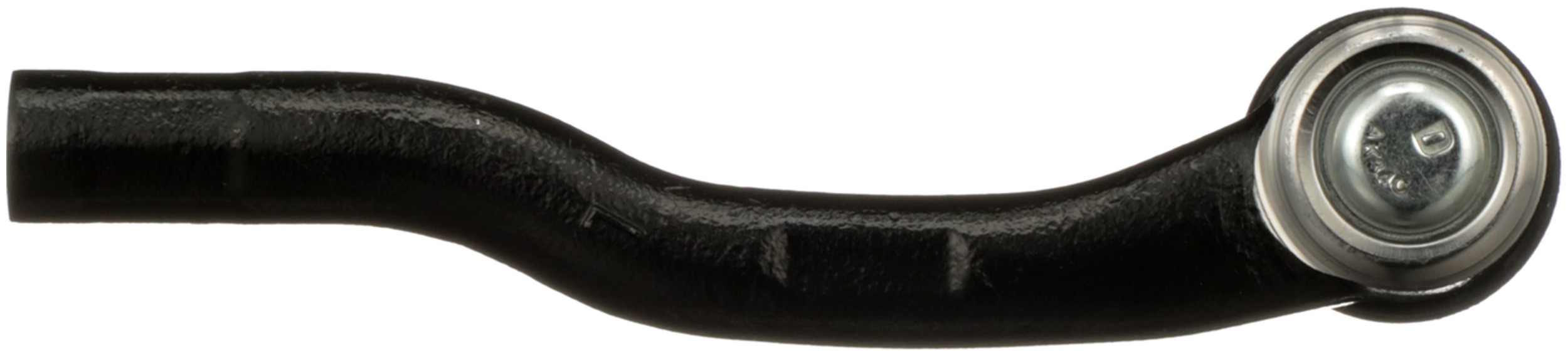

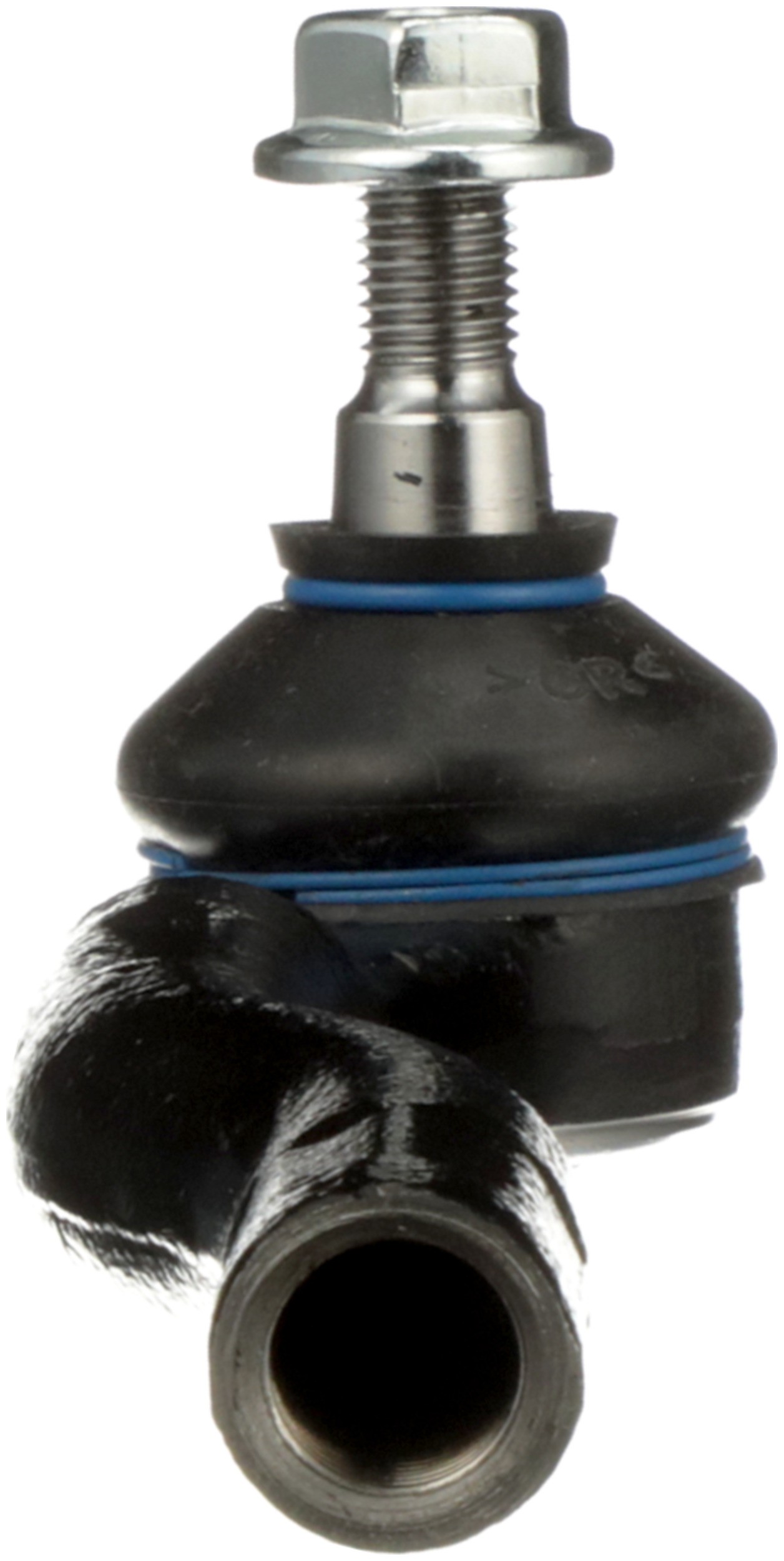

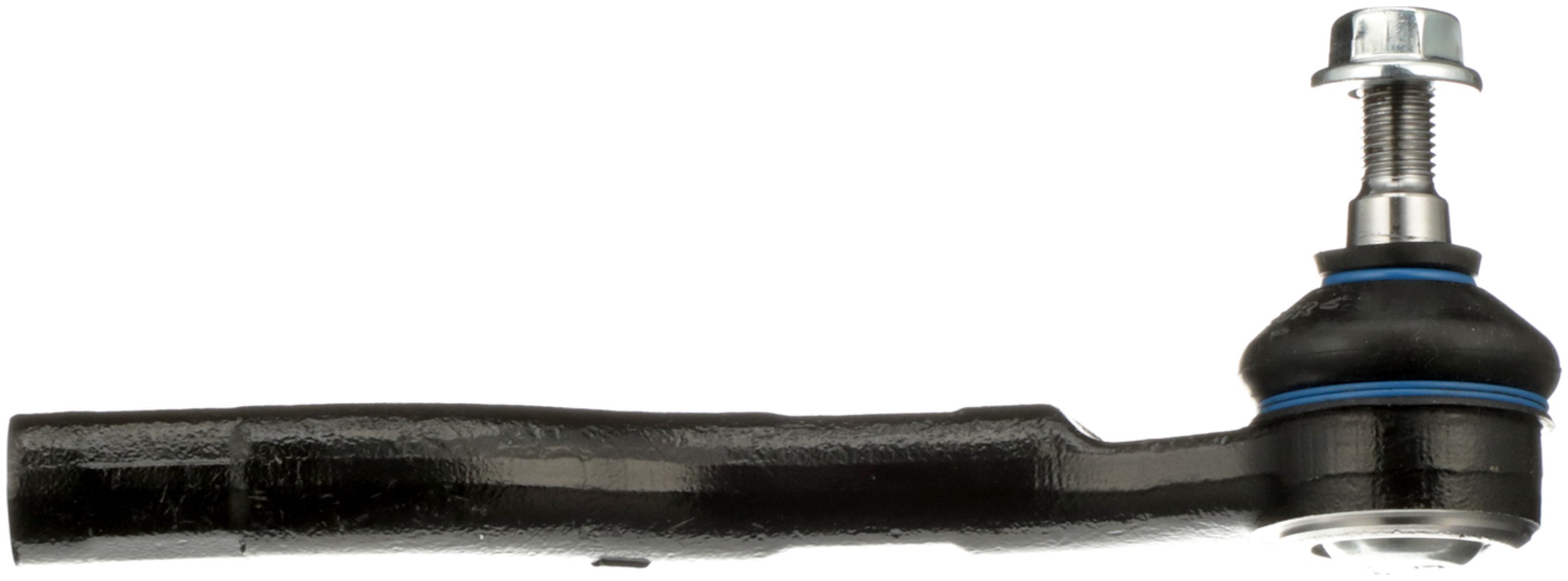

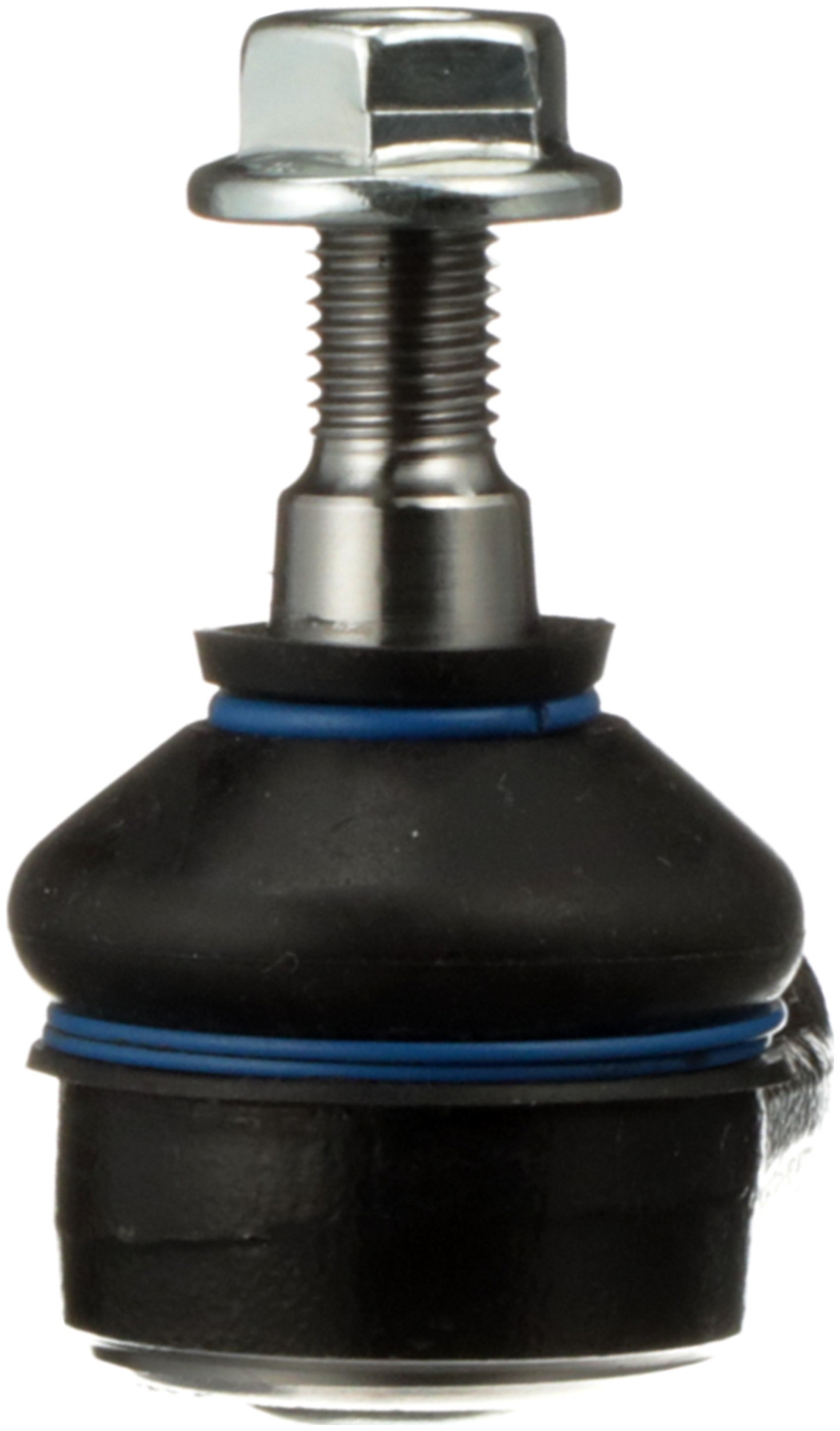

Delphi TA6380 Steering Tie Rod End

Delphi TA6380 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

881	Threaded
Boot Colour	Black
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
1786	0.500 IN
1786	12.70 MM
9091	Steel
9090	Rubber
Greaseable	No
Position(s)	Left Outer
627	1.21 LB
662	0.500 IN
662	12.70 MM
Length – Stud Centre to End	169.50 MM
Length – Stud Centre to End	6.673 IN
Height	66.00 MM
Width	42 MM
Stud Length	12.70 MM
Stud Length	0.500 IN
Length	187.00 MM
End 1 Gender	Female
Color	Black
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
