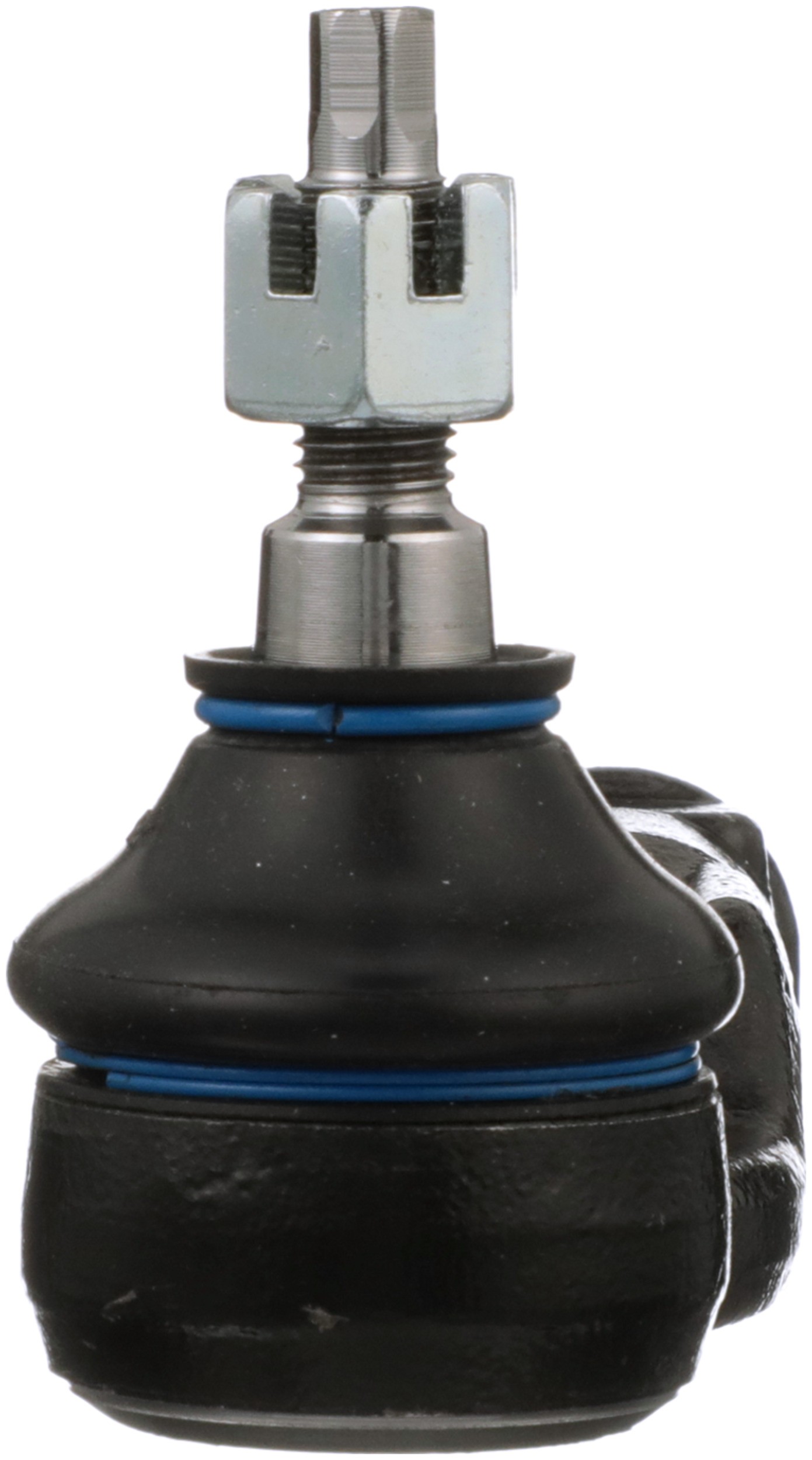

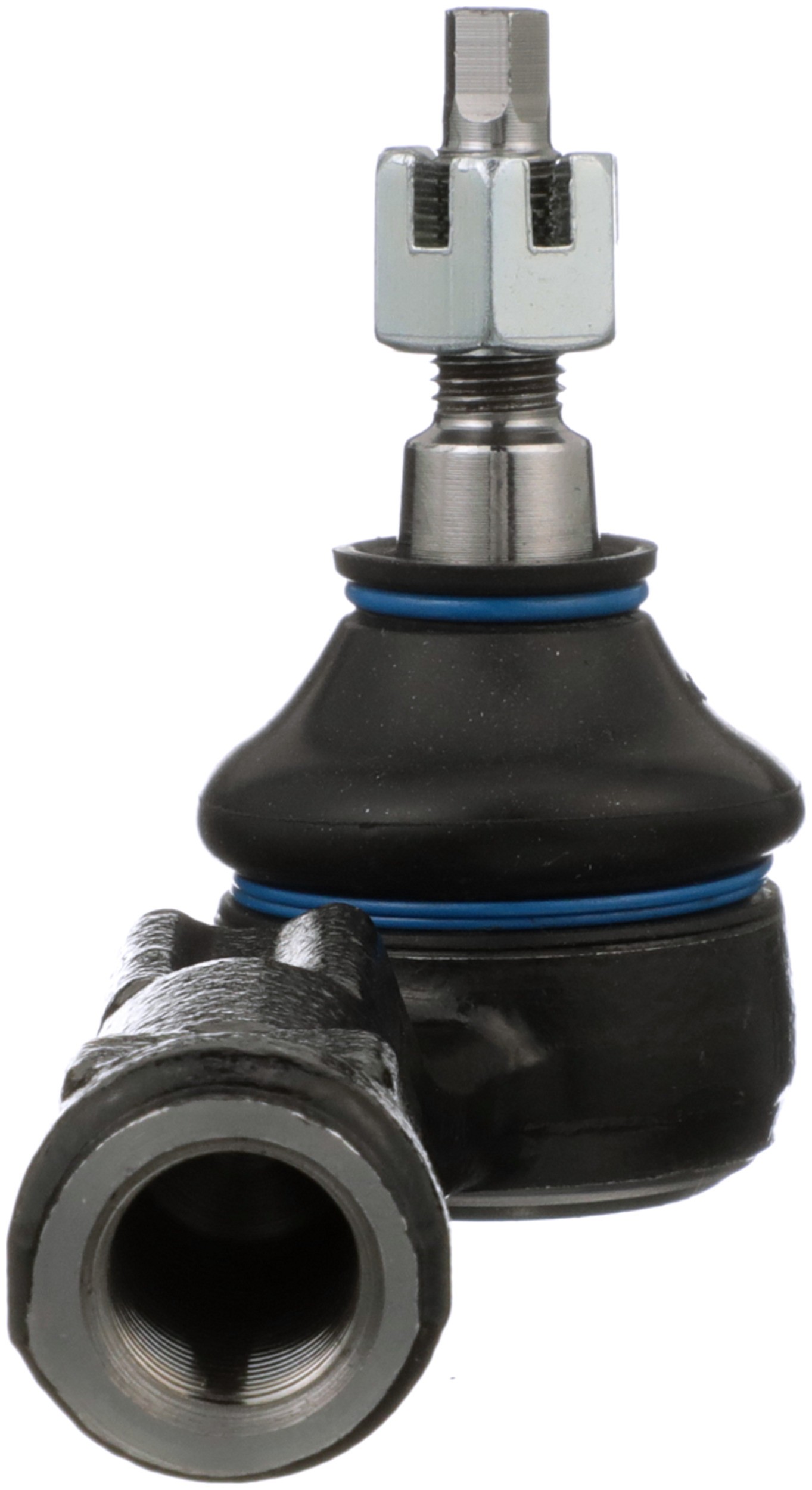

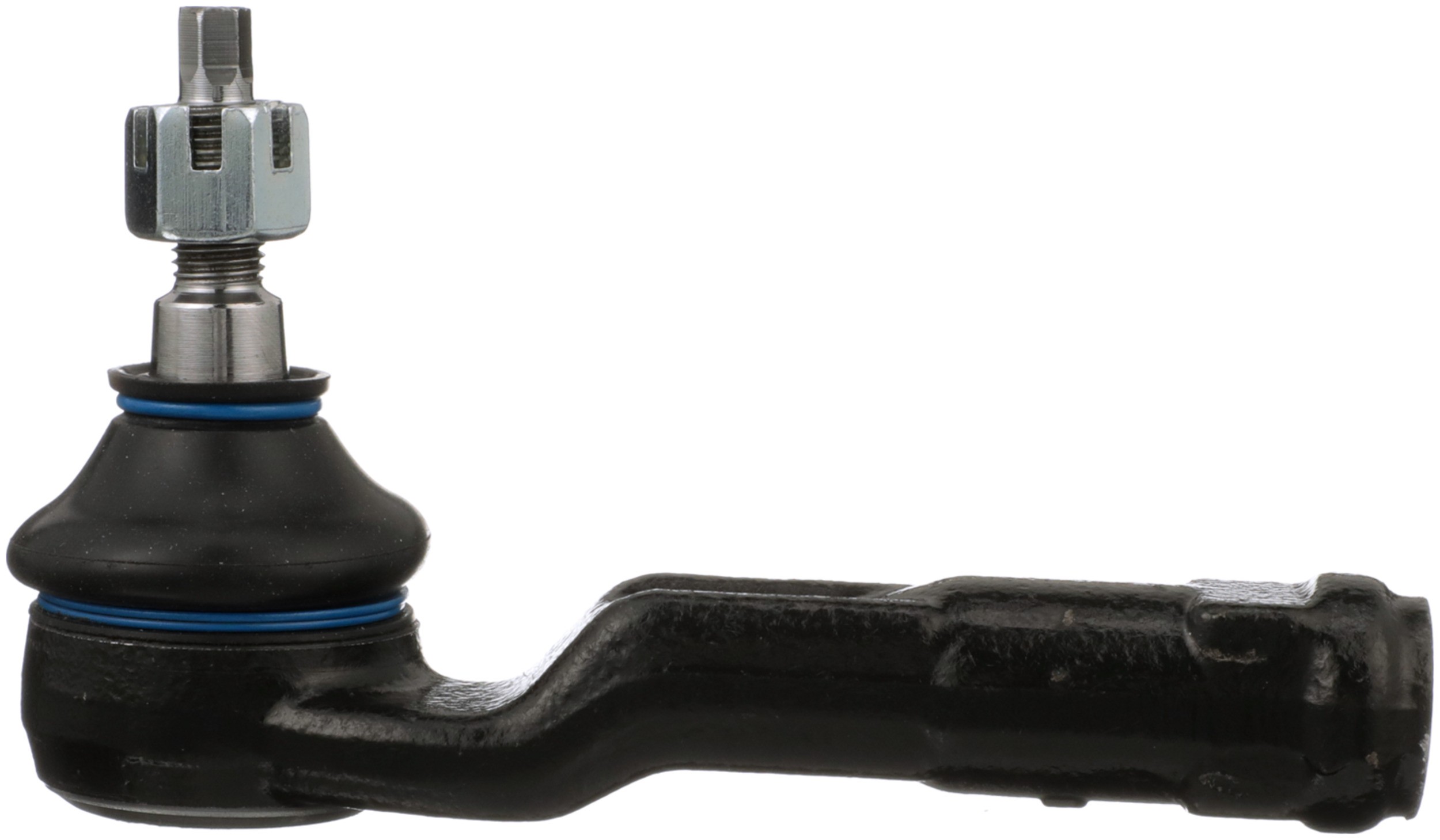

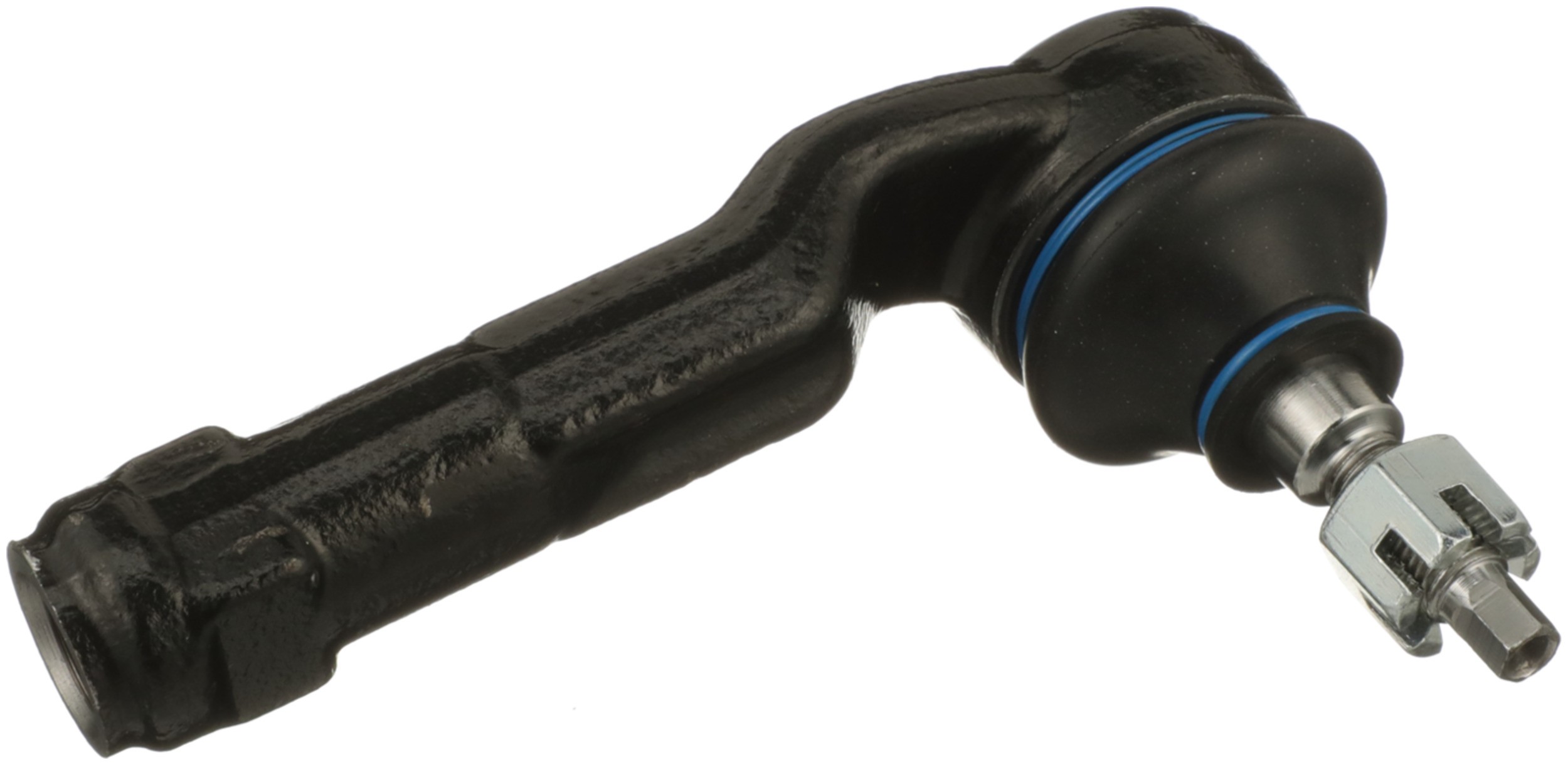

Delphi TA6422 Steering Tie Rod End

Delphi TA6422 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Stud Length	15.00 MM
Width	36 MM
Height	45.55 MM
Length – Stud Centre to End	4.744 IN
Length – Stud Centre to End	120.50 MM
End 1 Gender	Male
End 2 Thread Direction	Clockwise (Right)
Head Drive Type	Hex
662	15.00 MM
662	0.591 IN
36	26.50 MM
36	1.040 IN
1786	15.00 MM
1786	0.591 IN
Grade Type	Standard Replacement
Color	Black
Mounting Hardware Included	Yes
Type	Straight
Grease Fitting Included	No
Pre-greased	Yes
Position(s)	Right Outer
4241	Yes
881	Threaded
9091	Steel
Finish	Painted
End 2 Gender	Female
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Adjustable	No
End 1 Thread Direction	Clockwise (Right)
Housing Material	Steel
Length	358.00 MM
Stud Length	0.591 IN
