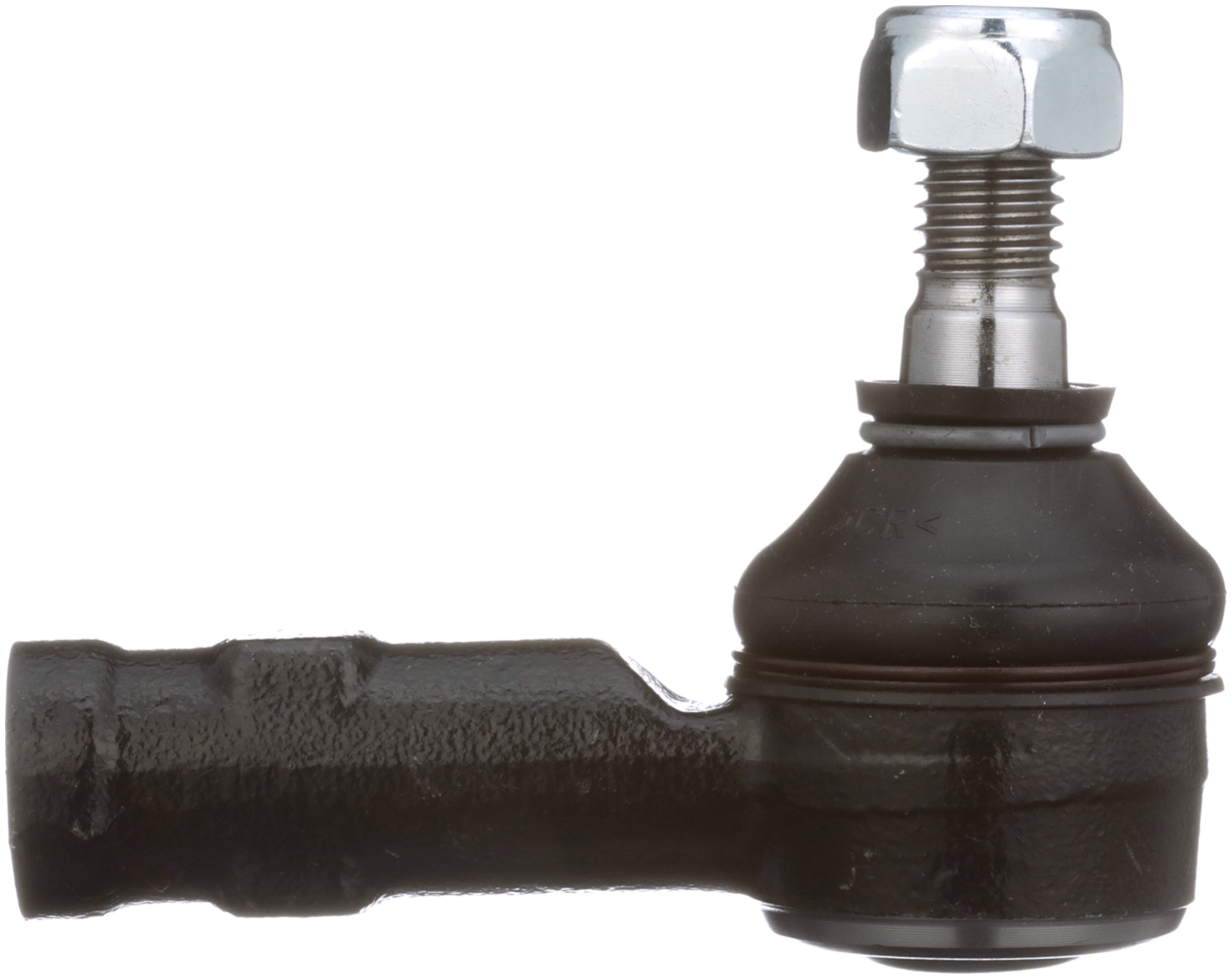

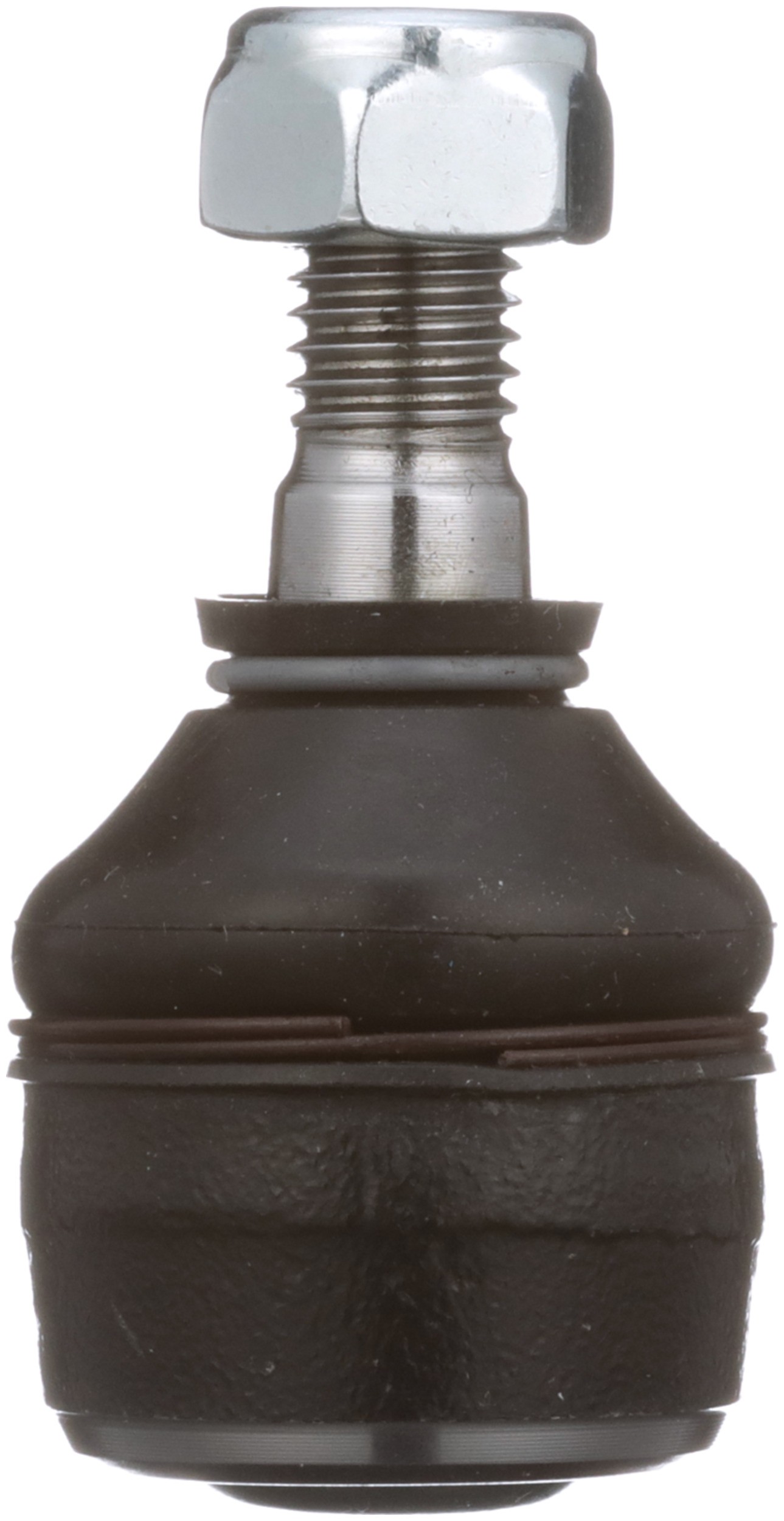

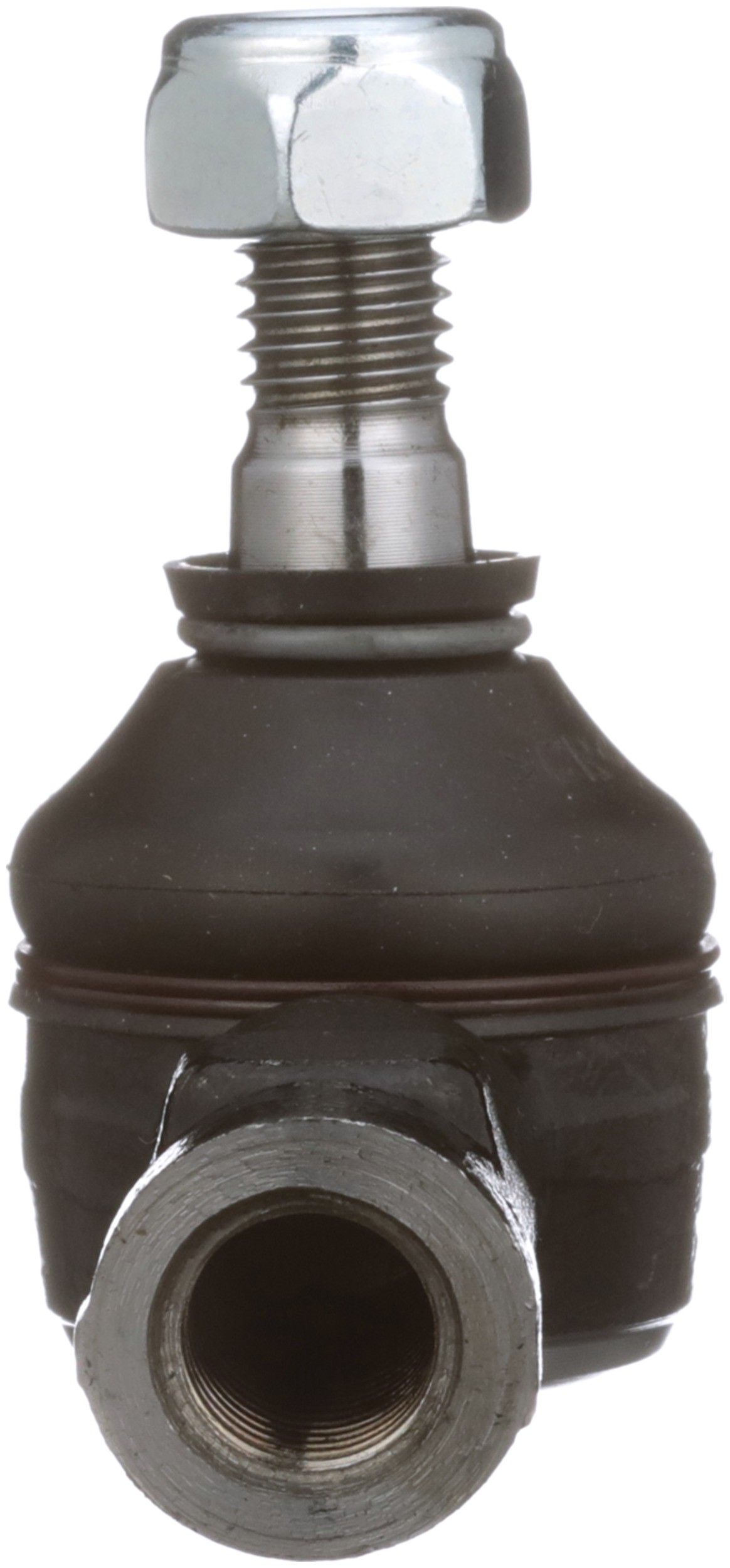

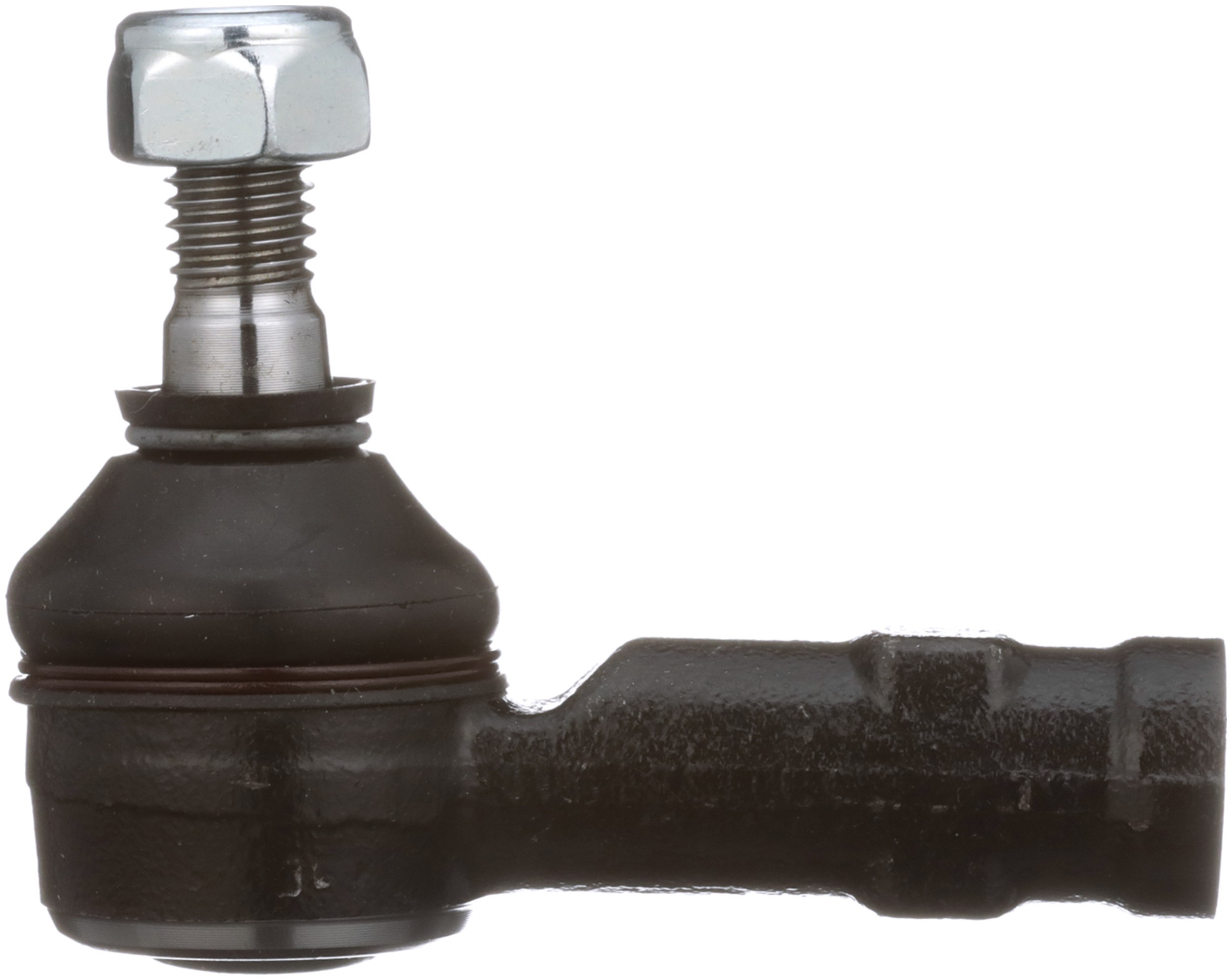

Delphi TA769 Steering Tie Rod End

Delphi TA769 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
Stud Length	14.40 MM
Stud Length	0.567 IN
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
36	0.787 IN
1786	14.40 MM
1786	0.567 IN
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Greaseable	No
Bearing Material	Plastic
Adjustable	No
Housing Material	Steel
Width	37 MM
662	14.40 MM
662	0.567 IN
627	0.79 LB
36	20.00 MM
Length – Stud Centre to End	74.00 MM
Length – Stud Centre to End	2.913 IN
Height	71.40 MM

Vehicle Applications:

Make	Model	Years
Volvo	240	1990 to 1993
Volvo	242	1975 to 1984
Volvo	244	1975 to 1989
Volvo	245	1975 to 1989
Volvo	262	1976 to 1981
Volvo	264	1976 to 1982
Volvo	265	1976 to 1981
Volvo	740	1985 to 1992
Volvo	760	1983 to 1990
Volvo	780	1987 to 1991
Volvo	940	1991 to 1995
Volvo	960	1992 to 1997
Volvo	S90	1997 to 1998
Volvo	V90	1997 to 1998
