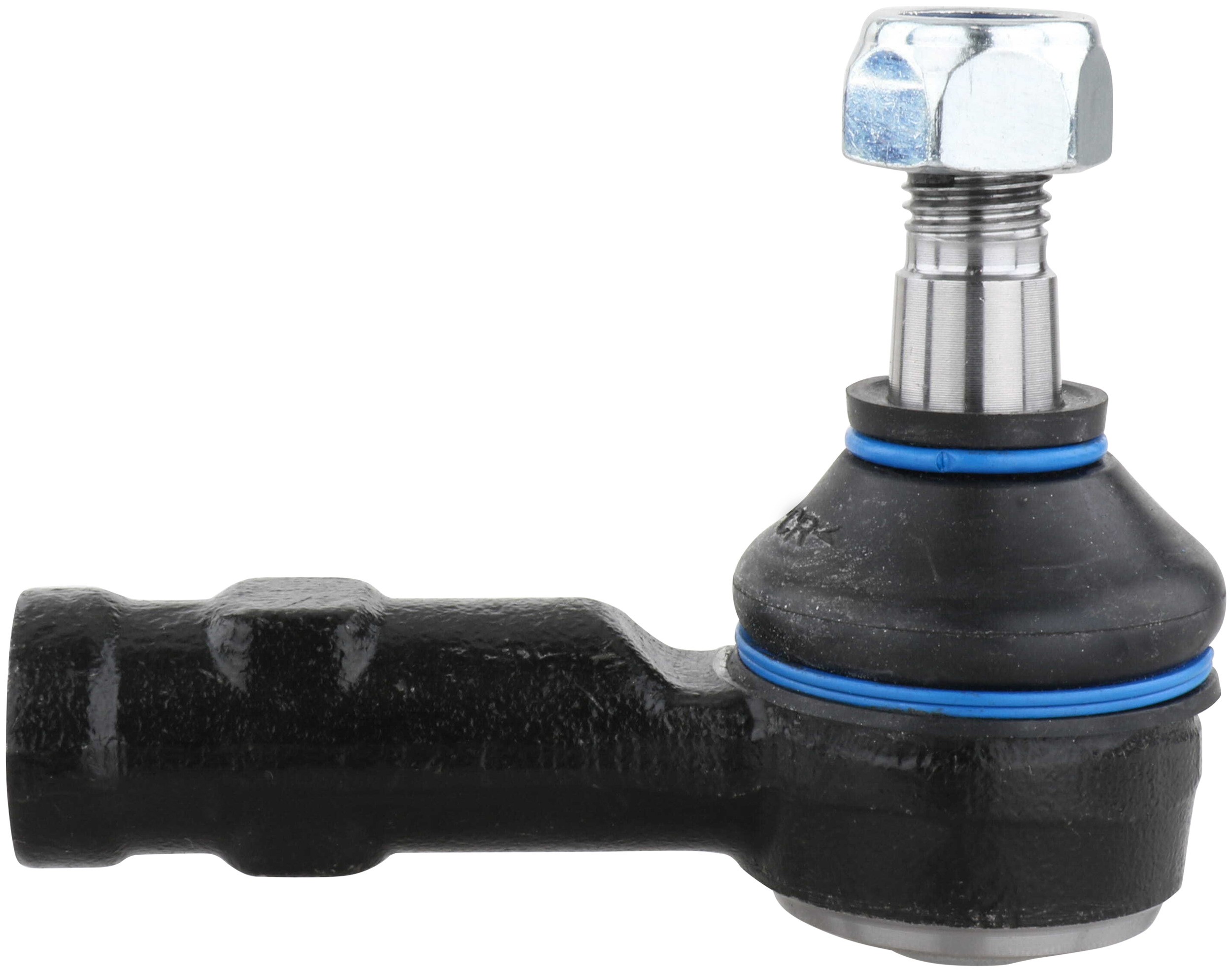

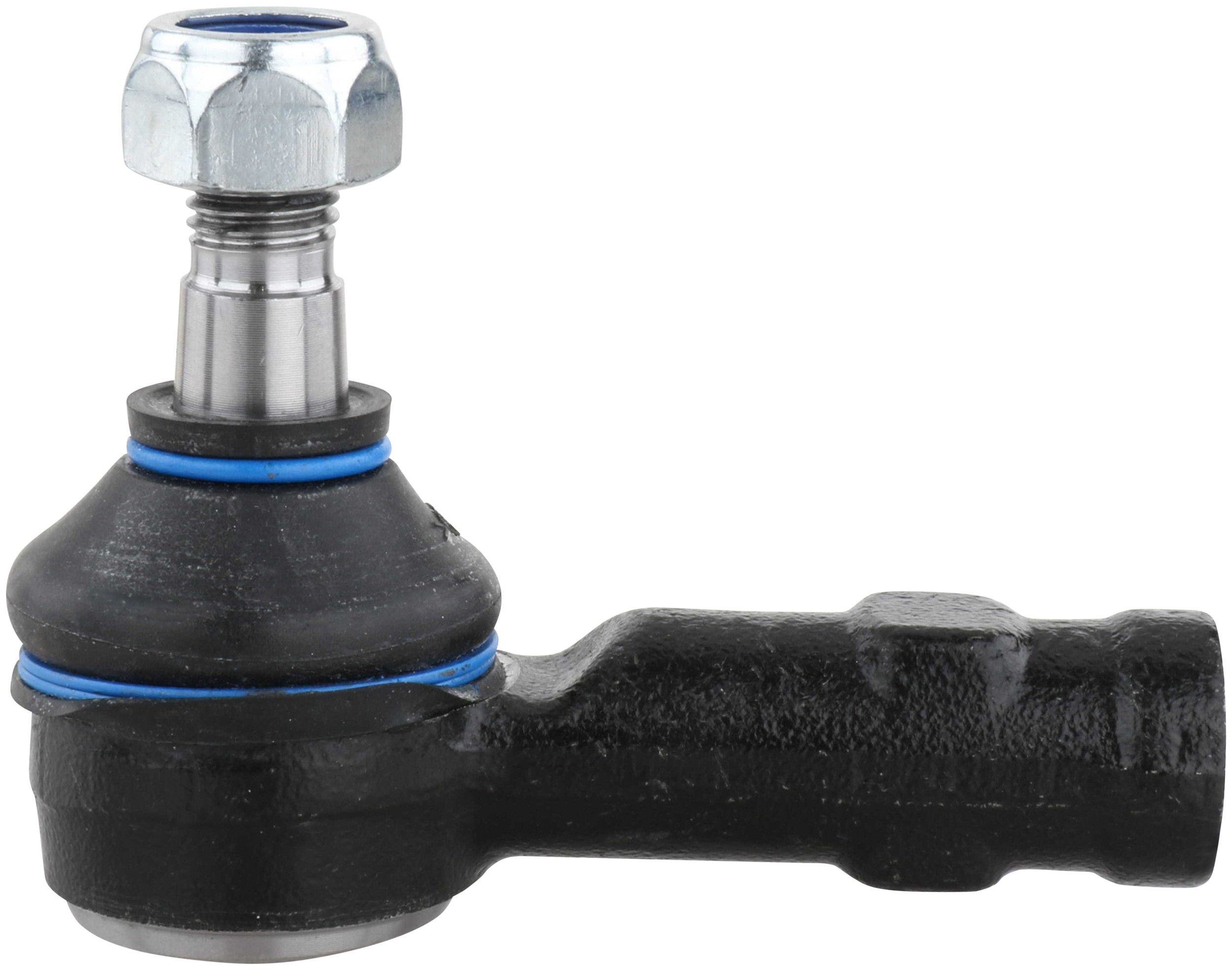

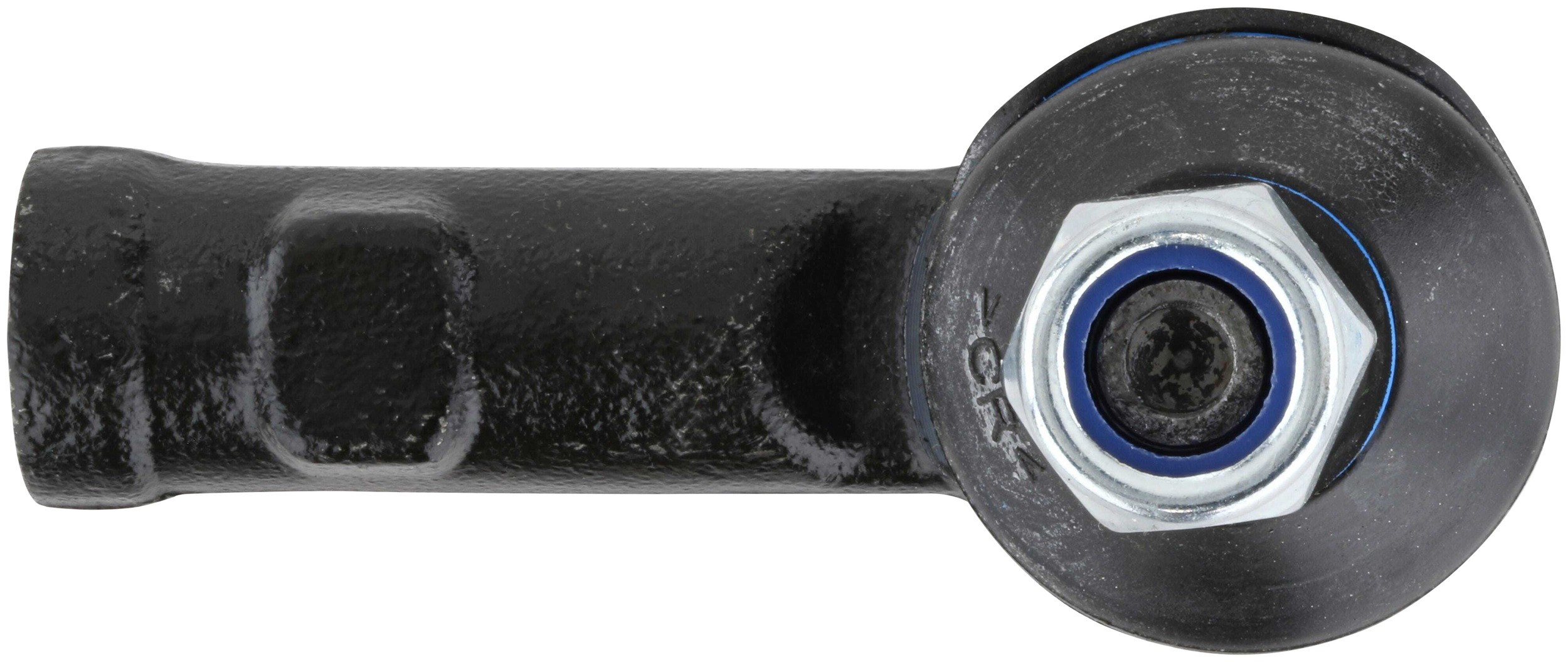

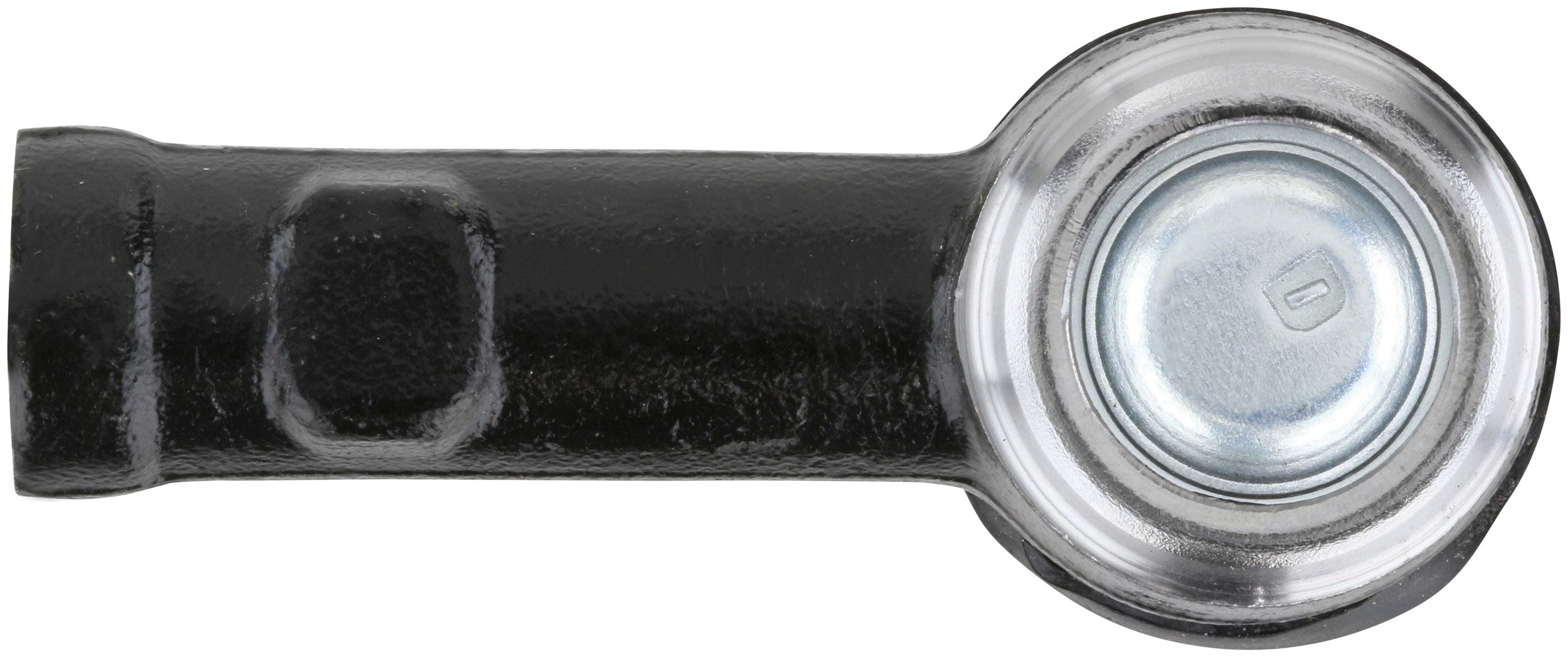

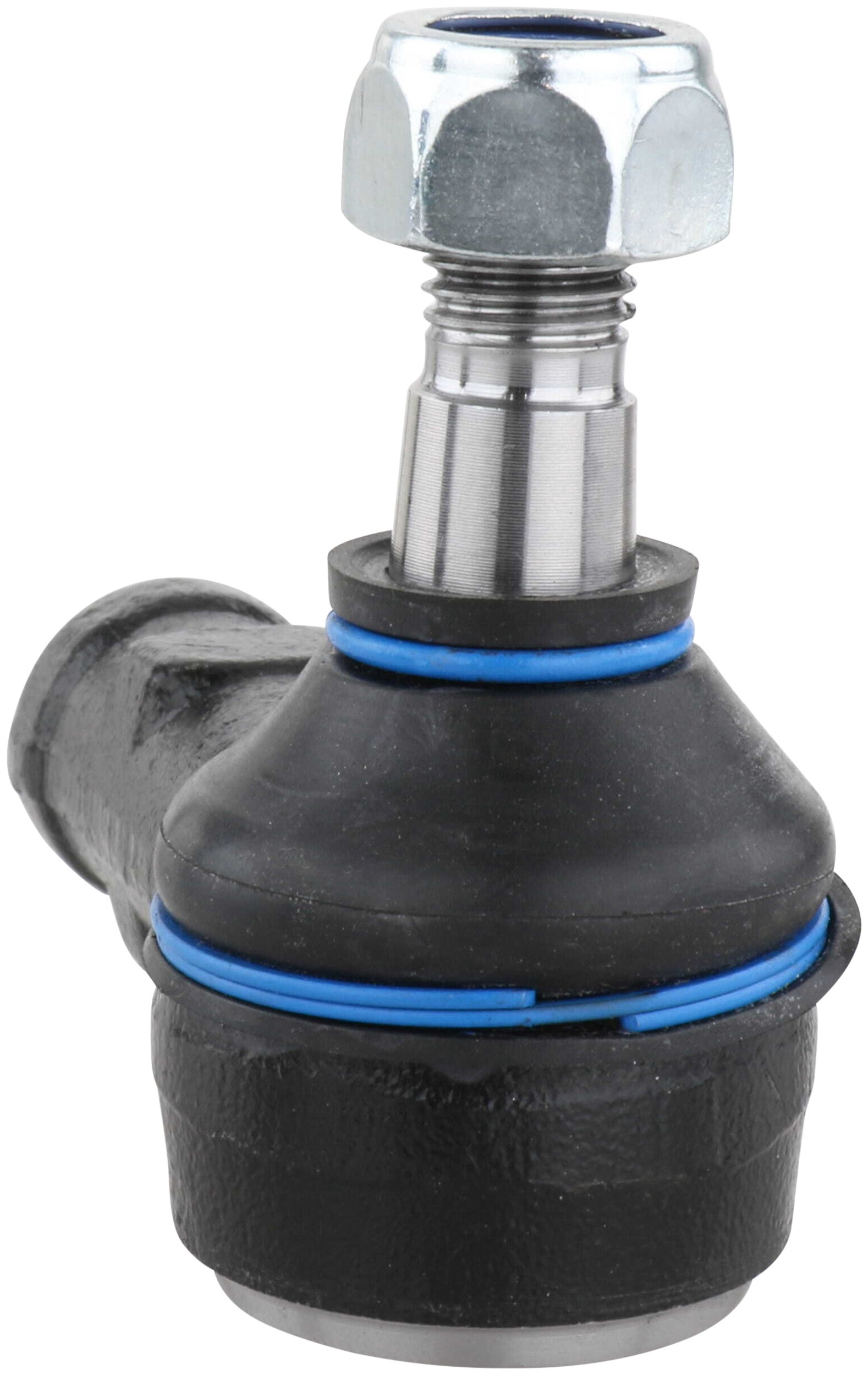

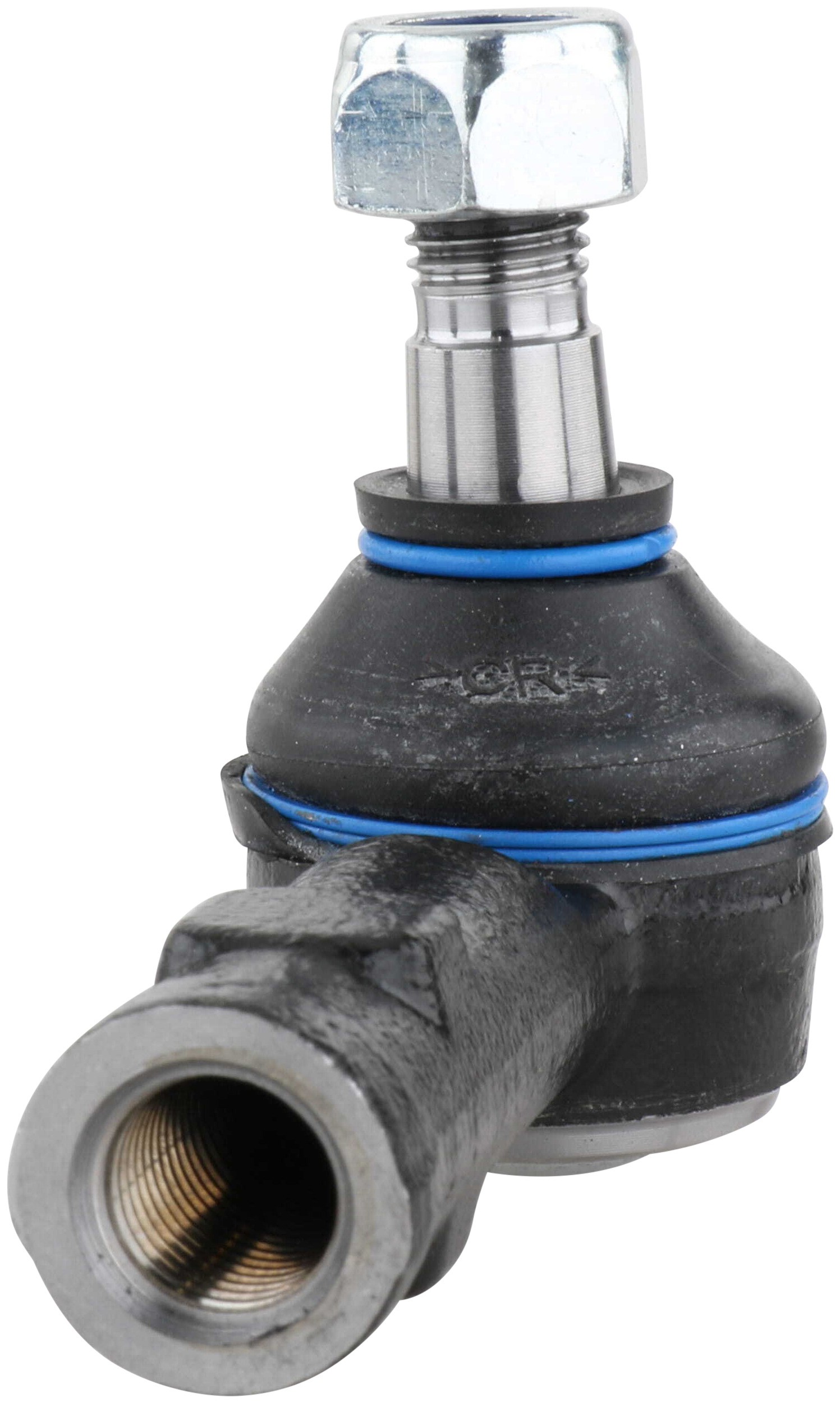

Delphi TA770 Steering Tie Rod End

Delphi TA770 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

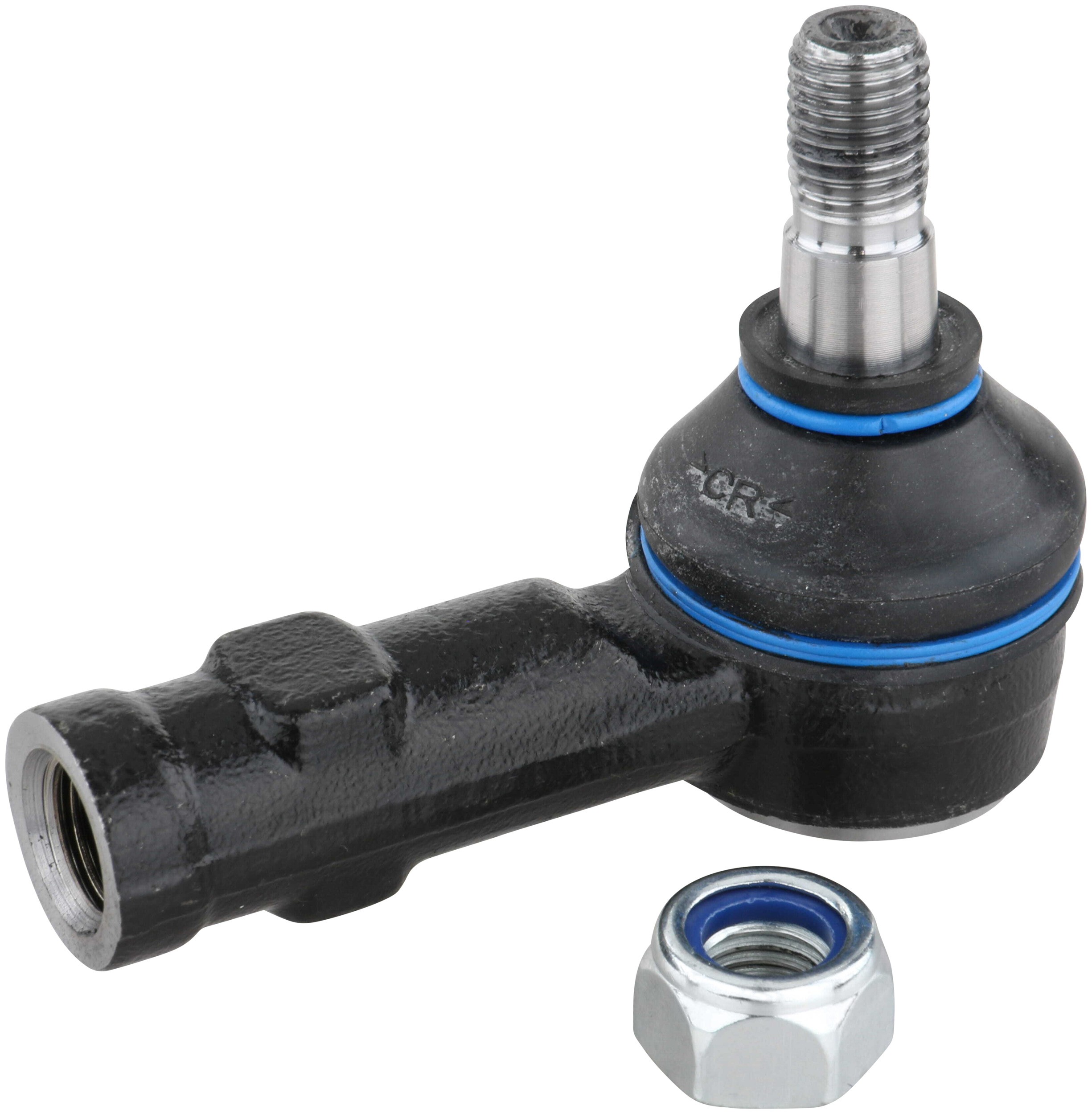

Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Stud Length	0.559 IN
Grease Fitting Included	No
Length – Stud Centre to End	74.00 MM
36	20.00 MM
Type	Straight
9090	Rubber
36	0.787 IN
1786	14.20 MM
662	14.20 MM
662	0.559 IN
627	0.78 LB
Position(s)	Outer
881	Threaded
Dust Boot Included	Yes
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Length – Stud Centre to End	2.913 IN
1786	0.559 IN
Height	71.30 MM
Color	Black
End 2 Gender	Female
Pre-greased	Yes
9091	Steel
Width	34.5 MM
Stud Length	14.20 MM

Vehicle Applications:

Make	Model	Years
Fiat	131	1975 to 1978
Fiat	Brava	1979 to 1981
Porsche	924	1977 to 1988
Porsche	944	1983 to 1987
Volkswagen	Cabriolet	1985 to 1993
Volkswagen	Jetta	1980 to 1984
Volkswagen	Passat	1995 to 1997
Volkswagen	Rabbit Convertible	1980 to 1984
Volkswagen	Rabbit Pickup	1980 to 1983
Volkswagen	Rabbit	1975 to 1984
Volkswagen	Scirocco	1975 to 1988
Volkswagen	Vanagon	1980 to 1991
