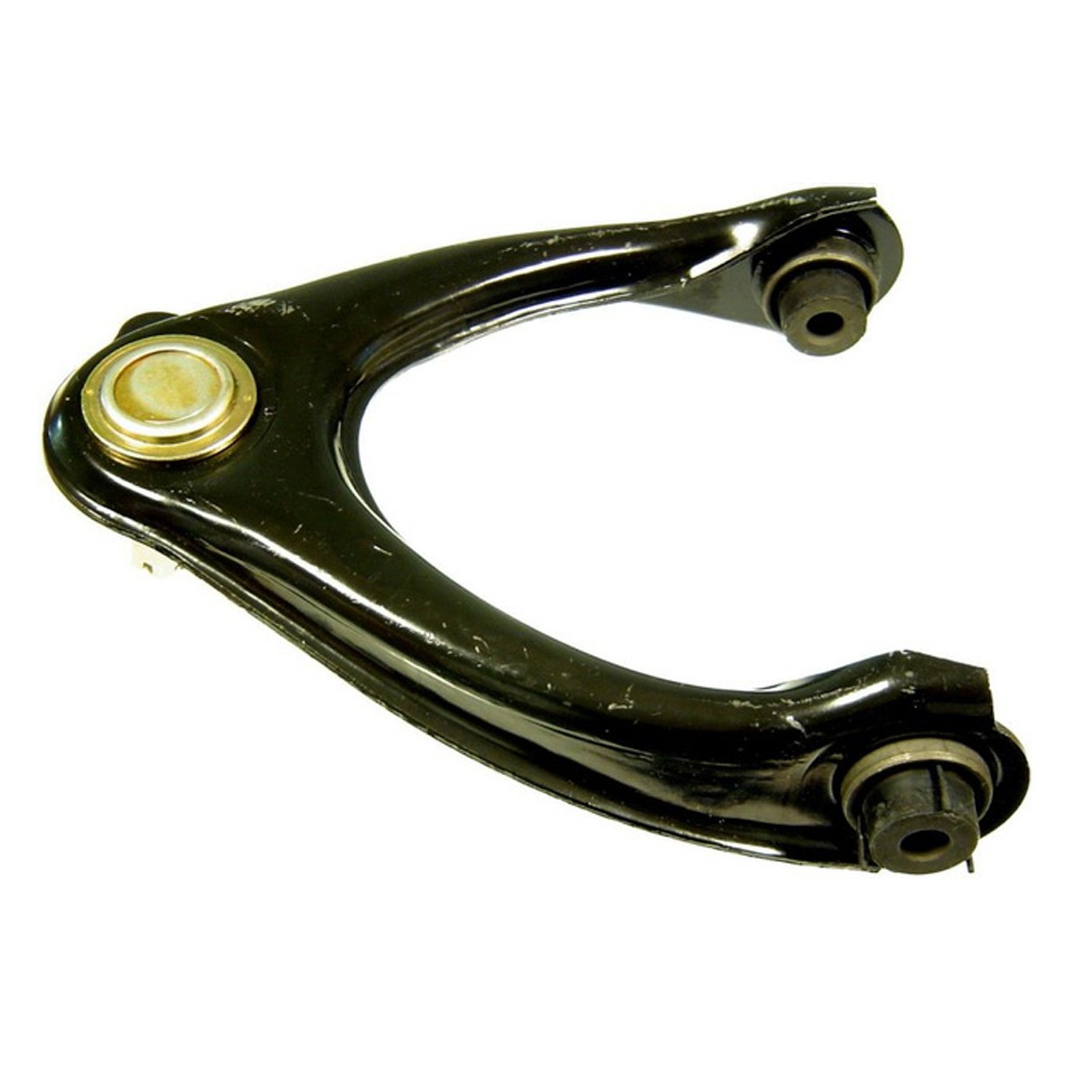

Delphi TC1074 Suspension Control Arm and Ball Joint Assembly

Delphi TC1074 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Chloroprene Rubber (CR)
Bushing Type	Rubber
4887	9.055 IN
Boot Material	Chloroprene Rubber (CR)
4887	230.00 MM
Greaseable	No
Adjustable	No
Mounting Hole Diameter	0.406 IN
Mounting Hole Diameter	10.30 MM
2384	Yes
2386	Stamped
4241	Yes
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Position(s)	Front Left Upper
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Length	9.449 IN
Length	240.00 MM
Boot Colour	Black
Finish	Black
4890	3.425 IN
4890	87.00 MM
Mounting Hole Quantity	2
6529	Power
