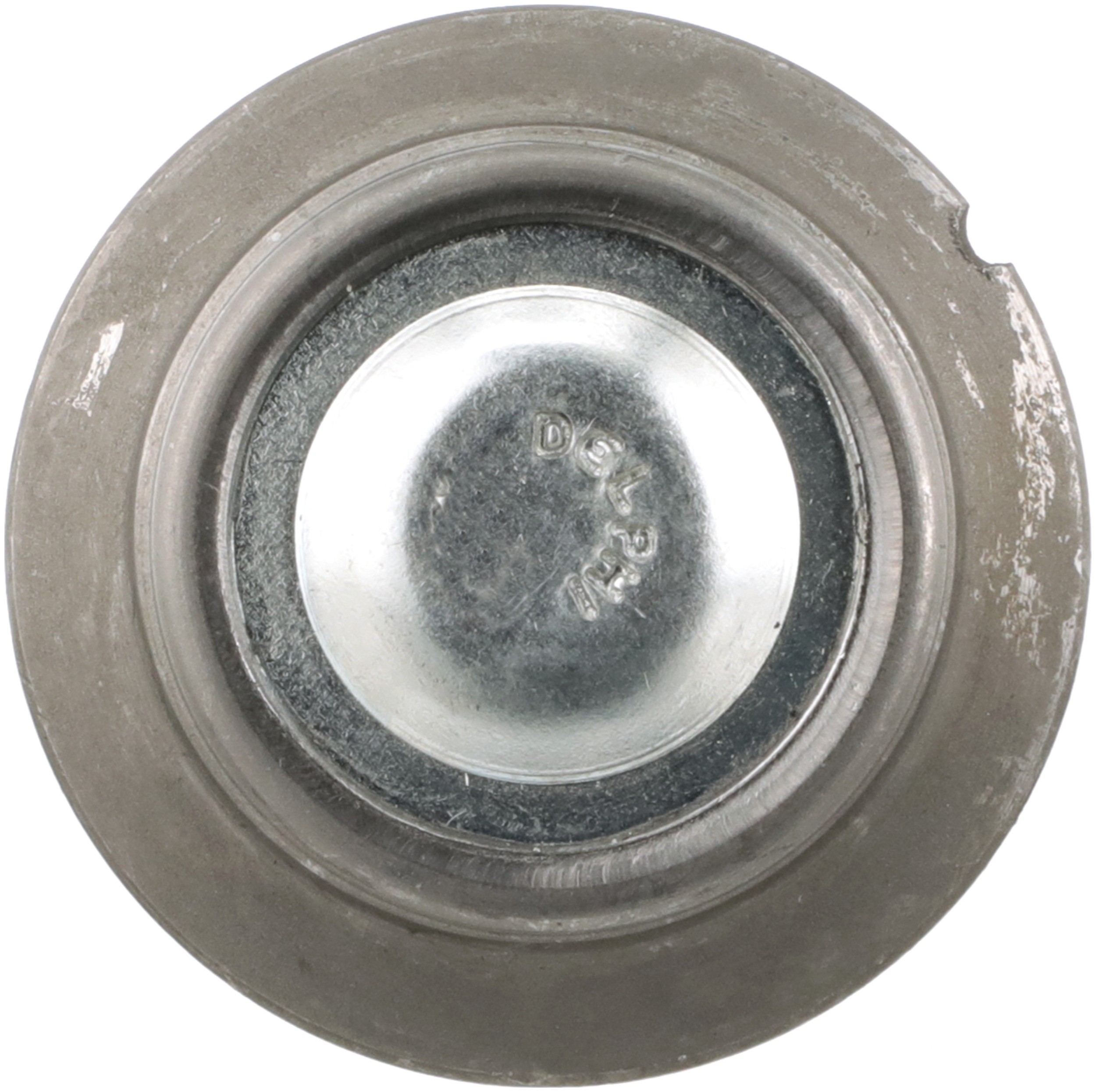

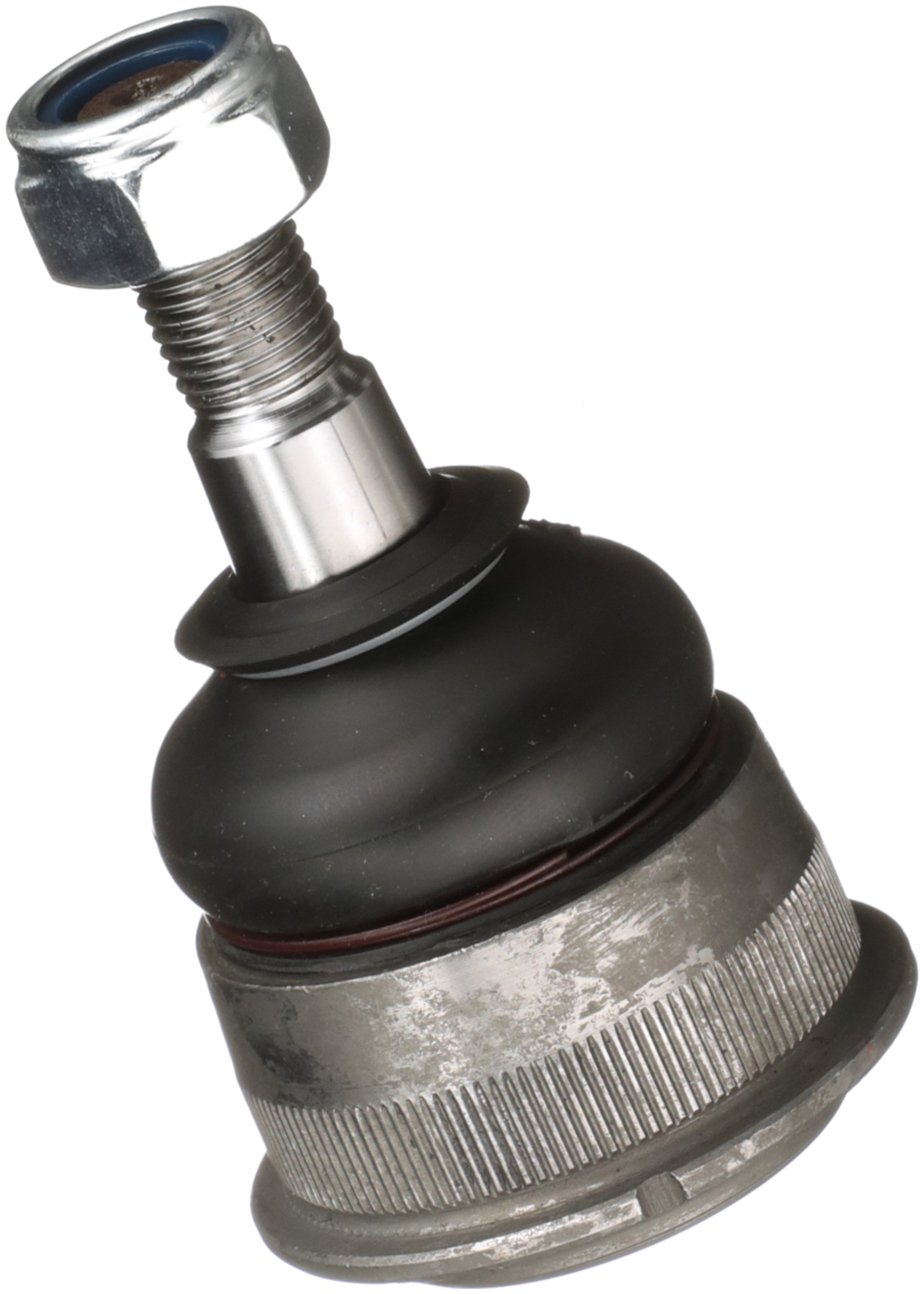

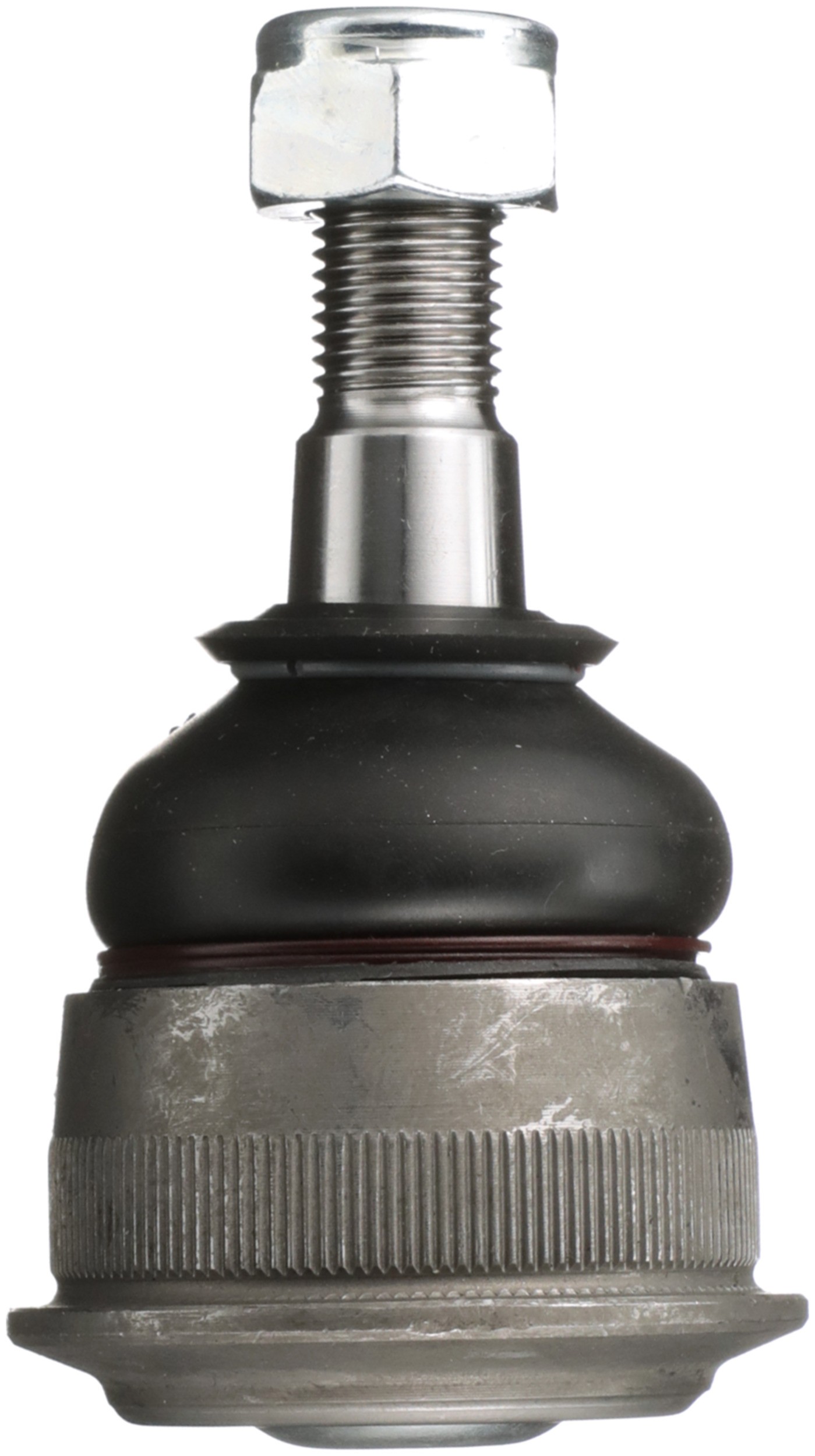

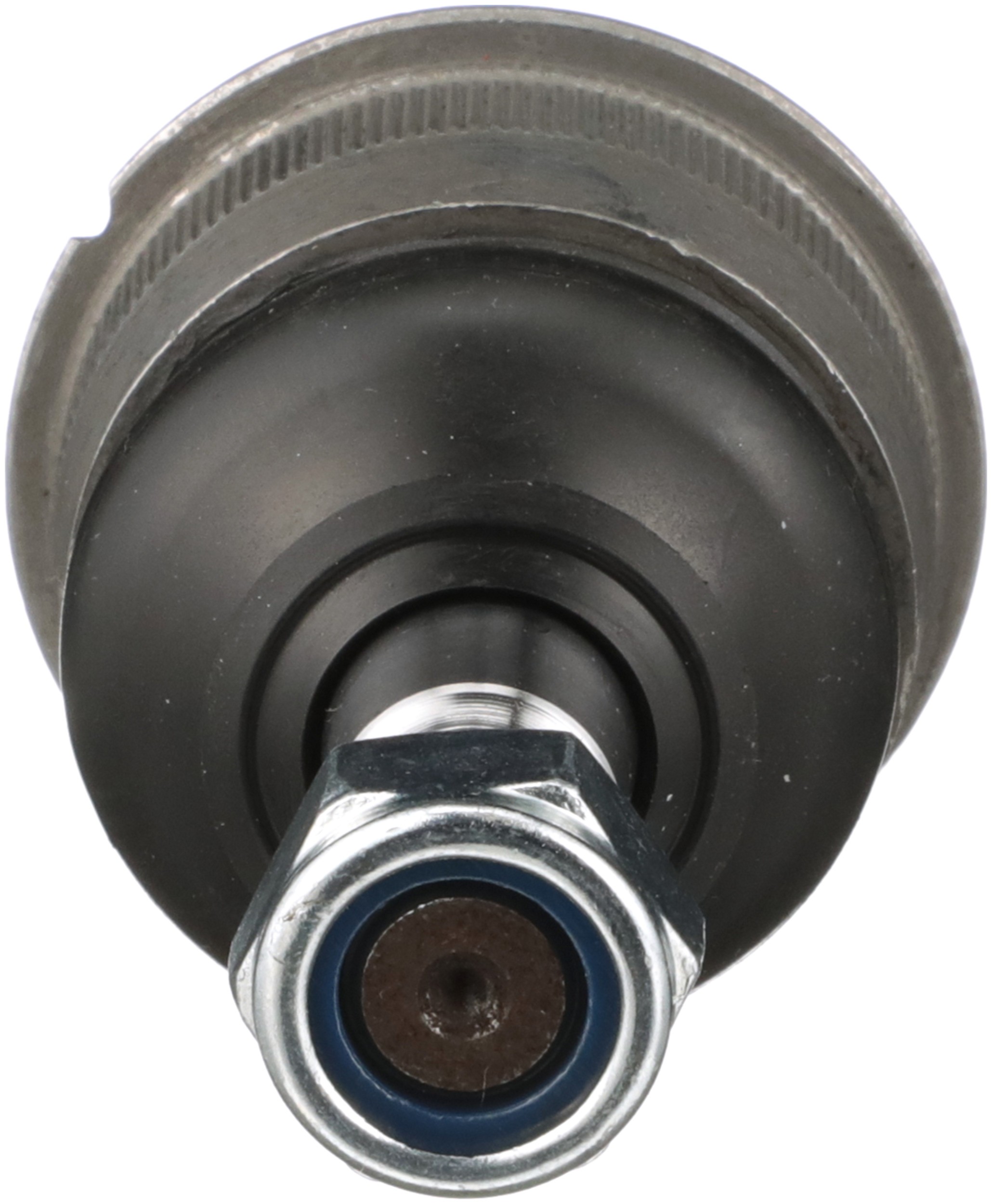

Delphi TC110 Suspension Ball Joint

Delphi TC110 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	86.00 MM
9213	16 MM
9213	0.63 IN
Position(s)	Front Lower
2334	No
2381	Yes
2827	No
881	Threaded
9090	Rubber
9209	No
9210	Yes
9212	18.15 MM
9212	0.715 IN
4966	18.1 MM
4966	0.713 IN
Maximum Outside Diameter	1.890 IN
Maximum Outside Diameter	48.00 MM
Length	48.00 MM
Length	1.890 IN
Width	48 MM
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Height	3.386 IN
