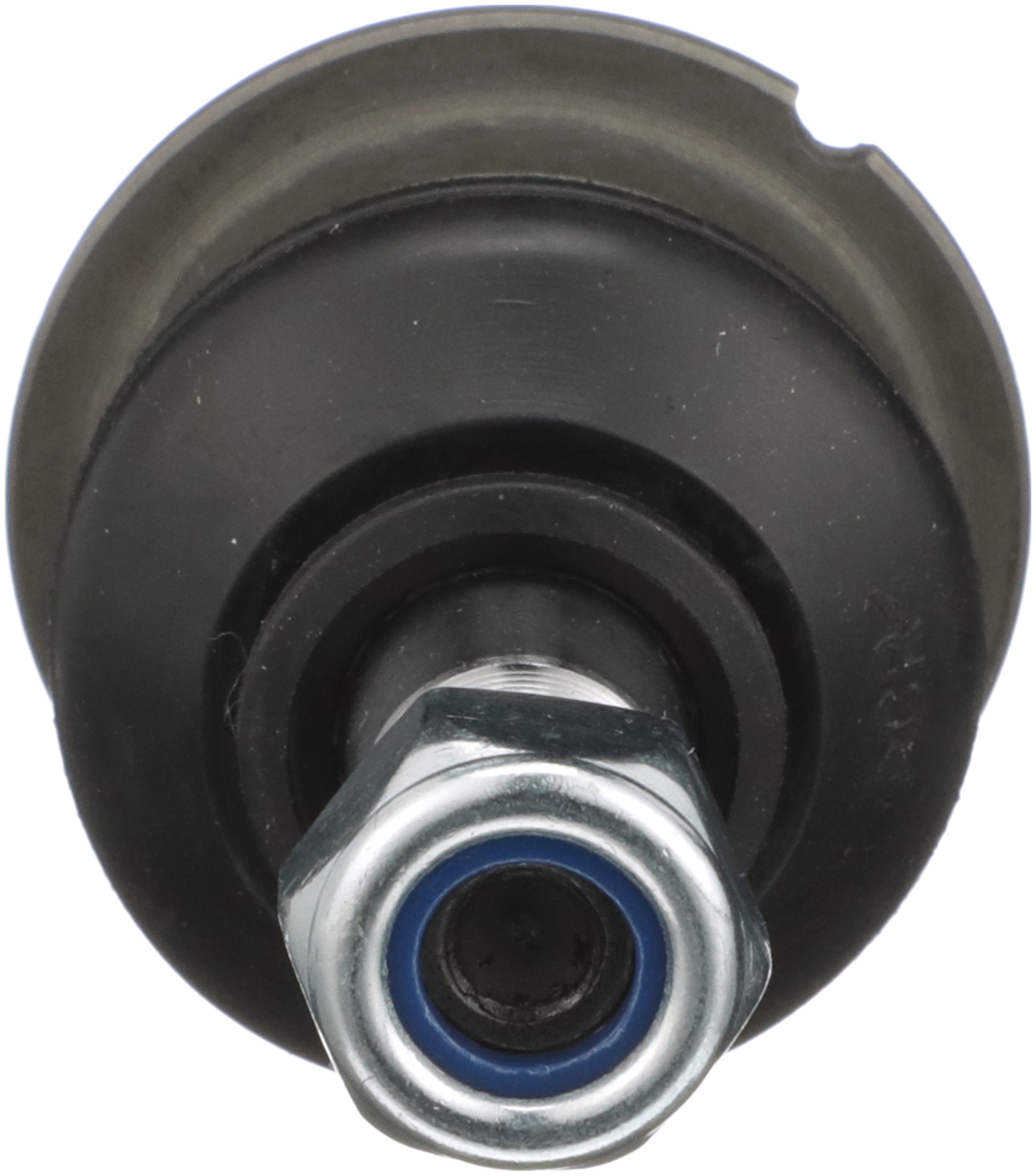

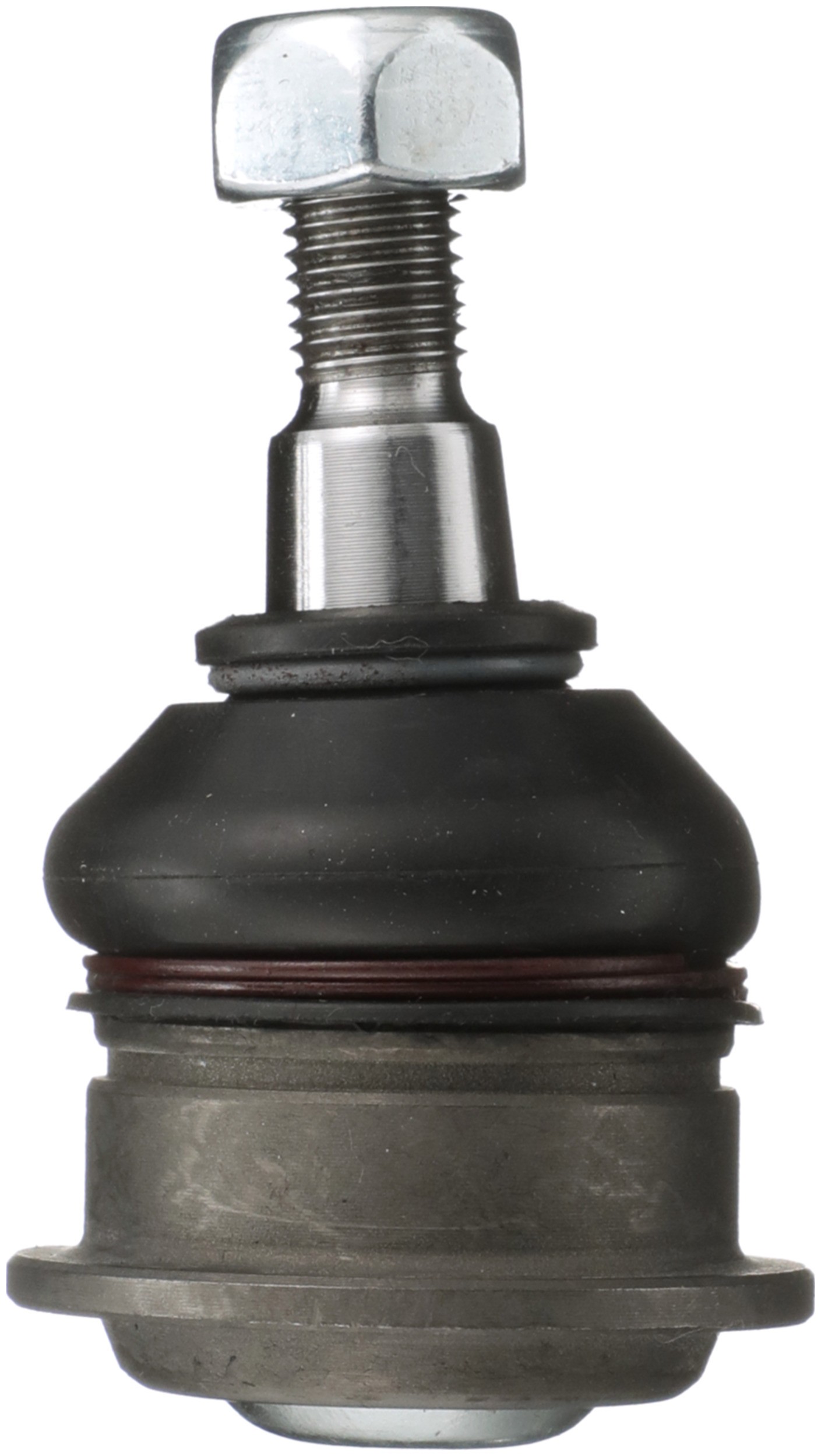

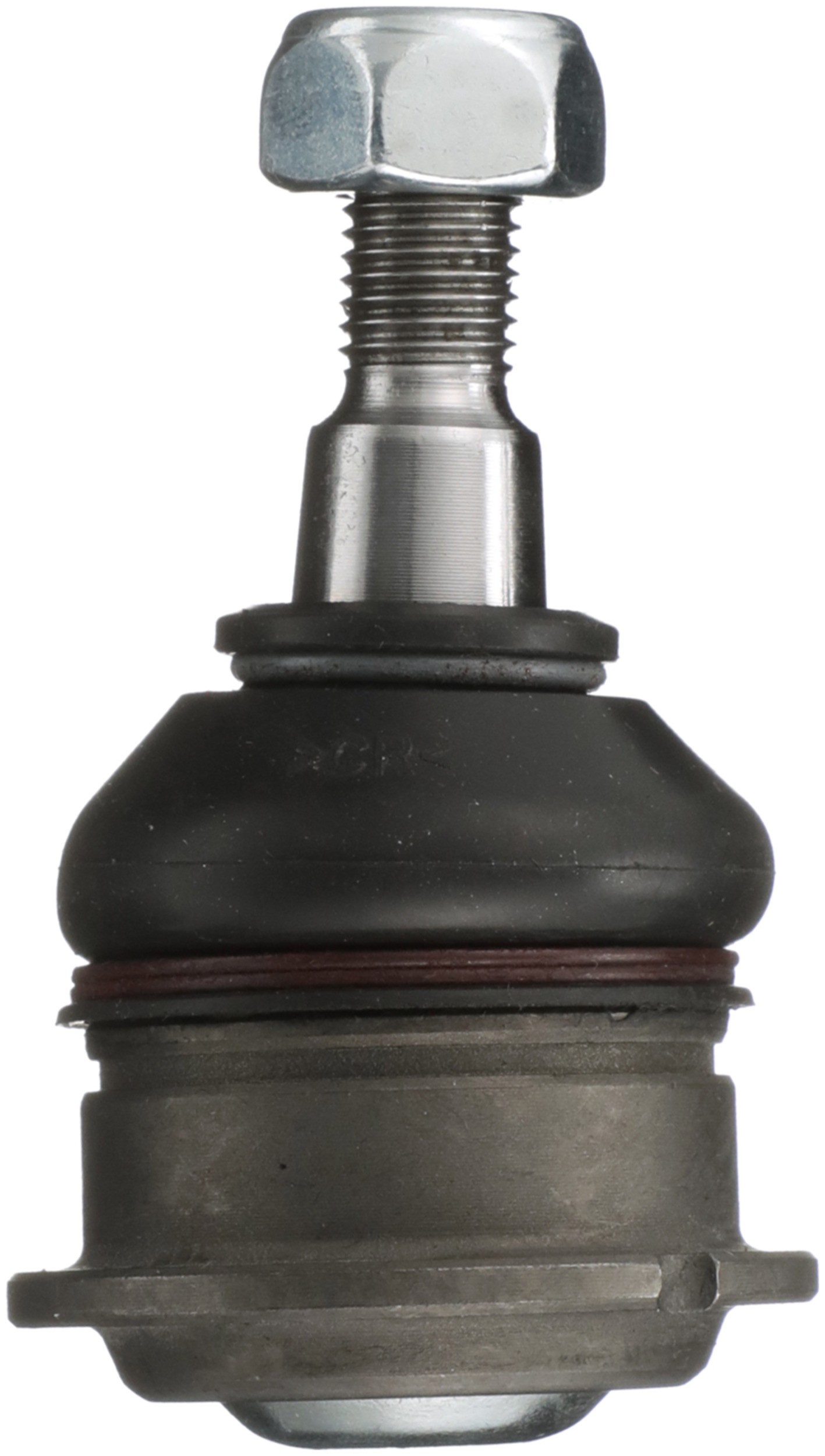

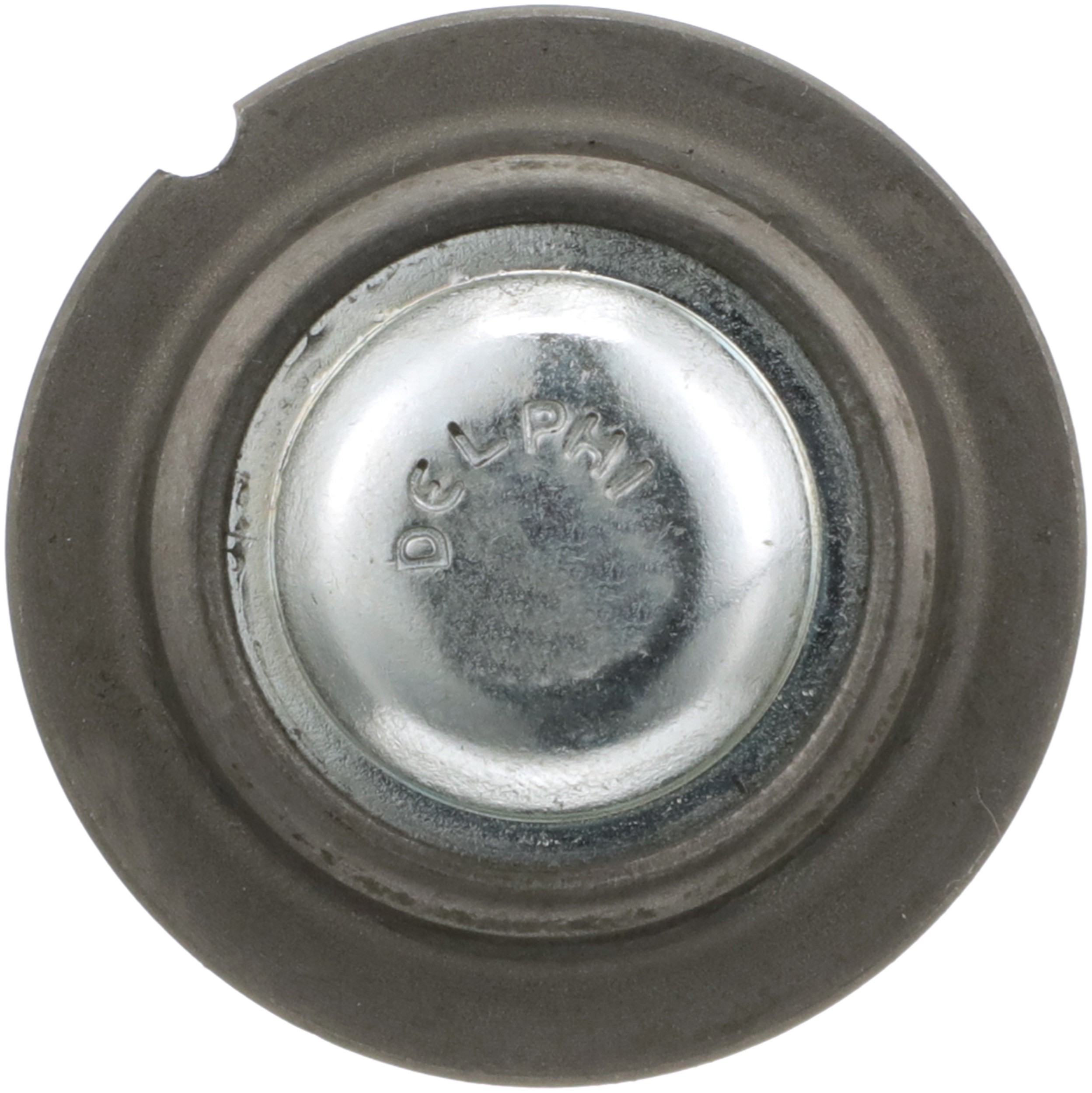

Delphi TC1153 Suspension Ball Joint

Delphi TC1153 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushings Included	No
2334	No
2381	Yes
2827	No
Maximum Outside Diameter	1.634 IN
Maximum Outside Diameter	41.50 MM
Width	41.5 MM
Height	2.992 IN
Height	76.00 MM
881	Threaded
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
9212	15 MM
Position(s)	Front Upper
9213	13.4 MM
9213	0.528 IN
9090	Rubber
9209	No
4966	18 MM
4966	0.709 IN
9210	Yes
Grease Fitting Included	No
Color	Gray
Material	Steel
9212	0.591 IN
