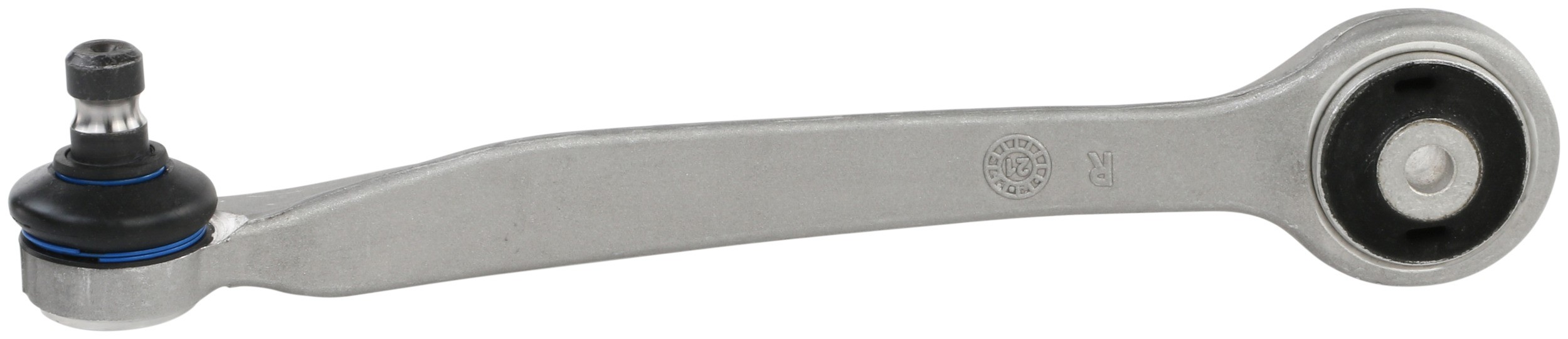

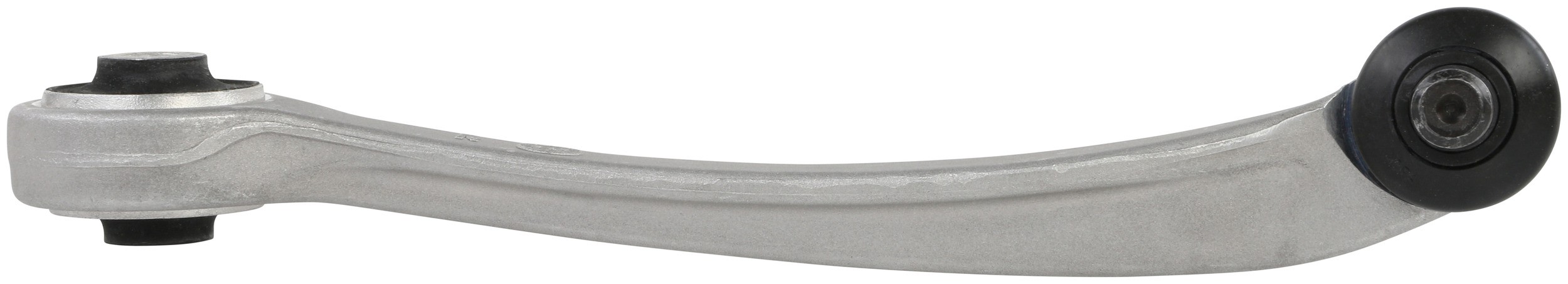

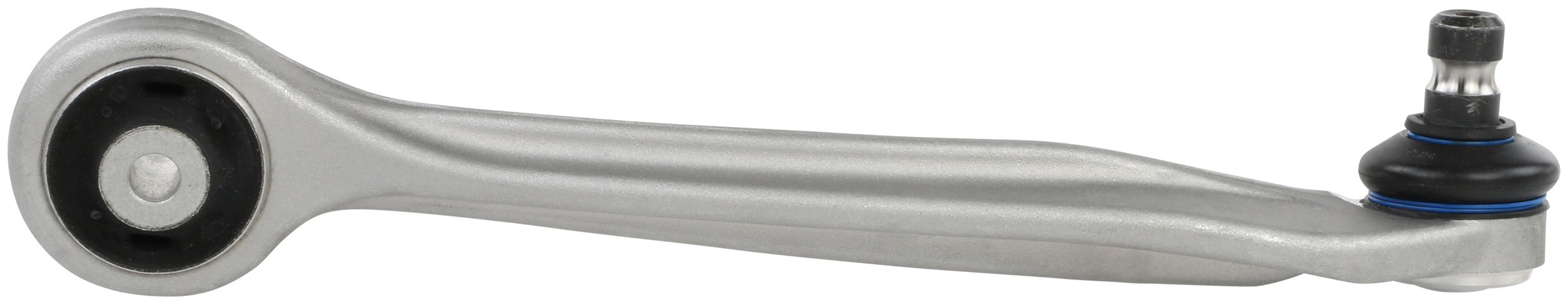

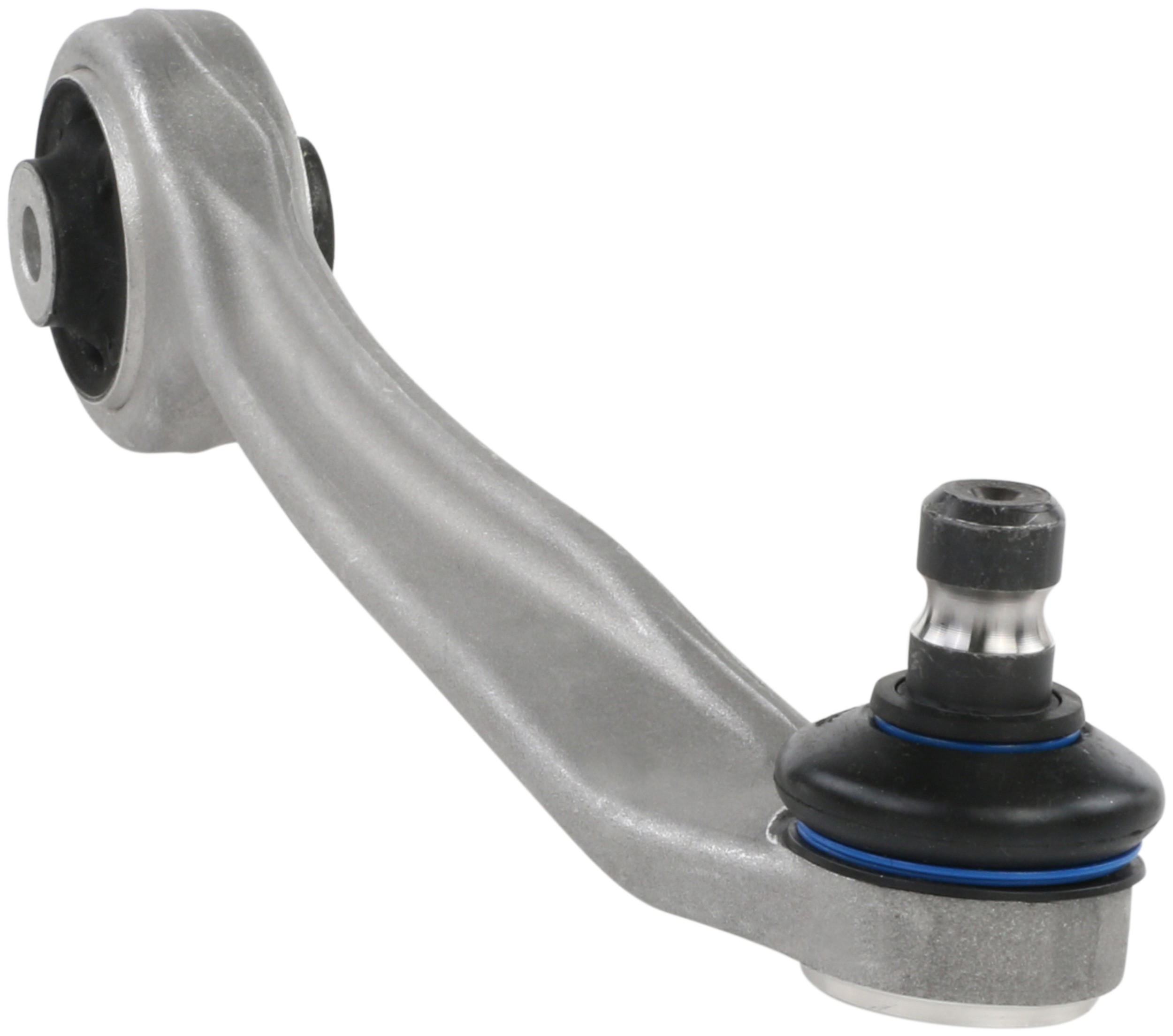

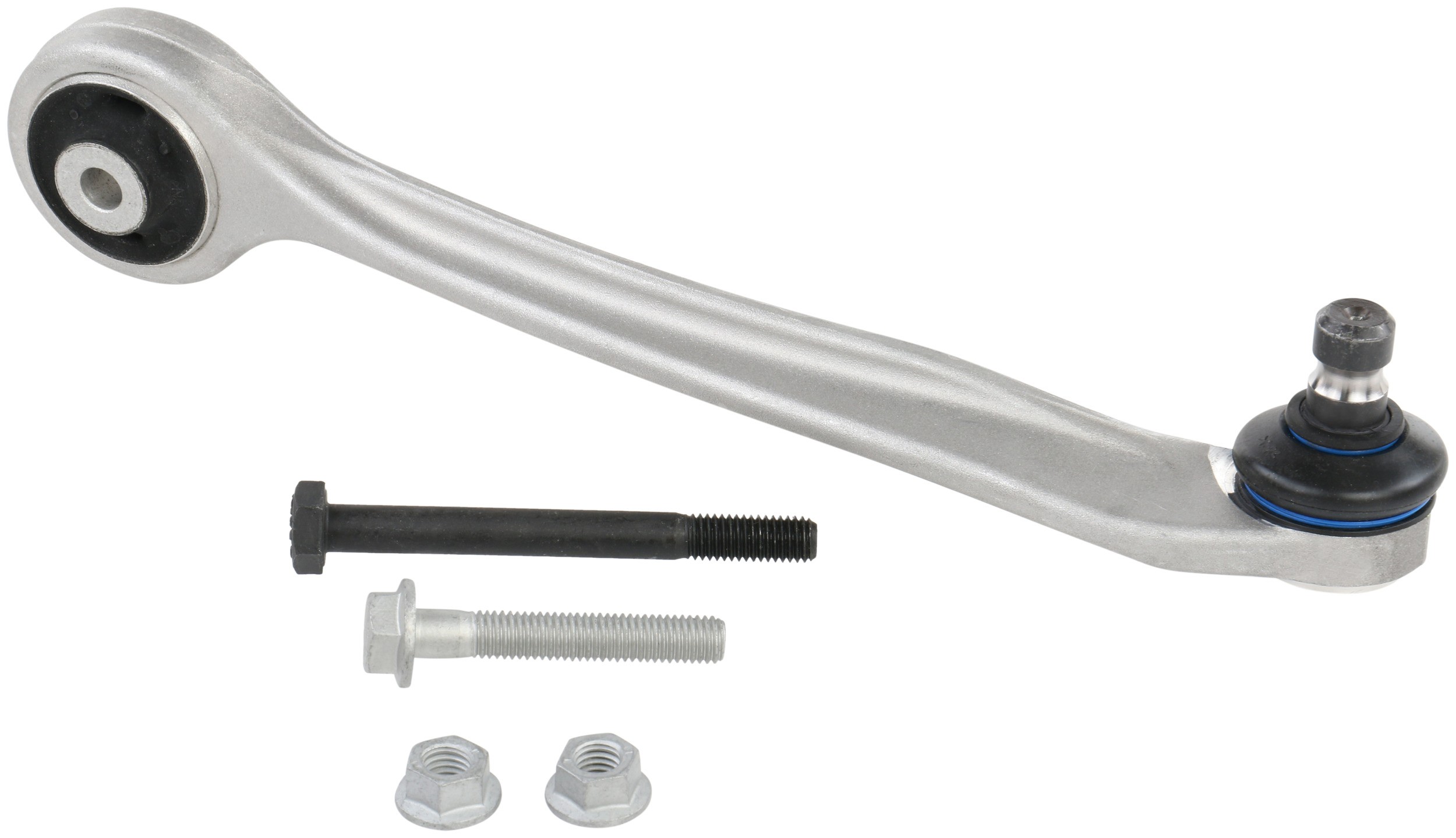

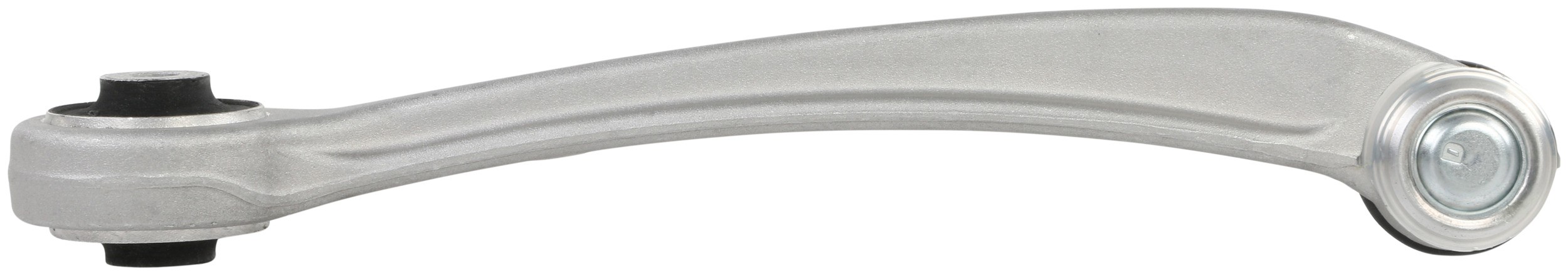

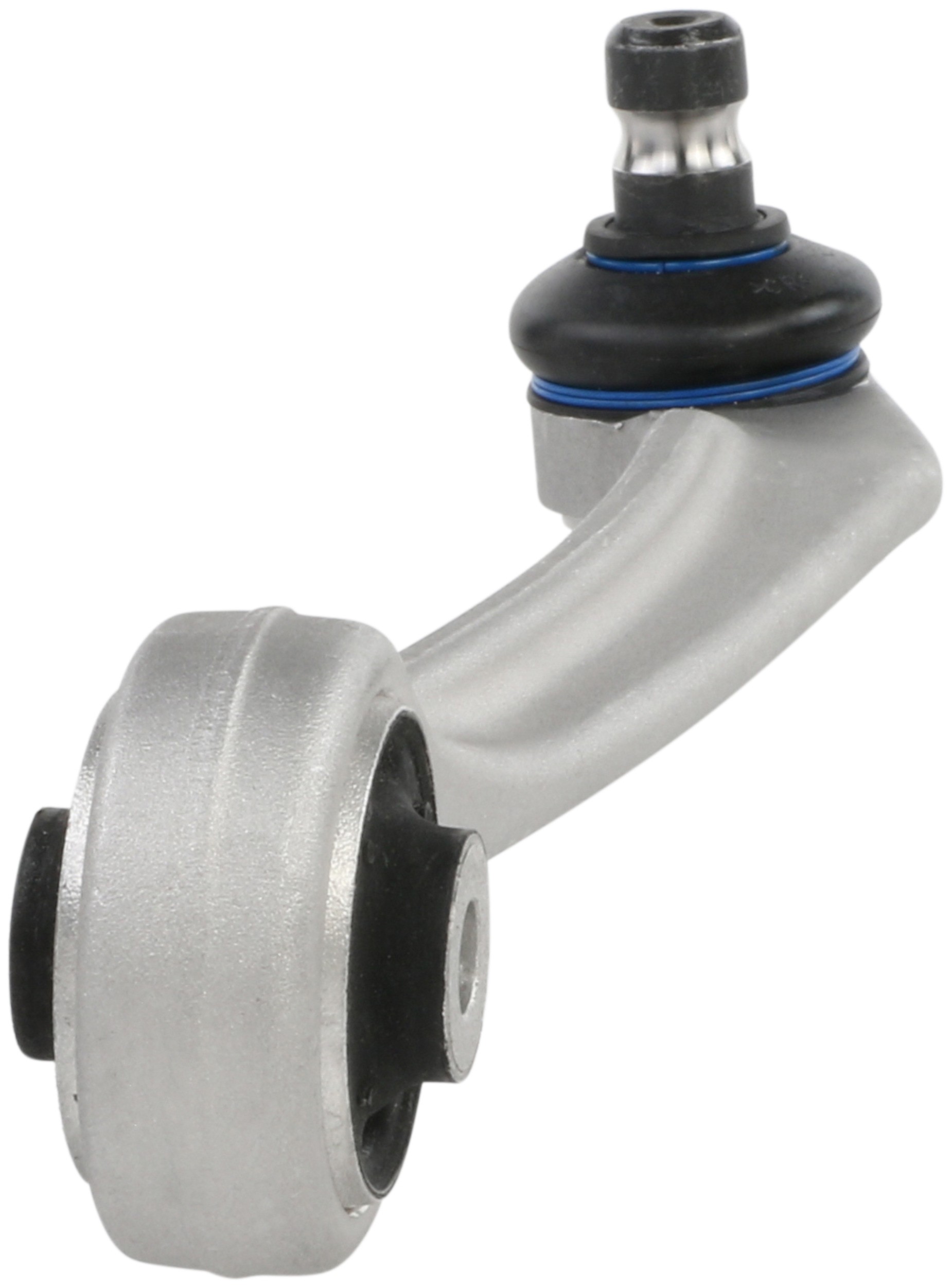

Delphi TC1178 Suspension Control Arm and Ball Joint Assembly

Delphi TC1178 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4887	2.559 IN
Mounting Hole Diameter	0.402 IN
Mounting Hole Diameter	10.20 MM
Length	12.795 IN
Length	325.00 MM
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Upper Forward
Bushing Colour	Black
Finish	Uncoated
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Stud Type	Grooved
Material	Aluminum
Mounting Hardware Included	No
Grade Type	Premium
Mounting Hole Quantity	1
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Gray
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
6529	Power
9090	Chloroprene Rubber (CR)
4890	1.693 IN
4890	43.00 MM
4887	65.00 MM

Vehicle Applications:

Make	Model	Years
Audi	A4 Quattro	1996 to 2009
Audi	A4	1996 to 2009
Audi	A6 Quattro	1998 to 2004
Audi	A6	1998 to 2004
Audi	Allroad Quattro	2001 to 2005
Audi	RS4	2007 to 2008
Audi	RS6	2003 to 2004
Audi	S4	2000 to 2006
Audi	S6	2002 to 2003
Volkswagen	Passat	1998 to 2005
