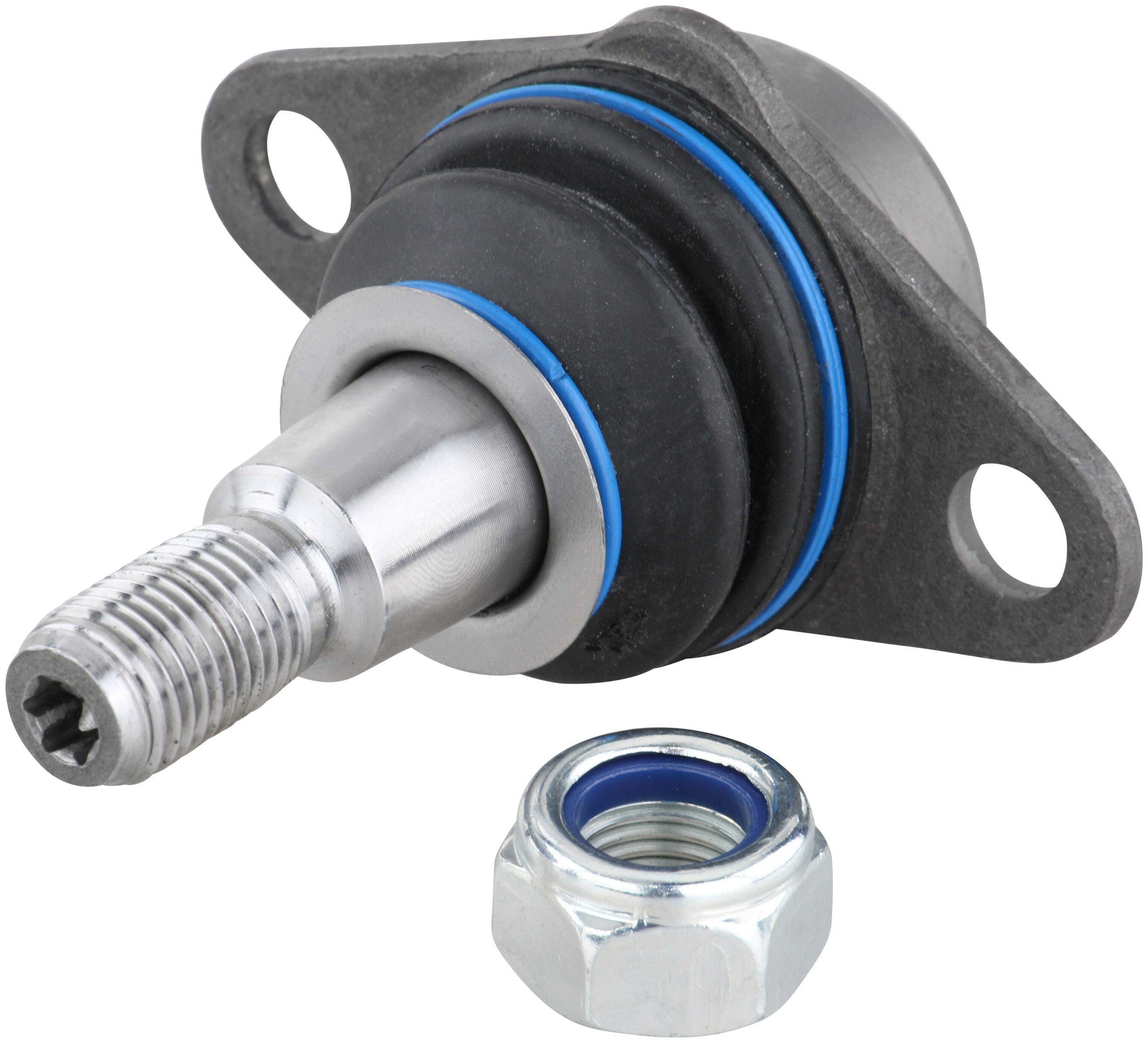

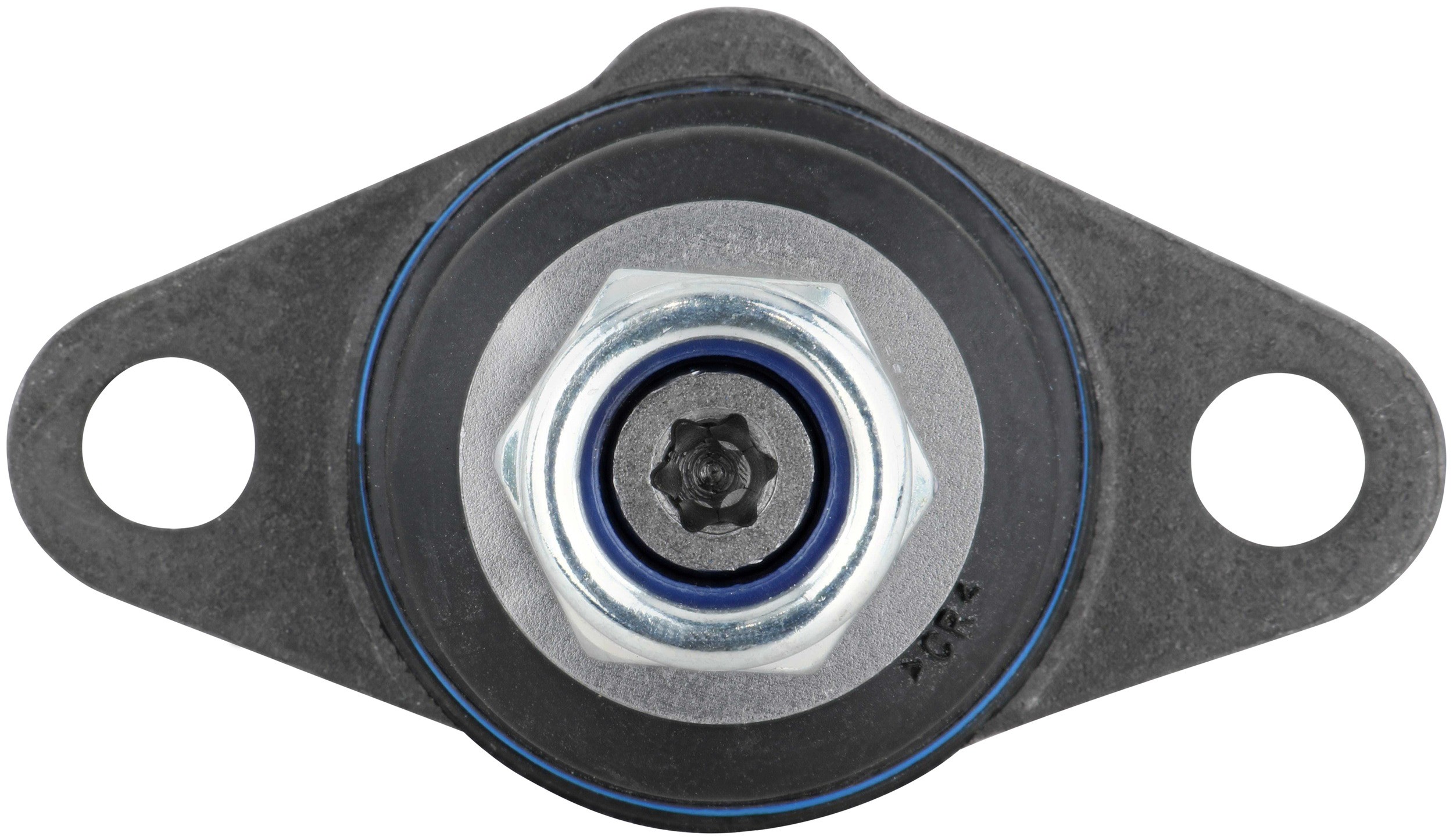

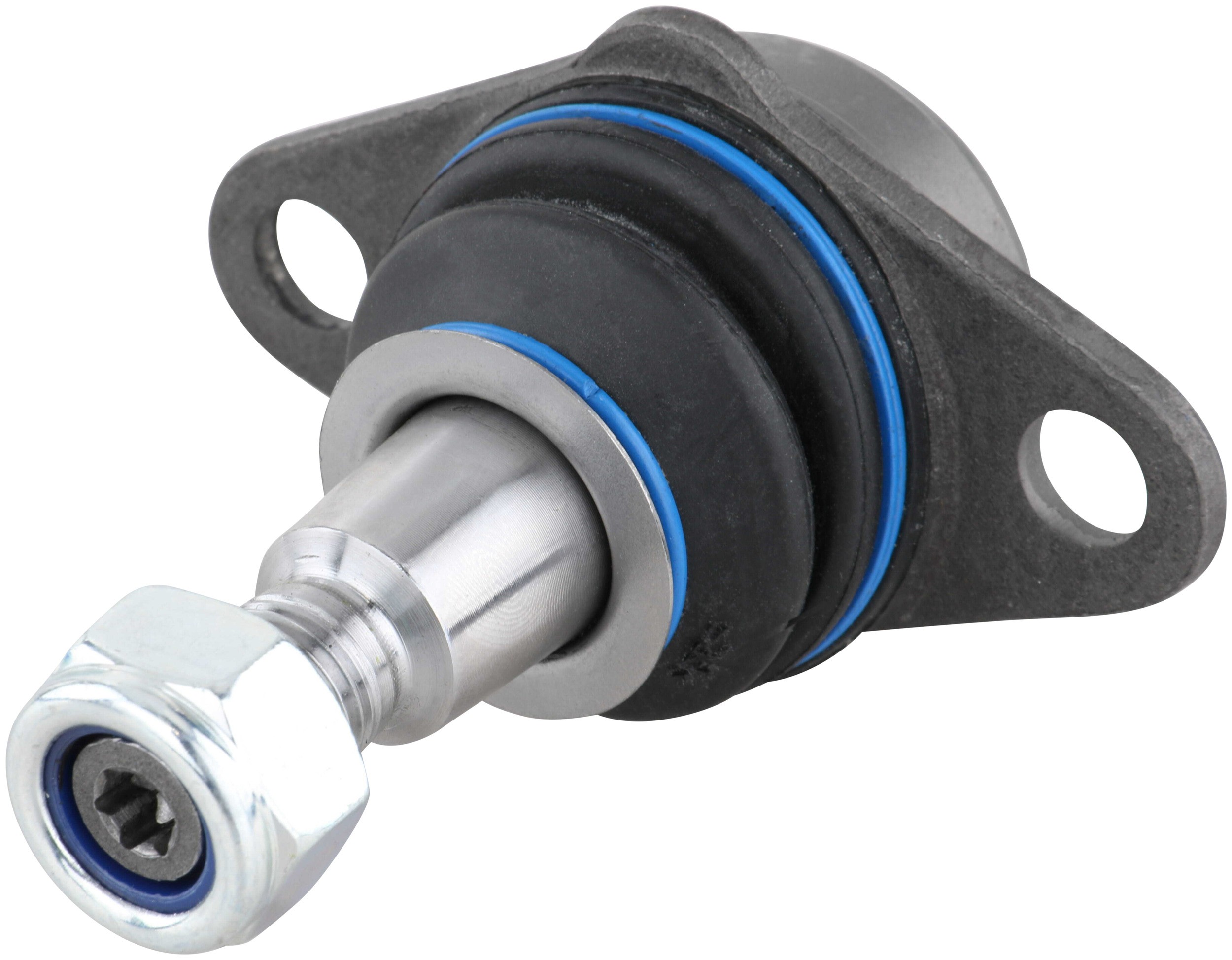

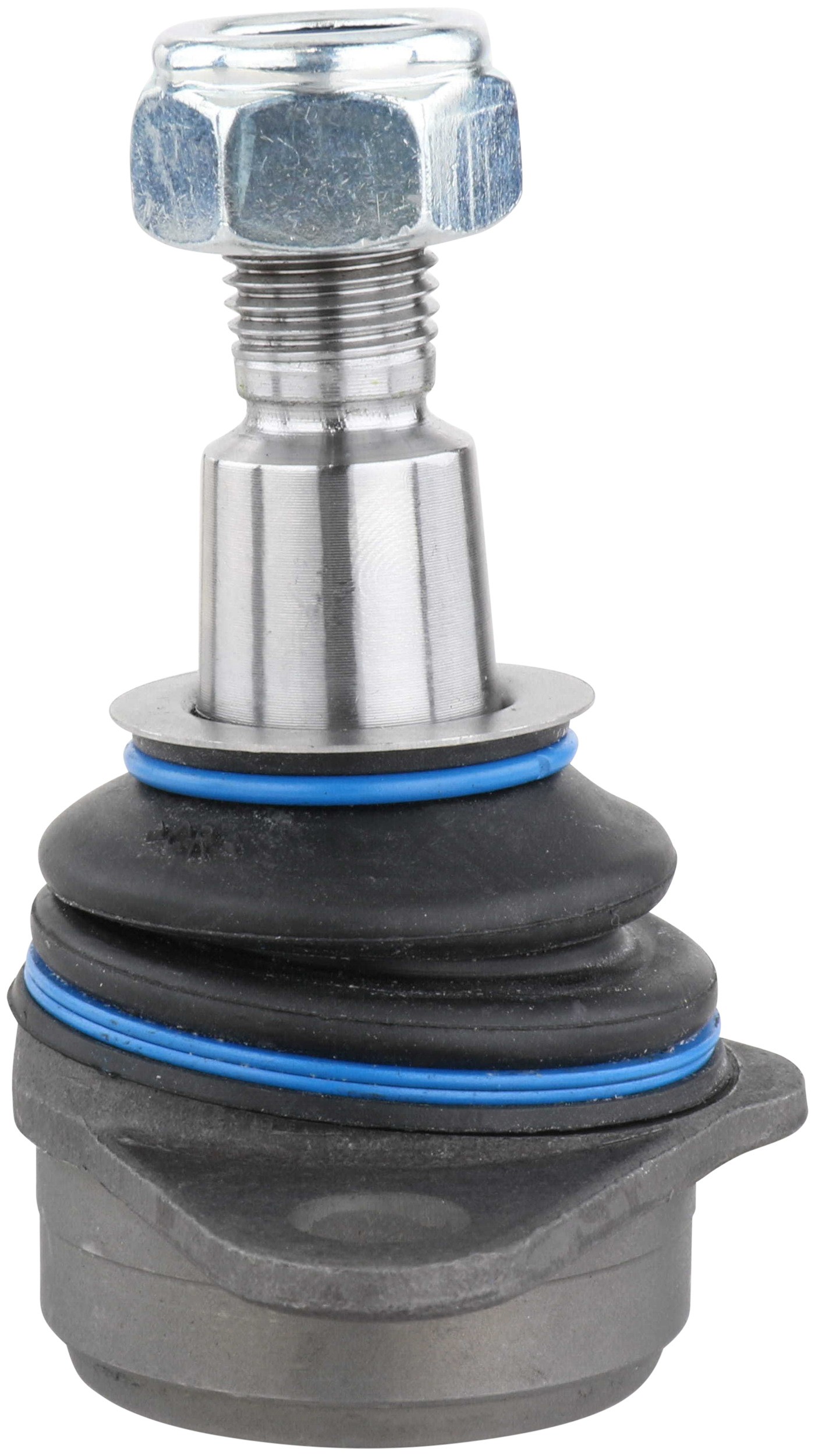

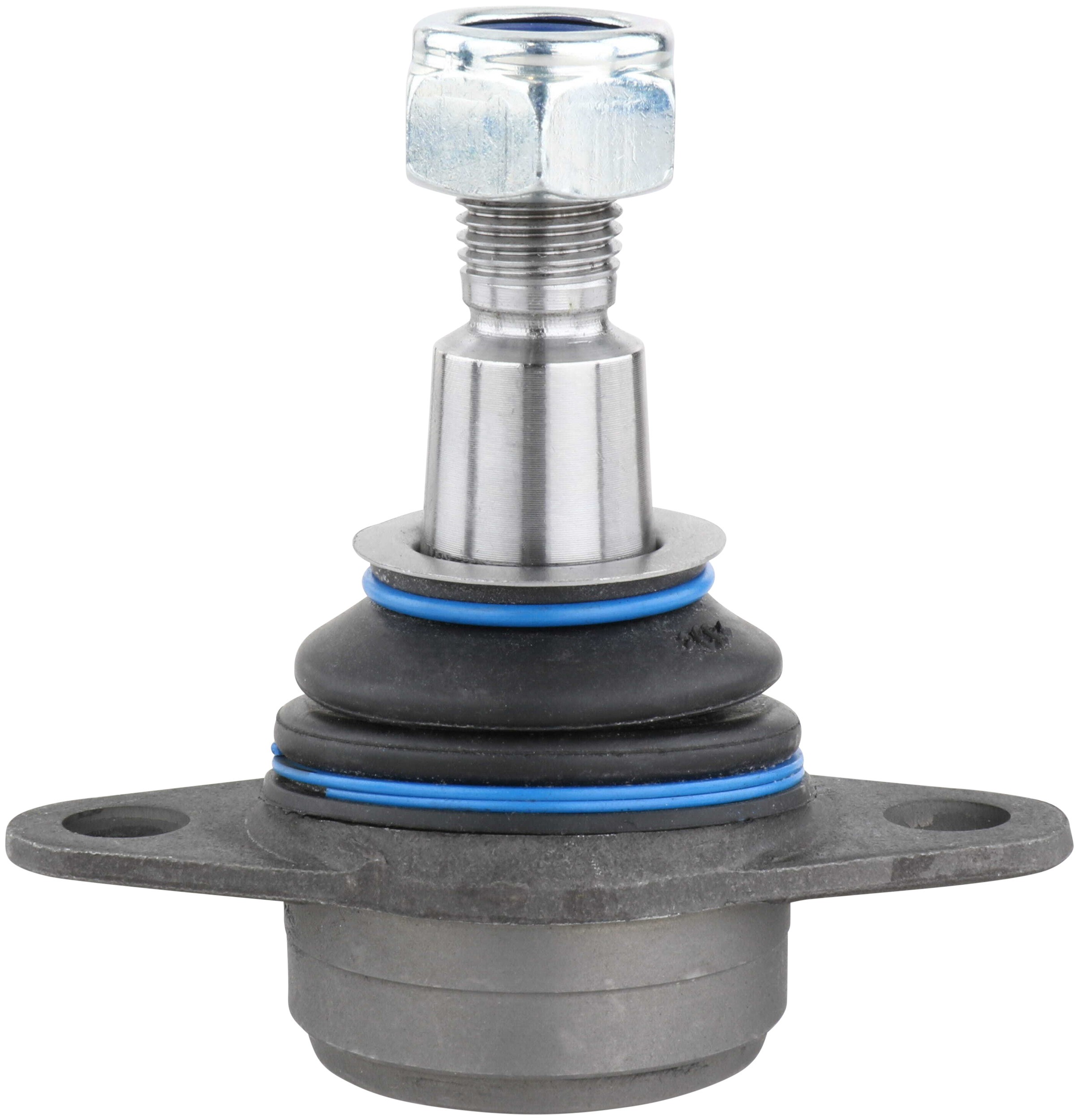

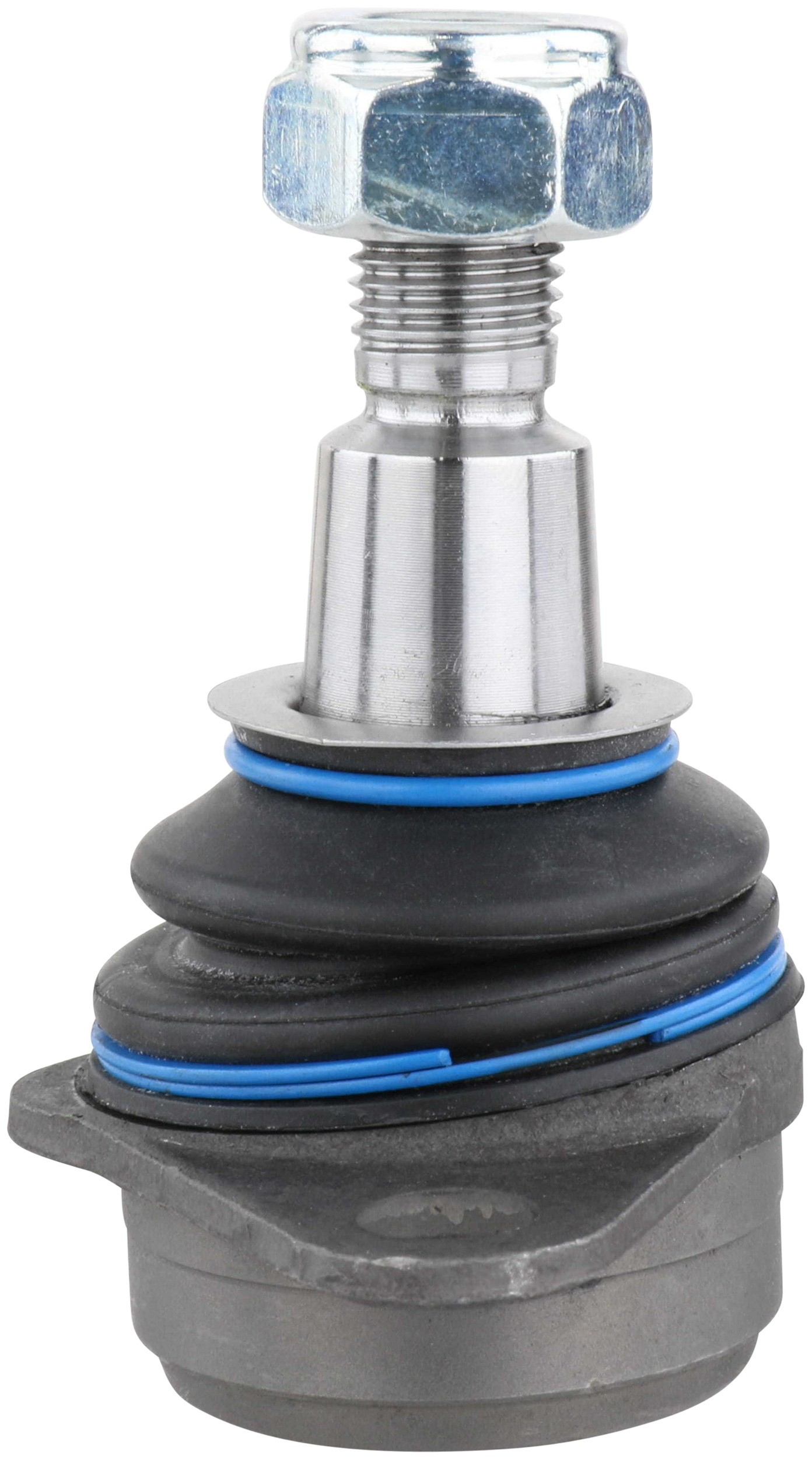

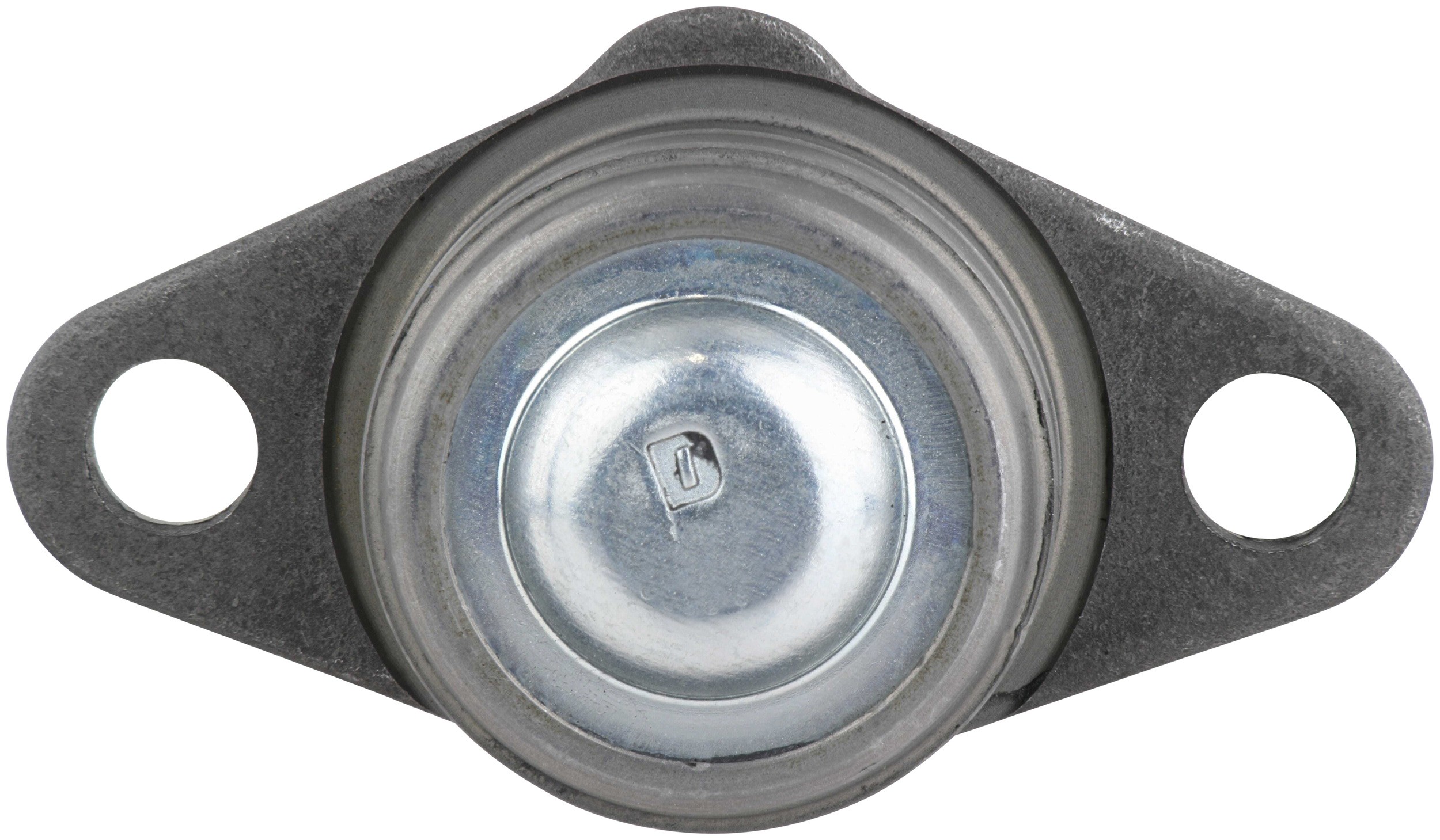

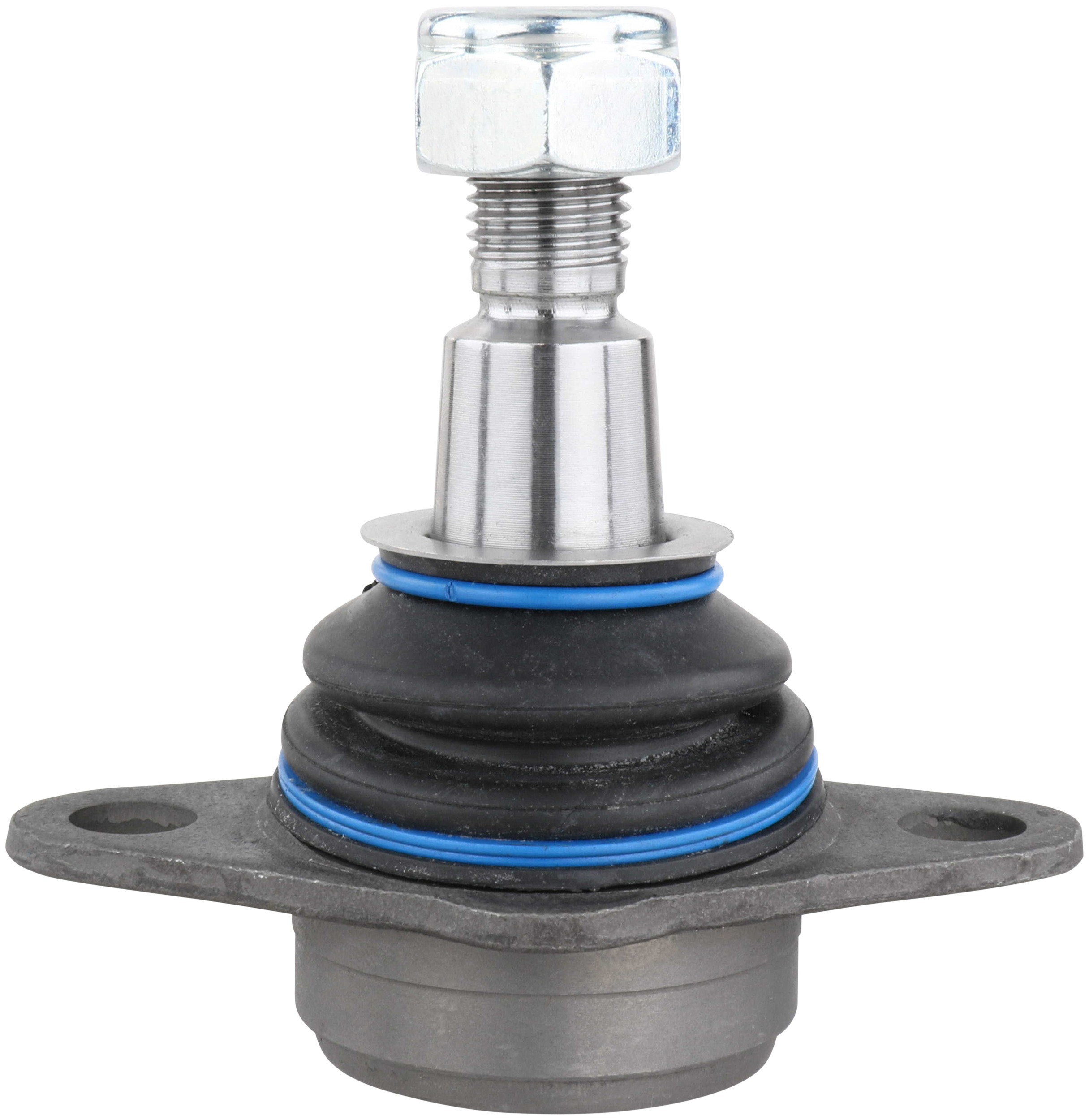

Delphi TC1480 Suspension Ball Joint

Delphi TC1480 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Material	Steel
Color	Gray
Position(s)	Front Lower Forward
2334	No
2381	Yes
2827	No
881	Threaded
Maximum Outside Diameter	2.059 IN
Maximum Outside Diameter	52.30 MM
Length	91.00 MM
Length	3.580 IN
Width	52.3 MM
Height	3.433 IN
Height	87.20 MM
9090	Rubber
9213	17.7 MM
9213	0.697 IN
9212	20.7 MM
9212	0.815 IN
9058	70.00 MM
4966	18.3 MM
4966	0.72 IN
9209	No
9210	Yes
Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In
Greaseable	No
Adjustable	No
Mounting Hole Quantity	2
