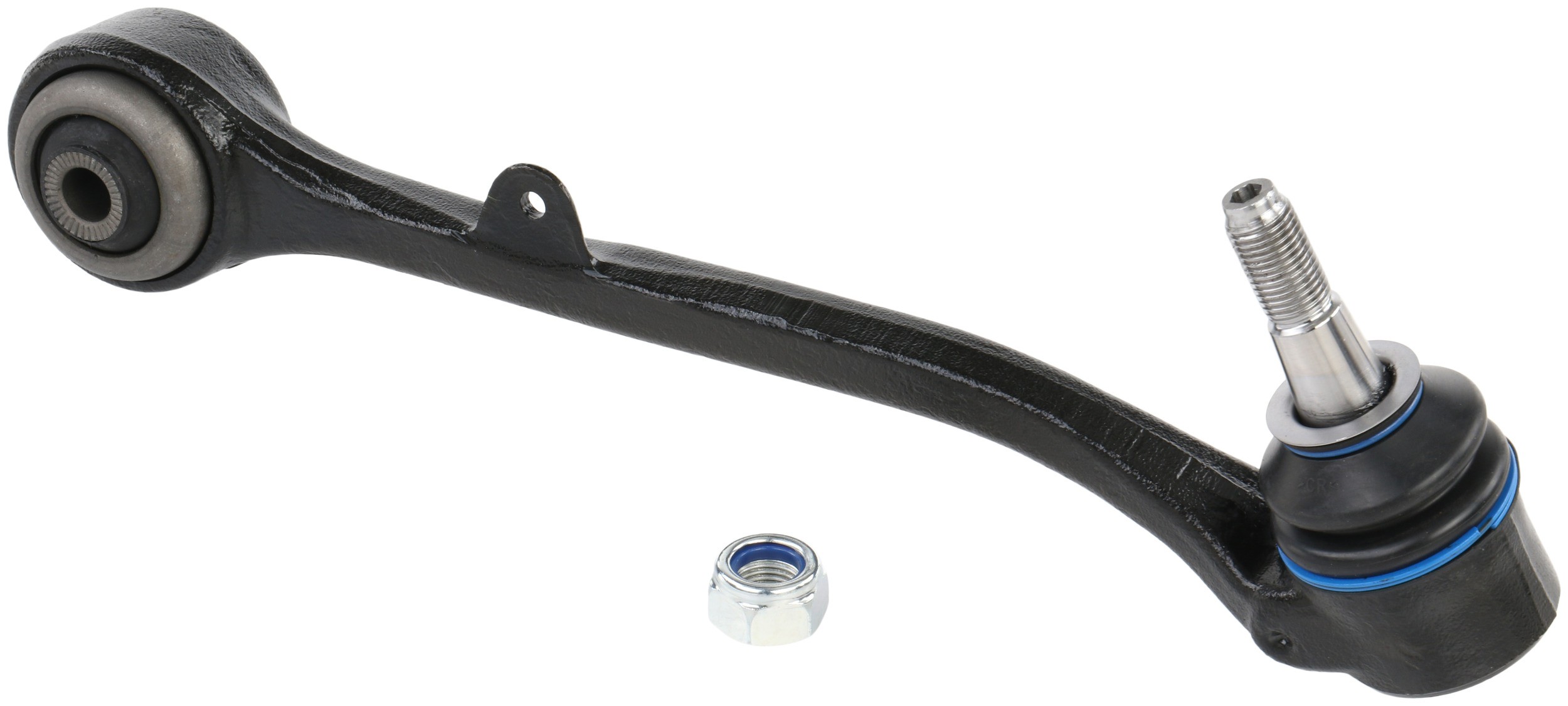

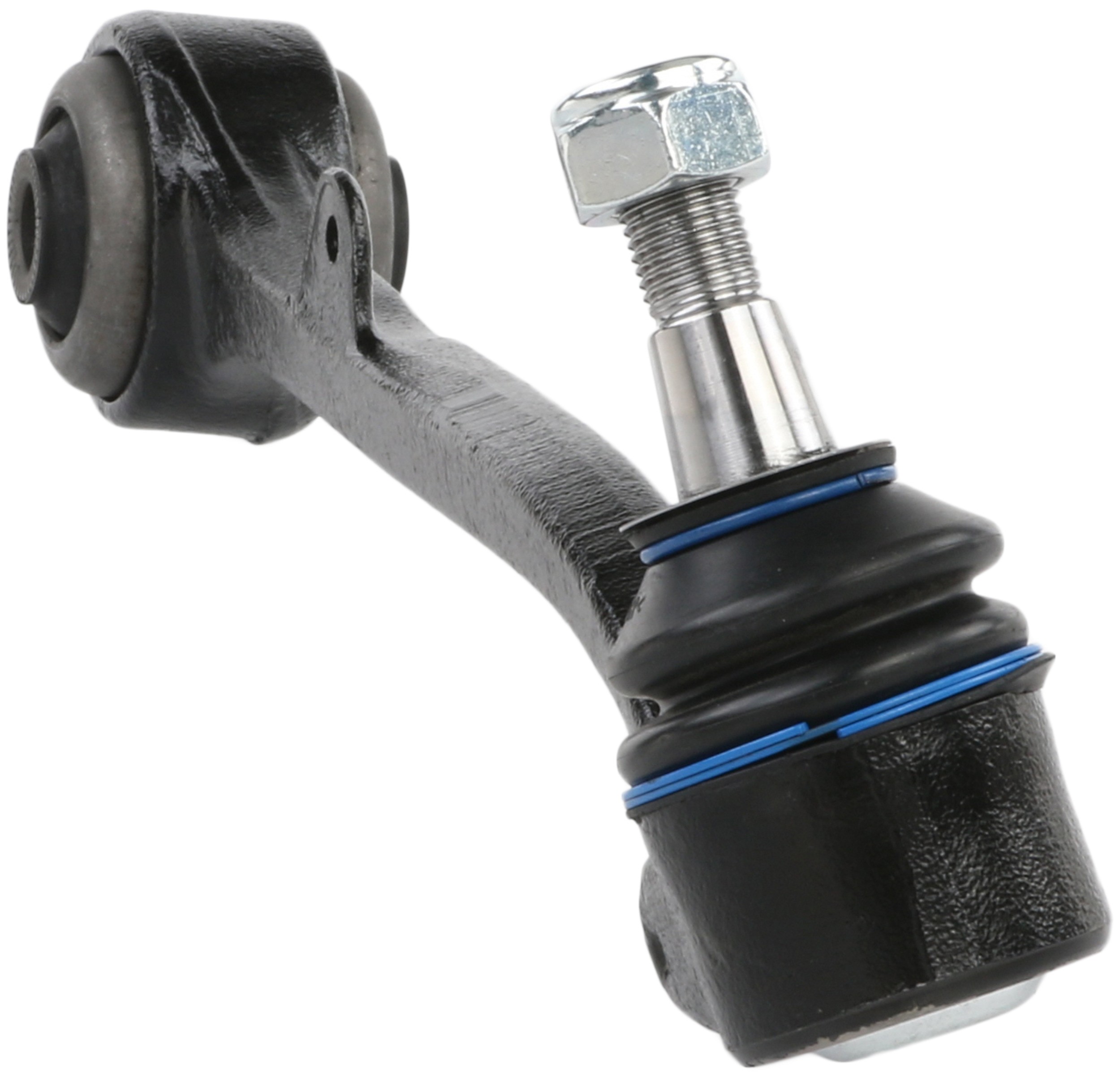

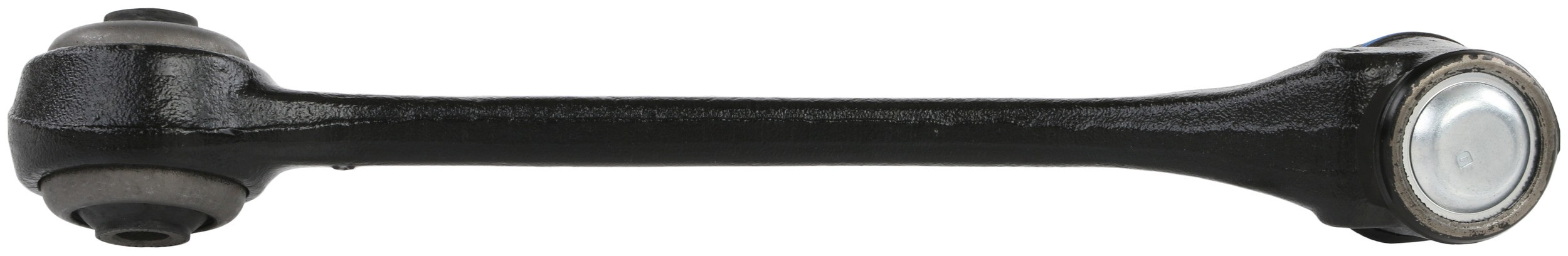

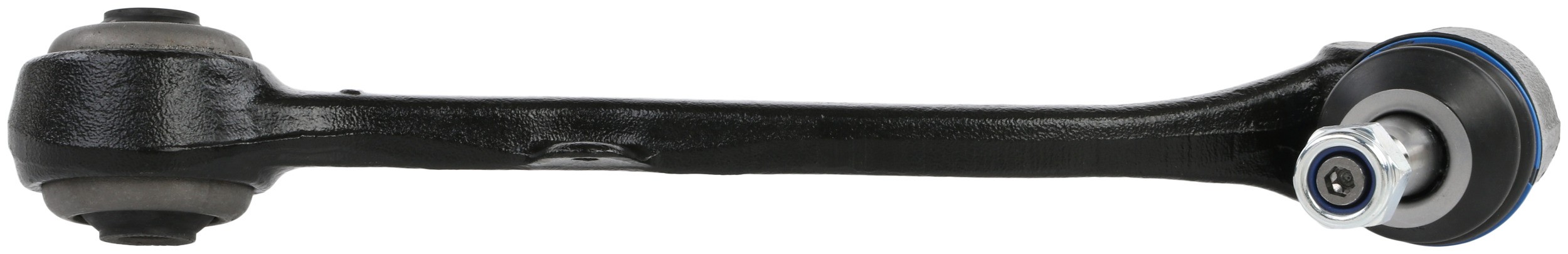

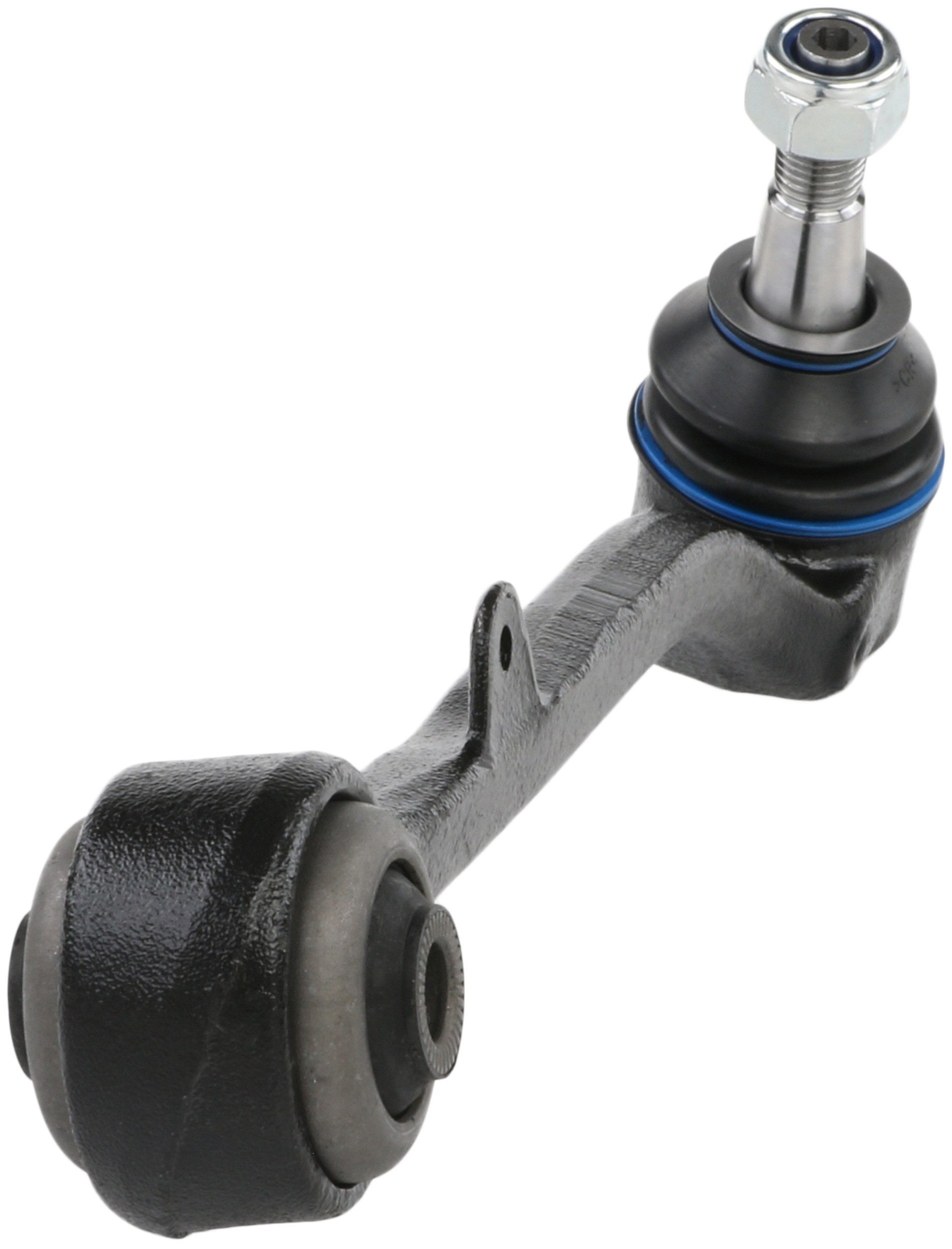

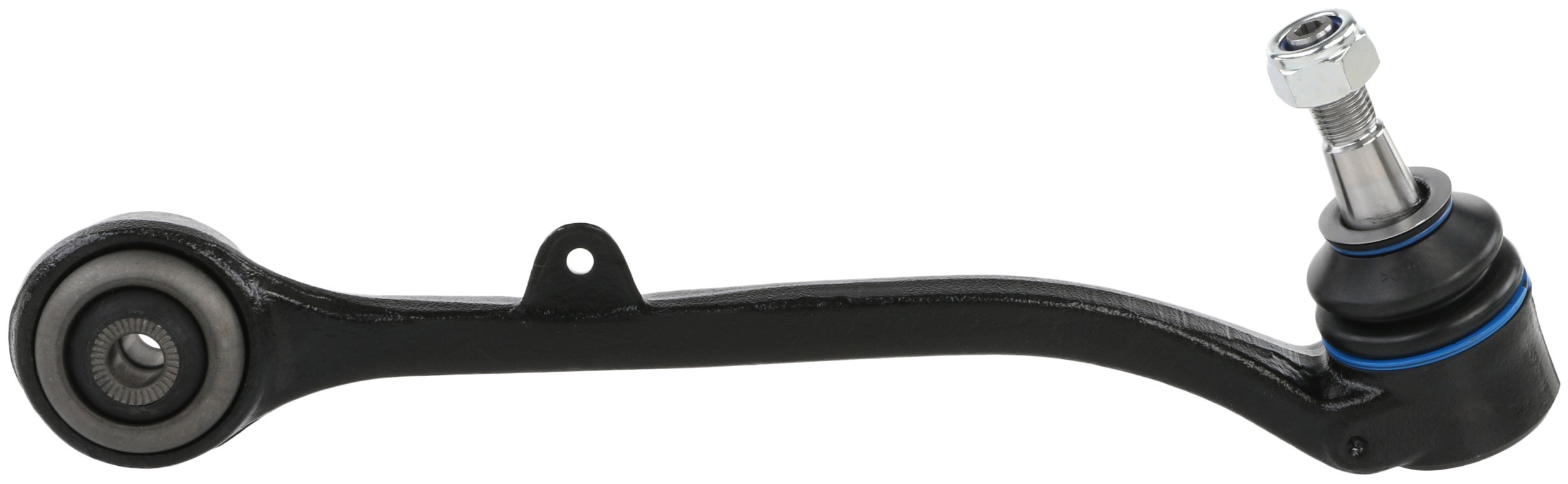

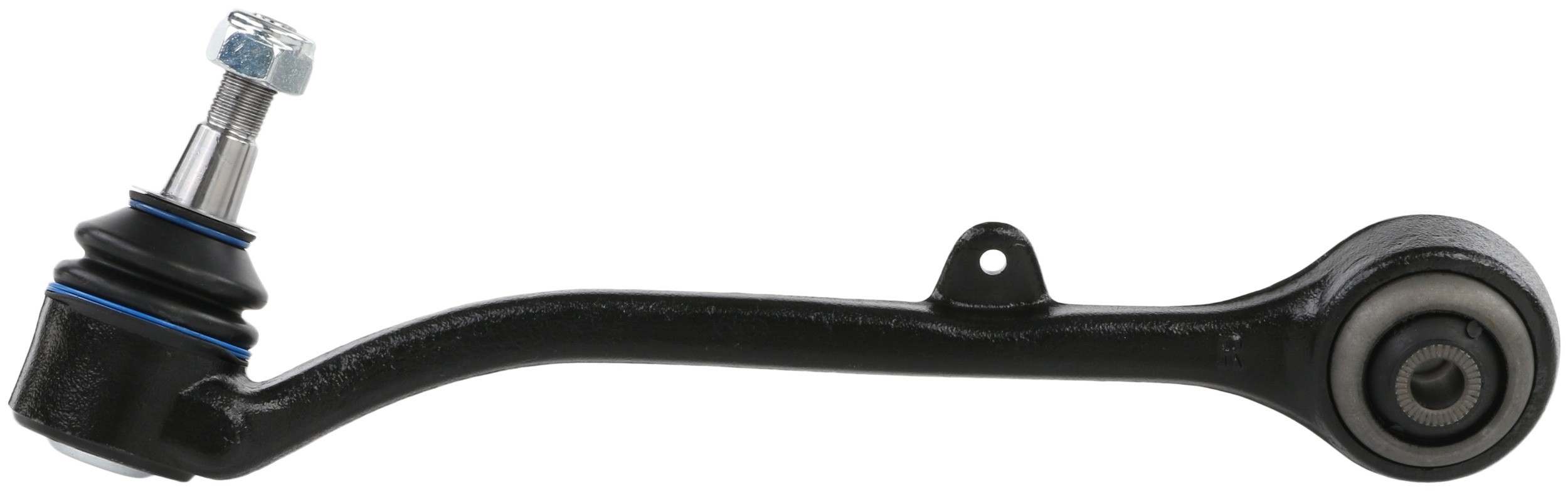

Delphi TC1482 Suspension Control Arm and Ball Joint Assembly

Delphi TC1482 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	13.780 IN
Mounting Hole Diameter	12.10 MM
Mounting Hole Diameter	0.476 IN
4890	3.268 IN
4890	83.00 MM
4887	2.165 IN
4887	55.00 MM
6529	Power
9090	Chloroprene Rubber (CR)
Thread Direction	Clockwise (Right)
Bushing Colour	Black
4241	Yes
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Lower Rearward
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	1
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Length	350.00 MM
