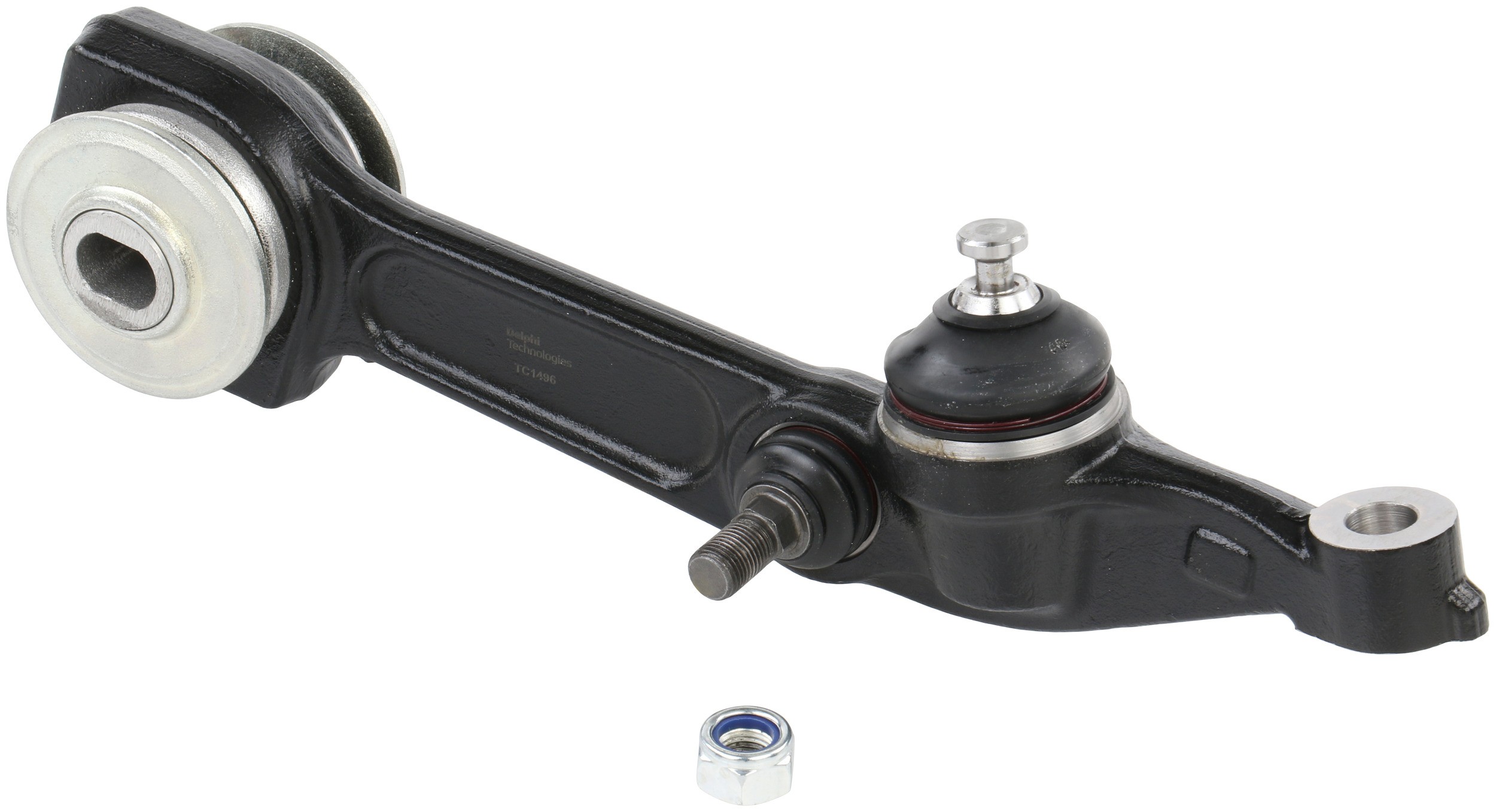

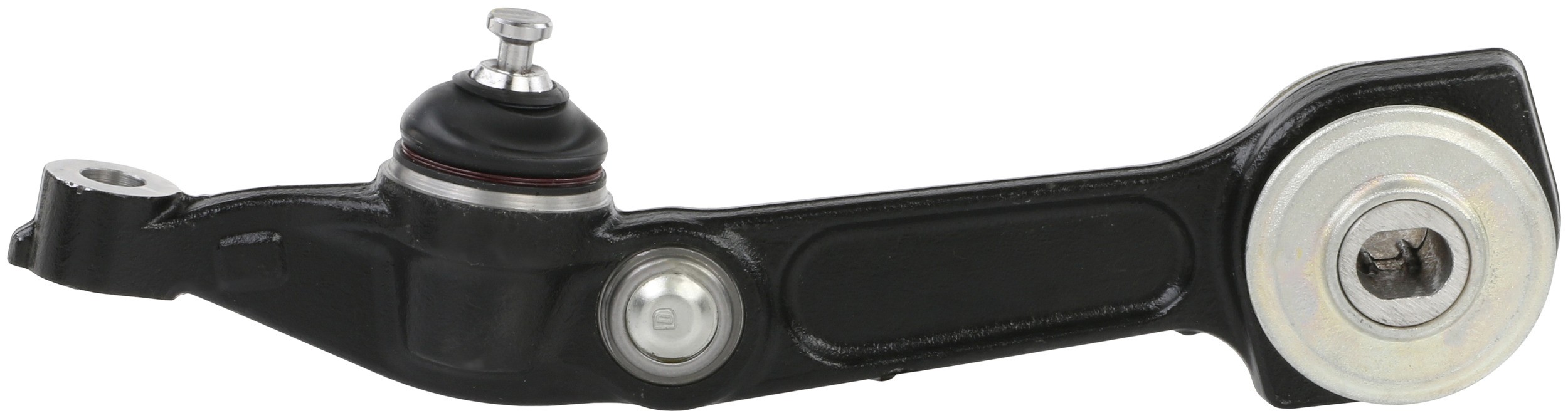

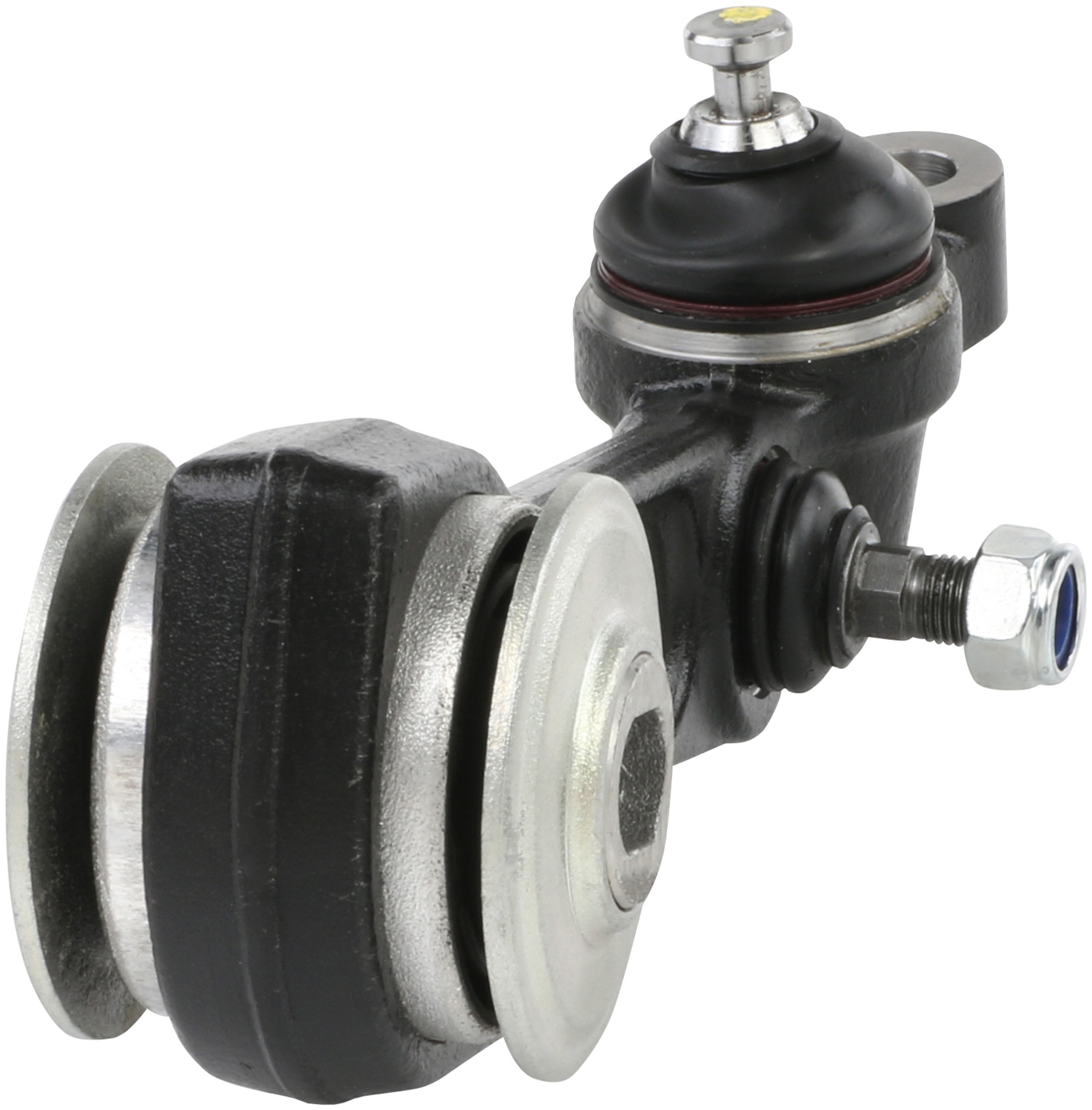

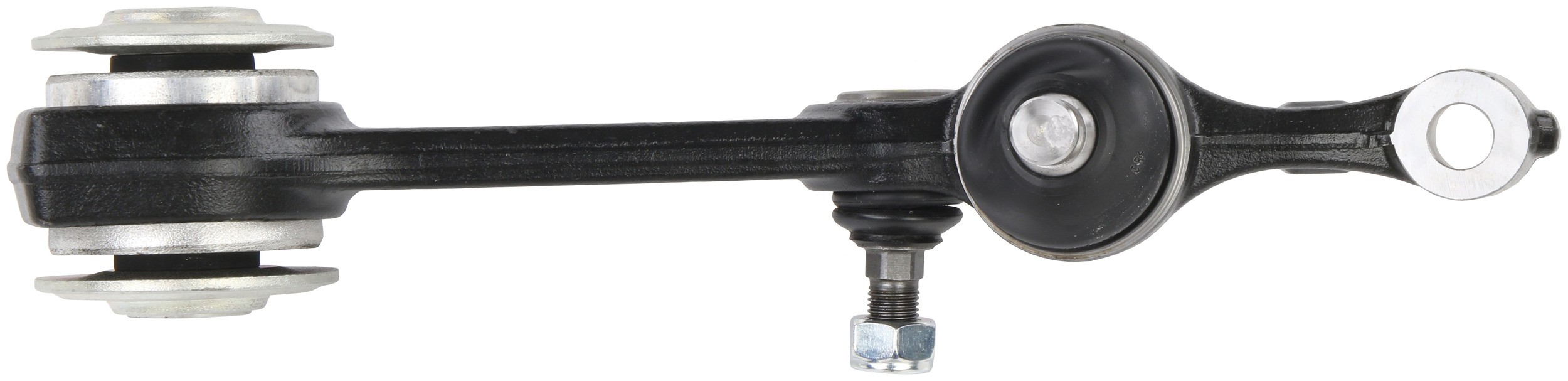

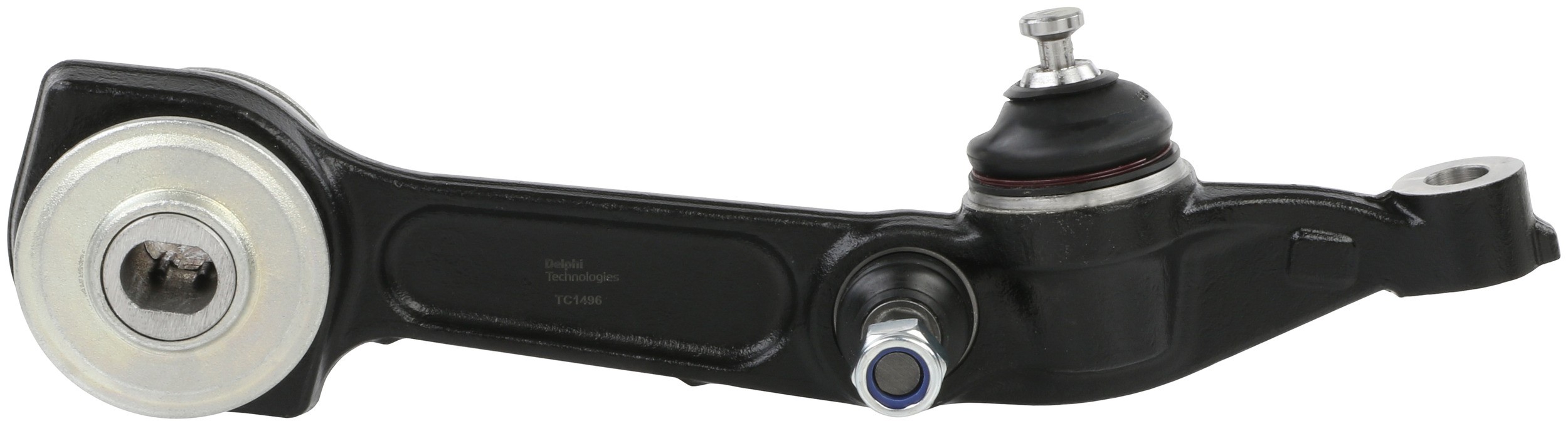

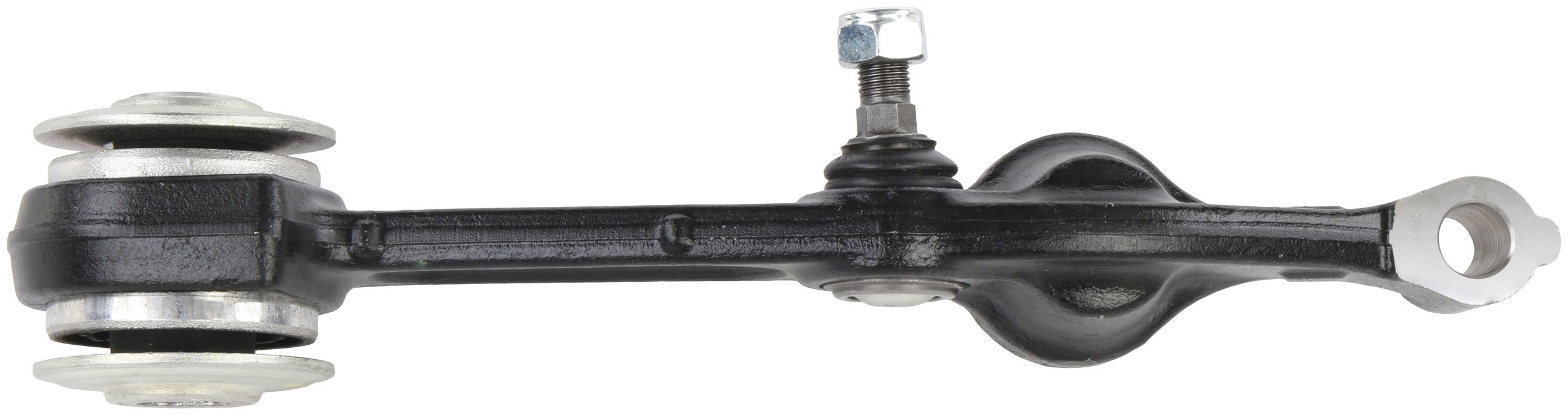

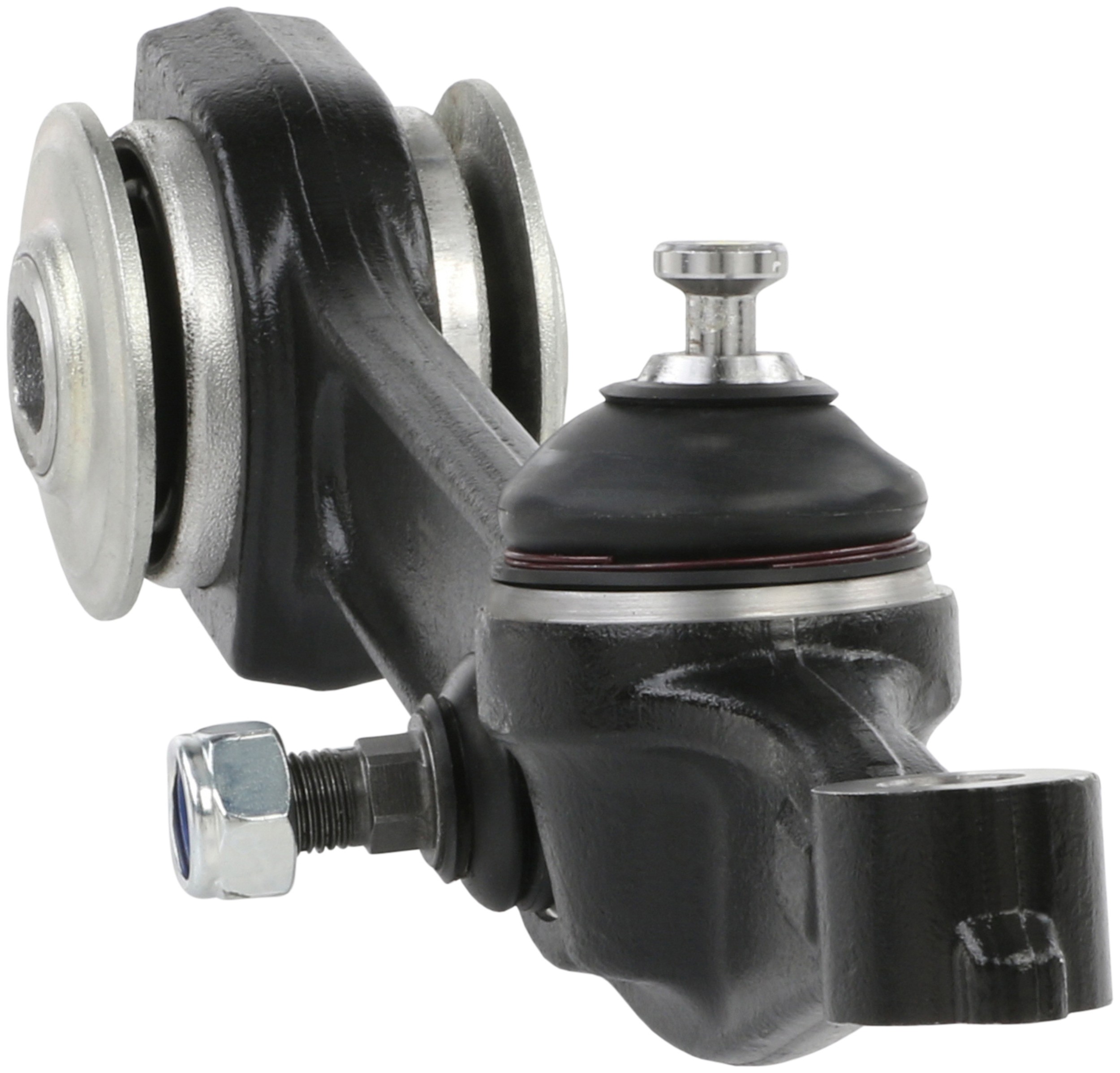

Delphi TC1496 Suspension Control Arm and Ball Joint Assembly

Delphi TC1496 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Premium
Mounting Hole Diameter	0.646 IN
Mounting Hole Diameter	0.402 IN
Mounting Hole Diameter	16.40 MM
Mounting Hole Diameter	10.20 MM
Length	15.906 IN
Length	404.00 MM
Position(s)	Front Left Lower Rearward
2384	Yes
2386	Casting/Forged
6529	Power
9090	Chloroprene Rubber (CR)
Thread Direction	Clockwise (Right)
4887	125.00 MM
4887	4.921 IN
4890	93.00 MM
4890	3.661 IN
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Mounting Hardware Included	Yes
Material	Steel
Dust Boot Included	Yes
Bushings Included	Yes
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	S350	2006 to 2006
Mercedes-Benz	S430	2000 to 2006
Mercedes-Benz	S500	2000 to 2006
Mercedes-Benz	S55 AMG	2001 to 2006
Mercedes-Benz	S600	2001 to 2006
Mercedes-Benz	S65 AMG	2006 to 2006
