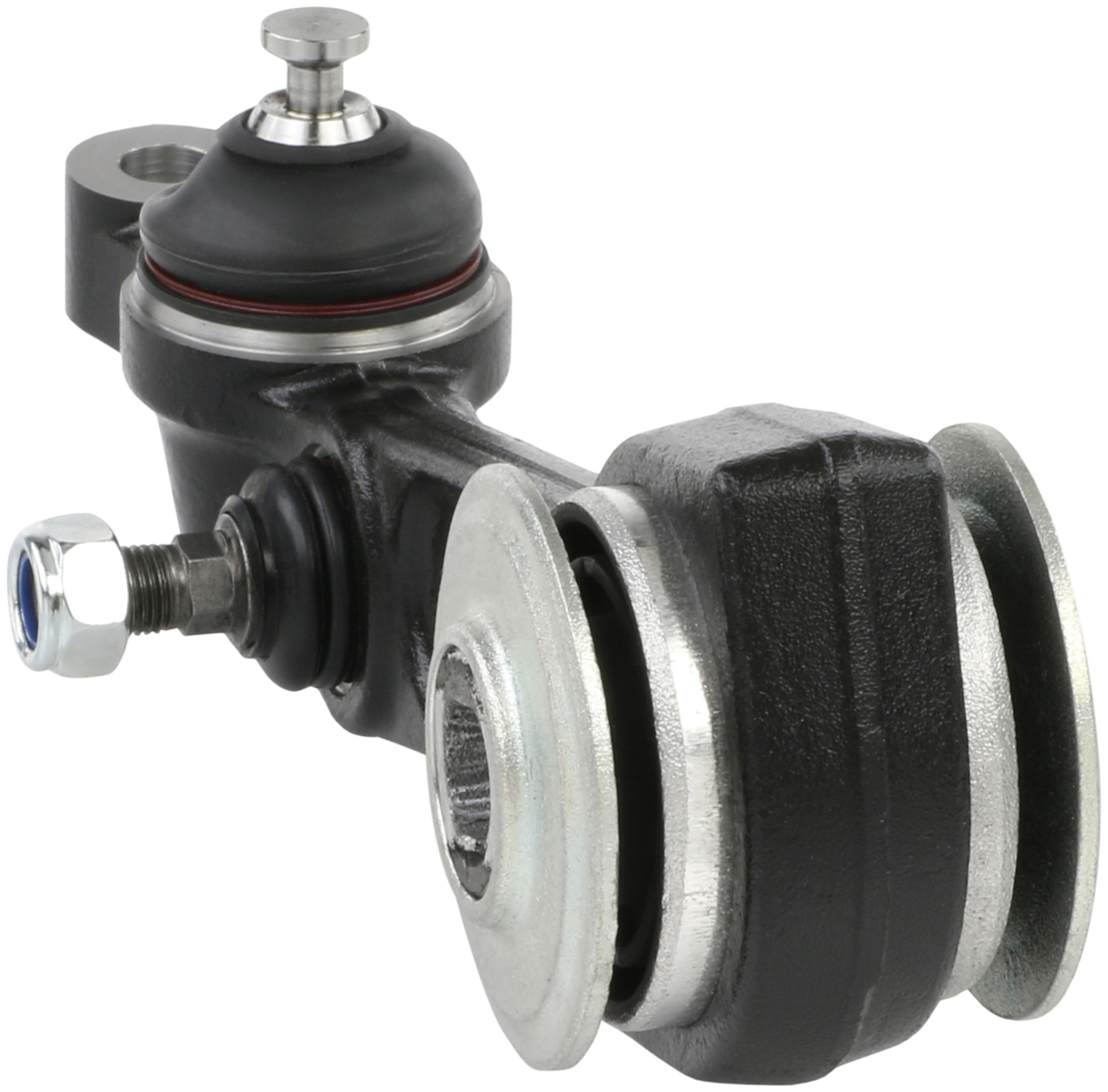

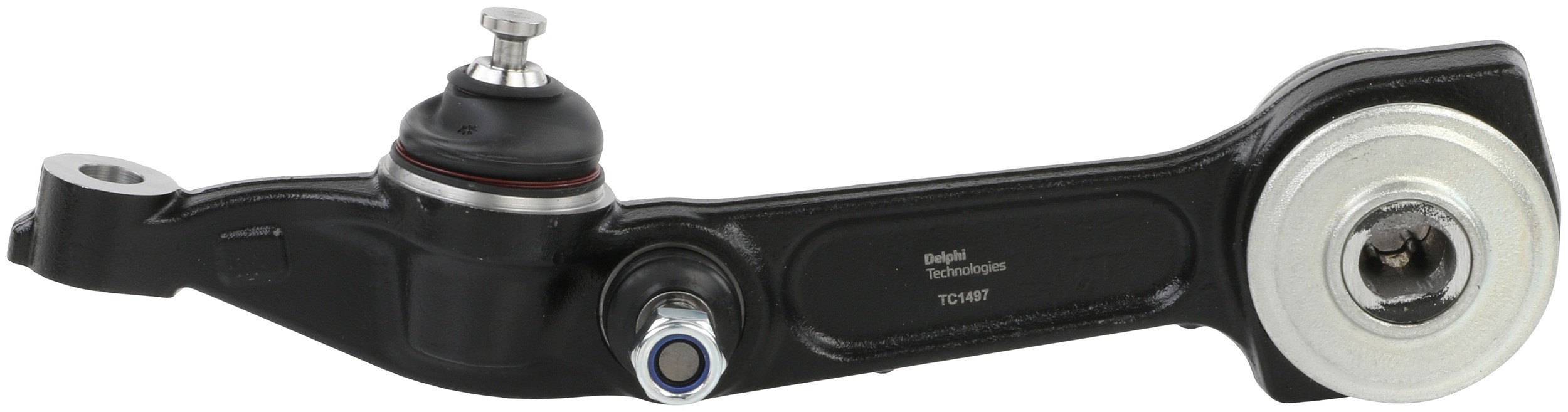

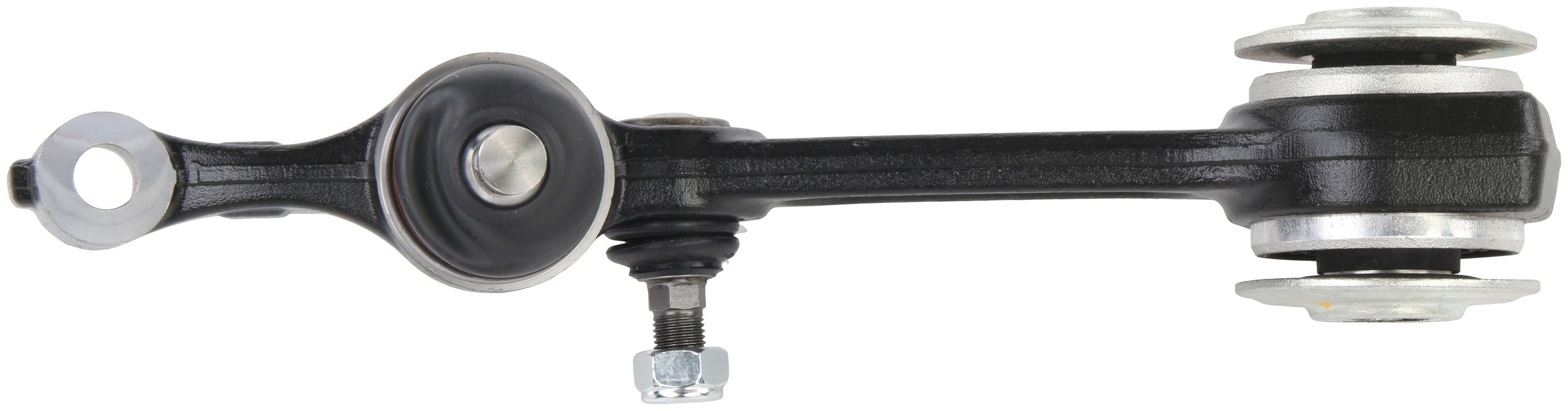

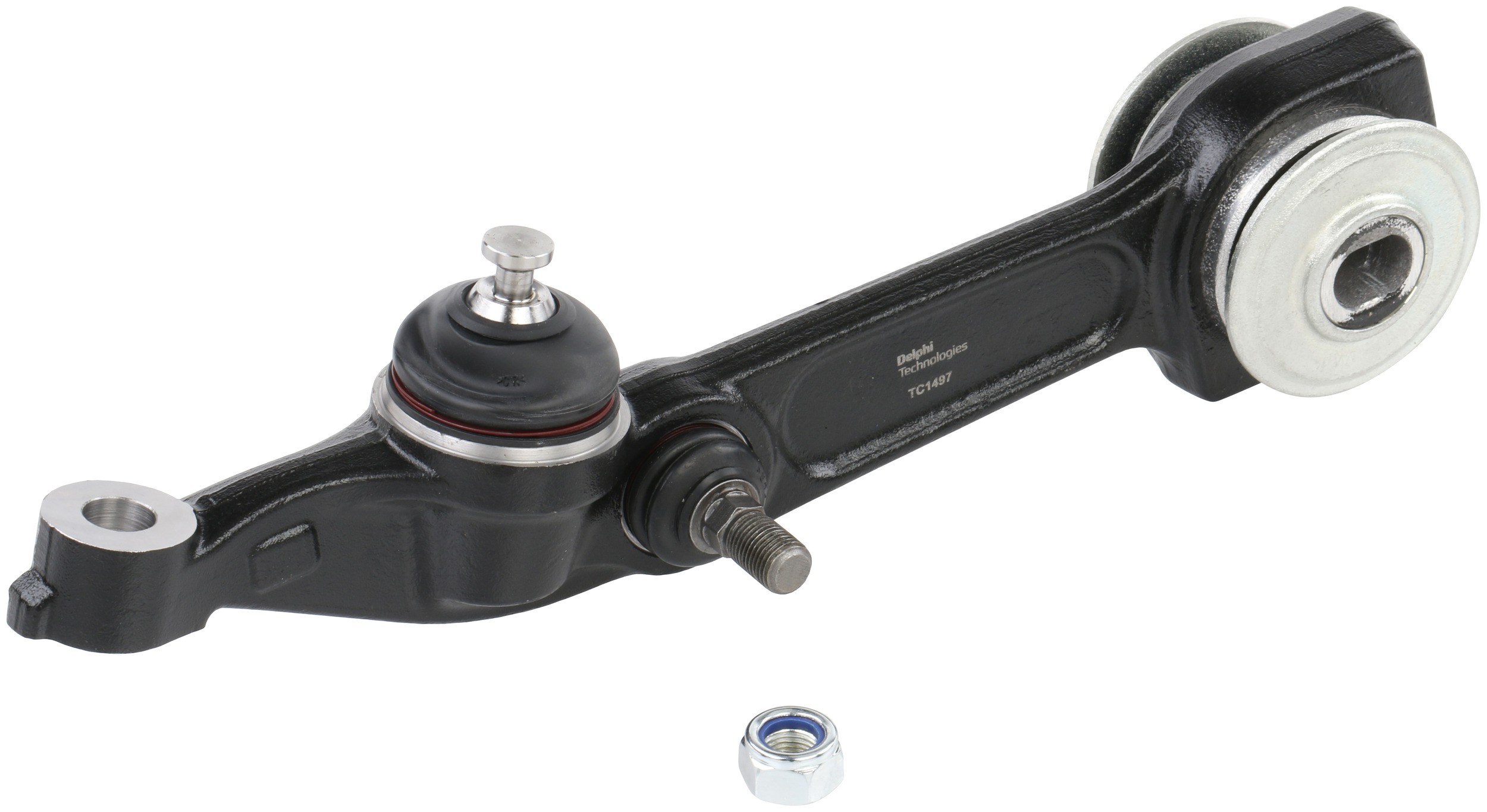

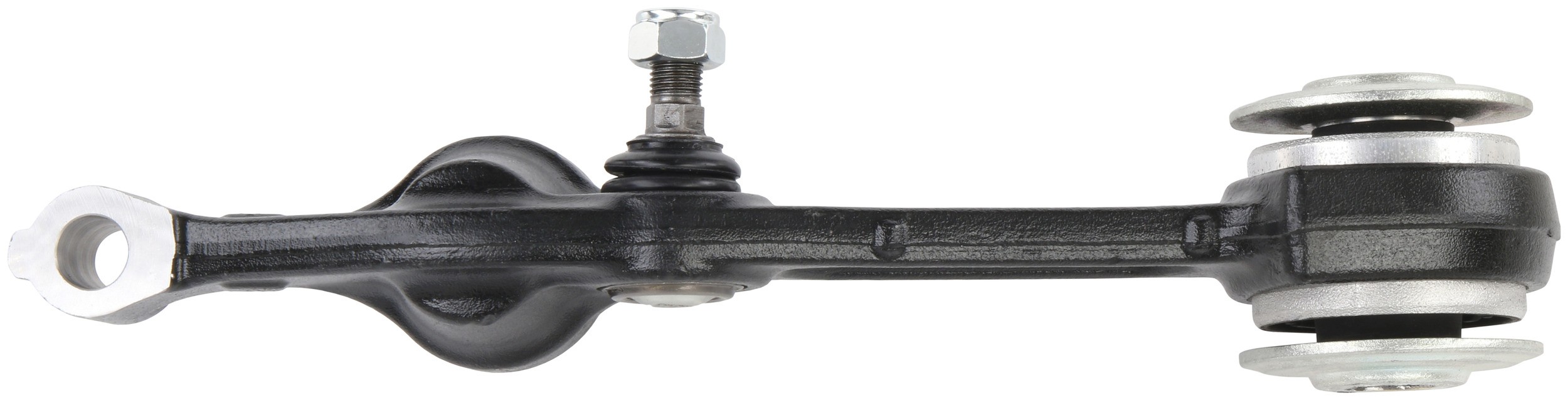

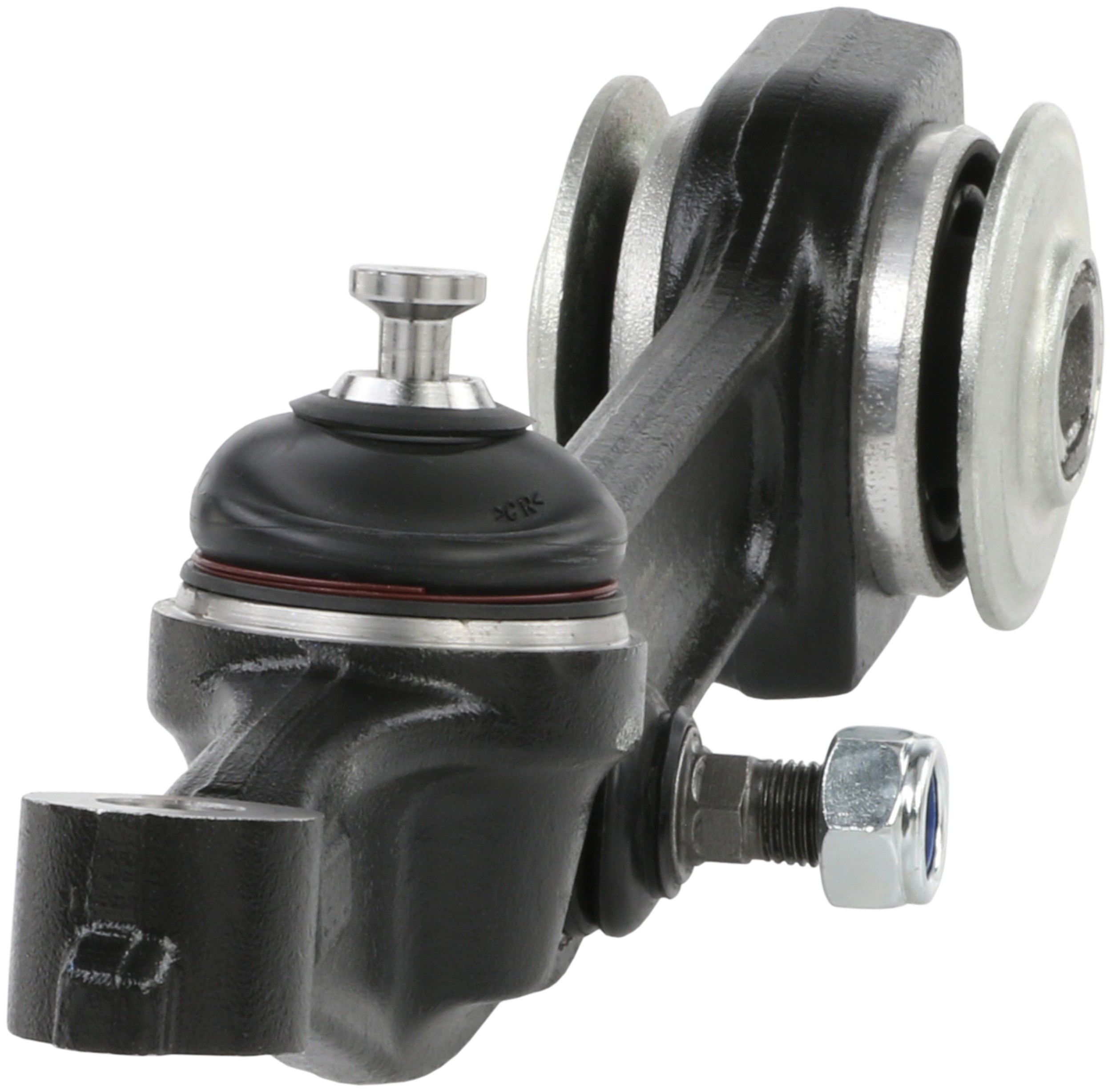

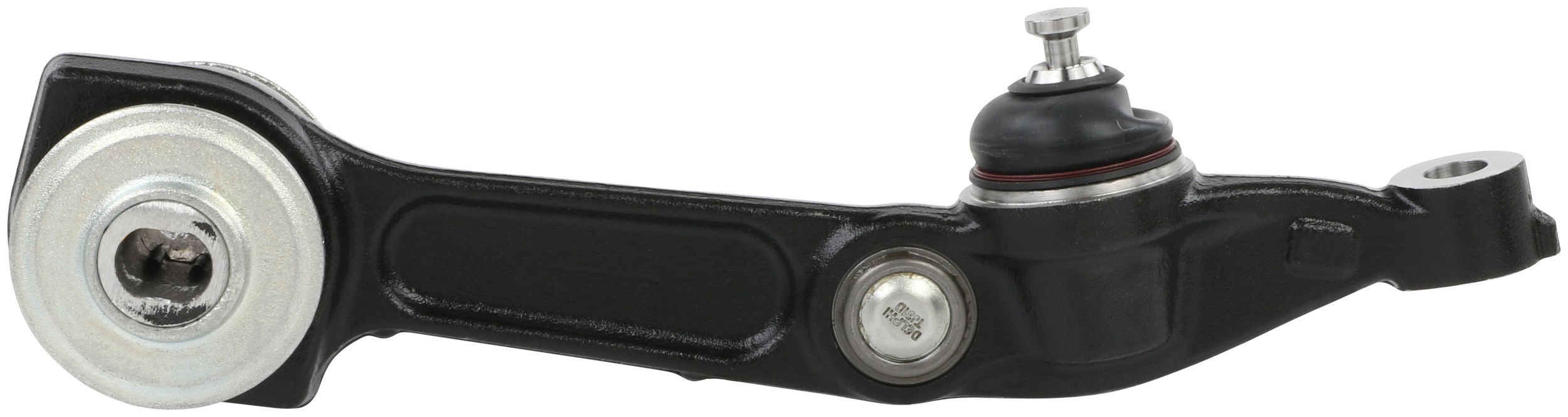

Delphi TC1497 Suspension Control Arm and Ball Joint Assembly

Delphi TC1497 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	0.646 IN
Mounting Hole Diameter	0.402 IN
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Greaseable	No
Finish	Black
Mounting Hole Diameter	16.40 MM
Mounting Hole Diameter	10.20 MM
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
4887	4.921 IN
4890	92.00 MM
4890	3.622 IN
4887	125.00 MM
Length	404.00 MM
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Position(s)	Front Right Lower Rearward
2384	Yes
9090	Chloroprene Rubber (CR)
6529	Power
2386	Casting/Forged
Length	15.906 IN

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	S350	2006 to 2006
Mercedes-Benz	S430	2000 to 2006
Mercedes-Benz	S500	2000 to 2006
Mercedes-Benz	S55 AMG	2001 to 2006
Mercedes-Benz	S600	2001 to 2006
Mercedes-Benz	S65 AMG	2006 to 2006
