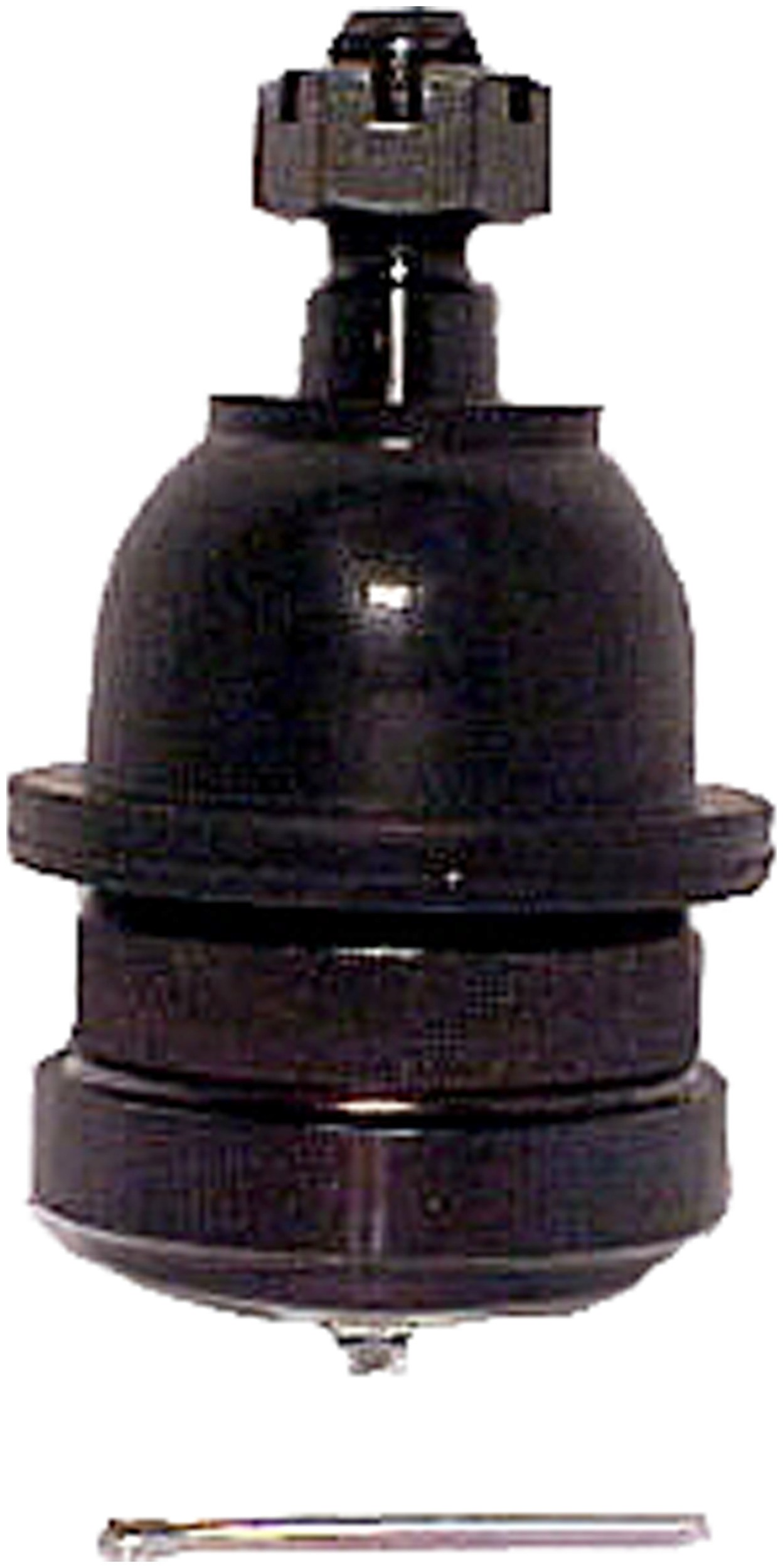

Delphi TC1601 Suspension Ball Joint

Delphi TC1601 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9213	0.787 IN
9212	16 MM
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	Yes
2381	Yes
2334	Yes
Position(s)	Front Lower
9212	0.63 IN
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Greaseable	Yes
Adjustable	No
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	Yes
Color	Gray
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Maximum Outside Diameter	2.323 IN
Maximum Outside Diameter	59.00 MM
Height	118.01 MM
Height	4.646 IN
Length	118.00 MM
Length	4.650 IN
Width	59 MM
9211	0.167 IN
4966	24 MM
4966	0.945 IN
9213	20 MM

Vehicle Applications:

Make	Model	Years
Buick	Apollo	1975 to 1975
Buick	Century	1973 to 1981
Buick	Electra	1977 to 1989
Buick	Estate Wagon	1977 to 1983
Buick	LeSabre	1977 to 1990
Buick	Regal	1973 to 1987
Buick	Riviera	1977 to 1978
Buick	Roadmaster	1991 to 1996
Buick	Skylark	1975 to 1979
Cadillac	Brougham	1987 to 1992
Cadillac	Commercial Chassis	1983 to 1996
Cadillac	DeVille	1977 to 1984
Cadillac	Fleetwood	1977 to 1996
Cadillac	Seville	1976 to 1979
Chevrolet	Bel Air	1981 to 1981
Chevrolet	Blazer	1995 to 2005
Chevrolet	Camaro	1970 to 2002
Chevrolet	Caprice	1977 to 1996
Chevrolet	Chevelle	1973 to 1973
Chevrolet	Commercial Chassis	1991 to 1994
Chevrolet	El Camino	1973 to 1987
Chevrolet	Impala	1977 to 1996
Chevrolet	LLV	1987 to 1995
Chevrolet	Malibu	1978 to 1983
Chevrolet	Monte Carlo	1973 to 1988
Chevrolet	Nova	1975 to 1979
Chevrolet	S10 Blazer	1983 to 1994
Chevrolet	S10	1982 to 2003
GMC	Caballero	1978 to 1987
GMC	Jimmy	1992 to 2001
GMC	S15 Jimmy	1983 to 1991
GMC	S15	1982 to 1990
GMC	Sonoma	1991 to 2003
GMC	Sprint	1973 to 1977
Isuzu	Hombre	1996 to 2000
Oldsmobile	98	1977 to 1984
Oldsmobile	Custom Cruiser	1977 to 1992
Oldsmobile	Cutlass Calais	1978 to 1984
Oldsmobile	Cutlass Cruiser	1980 to 1983
Oldsmobile	Cutlass Salon	1975 to 1987
Oldsmobile	Cutlass Supreme	1973 to 1988
Oldsmobile	Cutlass Tiara	1976 to 1976
Oldsmobile	Cutlass	1973 to 1987
Oldsmobile	Delta 88	1977 to 1985
Oldsmobile	Omega	1975 to 1979
Oldsmobile	Vista Cruiser	1973 to 1975
Pontiac	Bonneville	1977 to 1986
Pontiac	Catalina	1977 to 1981
Pontiac	Firebird	1970 to 2002
Pontiac	GTO	1973 to 1973
Pontiac	Grand Am	1973 to 1980
Pontiac	Grand LeMans	1975 to 1983
Pontiac	Grand Prix	1973 to 1987
Pontiac	Grand Safari	1977 to 1978
Pontiac	LeMans	1973 to 1981
Pontiac	Parisienne	1977 to 1986
Pontiac	Phoenix	1977 to 1979
Pontiac	Safari	1987 to 1989
Pontiac	Ventura	1975 to 1977
