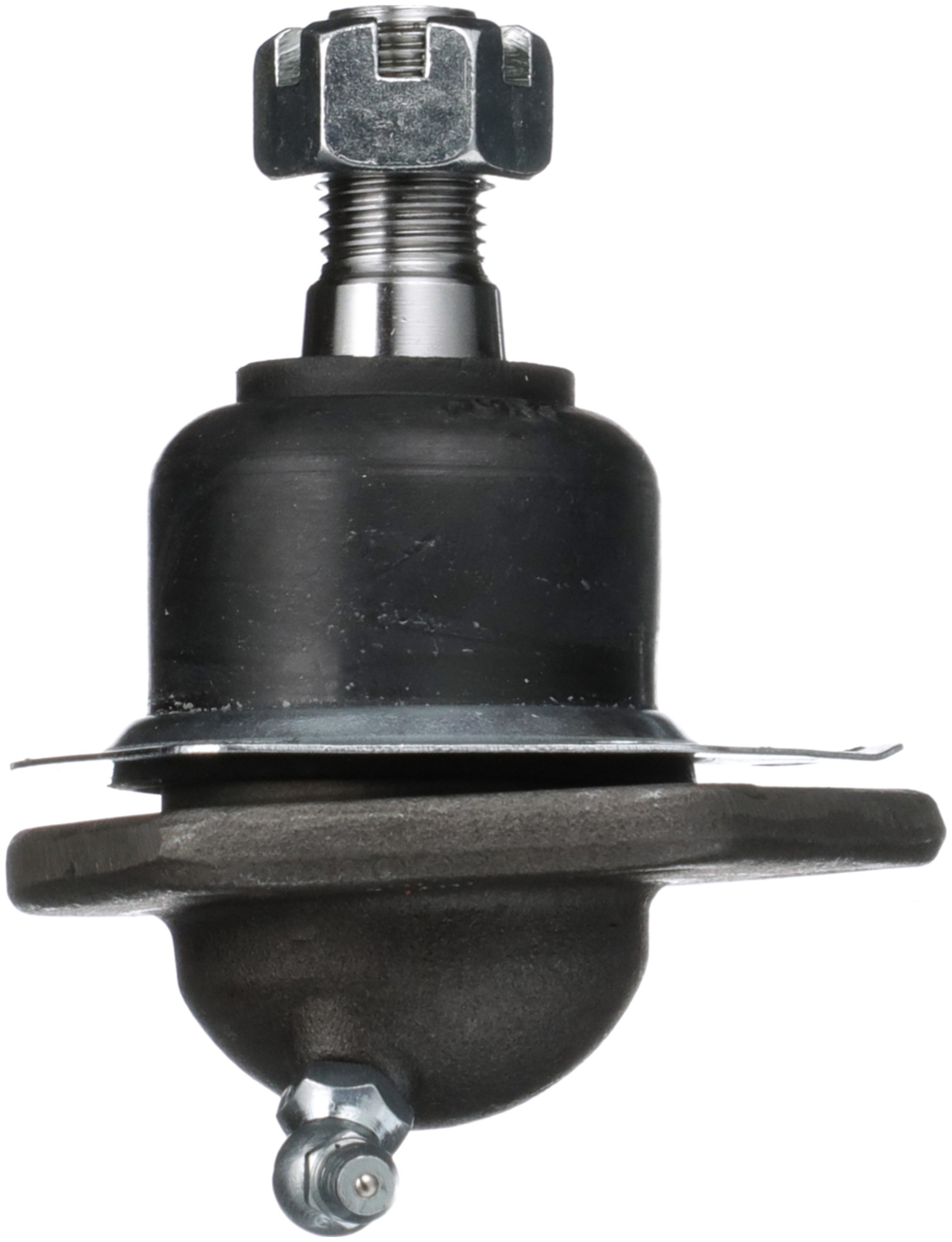

Delphi TC1620 Suspension Ball Joint

Delphi TC1620 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4966	23.01 MM
9213	20 MM
9213	0.787 IN
9212	16.3 MM
9212	0.642 IN
9211	0.167 IN
9207	0.910 IN
9207	23.00 MM
9203	14.50 MM
9203	0.571 IN
9202	7.95 MM
9202	0.313 IN
4966	0.906 IN
3068	25.00 MM
3068	0.984 IN
Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In
Adjustable	No
Mounting Hole Quantity	4
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	Yes
Color	Gray
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Position(s)	Front Lower
2334	Yes
2381	Yes
2827	Yes
839	13mm
881	Threaded
9090	Rubber
9204	Yes
9209	Yes
9210	Yes
Width	70 MM
Height	4.134 IN
Height	105.00 MM

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1995 to 2005
Chevrolet	S10 Blazer	1984 to 1994
Chevrolet	S10	1984 to 2004
GMC	Jimmy	1992 to 2005
GMC	S15 Jimmy	1984 to 1991
GMC	S15	1984 to 1990
GMC	Sonoma	1991 to 2004
GMC	Syclone	1991 to 1991
GMC	Typhoon	1992 to 1993
Isuzu	Hombre	1998 to 2000
Oldsmobile	Bravada	1991 to 2001
