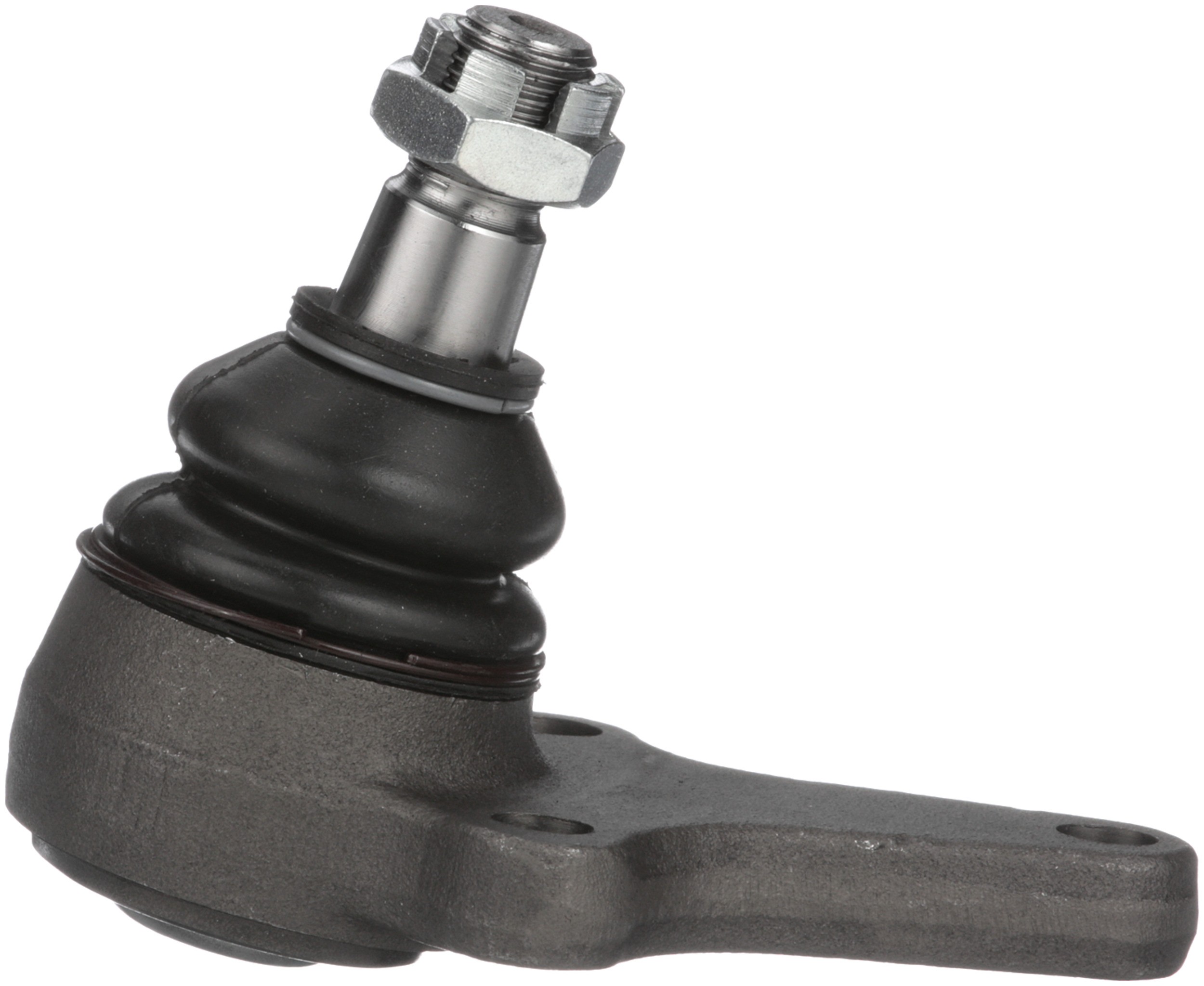

Delphi TC1724 Suspension Ball Joint

Delphi TC1724 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9212	0.709 IN
4966	22 MM
9213	20 MM
9213	0.787 IN
9212	18 MM
Position(s)	Front Lower
2334	Yes
2381	Yes
2827	Yes
881	Threaded
9090	Rubber
9209	No
9210	Yes
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Mounting Type	Bolt-In
Suspension Grade Type	Standard Replacement
Height	100.99 MM
Height	3.976 IN
Width	128 MM
Length	3.150 IN
Length	80.00 MM
Maximum Outside Diameter	32.00 MM
Maximum Outside Diameter	1.260 IN
4966	0.866 IN
