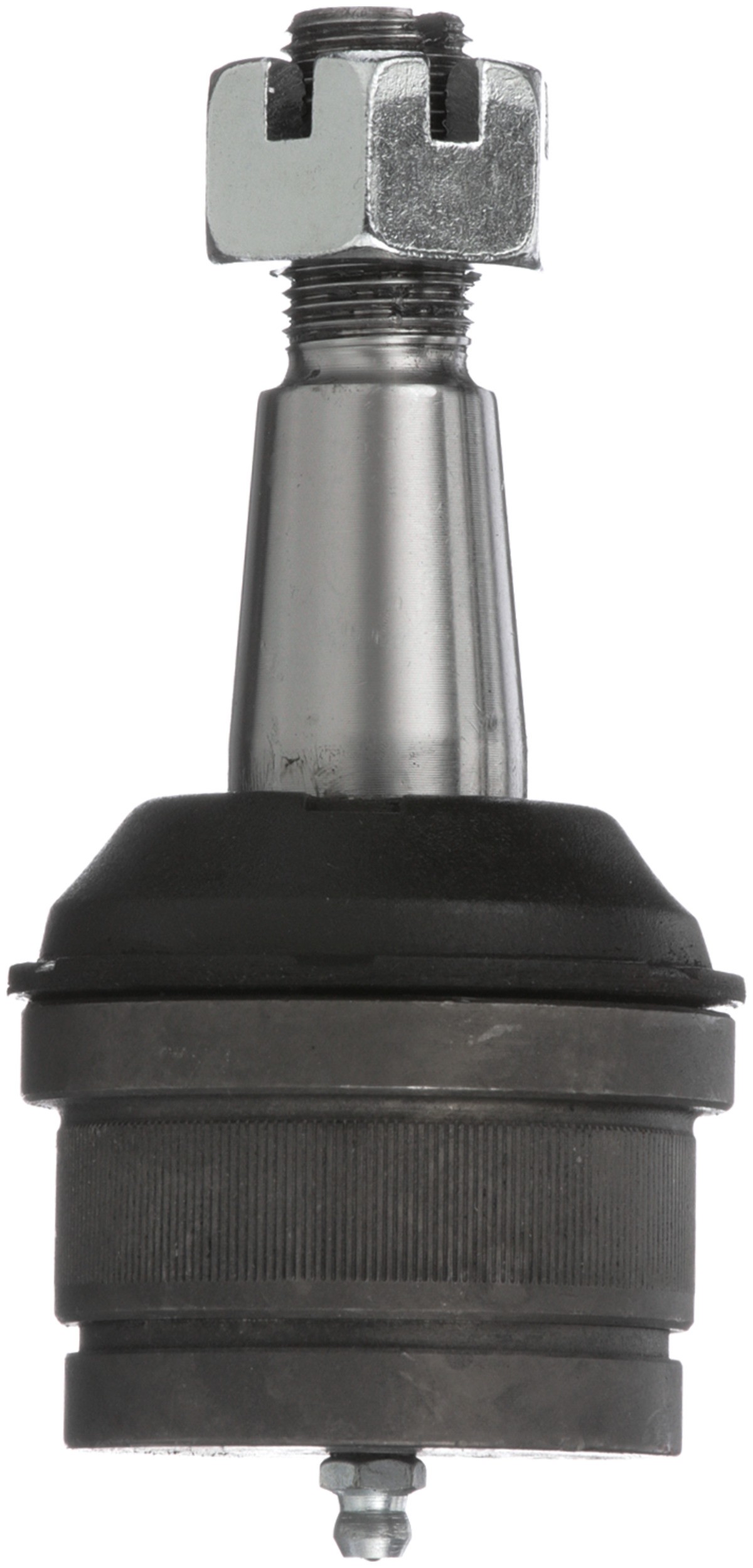

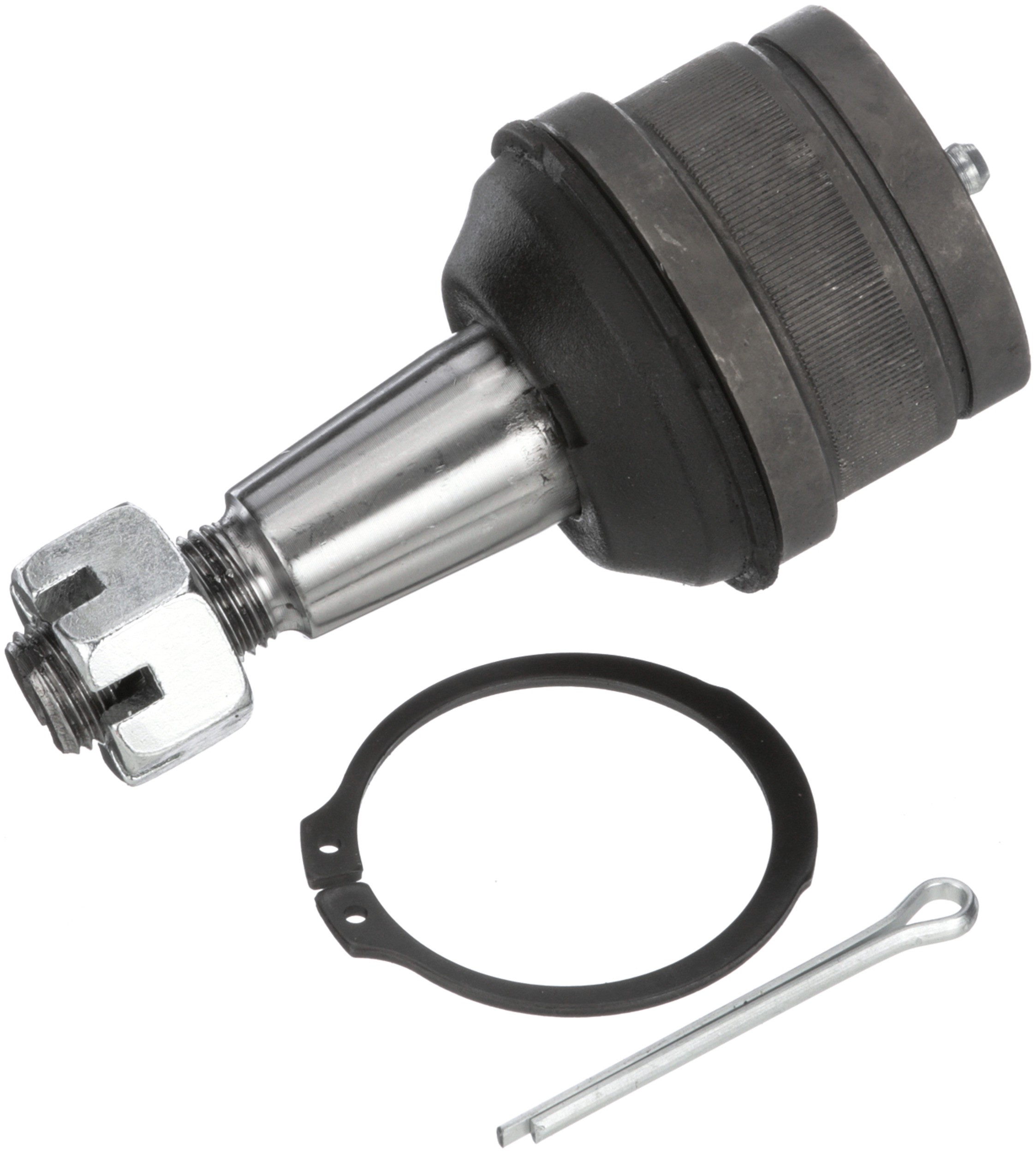

Delphi TC1852 Suspension Ball Joint

Delphi TC1852 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9209	No
Washers Included	Yes
Adjustable	No
Greaseable	Yes
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
9212	19 MM
9213	0.953 IN
Grease Fitting Included	Yes
Color	Gray
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
9213	24.2 MM
9204	No
9090	Rubber
881	Threaded
2827	Yes
9212	0.748 IN
9211	0.167 IN
Maximum Outside Diameter	2.244 IN
Maximum Outside Diameter	57.00 MM
Length	122.00 MM
Length	4.800 IN
Width	57 MM
Height	4.803 IN
Height	122.00 MM
9210	Yes
2381	Yes
2334	Yes
Position(s)	Front Lower
4966	29.49 MM
4966	1.161 IN
