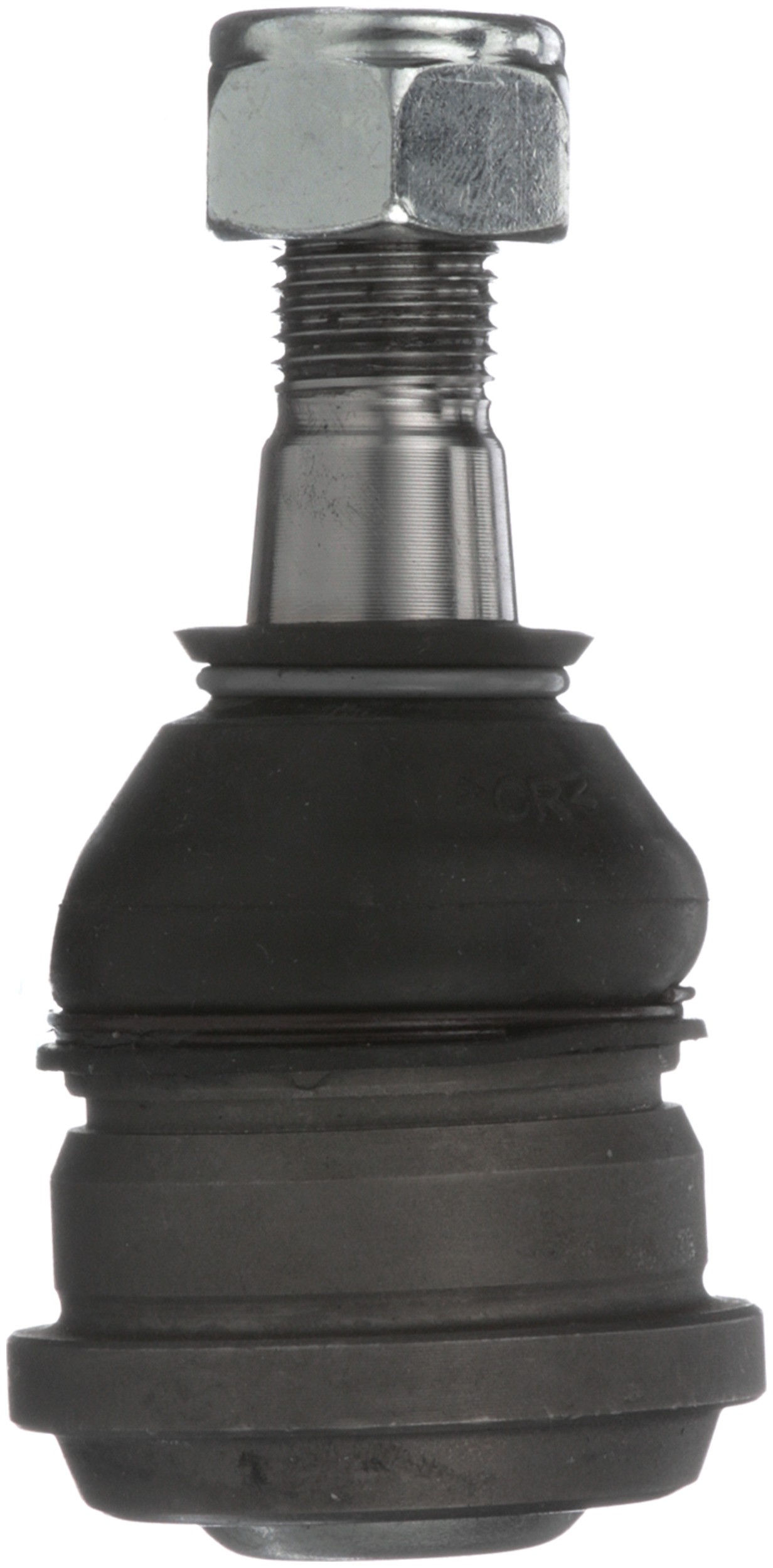

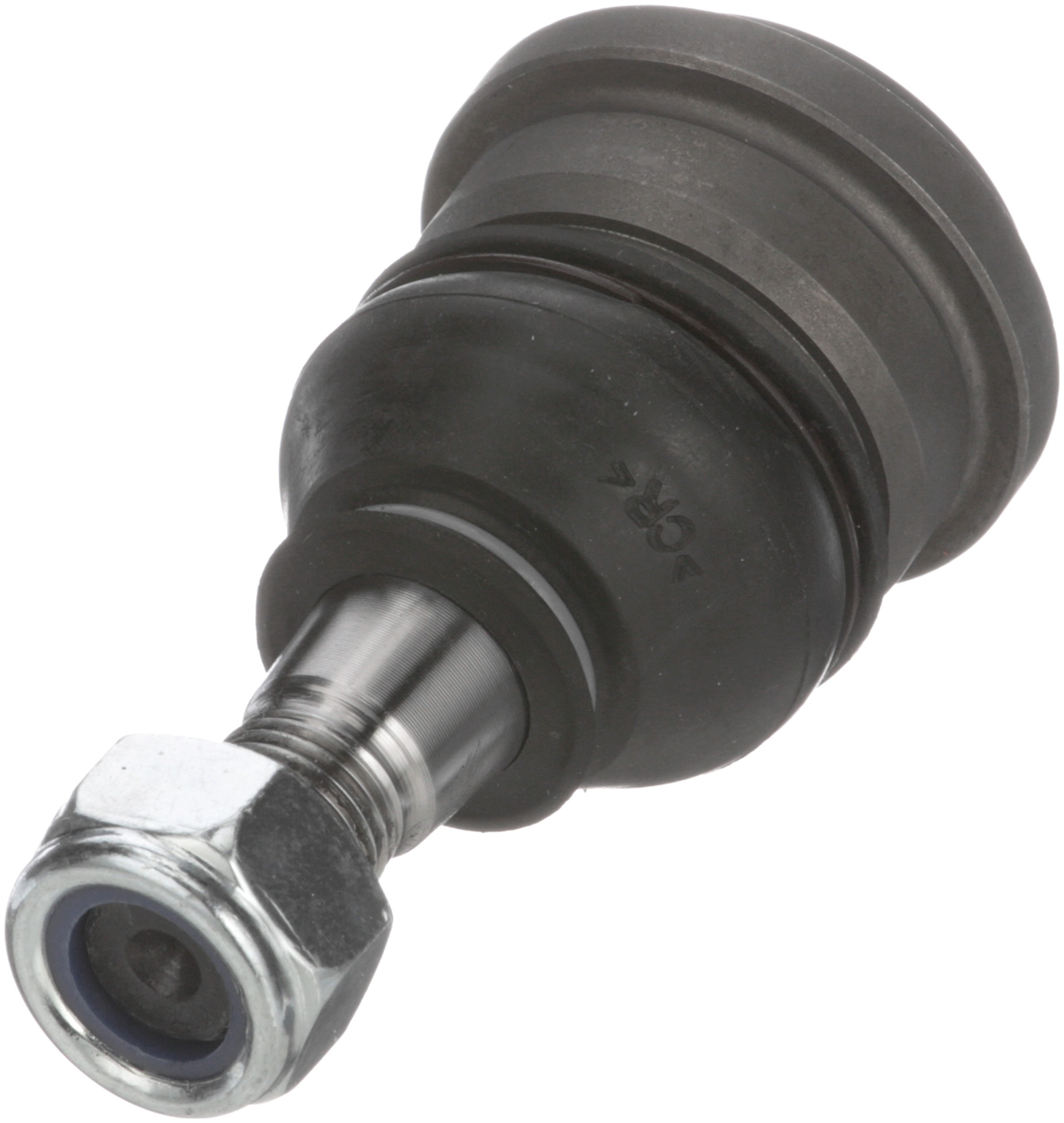

Delphi TC1858 Suspension Ball Joint

Delphi TC1858 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2334	No
2381	Yes
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Maximum Outside Diameter	1.791 IN
Width	45.5 MM
Washers Included	No
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Color	Gray
Height	86.51 MM
9213	18 MM
9213	0.709 IN
9212	14.85 MM
9212	0.585 IN
9211	0.167 IN
4966	22.5 MM
4966	0.886 IN
Maximum Outside Diameter	45.50 MM
881	Threaded
2827	No
9204	No
9209	No
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Height	3.406 IN
9090	Rubber
9210	Yes
Grease Fitting Included	No
Position(s)	Front Lower
