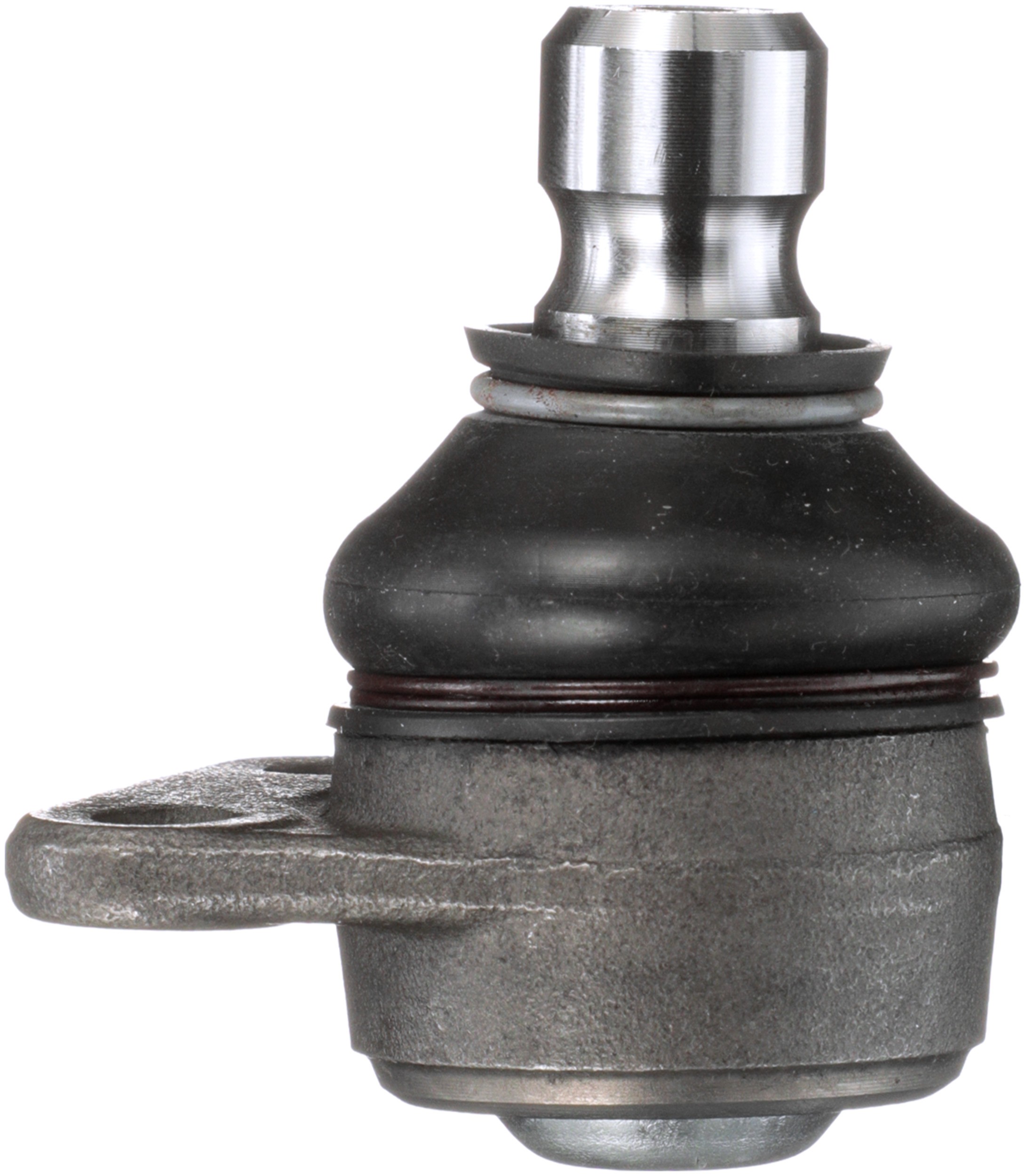

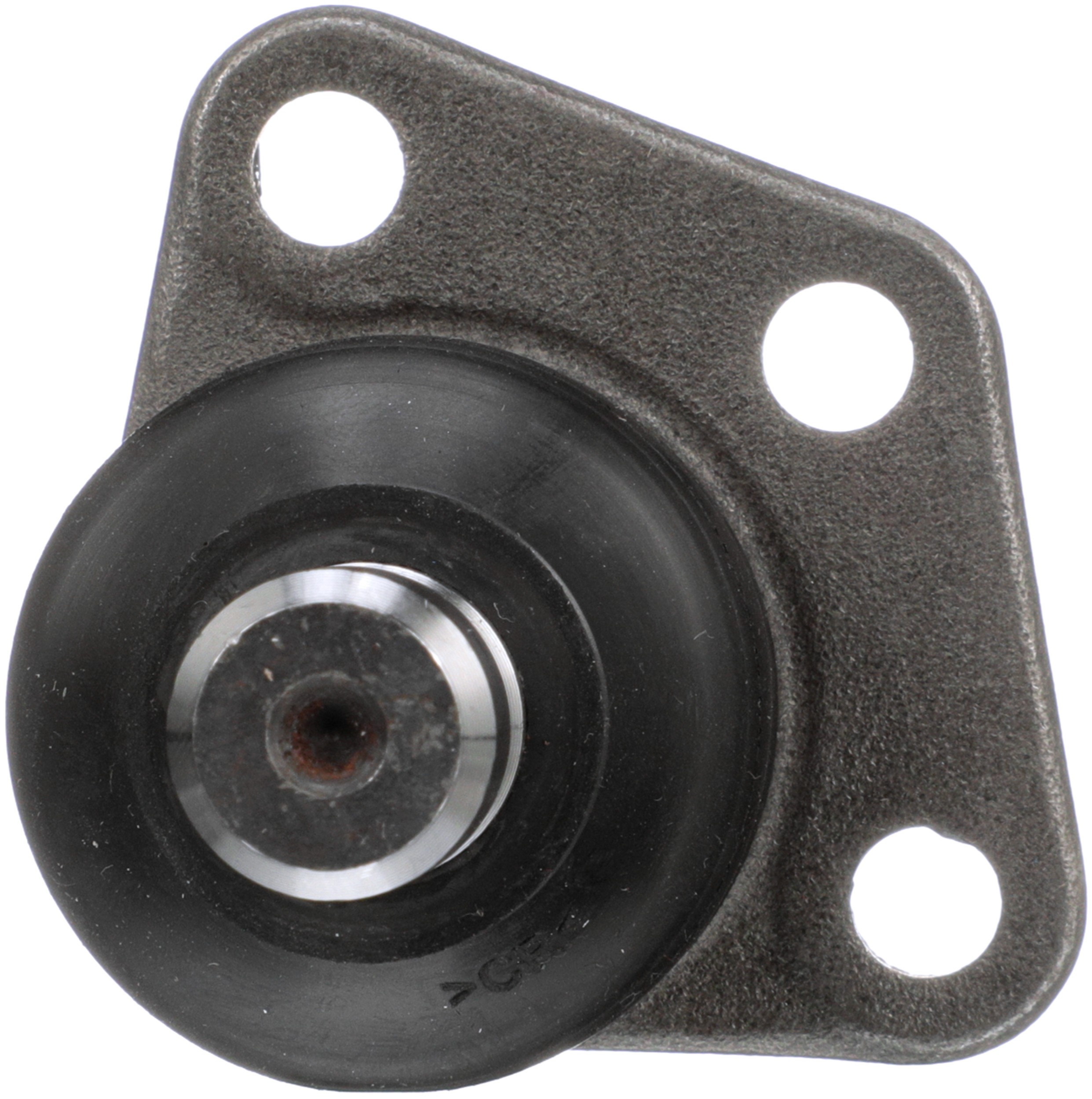

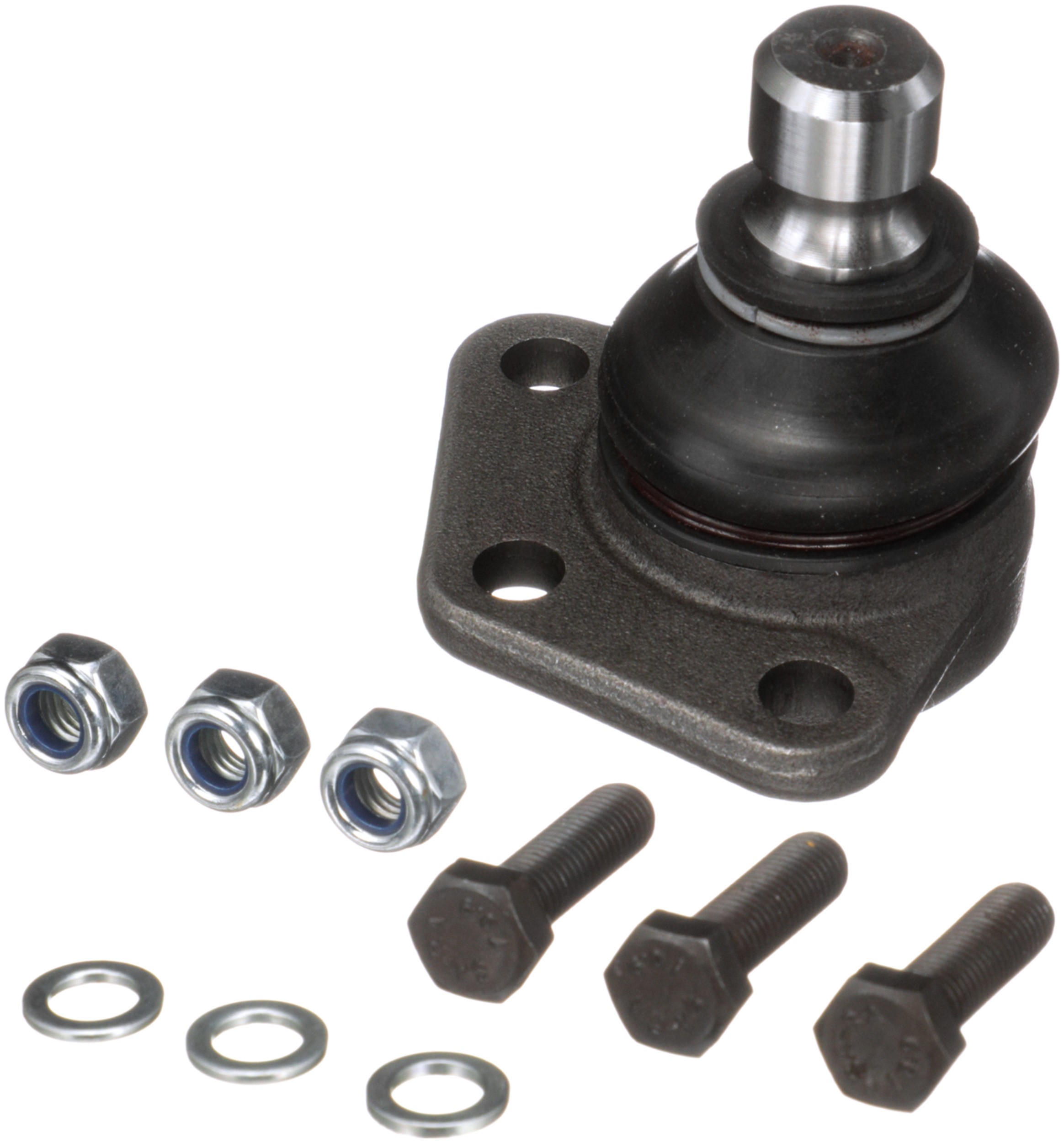

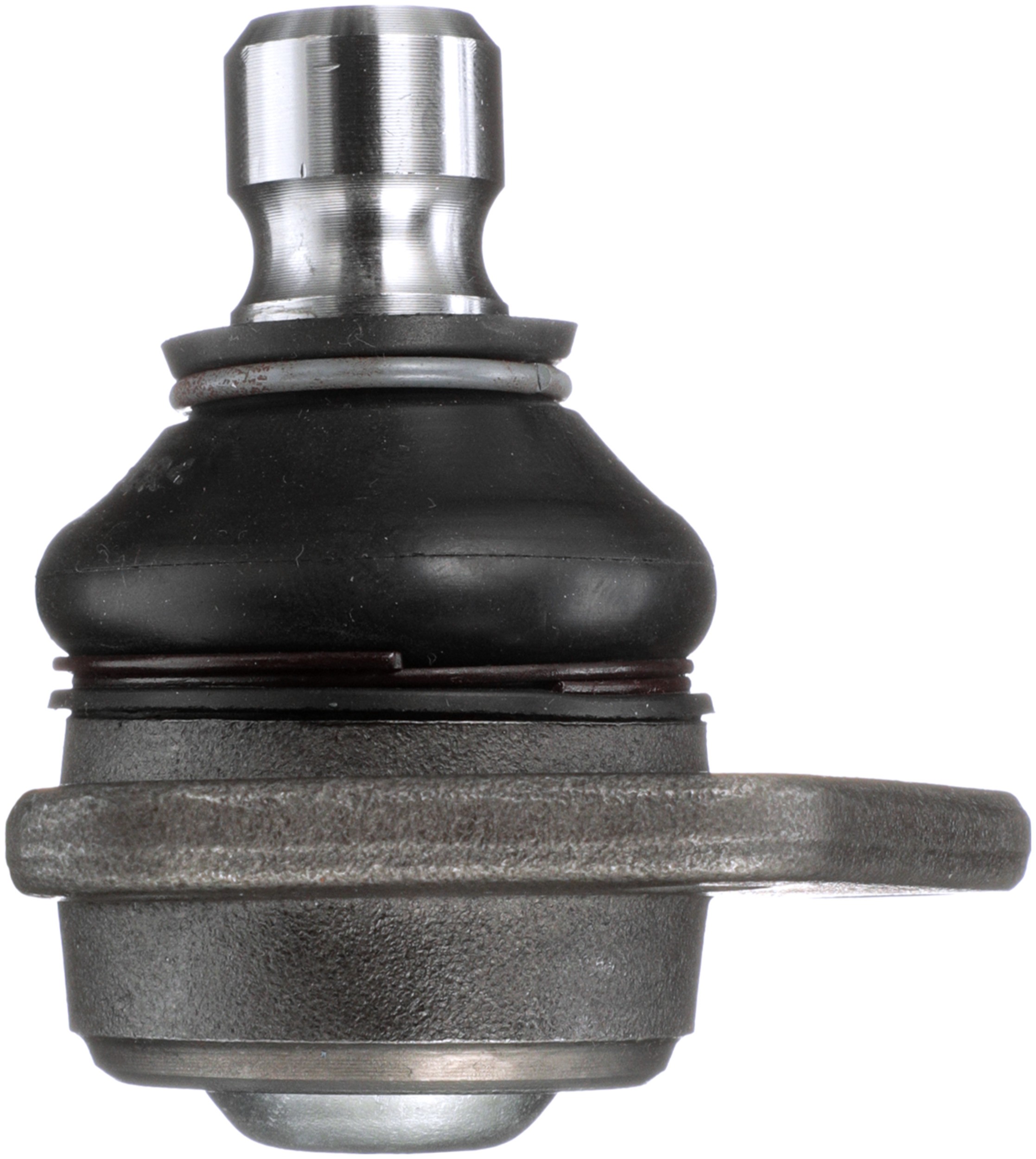

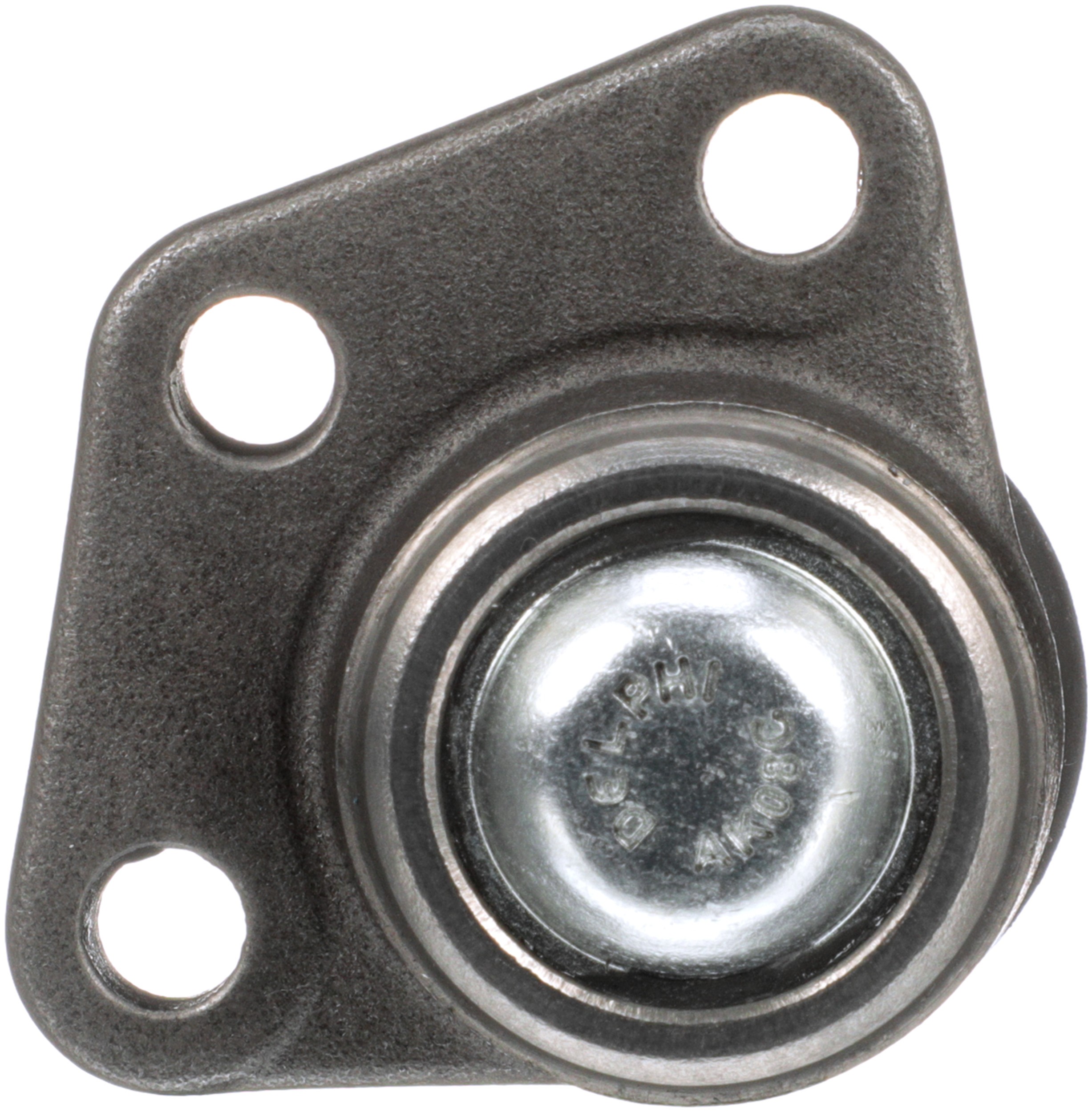

Delphi TC207 Suspension Ball Joint

Delphi TC207 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In
Greaseable	No
9202	7.00 MM
Adjustable	No
Mounting Hole Quantity	3
Washers Included	Yes
Mounting Hardware Included	Yes
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Maximum Outside Diameter	2.756 IN
Maximum Outside Diameter	70.00 MM
Grease Fitting Included	No
Color	Black
Material	Steel
Height	65.50 MM
9207	1.181 IN
9207	30.00 MM
9203	13.00 MM
9203	0.512 IN
Width	58.3 MM
Height	2.579 IN
Position(s)	Front Lower
2334	No
2381	Yes
2827	No
3068	0.984 IN
3068	25.00 MM
9058	52.00 MM
839	11mm
9090	Rubber
9204	Yes
9209	No
9210	No
9202	0.276 IN

Vehicle Applications:

Make	Model	Years
Porsche	924	1977 to 1988
Porsche	944	1983 to 1985
Volkswagen	Cabriolet	1985 to 1993
Volkswagen	Jetta	1980 to 1984
Volkswagen	Rabbit	1978 to 1984
Volkswagen	Scirocco	1978 to 1988
