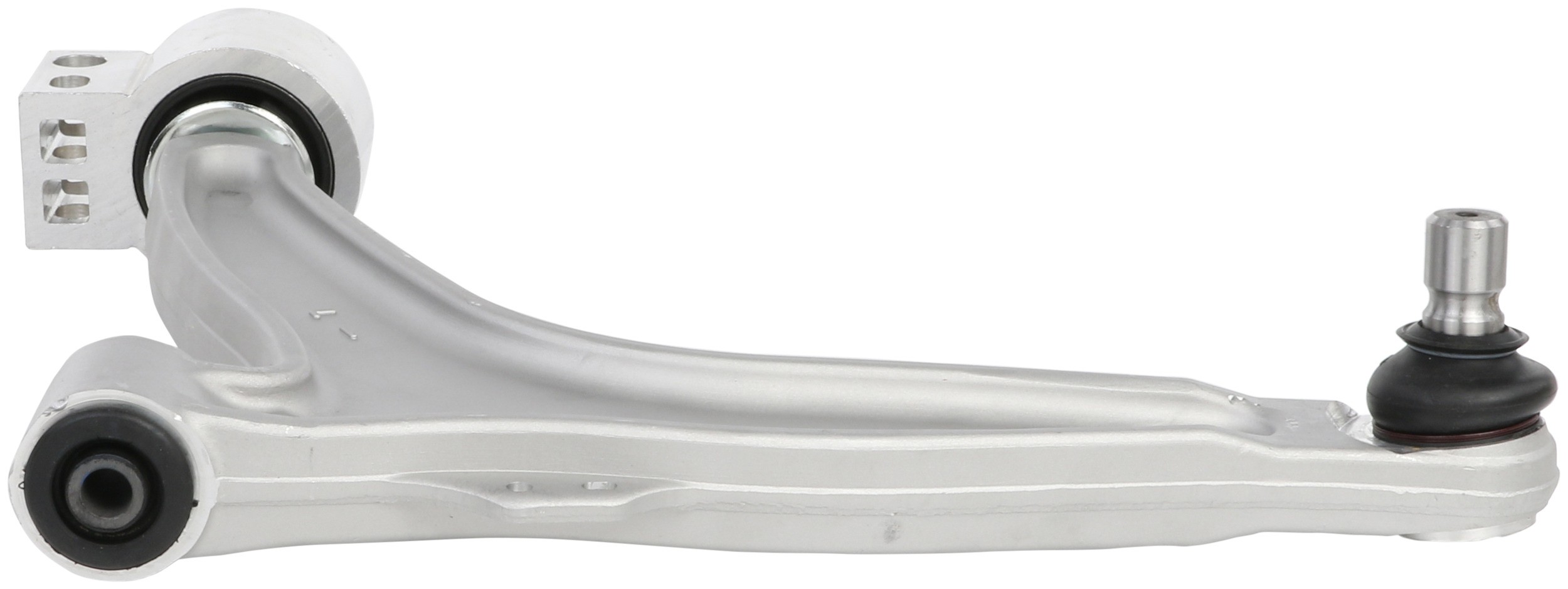

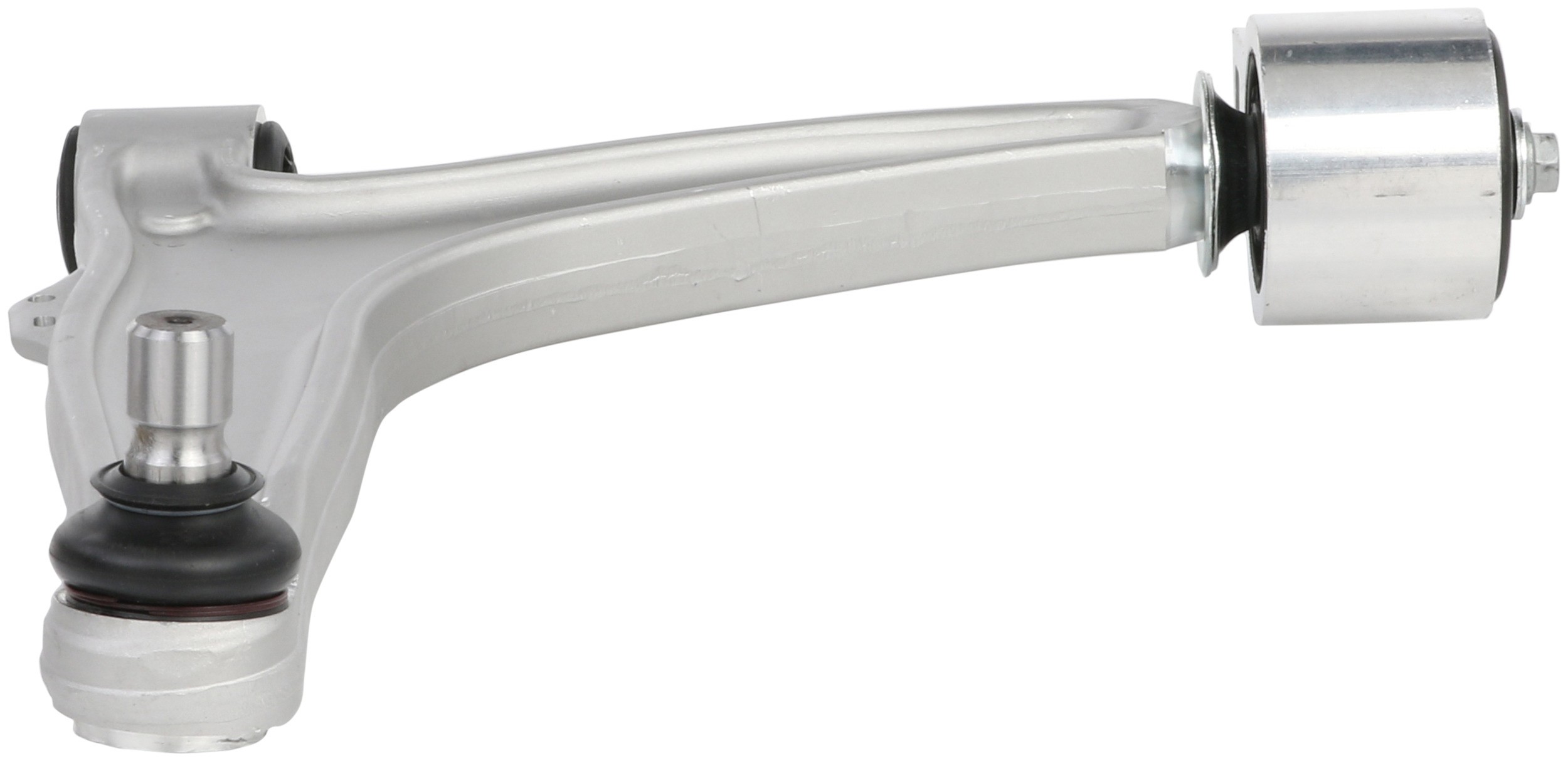

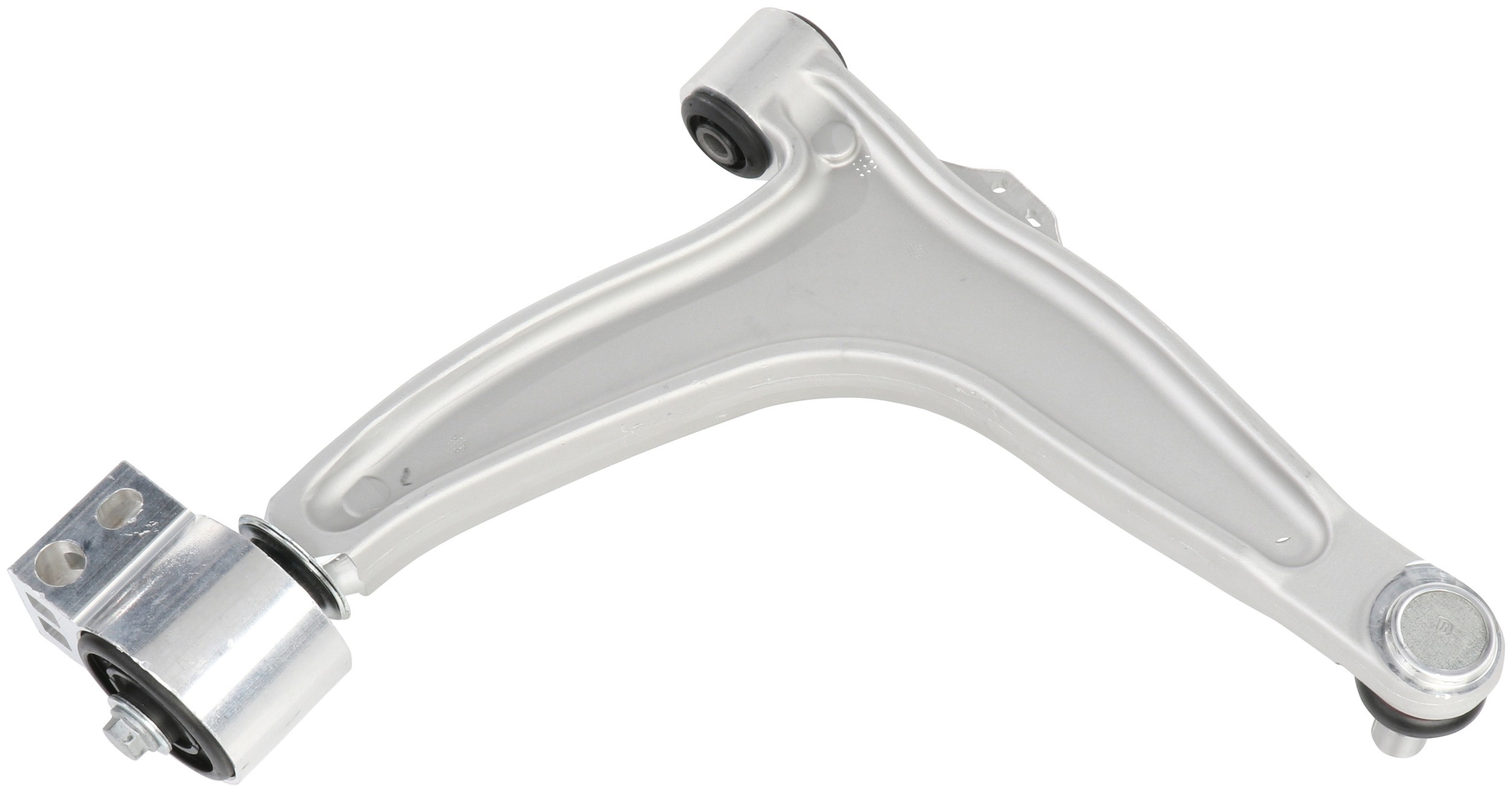

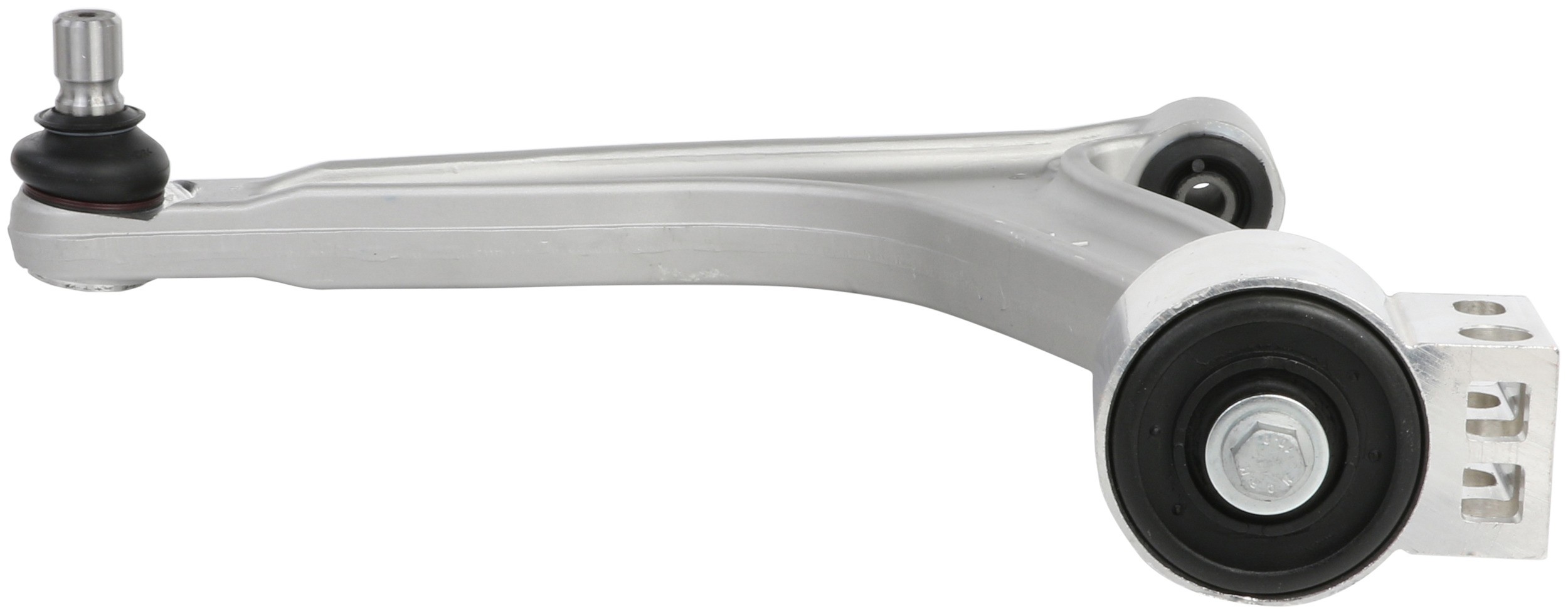

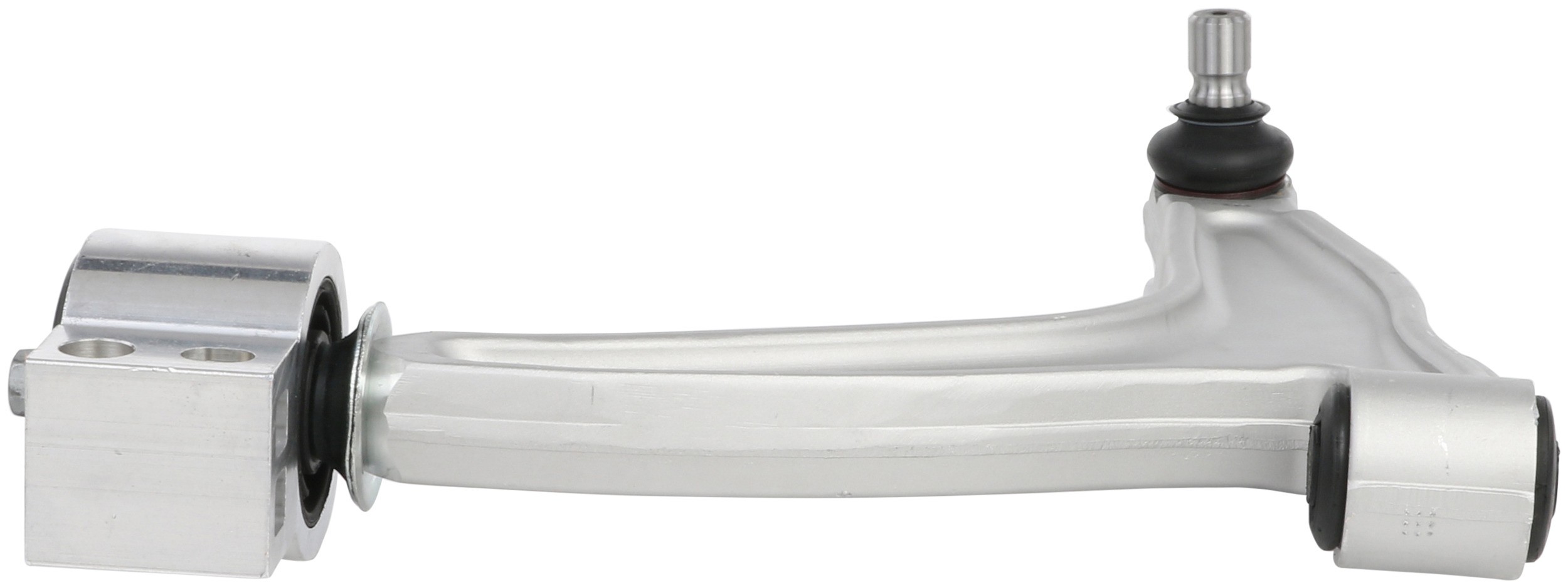

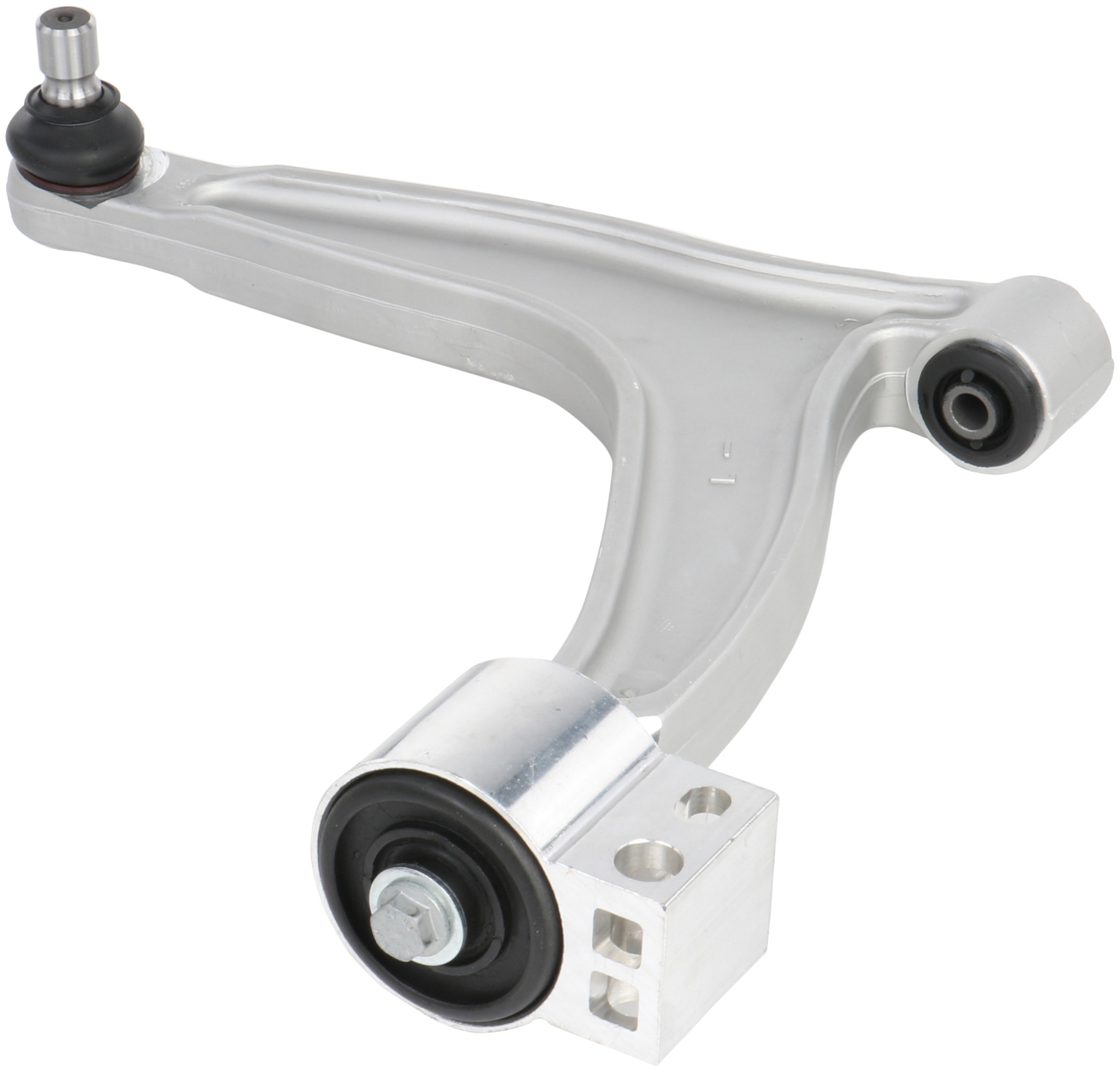

Delphi TC2075 Suspension Control Arm and Ball Joint Assembly

Delphi TC2075 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Ball Joint Stud Type	Grooved
Mounting Hardware Included	Yes
Grade Type	Premium
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Mounting Hole Quantity	3
Length	16.575 IN
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	0.492 IN
Mounting Hole Diameter	0.673 IN
9090	Chloroprene Rubber (CR)
6529	Power
Bearing Material	Plastic
Boot Colour	Black
2386	Casting/Forged
Greaseable	No
Finish	Gray
2384	Yes
Length	421.00 MM
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Diameter	0.480 IN
4887	376.00 MM
4887	14.803 IN
4890	72.00 MM
4890	2.835 IN
Mounting Hole Diameter	17.10 MM
Bushing Type	Rubber
Bushing Colour	Black
Finish	Uncoated
Mounting Hole Diameter	12.50 MM
Position(s)	Front Left Lower
Material	Aluminum
