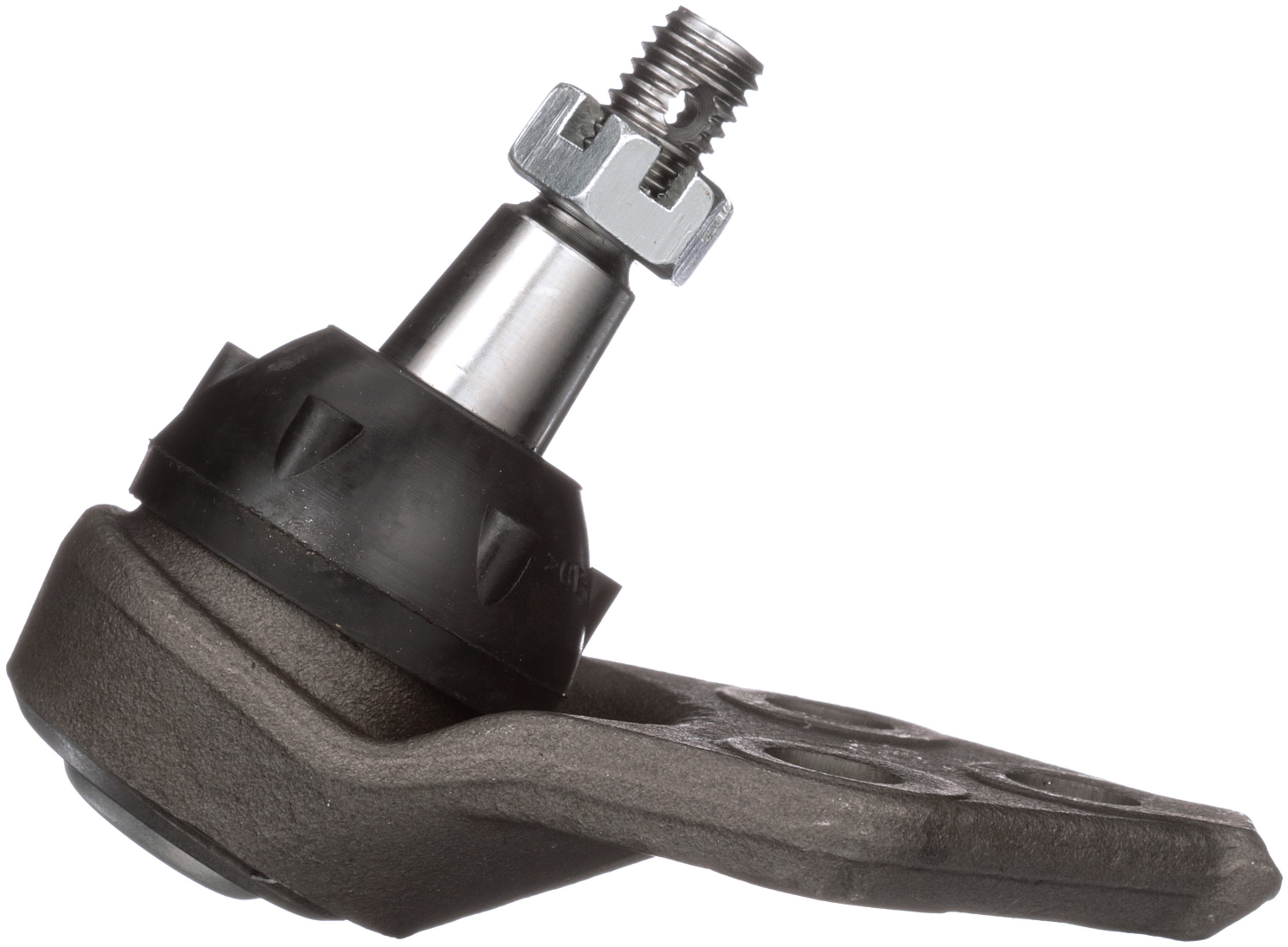

Delphi TC2201 Suspension Ball Joint
£65.95 Inc VAT
Delphi TC2201 Suspension Ball Joint
Features:
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Attributes:
| 9212 | 0.602 IN |
| 9212 | 15.3 MM |
| 4966 | 24 MM |
| 4966 | 0.945 IN |
| 3068 | 30.00 MM |
| 3068 | 1.181 IN |
| Height | 3.622 IN |
| Height | 92.00 MM |
| 9210 | Yes |
| 9209 | No |
| 9204 | Yes |
| 9090 | Rubber |
| 881 | Threaded |
| 839 | 19mm |
| 9213 | 0.73 IN |
| 9213 | 18.55 MM |
| Suspension Grade Type | Standard Replacement |
| Mounting Type | Bolt-In |
| Greaseable | Yes |
| Adjustable | No |
| Mounting Hole Quantity | 3 |
| Washers Included | No |

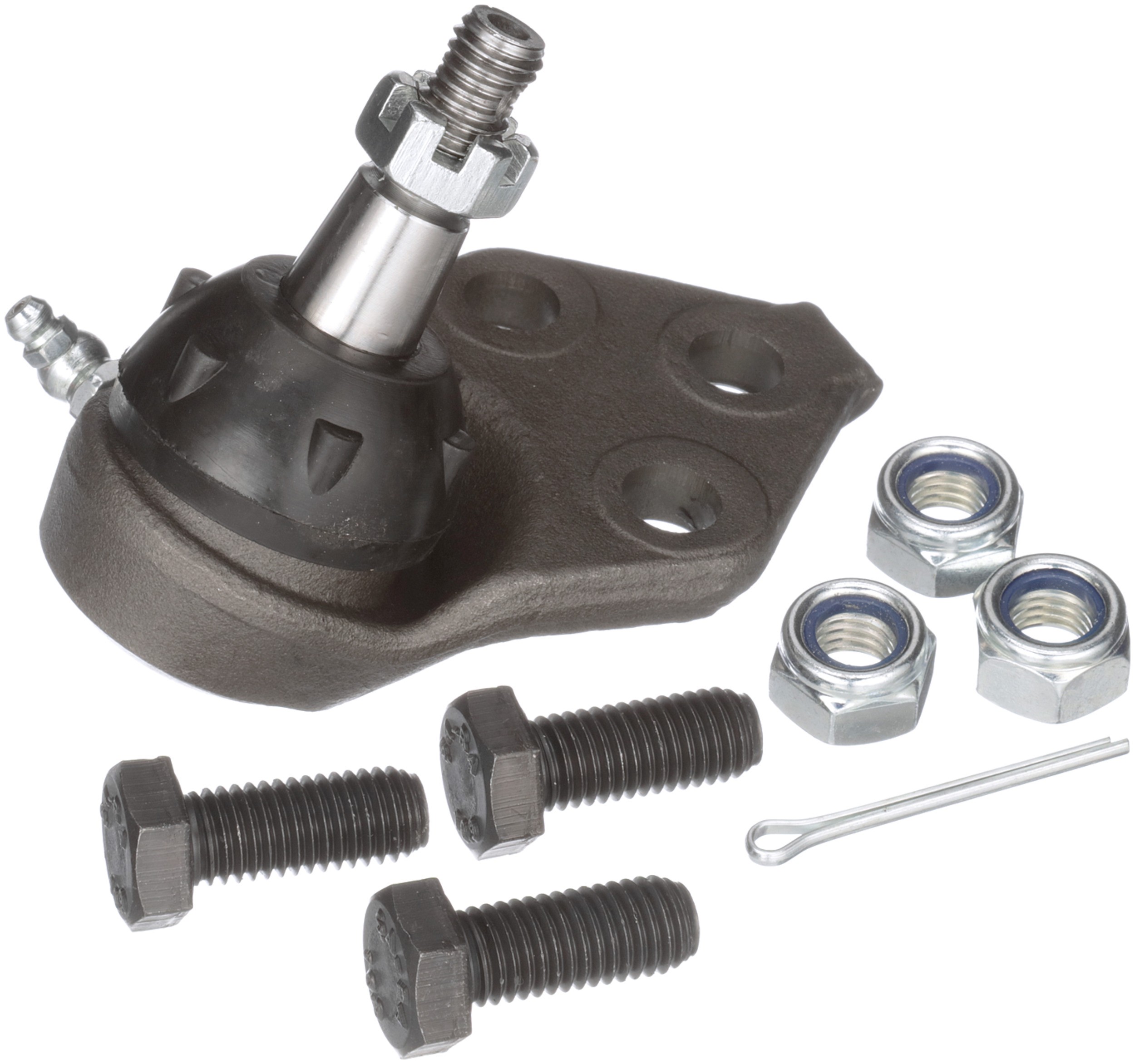

| Mounting Hardware Included | Yes |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Bushings Included | No |
| Grease Fitting Included | Yes |
| Length | 65.00 MM |
| Maximum Outside Diameter | 40.00 MM |
| Maximum Outside Diameter | 1.575 IN |
| Color | Gray |
| Material | Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040 |
| 2827 | Yes |
| Position(s) | Front Lower |
| 2334 | Yes |
| 2381 | Yes |
| Width | 124 MM |
| Length | 2.560 IN |
| 9202 | 12.00 MM |
| 9202 | 0.470 IN |
| 9203 | 0.827 IN |
| 9203 | 21.00 MM |
| 9207 | 27.50 MM |
| 9207 | 1.080 IN |
| 9211 | 0.167 IN |
Vehicle Applications:
| Make | Model | Years |
| Buick | Electra | 1985 to 1990 |
| Buick | LeSabre | 1986 to 1999 |
| Buick | Park Avenue | 1991 to 1996 |
| Cadillac | Commercial Chassis | 1985 to 1993 |
| Cadillac | DeVille | 1985 to 1993 |
| Cadillac | Fleetwood | 1985 to 1992 |
| Oldsmobile | 88 | 1992 to 1999 |
| Oldsmobile | 98 | 1985 to 1996 |
| Oldsmobile | Delta 88 | 1986 to 1991 |
| Oldsmobile | LSS | 1996 to 1999 |
| Oldsmobile | Regency | 1997 to 1998 |
| Pontiac | Bonneville | 1987 to 1999 |
| Weight | 0.634 kg |
|---|
