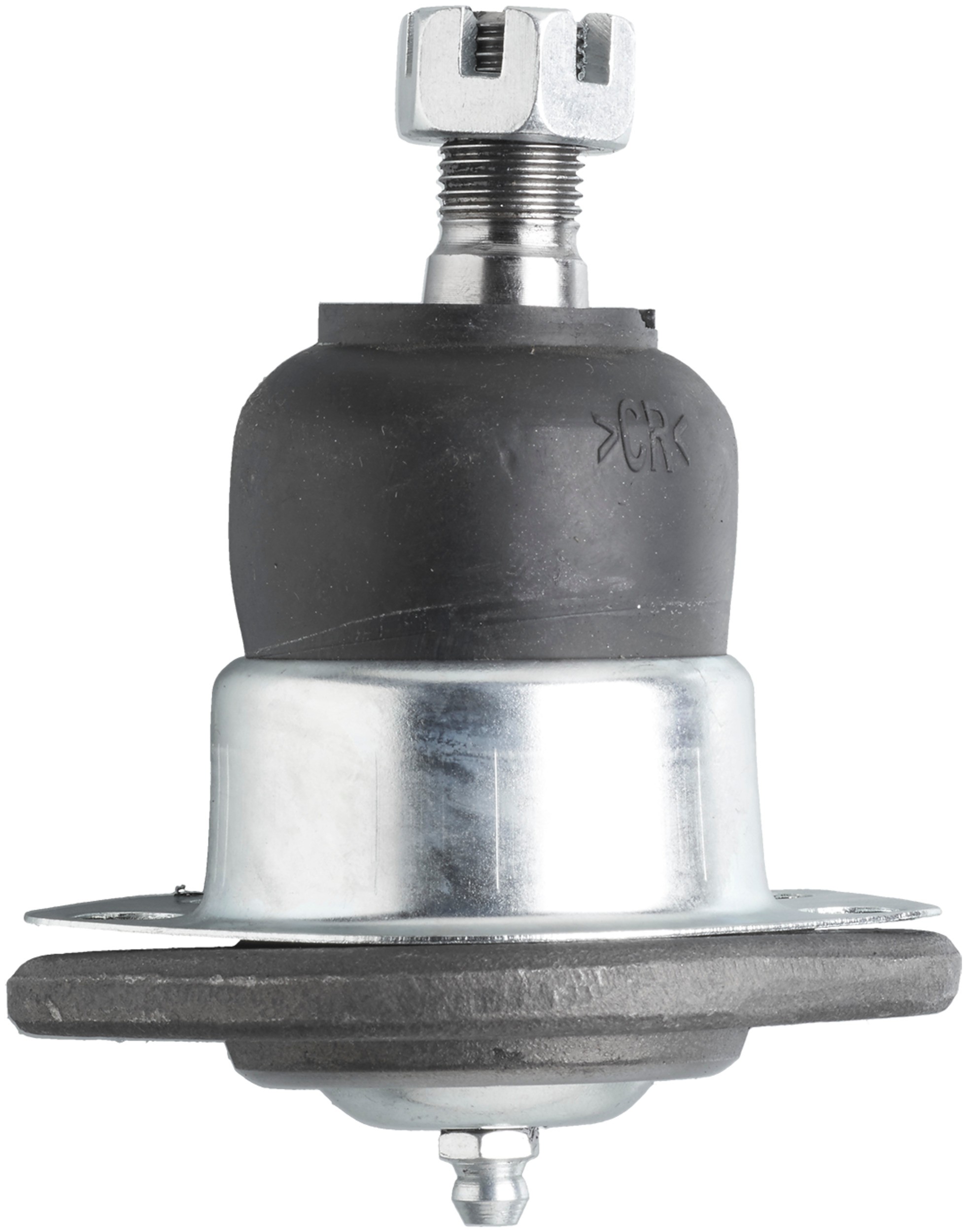

Delphi TC2202 Suspension Ball Joint

Delphi TC2202 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grease Fitting Included	Yes
3068	1.161 IN
3068	29.50 MM
4966	0.74 IN
4966	18.8 MM
9058	46.00 MM
9202	0.250 IN
9202	6.35 MM
9203	0.484 IN
9203	12.30 MM
9207	0.906 IN
9207	23.00 MM
9212	0.661 IN
9212	16.8 MM
9213	0.539 IN
9213	13.7 MM
Material	Steel
Color	Gray
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	4
Adjustable	No
Mounting Type	Bolt-In
Suspension Grade Type	Standard Replacement
Maximum Outside Diameter	1.917 IN
Maximum Outside Diameter	48.70 MM
Length	79.00 MM
Length	3.110 IN
Width	80.5 MM
Height	4.138 IN
Height	105.10 MM
9210	Yes
9209	No
9204	Yes
9090	Rubber
881	Threaded
839	11mm
2827	Yes
2381	Yes
2334	Yes
Position(s)	Front Upper

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1995 to 2005
Chevrolet	S10 Blazer	1983 to 1994
Chevrolet	S10	1983 to 2004
GMC	Jimmy	1992 to 2005
GMC	S15 Jimmy	1984 to 1991
GMC	S15	1984 to 1990
GMC	Sonoma	1991 to 2004
GMC	Syclone	1991 to 1991
GMC	Typhoon	1992 to 1993
Isuzu	Hombre	1998 to 2000
Oldsmobile	Bravada	1991 to 2001
