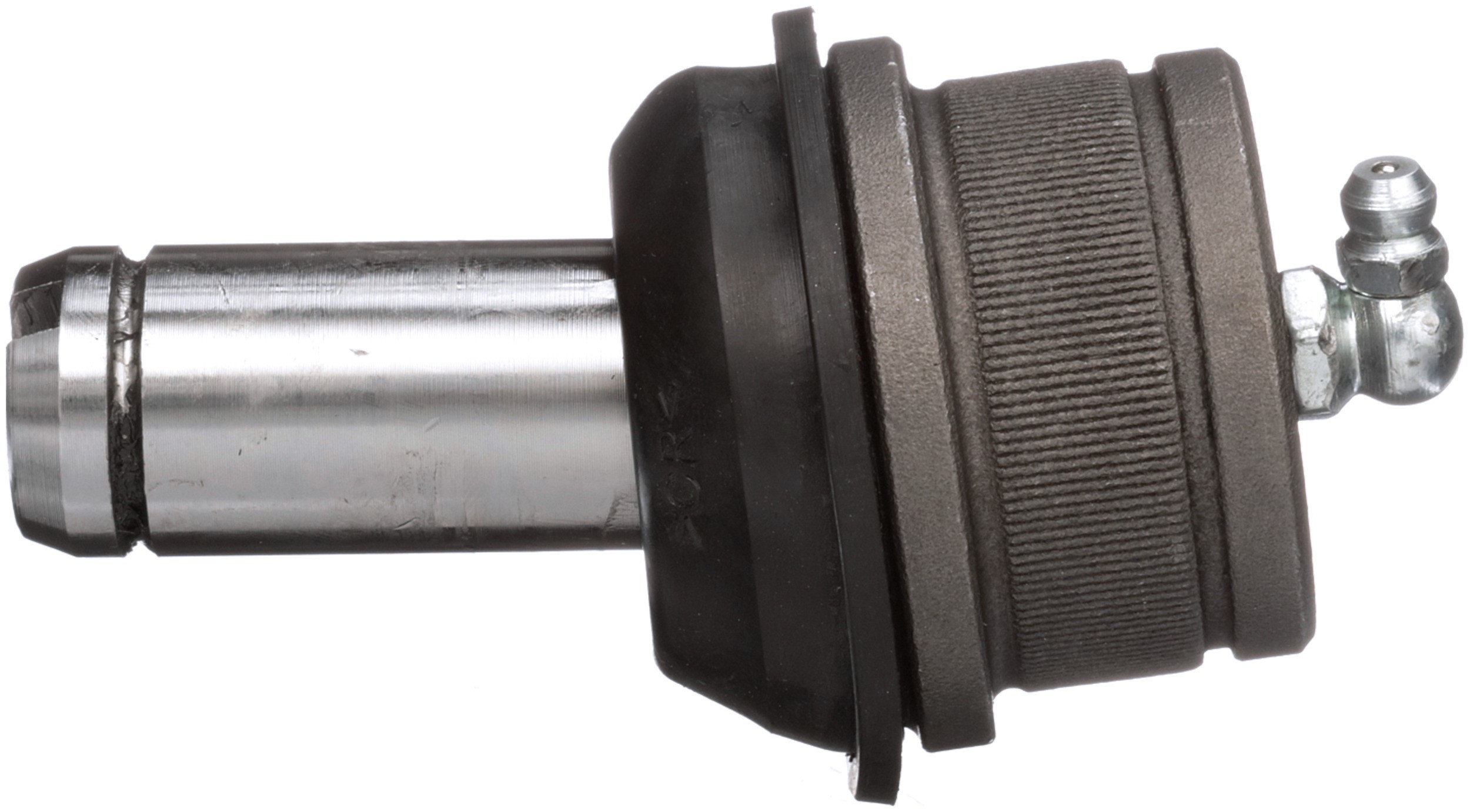

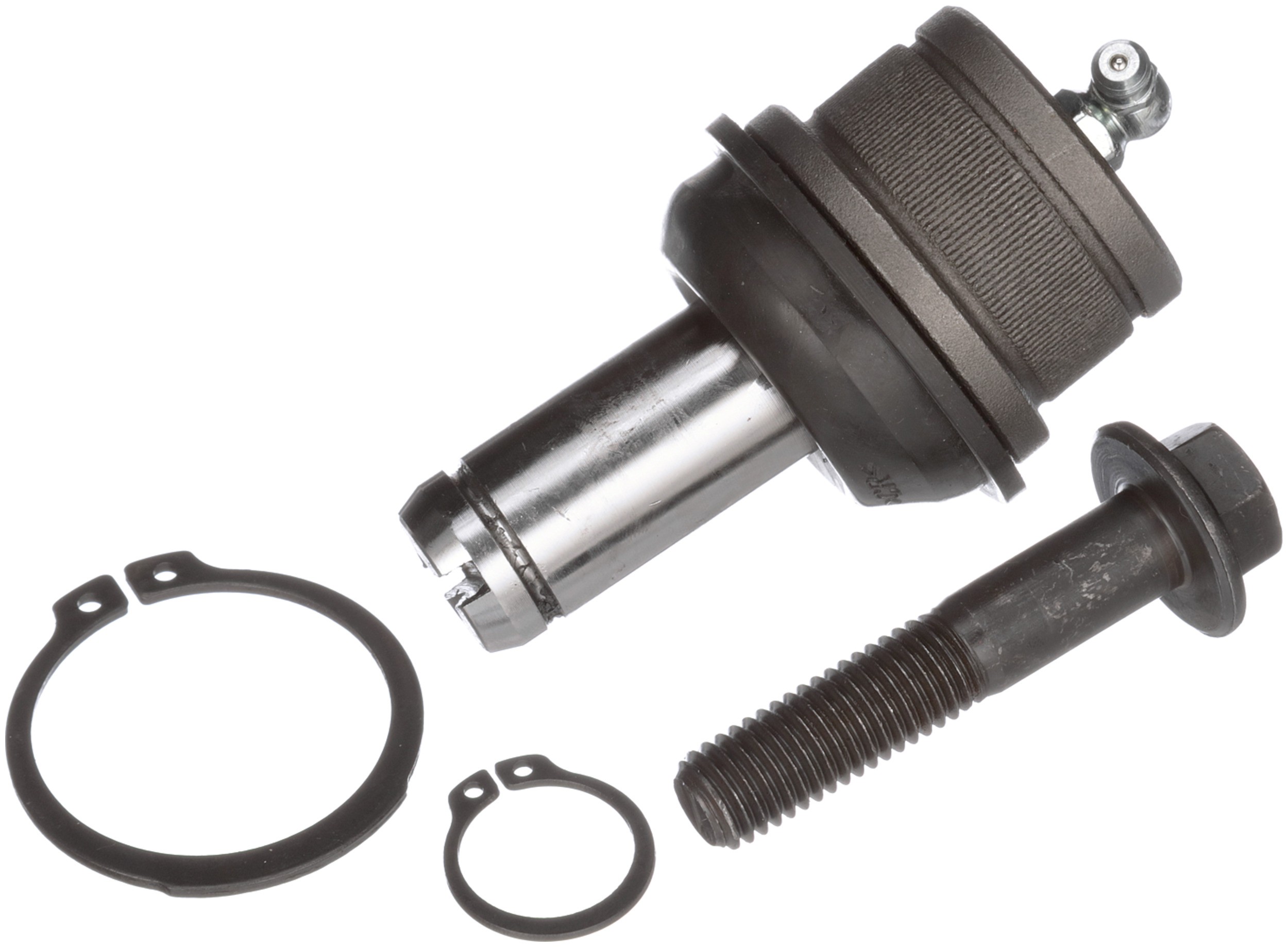

Delphi TC2214 Suspension Ball Joint

Delphi TC2214 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Washers Included	Yes
Adjustable	No
Greaseable	Yes
Mounting Type	Press-In
3068	2.362 IN
9203	1.047 IN
3068	60.00 MM
4966	97 MM
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Maximum Outside Diameter	1.890 IN
Maximum Outside Diameter	48.00 MM
Length	97.00 MM
4966	3.82 IN
9202	12.00 MM
Suspension Grade Type	Standard Replacement
9209	No
881	Non-Threaded
9202	0.470 IN
9090	Rubber
9204	Yes
Length	3.820 IN
Width	48 MM
Height	3.819 IN
Height	97.00 MM
9210	No
9207	1.300 IN
Position(s)	Front Upper
2334	No
2381	Yes
2827	No
839	16mm
Bushings Included	No
Grease Fitting Included	Yes
Color	Gray
9207	33.00 MM
9203	26.60 MM
Dust Boot Included	Yes
Cotter Pin Hole	No
