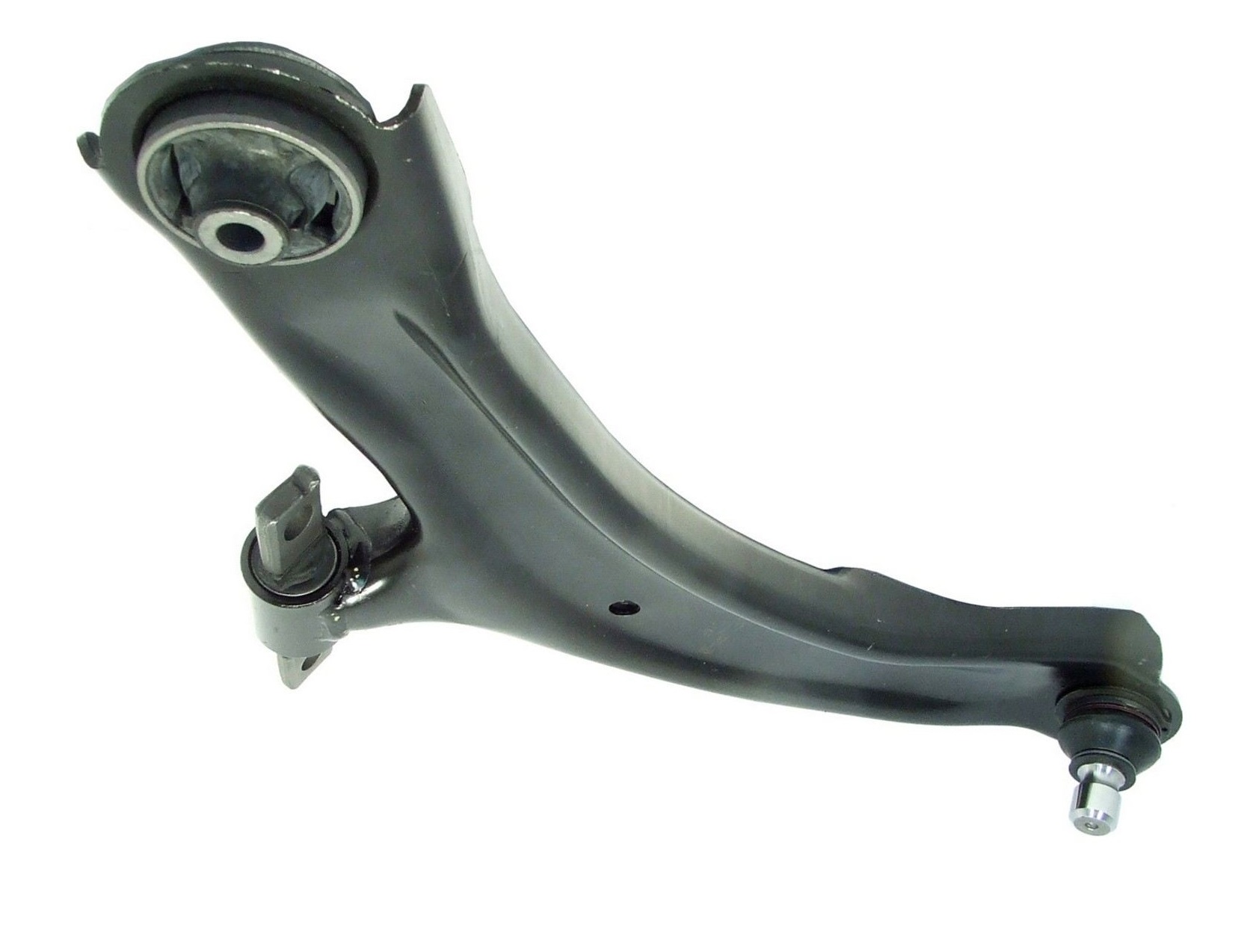

Delphi TC2468 Suspension Control Arm and Ball Joint Assembly

Delphi TC2468 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Finish	Black
6529	Power
2386	Stamped
Bushing Type	Rubber
Length	217.00 MM
Length	8.543 IN
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	14.50 MM
Mounting Hole Diameter	14.60 MM
Mounting Hole Diameter	0.480 IN
Mounting Hole Diameter	0.571 IN
Mounting Hole Diameter	0.575 IN
Grade Type	Premium
Ball Joint Stud Type	Grooved
Material	Steel
Finish	Painted
4890	65.60 MM
4887	3.740 IN
4887	95.00 MM
Bushing Colour	Black
Pre-greased	Yes
2384	Yes
Position(s)	Front Right Lower
Mounting Hole Quantity	3
Attachment Type	Press In
Boot Material	Chloroprene Rubber (CR)
Bushings Included	Yes
Bearing Material	Plastic
Boot Colour	Black
Adjustable	No
Dust Boot Included	Yes
Mounting Hardware Included	No
9090	Chloroprene Rubber (CR)
4890	2.583 IN
