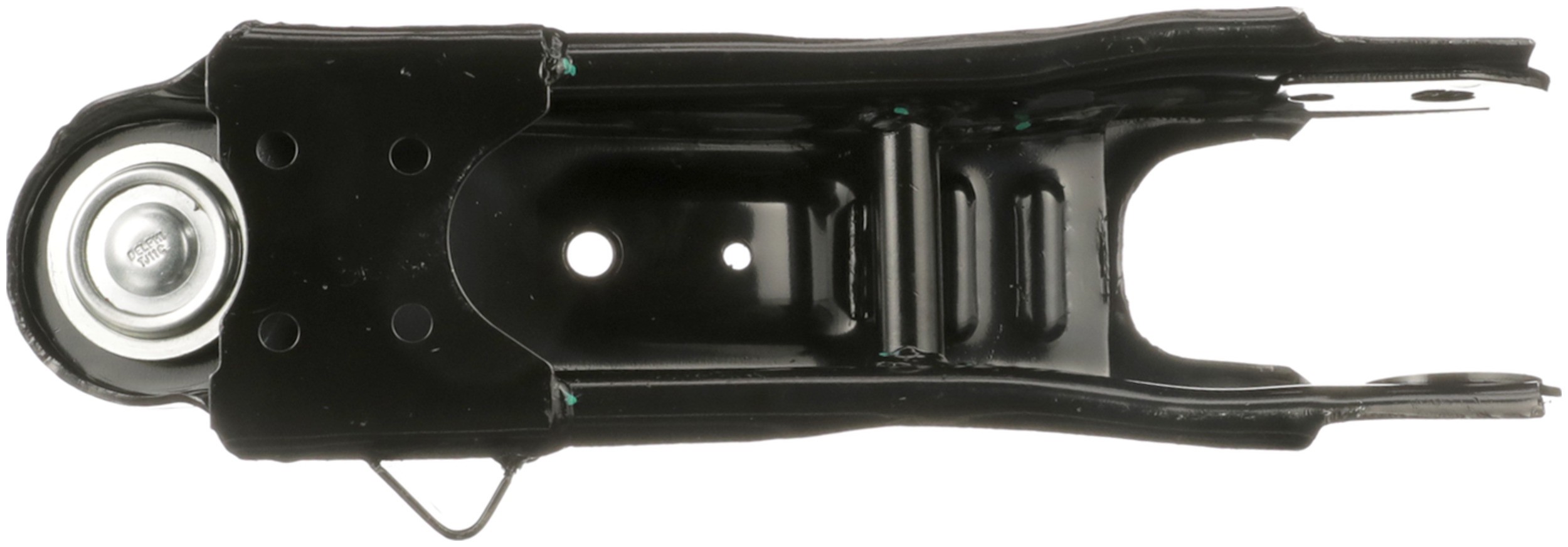

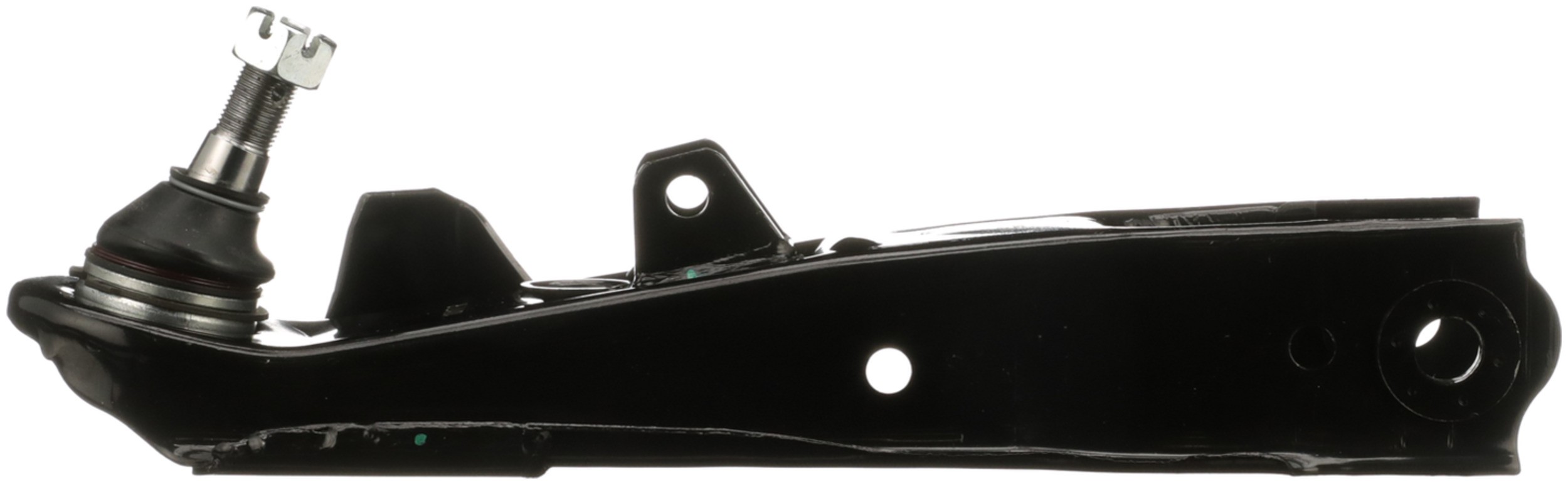

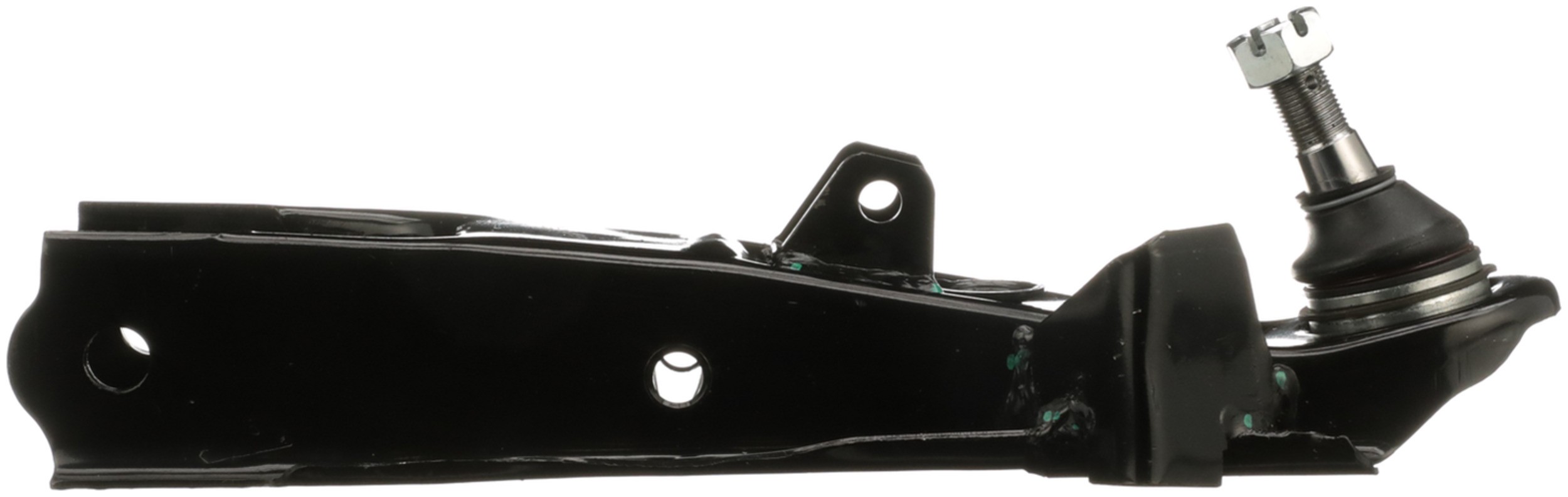

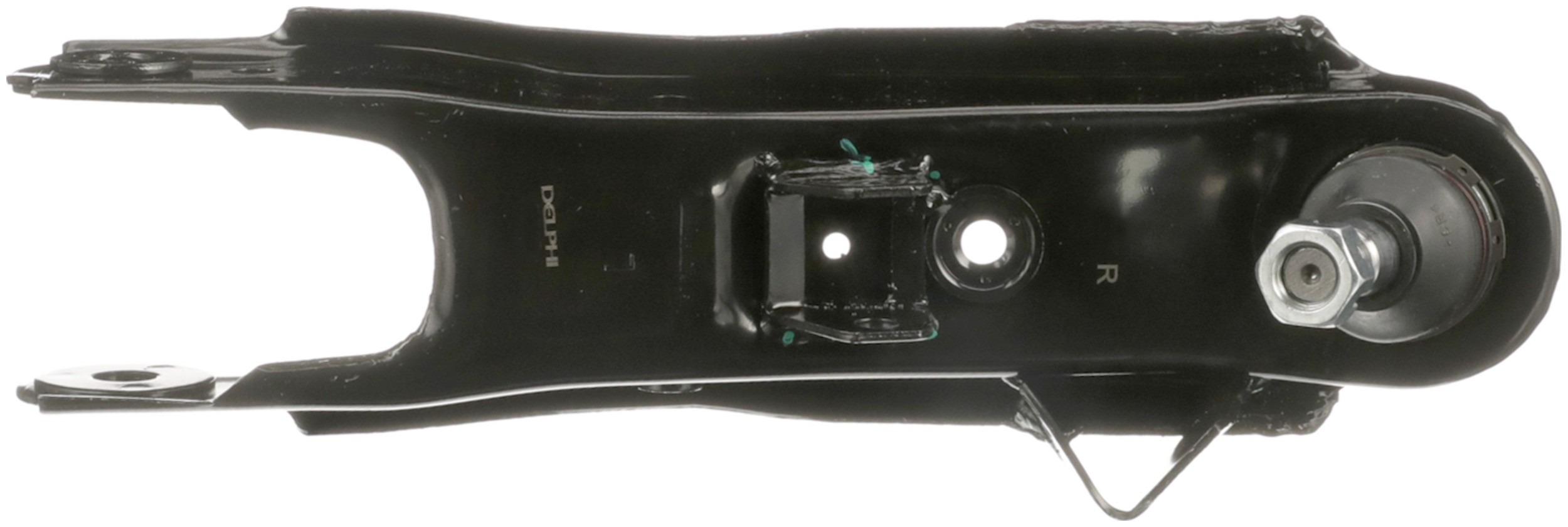

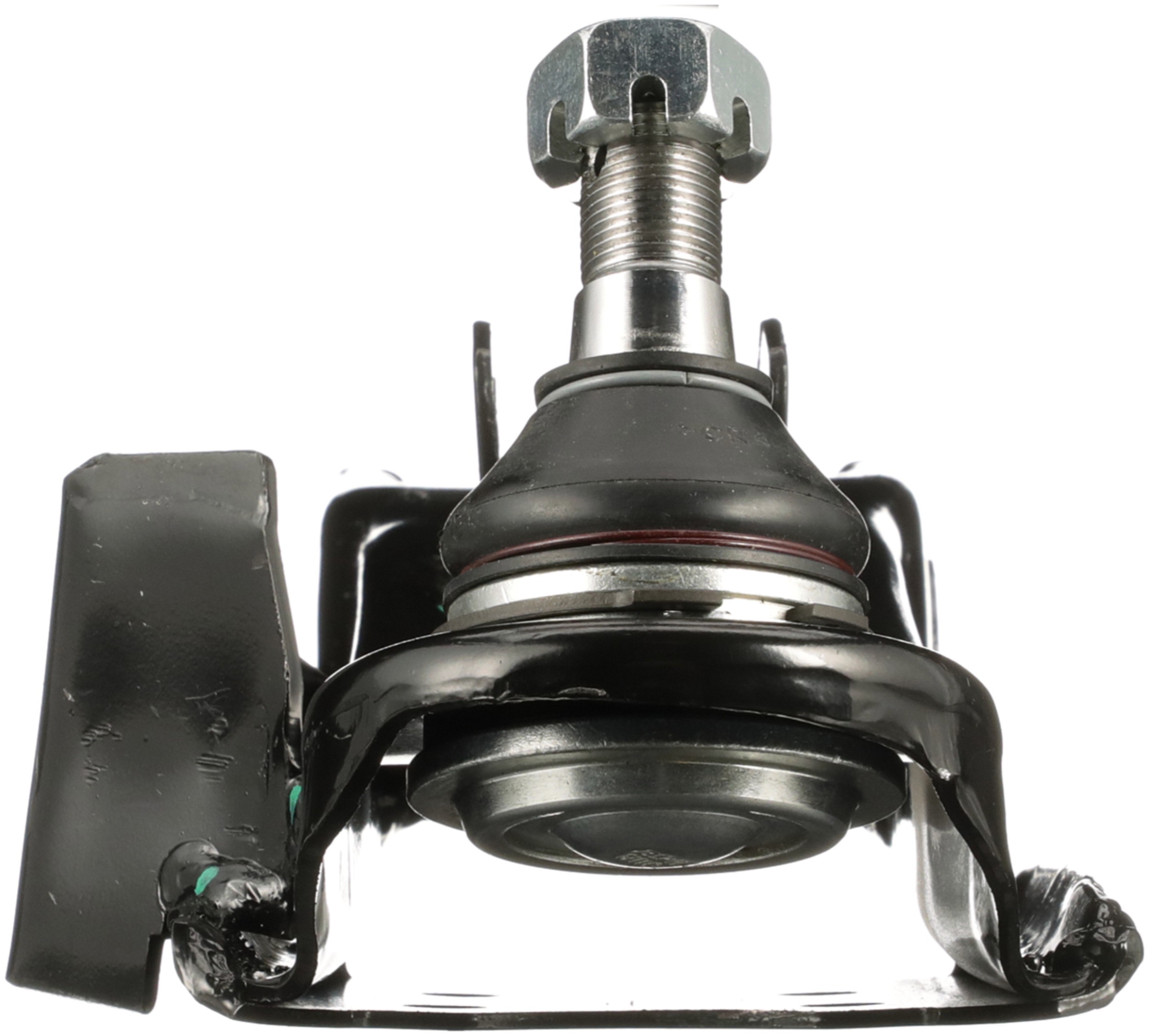

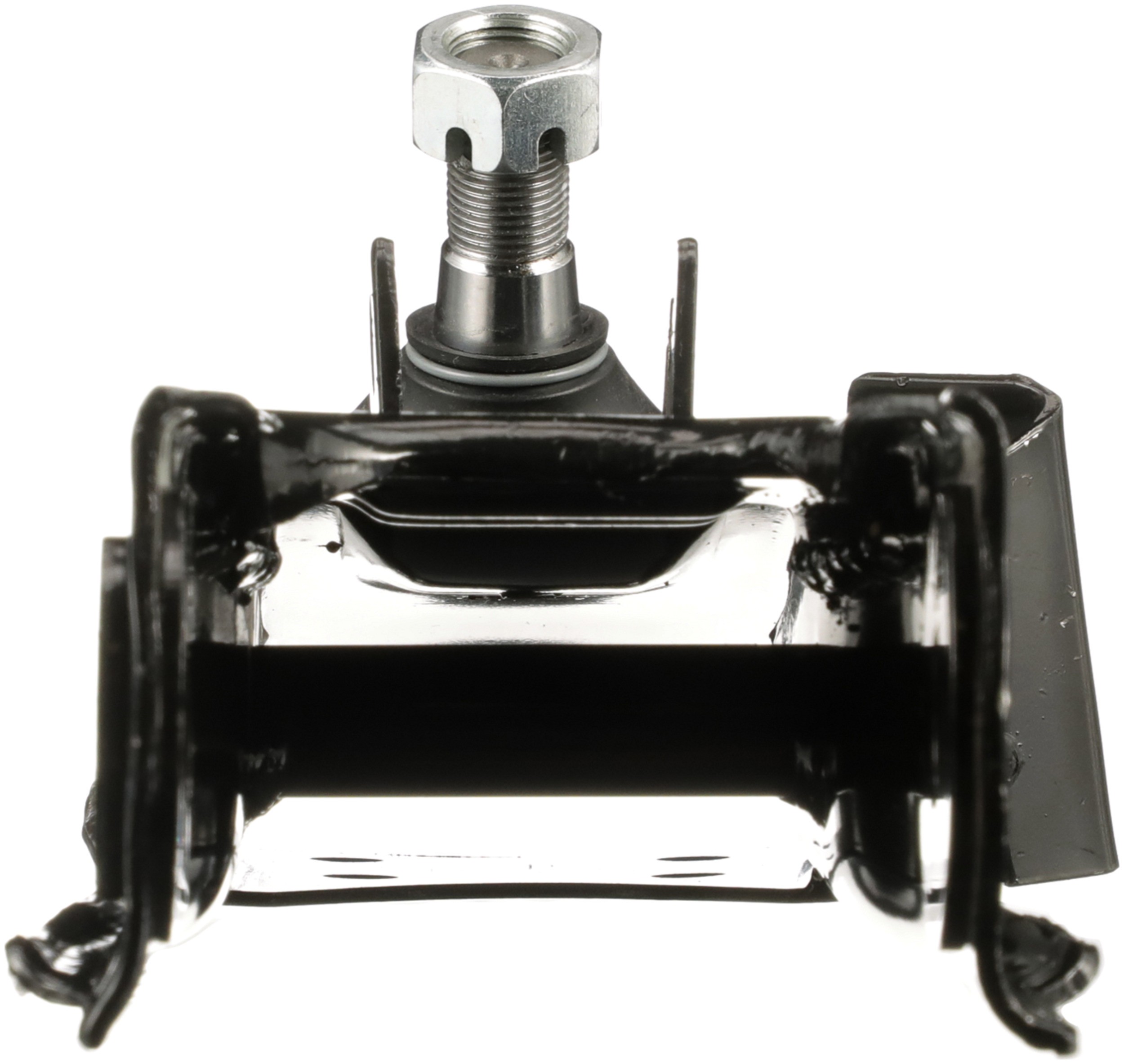

Delphi TC2548 Suspension Control Arm and Ball Joint Assembly

Delphi TC2548 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	0.709 IN
Attachment Type	Press In
Length	17.008 IN
Adjustable	No
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
2384	Yes
2386	Stamped
4241	Yes
6529	Power
4887	122.00 MM
4887	4.803 IN
4890	97.00 MM
4890	3.819 IN
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
9090	Chloroprene Rubber (CR)
Greaseable	No
Material	Steel
Ball Joint Stud Type	Threaded
Mounting Hole Diameter	18.00 MM
Dust Boot Included	Yes
Bushings Included	No
Pre-greased	Yes
Finish	Painted
Thread Direction	Clockwise (Right)
Length	432.00 MM
Position(s)	Front Left Lower
