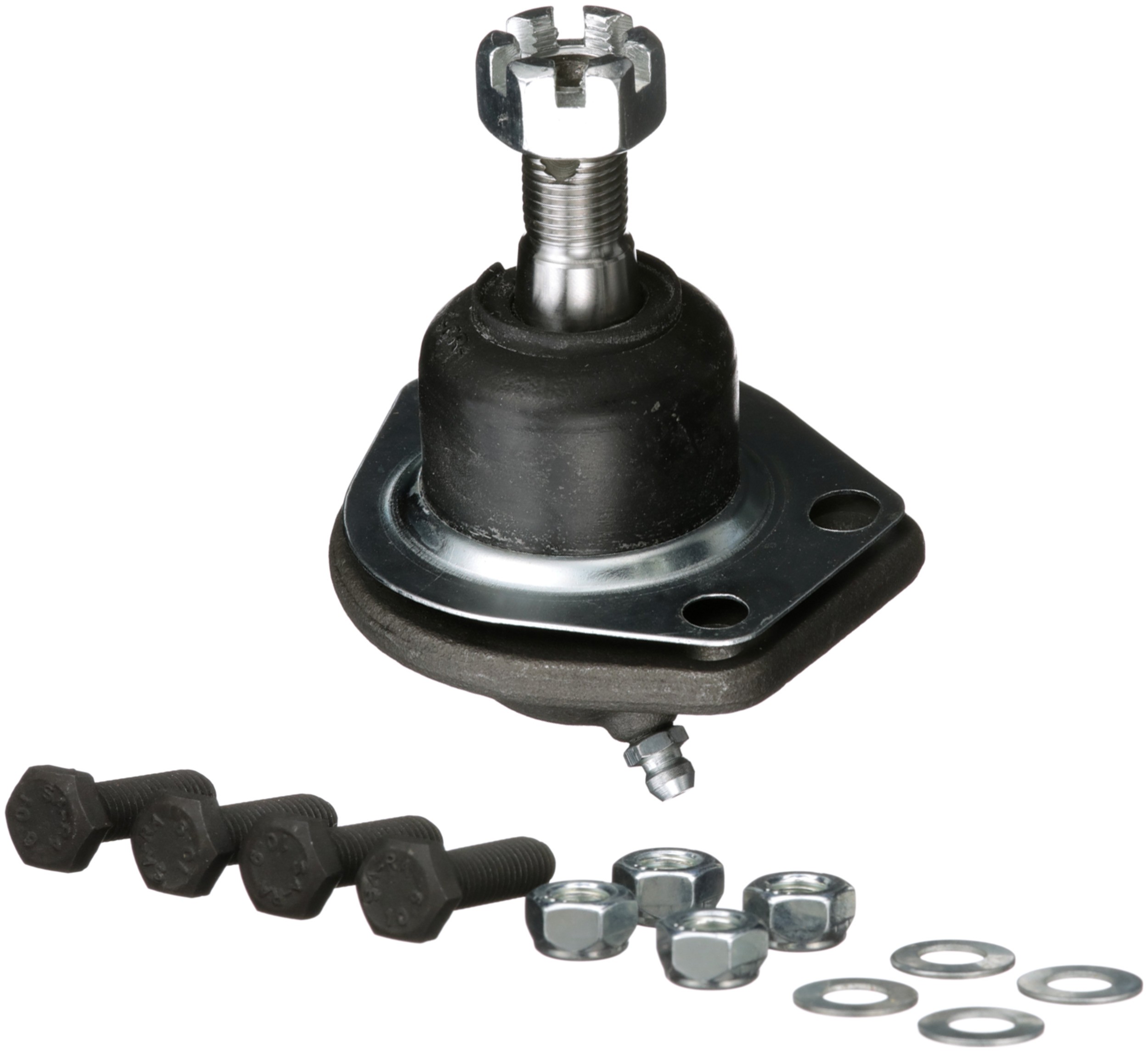

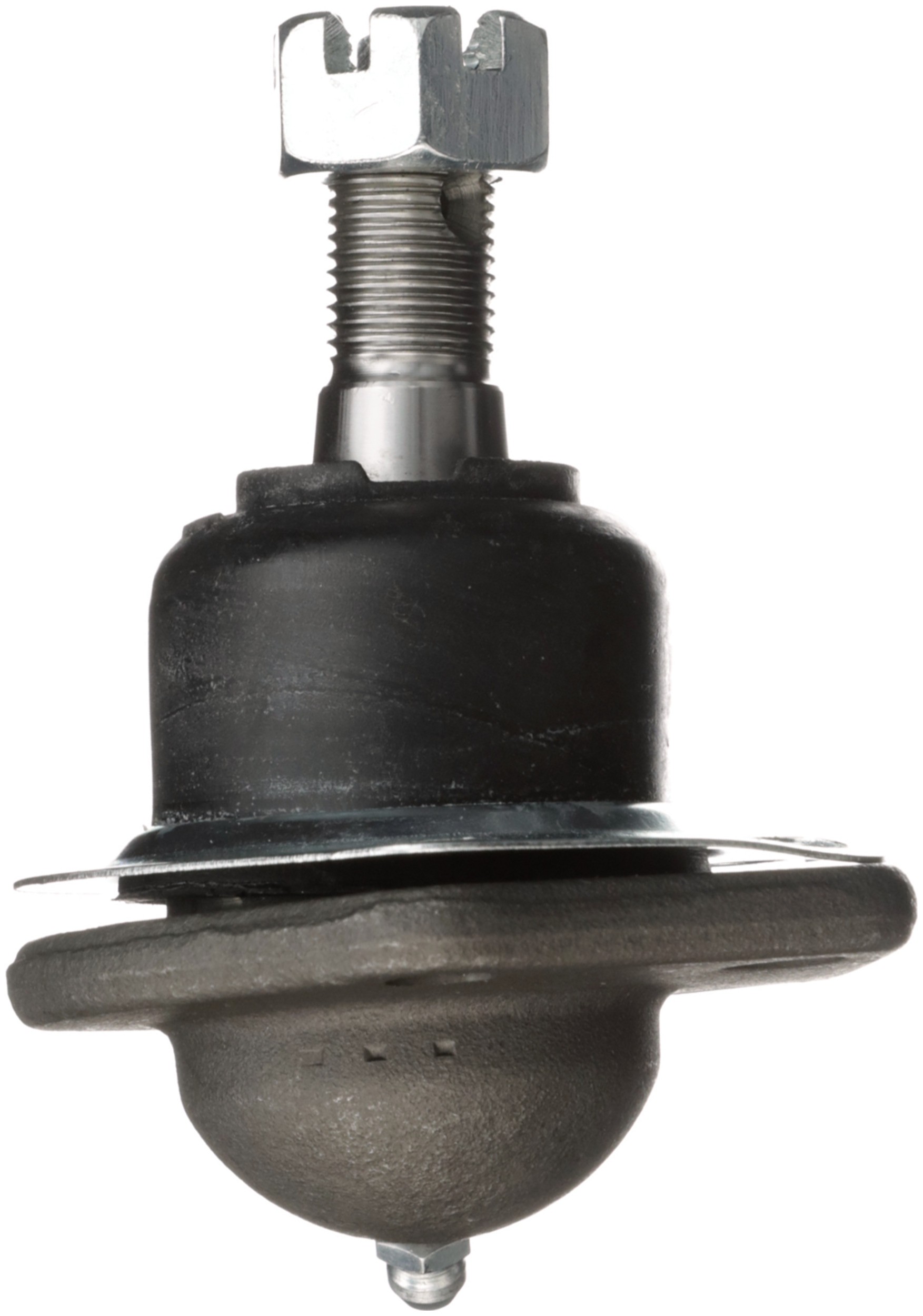

Delphi TC2561 Suspension Ball Joint

Delphi TC2561 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9209	Yes
Grease Fitting Included	Yes
Color	Gray
Material	Steel
Mounting Type	Bolt-In
Suspension Grade Type	Standard Replacement
9213	0.772 IN
9213	19.6 MM
2334	Yes
Position(s)	Front Lower
Length	90.00 MM
Length	3.540 IN
Width	71 MM
Height	3.622 IN
Height	92.00 MM
9212	0.608 IN
9211	0.167 IN
9207	0.940 IN
9207	24.00 MM
9203	15.50 MM
9203	0.610 IN
9202	0.310 IN
9202	8.00 MM
4966	23.01 MM
4966	0.906 IN
3068	25.00 MM
3068	0.984 IN
Greaseable	Yes
Adjustable	No
2381	Yes
2827	Yes
839	13mm
Mounting Hole Quantity	4
Washers Included	Yes
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
9212	15.45 MM
Dust Boot Included	Yes
Bushings Included	No
881	Threaded
9090	Rubber
9204	Yes
9210	Yes

Vehicle Applications:

Make	Model	Years
Buick	Riviera	1979 to 1985
Cadillac	Eldorado	1979 to 1985
Cadillac	Seville	1980 to 1985
Chevrolet	S10 Blazer	1983 to 1983
Chevrolet	S10	1983 to 1983
GMC	S15 Jimmy	1983 to 1983
GMC	S15	1983 to 1983
Oldsmobile	Toronado	1979 to 1985
