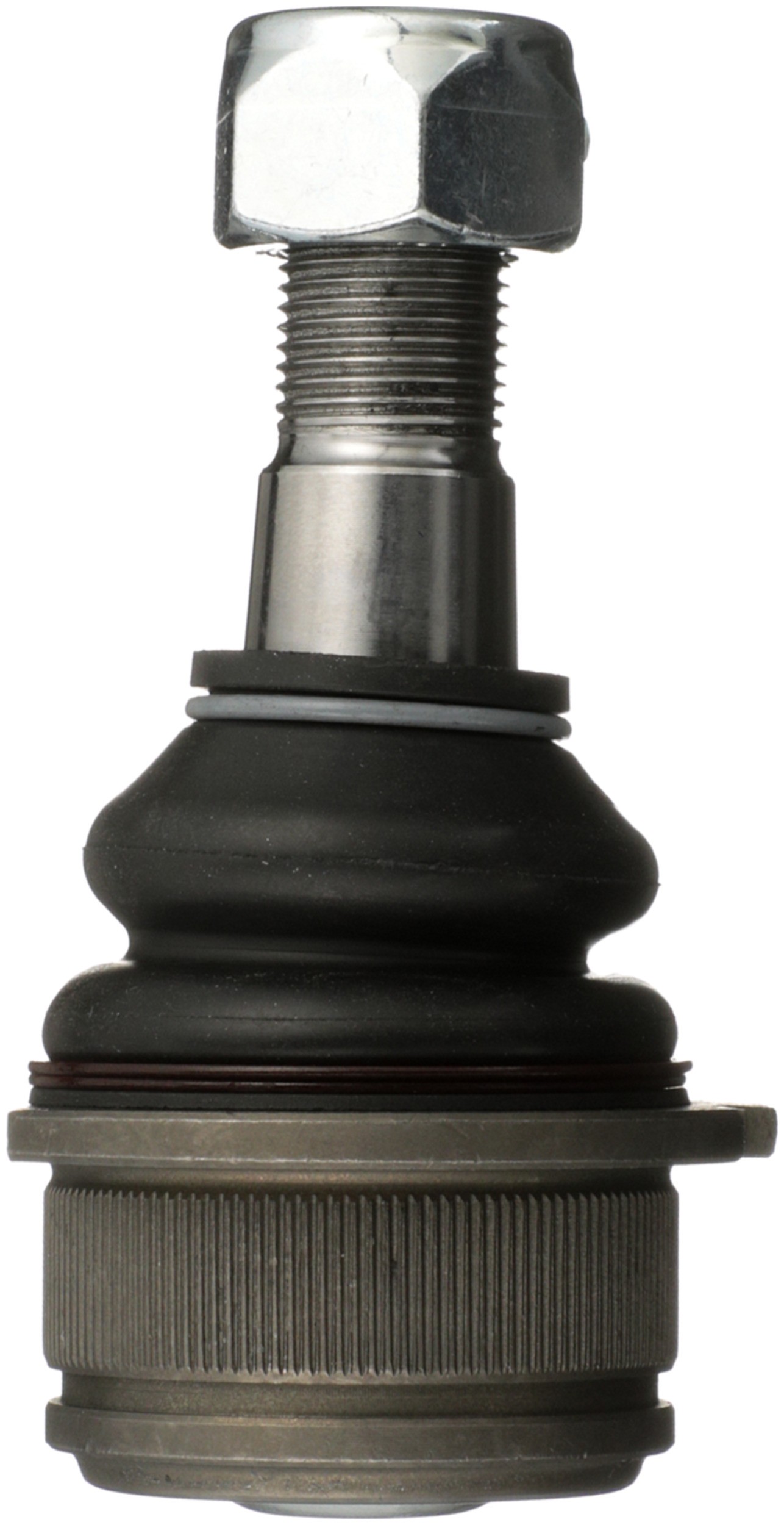

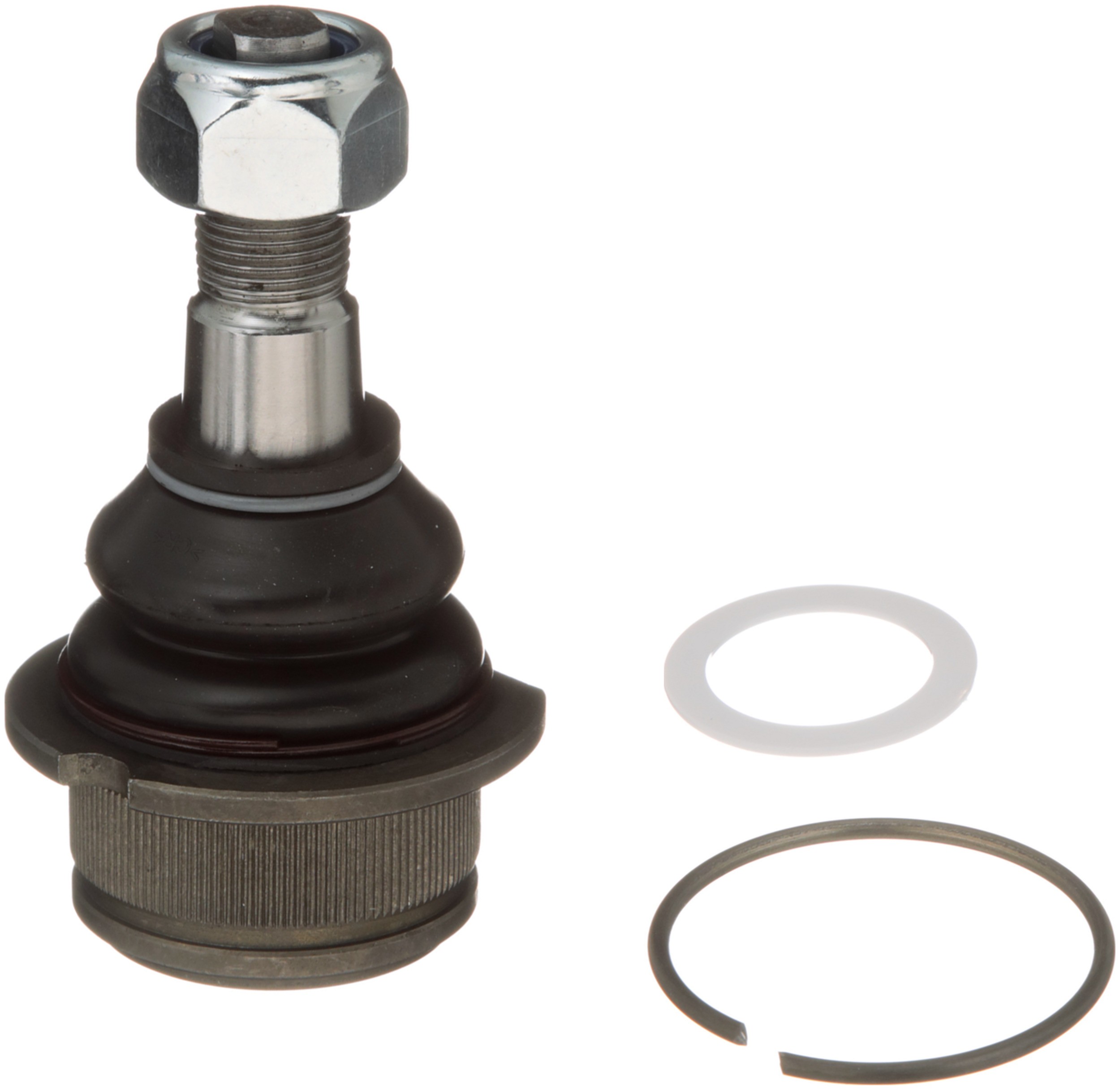

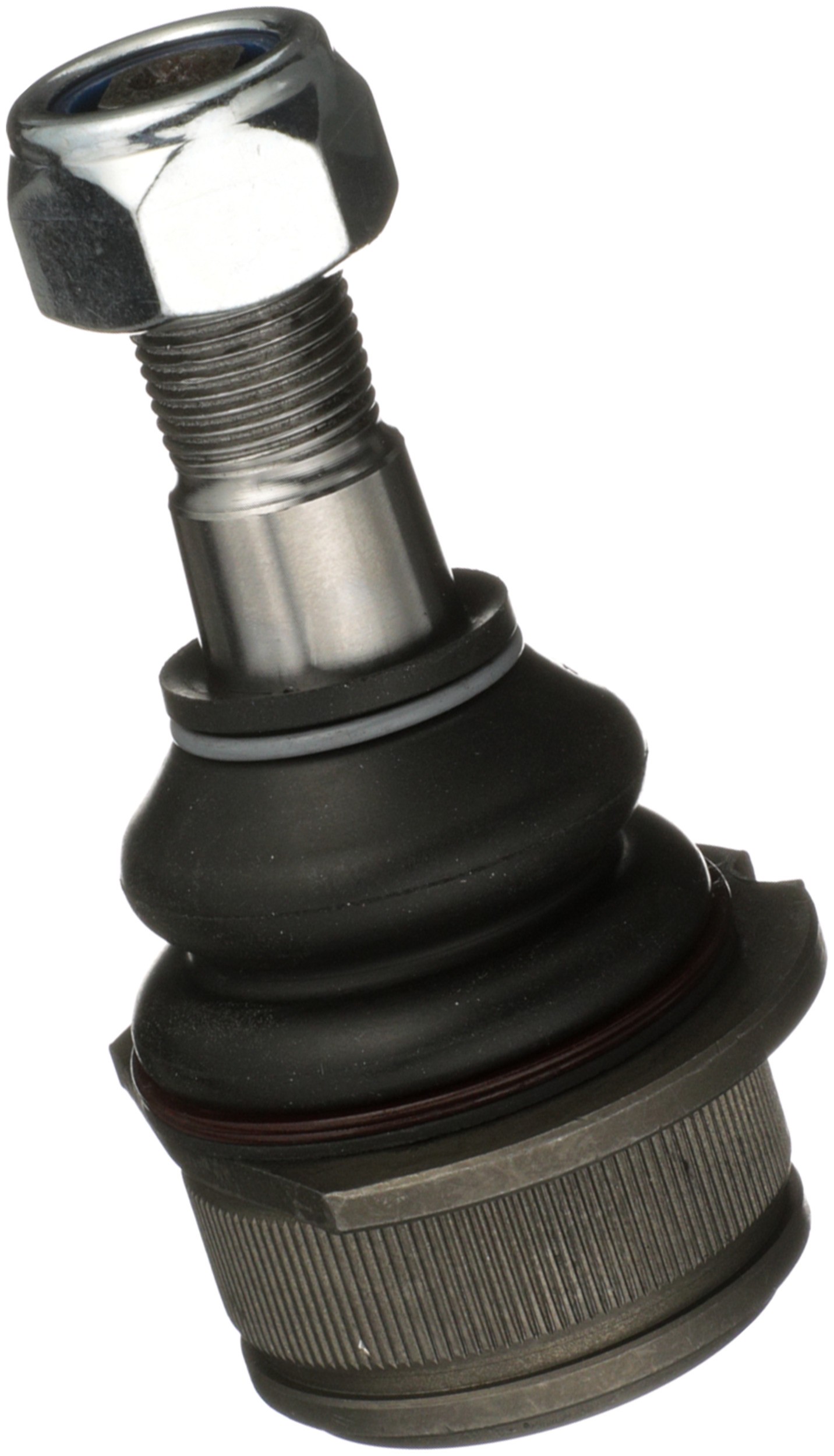

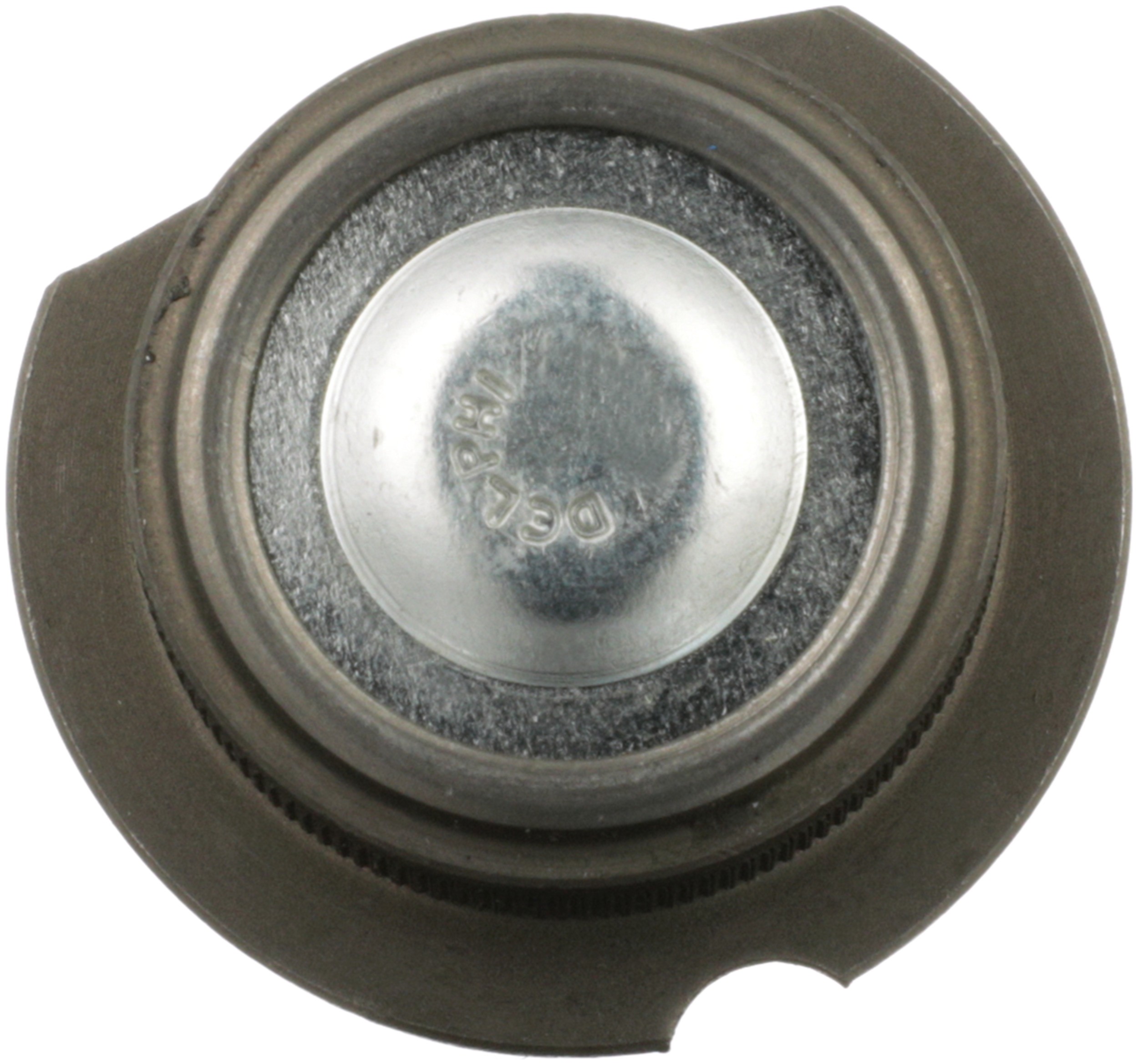

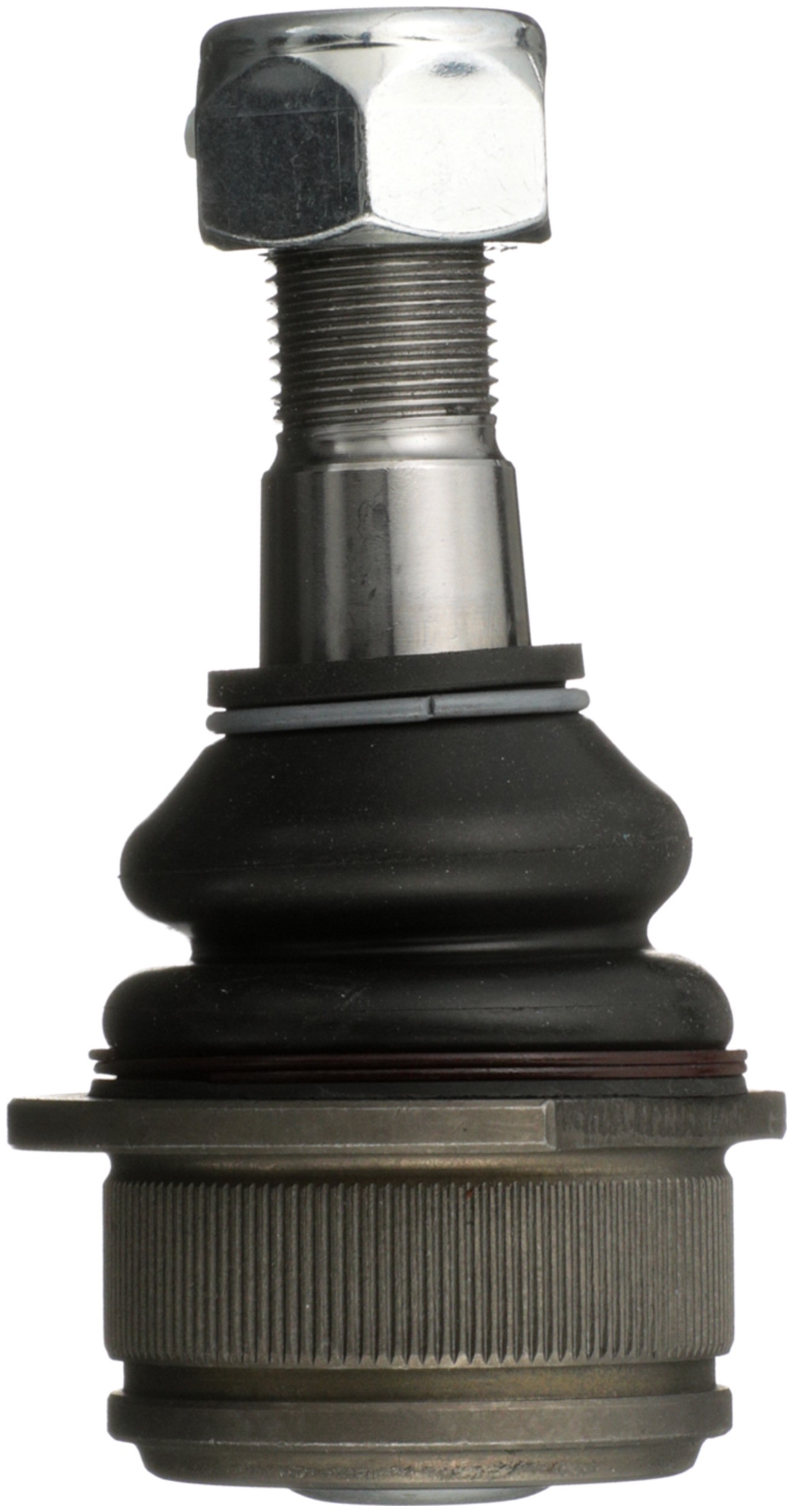

Delphi TC294 Suspension Ball Joint

Delphi TC294 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9212	22.5 MM
9213	0.776 IN
9213	19.7 MM
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0
Adjustable	No
Greaseable	No
Suspension Grade Type	Standard Replacement
Maximum Outside Diameter	2.480 IN
Maximum Outside Diameter	63.00 MM
Length	63.00 MM
Length	2.480 IN
Width	63 MM
Height	4.409 IN
Height	112.00 MM
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
839	27mm
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
4966	1.299 IN
4966	33 MM
9212	0.886 IN
