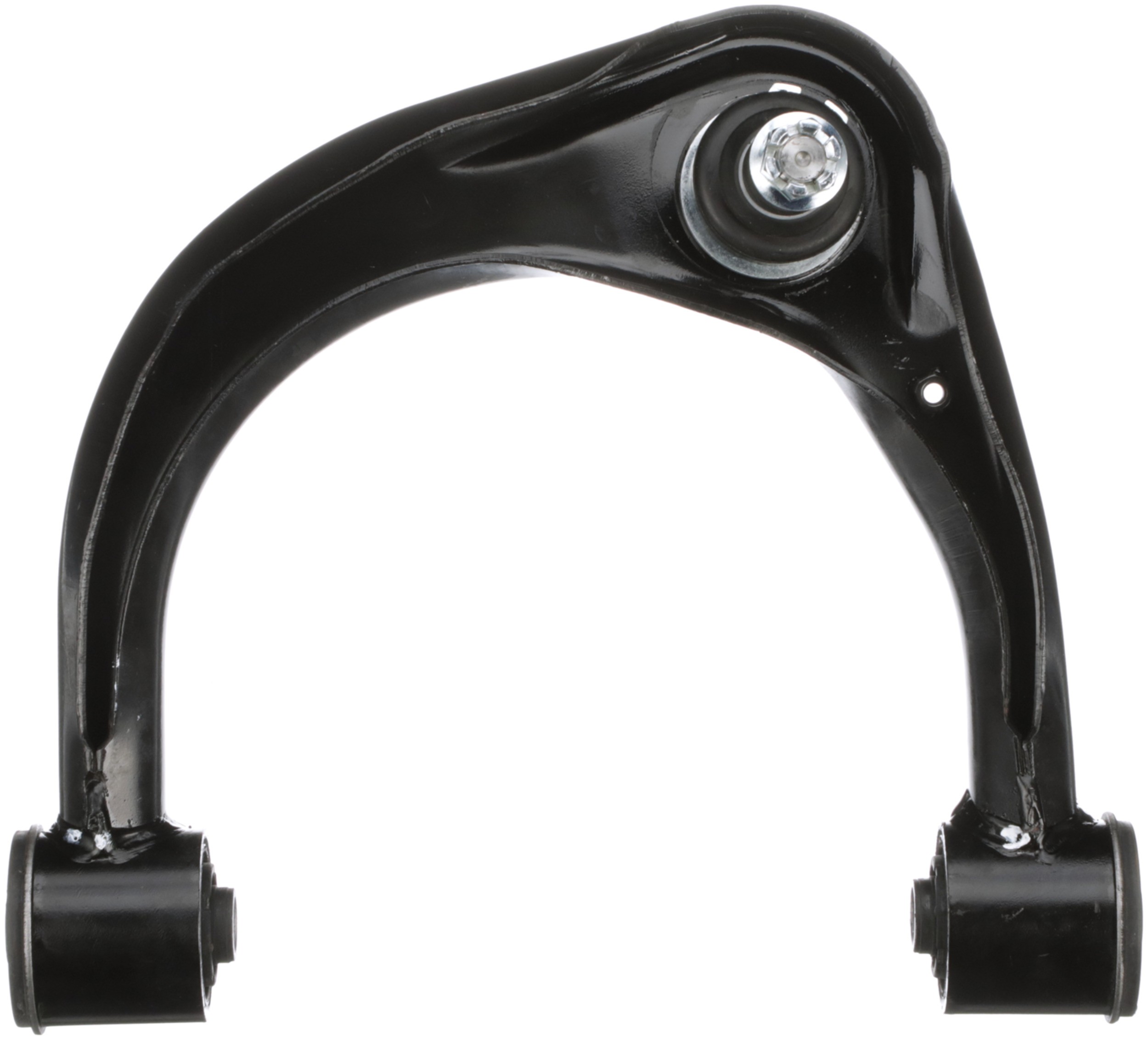

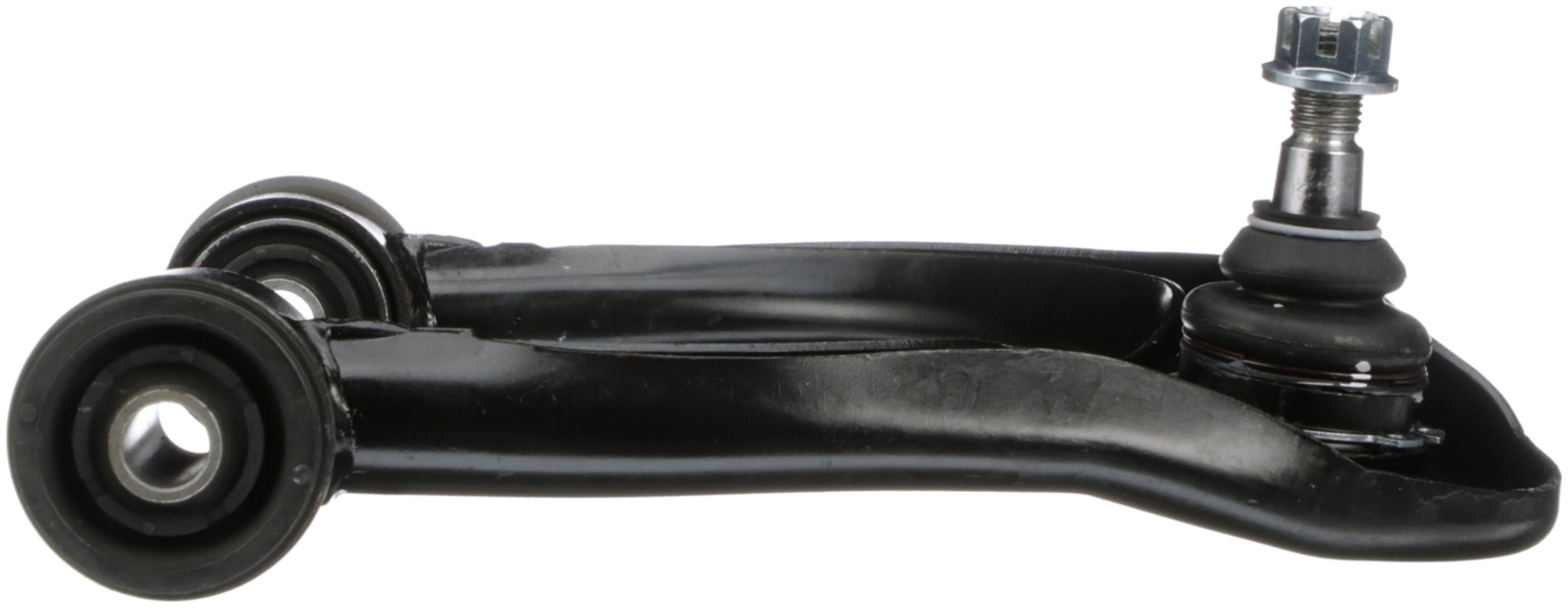

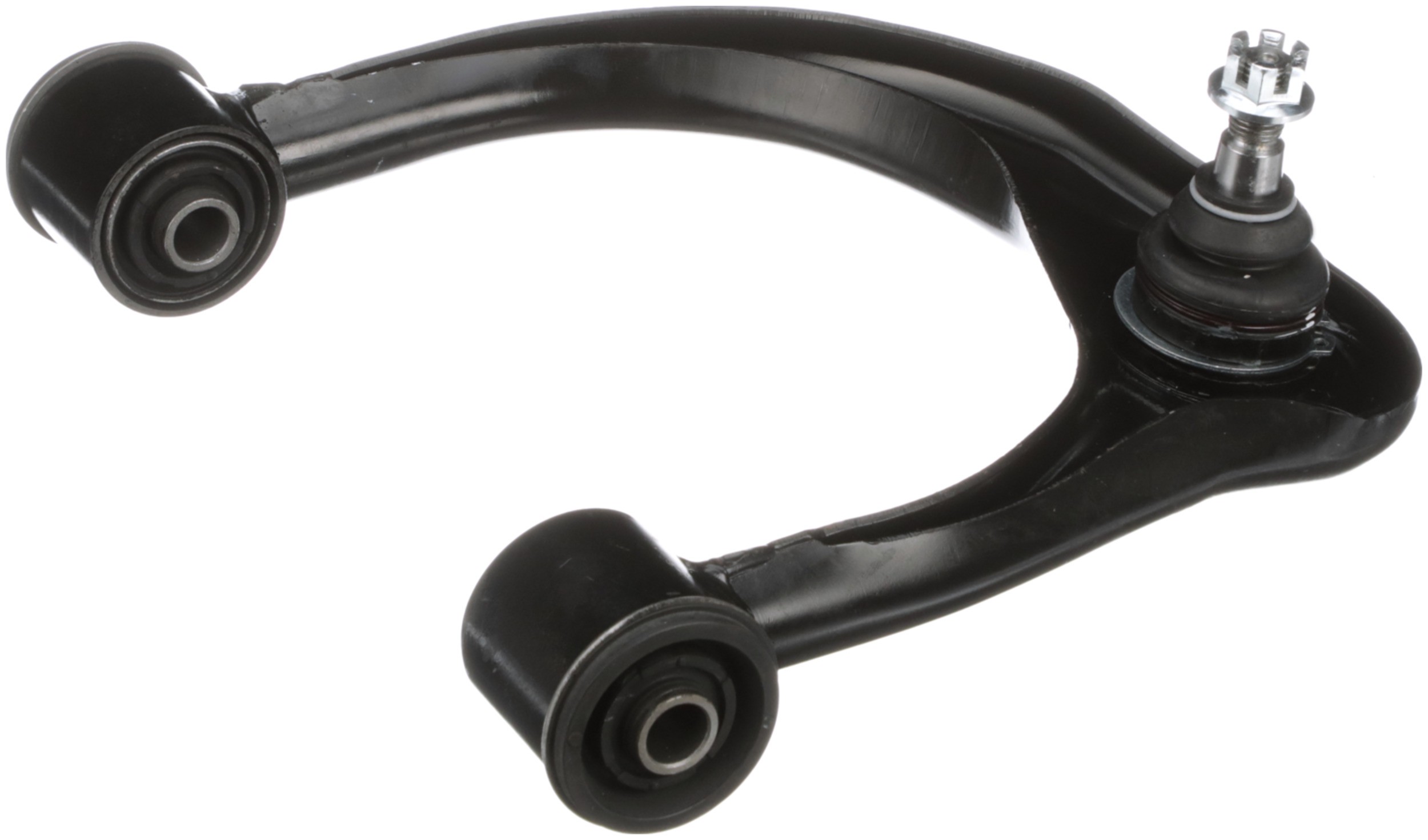

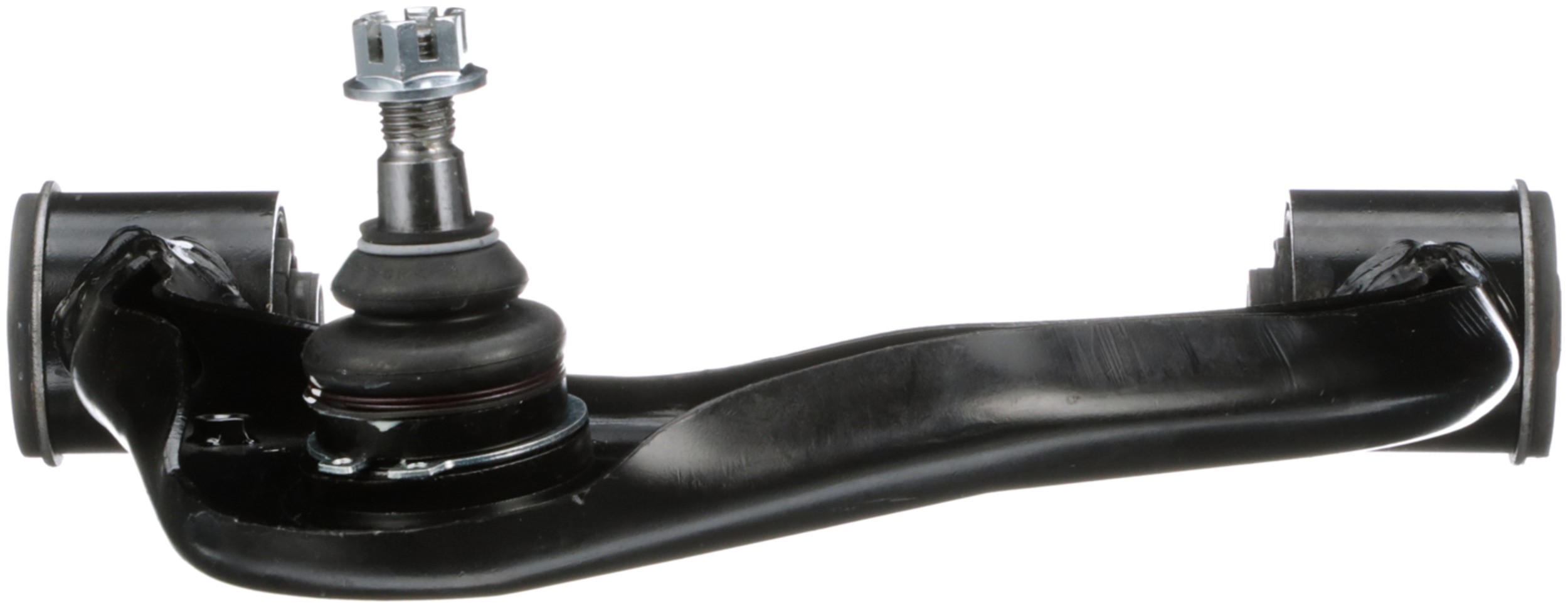

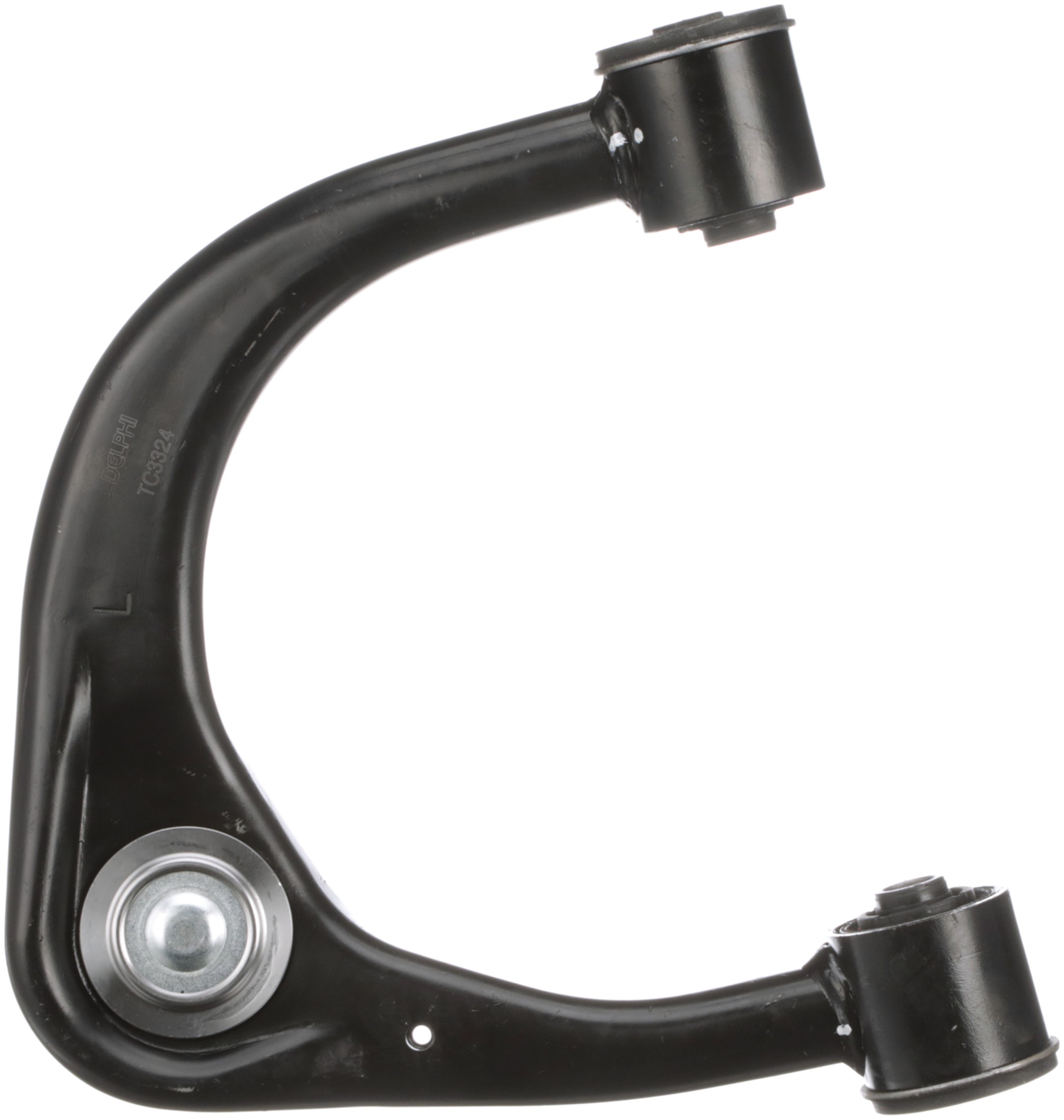

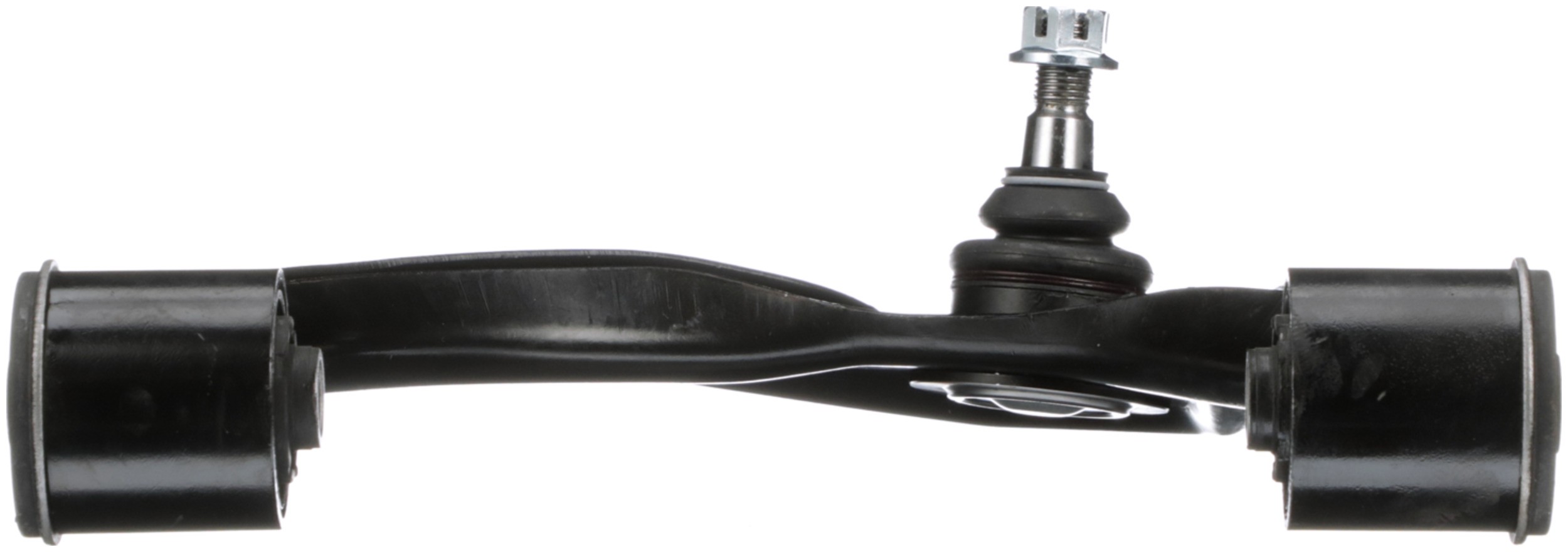

Delphi TC3324 Suspension Control Arm and Ball Joint Assembly

Delphi TC3324 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Thread Direction	Clockwise (Right)
Length	312.00 MM
Length	12.283 IN
Mounting Hole Diameter	6.00 MM
Mounting Hole Diameter	0.236 IN
4890	2.717 IN
4890	69.00 MM
4887	7.910 IN
4887	200.91 MM
Position(s)	Front Left Upper
2384	Yes
2386	Stamped
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
