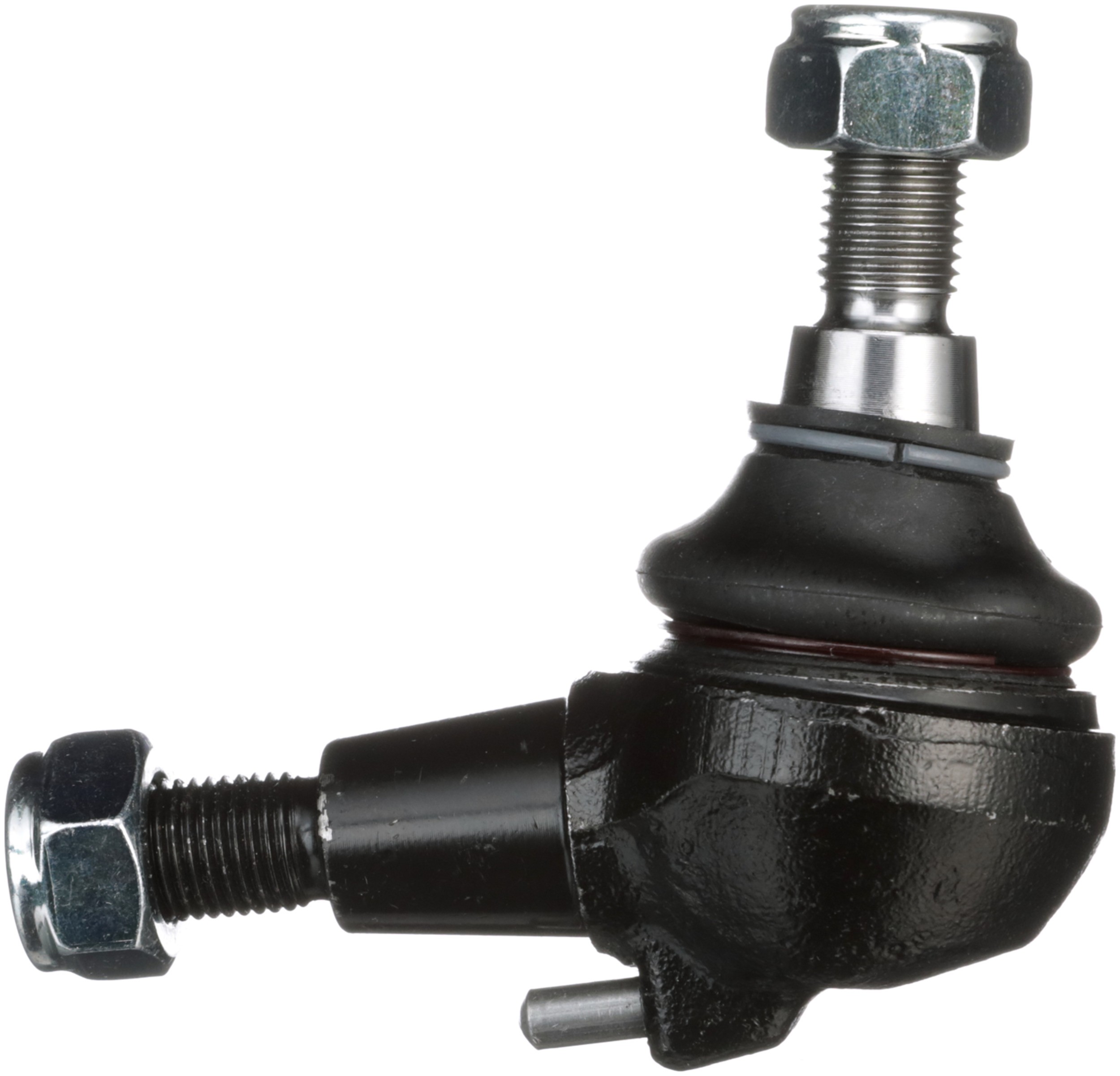

Delphi TC3396 Suspension Ball Joint

Delphi TC3396 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9213	0.744 IN
Height	90.30 MM
2334	No
Position(s)	Front Lower, Front Lower Forward. For the position specific to your vehicle, refer to the Applications.
9210	Yes
9209	No
9090	Rubber
Maximum Outside Diameter	2.110 IN
Maximum Outside Diameter	53.60 MM
Height	3.555 IN
881	Threaded
Material	Steel
Color	Silver
Grease Fitting Included	No
Bushings Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
4966	0.846 IN
4966	21.5 MM
9212	0.941 IN
9212	23.9 MM
9213	18.9 MM
Mounting Hole Quantity	0
Adjustable	No
Greaseable	No
Mounting Type	Press-In
2381	Yes
2827	No
Width	53.6 MM
Dust Boot Included	Yes

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	CLS400	2015 to 2017
Mercedes-Benz	CLS550	2012 to 2018
Mercedes-Benz	CLS63 AMG	2012 to 2013
Mercedes-Benz	E250	2014 to 2016
Mercedes-Benz	E350	2010 to 2016
Mercedes-Benz	E400	2013 to 2016
Mercedes-Benz	E550	2010 to 2011
Mercedes-Benz	E63 AMG	2010 to 2013
