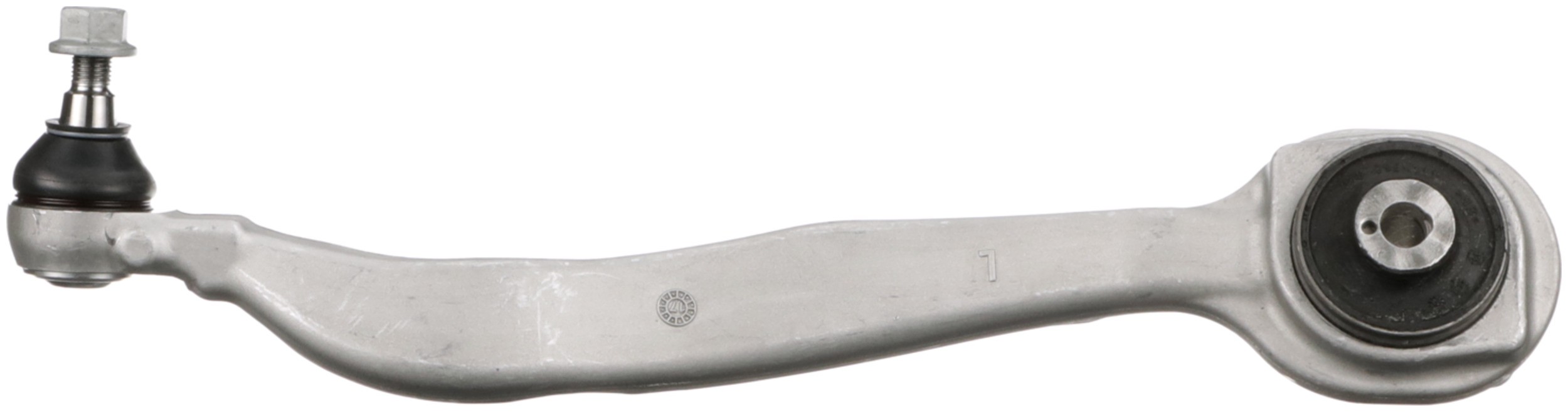

Delphi TC3472 Suspension Control Arm and Ball Joint Assembly

Delphi TC3472 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4241	Yes
Greaseable	No
Mounting Hole Diameter	14.20 MM
Bushing Type	Rubber
Bearing Material	Plastic
4887	128.00 MM
4887	5.039 IN
4890	71.00 MM
4890	2.795 IN
6529	Power
9090	Chloroprene Rubber (CR)
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Uncoated
Pre-greased	Yes
Bushings Included	Yes
Length	20.276 IN
Length	515.01 MM
Boot Colour	Black
Mounting Hole Diameter	0.559 IN
Mounting Hole Quantity	1
Finish	Gray
Dust Boot Included	Yes
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Ball Joint Stud Type	Threaded
Material	Aluminum
Mounting Hardware Included	Yes
Grade Type	Premium
2386	Casting/Forged
2384	Yes
Position(s)	Front Left Upper

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	C230	2008 to 2009
Mercedes-Benz	C250	2010 to 2012
Mercedes-Benz	C300	2008 to 2014
Mercedes-Benz	C350	2008 to 2015
Mercedes-Benz	E350	2012 to 2013
