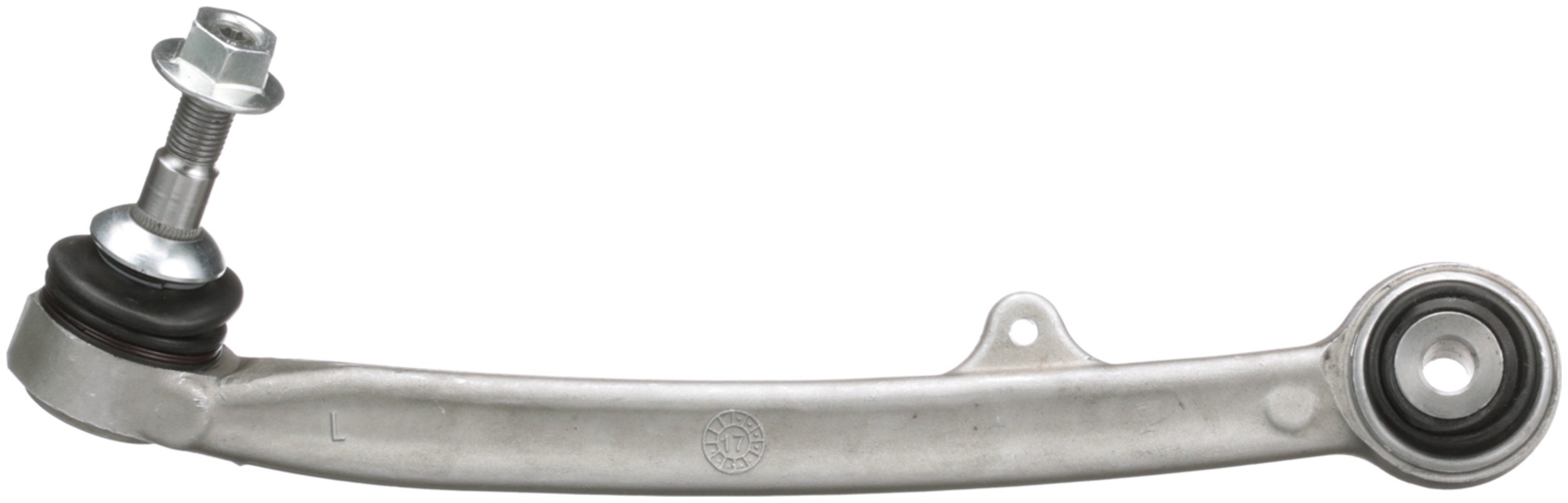

Delphi TC3586 Suspension Control Arm and Ball Joint Assembly

Delphi TC3586 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4241	Yes
Mounting Hole Diameter	12.00 MM
Length	14.370 IN
Length	365.00 MM
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
4890	3.307 IN
9090	Chloroprene Rubber (CR)
6529	Power
2386	Casting/Forged
2384	Yes
Position(s)	Front Left Lower Rearward
4890	84.00 MM
4887	2.165 IN
4887	55.00 MM
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Mounting Hole Diameter	0.472 IN
