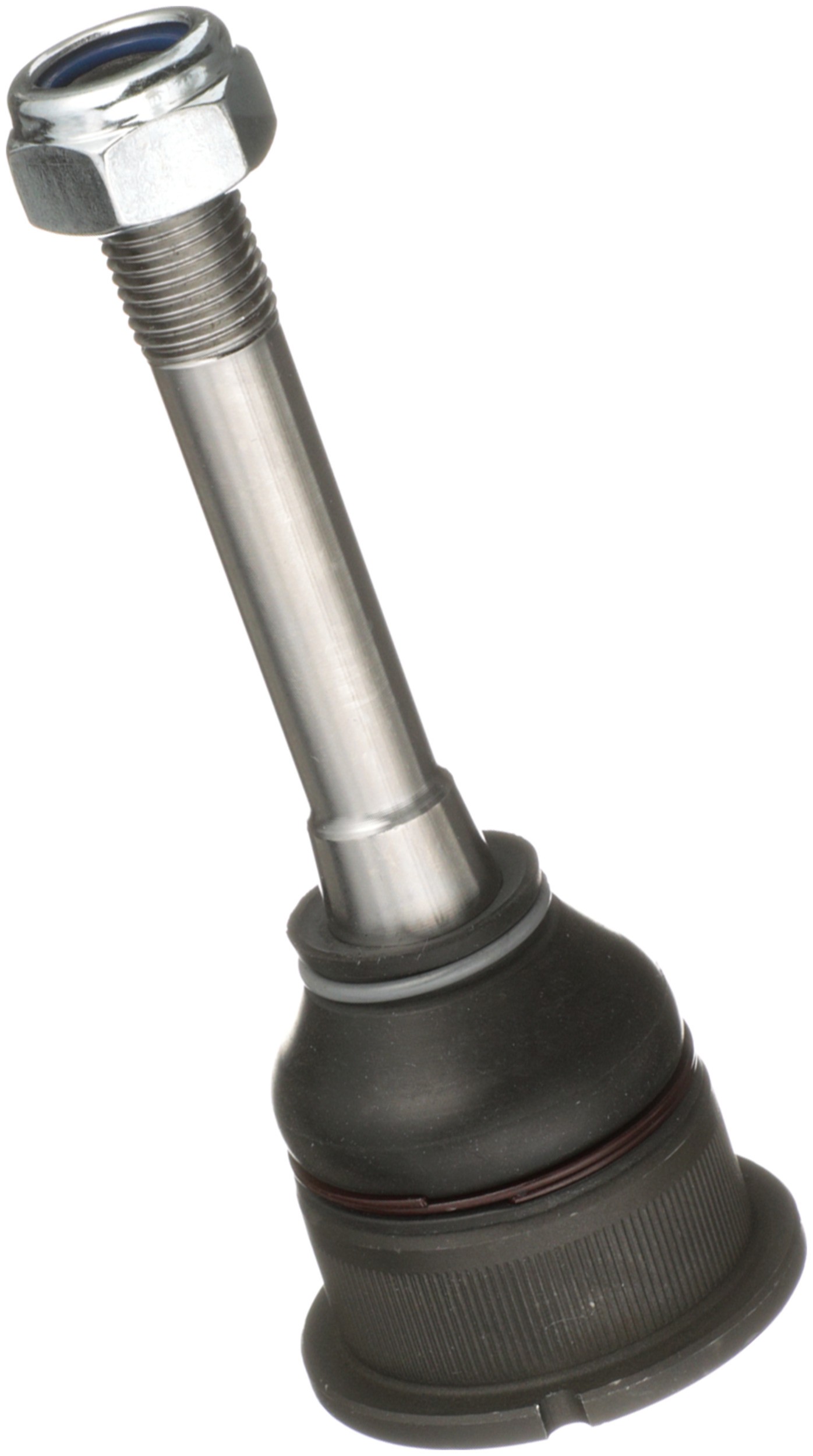

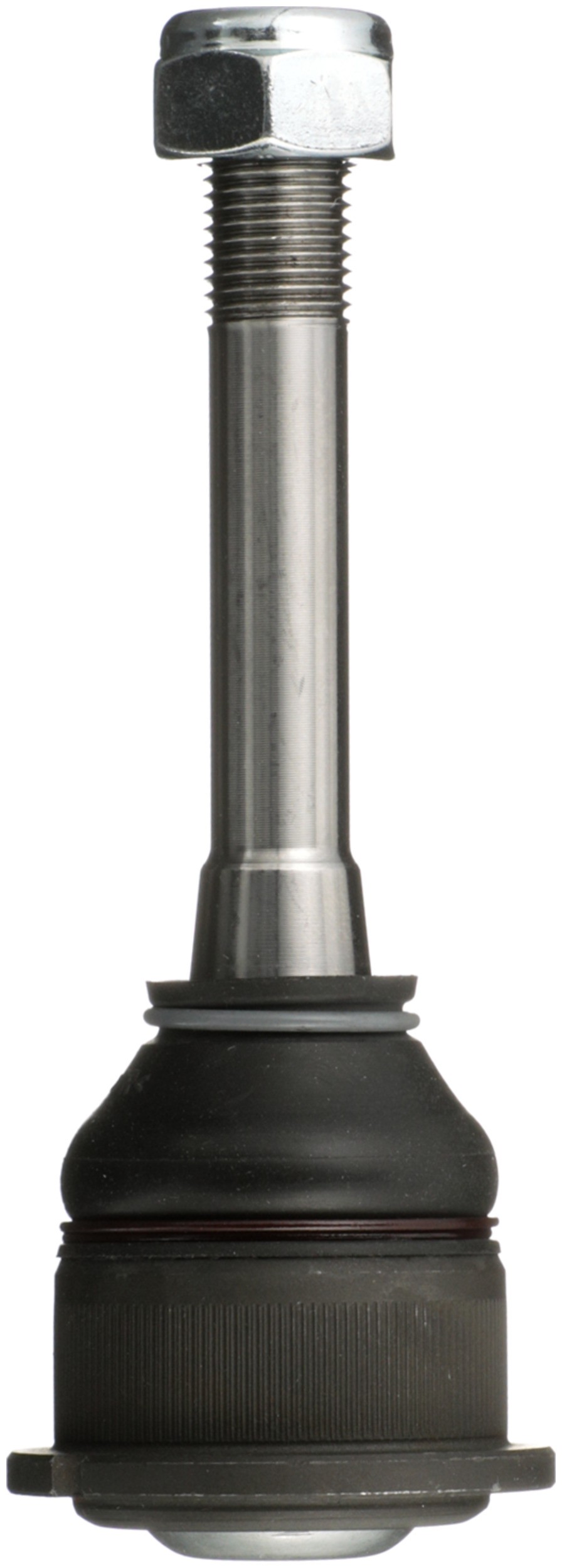

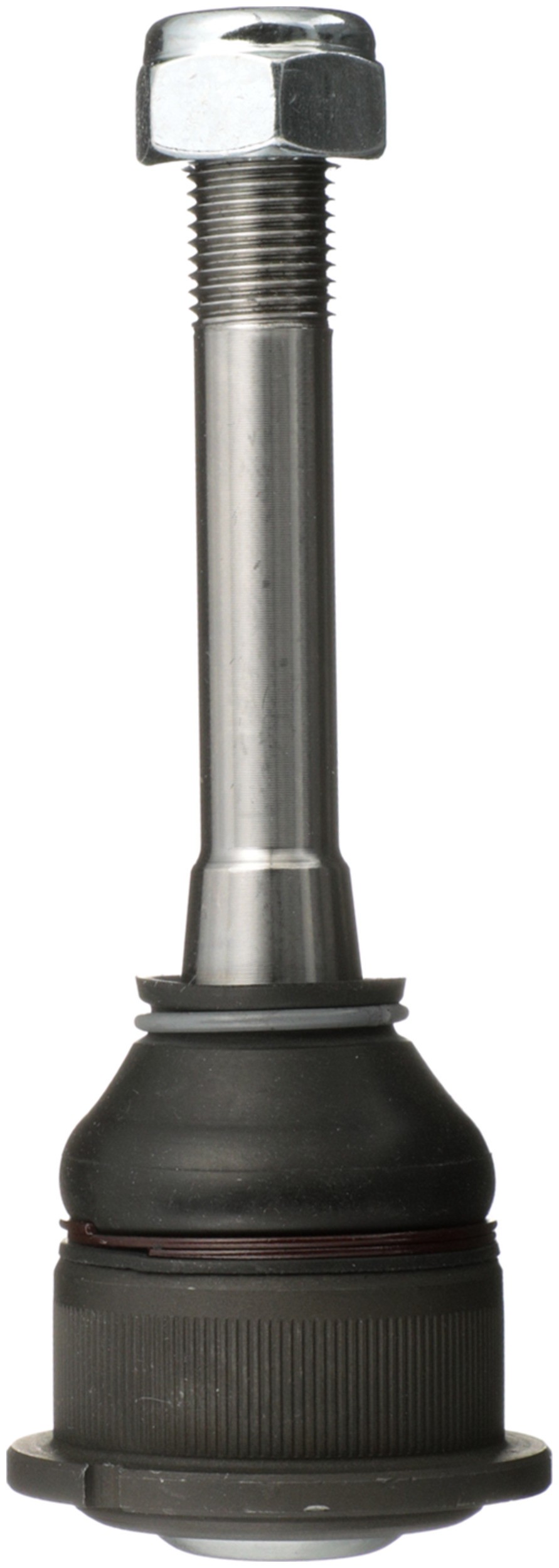

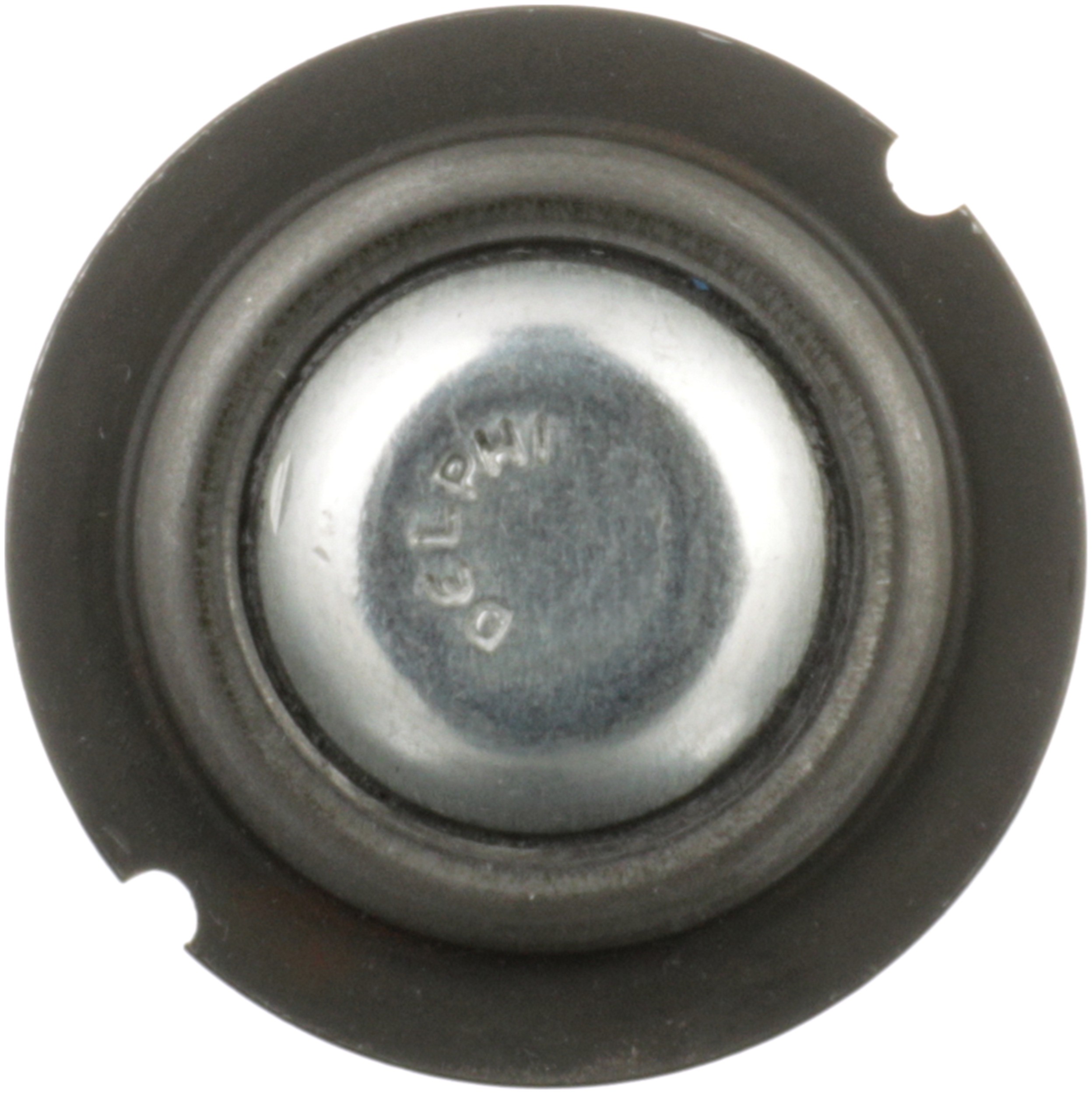

Delphi TC360 Suspension Ball Joint

Delphi TC360 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9213	14.5 MM
Position(s)	Front Lower Inner
2334	No
2381	Yes
2827	No
881	Threaded
9090	Rubber
9209	No
9210	Yes
Height	81.80 MM
Height	3.220 IN
Width	50 MM
Length	1.970 IN
Length	50.00 MM
Maximum Outside Diameter	50.00 MM
Maximum Outside Diameter	1.969 IN
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
4966	0.551 IN
4966	14 MM
9212	0.65 IN
9212	16.5 MM
9213	0.571 IN
