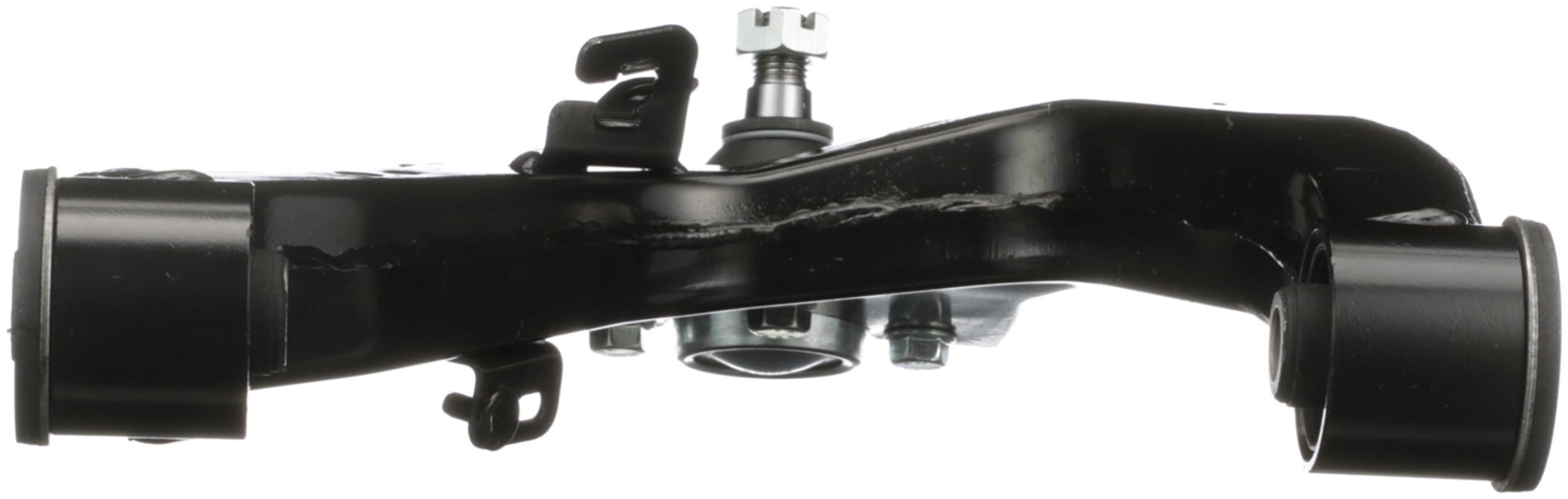

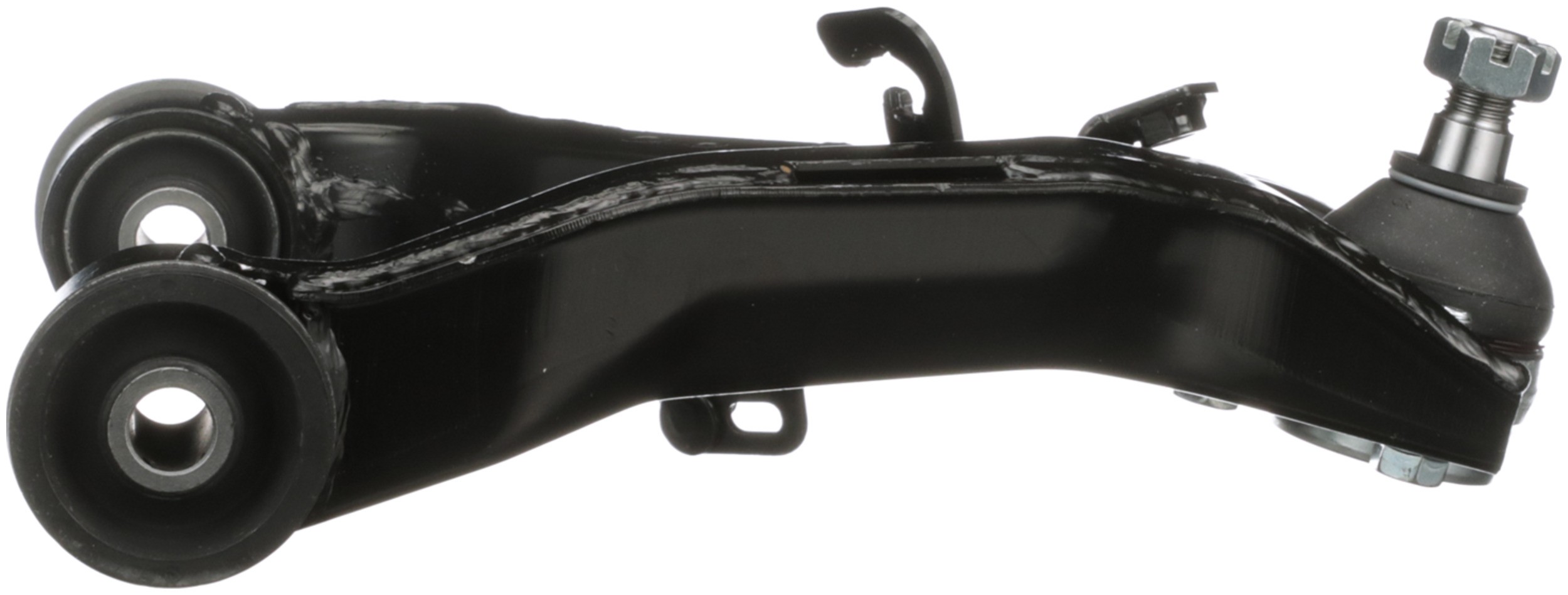

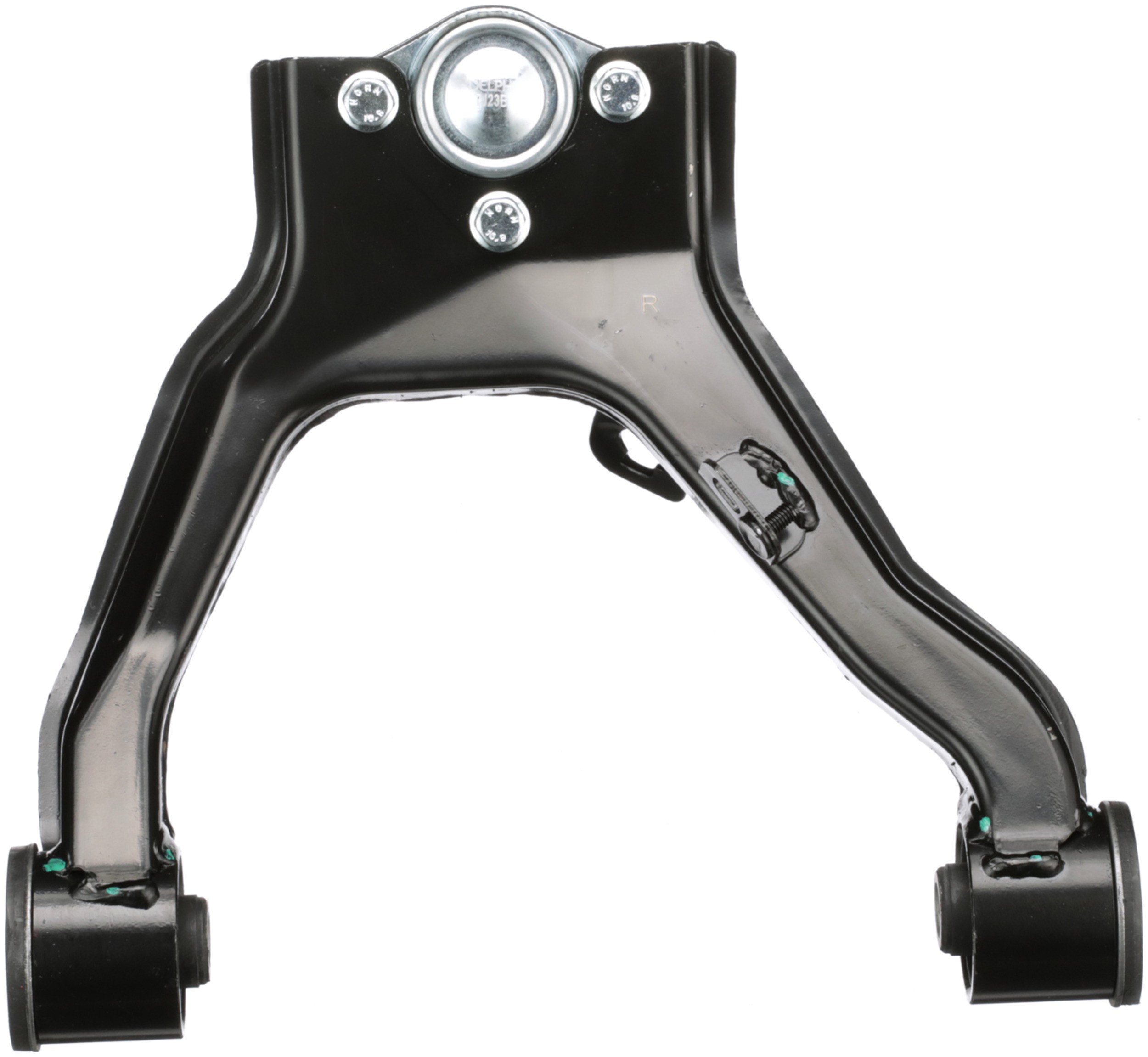

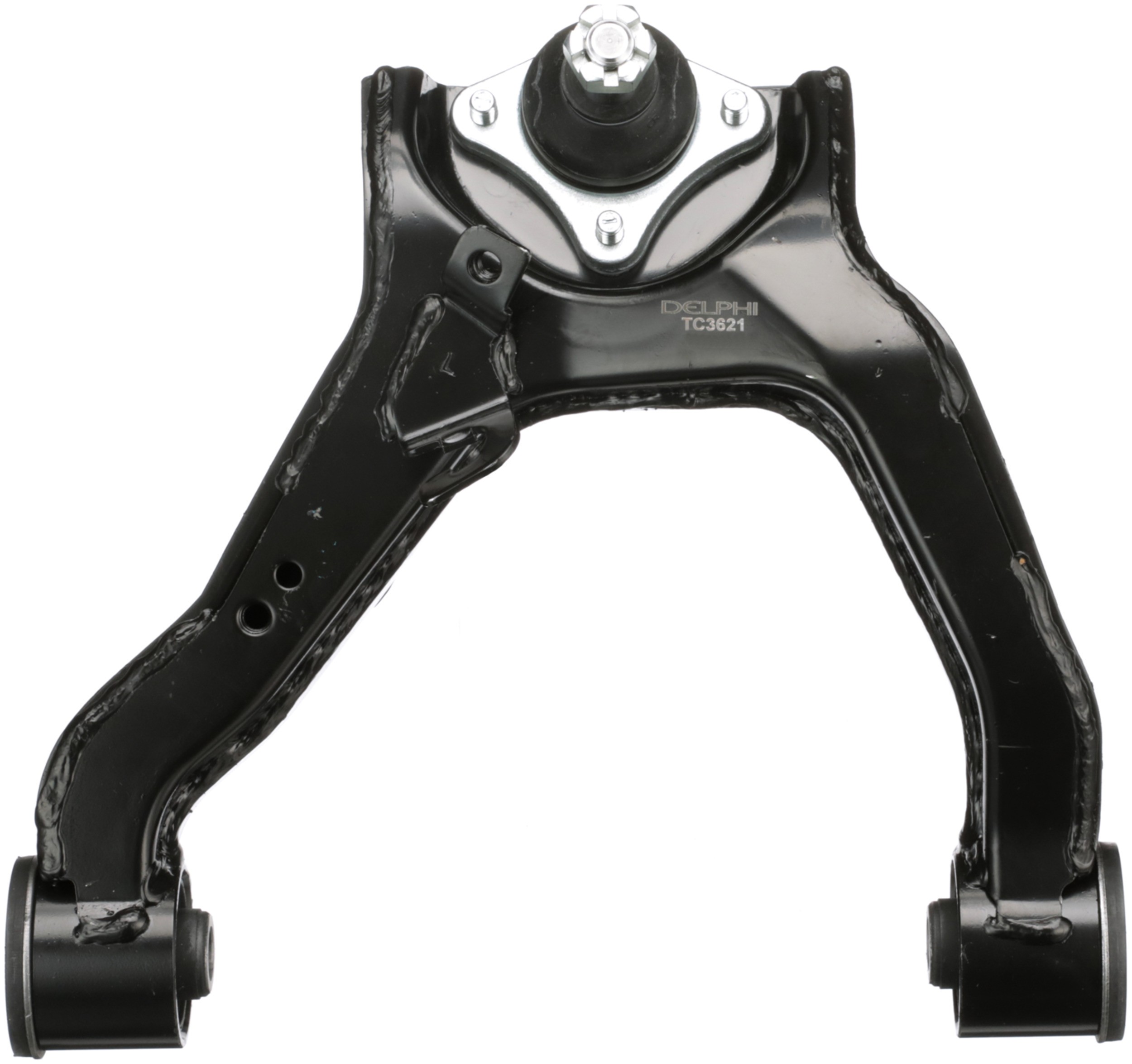

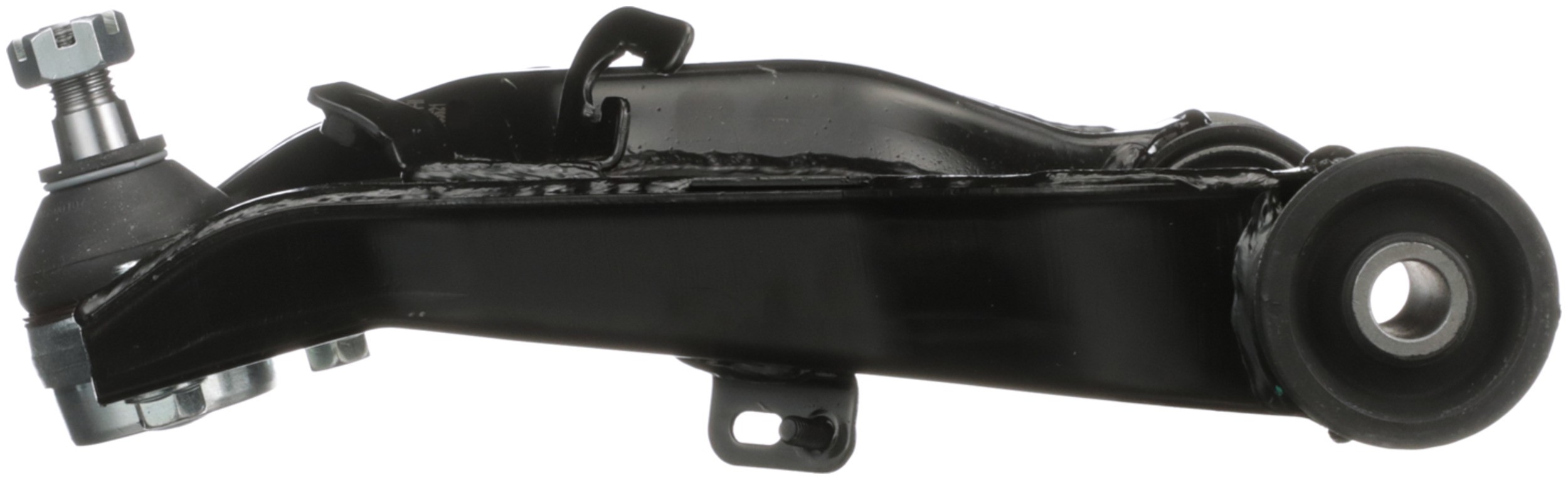

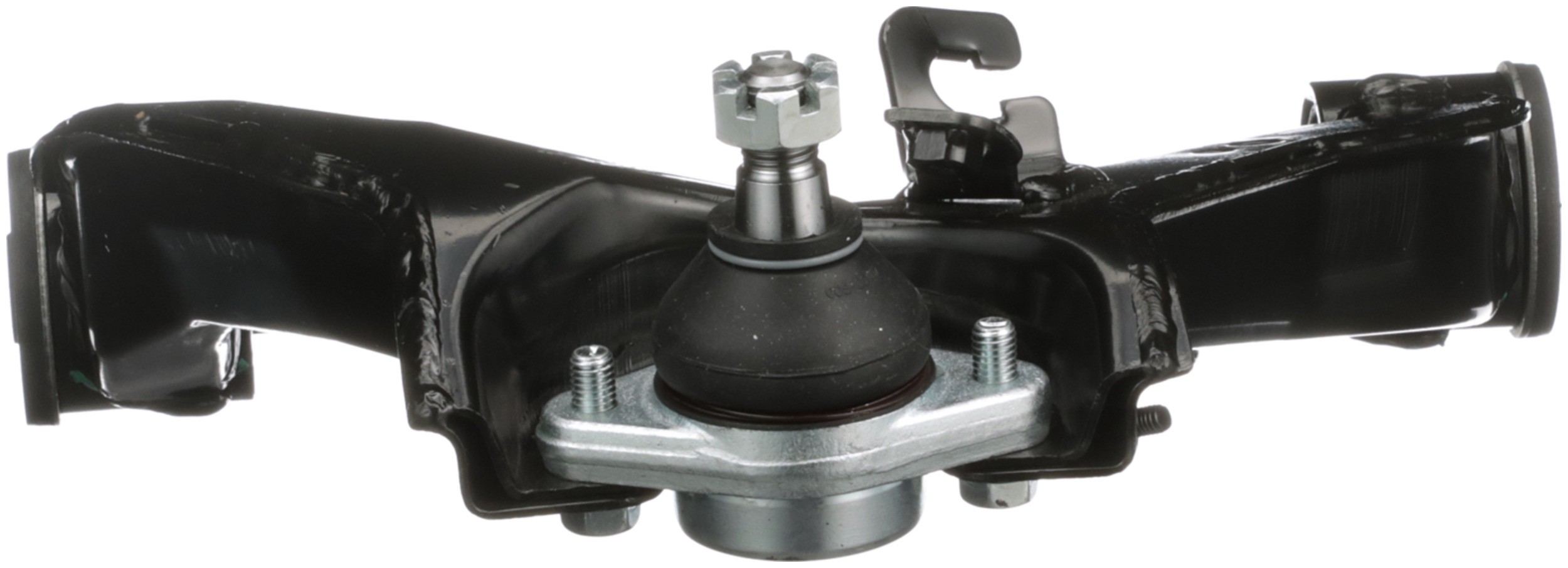

Delphi TC3621 Suspension Control Arm and Ball Joint Assembly

Delphi TC3621 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Mounting Hardware Included	Yes
4887	91.00 MM
4887	3.583 IN
Length	308.00 MM
Length	12.126 IN
Mounting Hole Diameter	14.30 MM
Mounting Hole Diameter	14.30 MM
Mounting Hole Diameter	0.563 IN
Mounting Hole Diameter	0.563 IN
Bearing Material	Plastic
Bushing Type	Rubber
4890	78.20 MM
4890	3.079 IN
Position(s)	Front Left Upper
2384	Yes
2386	Stamped
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Bolt In
Pre-greased	Yes
Boot Colour	Black
Material	Steel
Ball Joint Stud Type	Threaded
Finish	Black
Greaseable	No
