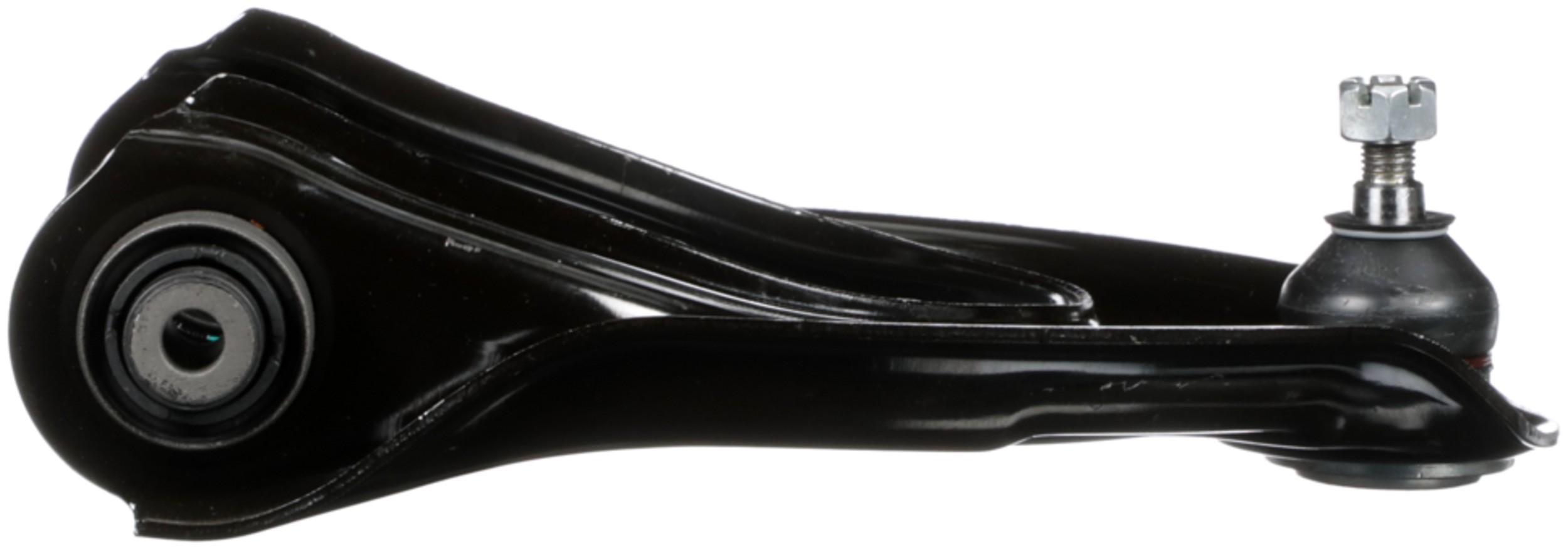

Delphi TC3633 Suspension Control Arm and Ball Joint Assembly

Delphi TC3633 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Bushing Colour	Black
2384	Yes
2386	Stamped
6529	Power
9090	Chloroprene Rubber (CR)
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Thread Direction	Clockwise (Right)
Boot Colour	Black
Finish	Painted
Length	264.01 MM
Bearing Material	Plastic
Mounting Hole Diameter	0.402 IN
4890	2.362 IN
4890	60.00 MM
Length	10.394 IN
Mounting Hole Diameter	10.20 MM
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Pre-greased	Yes
Position(s)	Front Left Upper
Bushing Type	Rubber
Finish	Black
