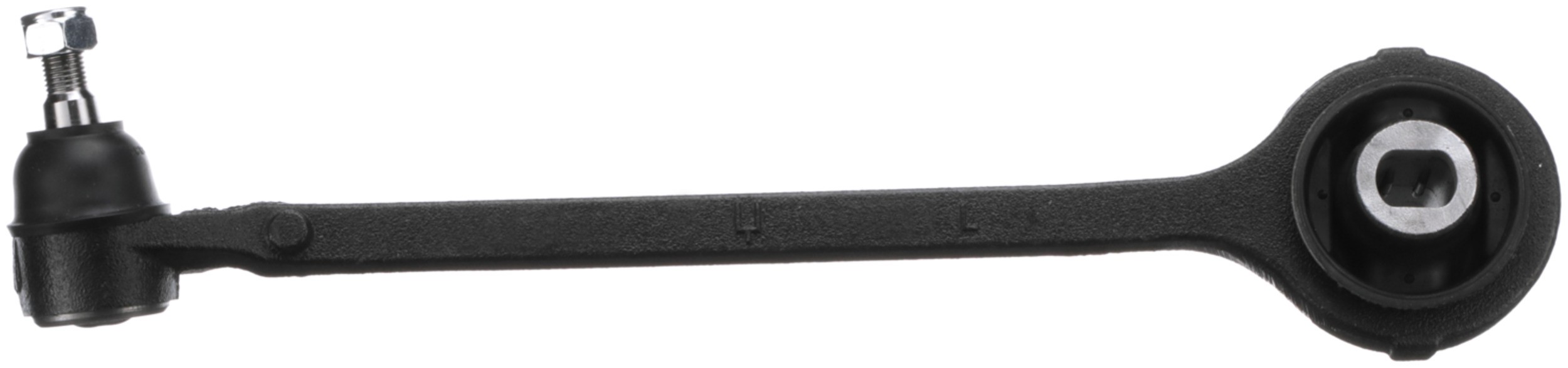

Delphi TC3646 Suspension Control Arm and Ball Joint Assembly

Delphi TC3646 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Mounting Hole Diameter	0.689 IN
Mounting Hole Diameter	17.50 MM
4890	3.189 IN
4890	81.00 MM
4887	4.528 IN
4887	115.00 MM
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
9090	Chloroprene Rubber (CR)
6529	Power
Position(s)	Front Left Lower Forward
2384	Yes
2386	Casting/Forged
4241	Yes
