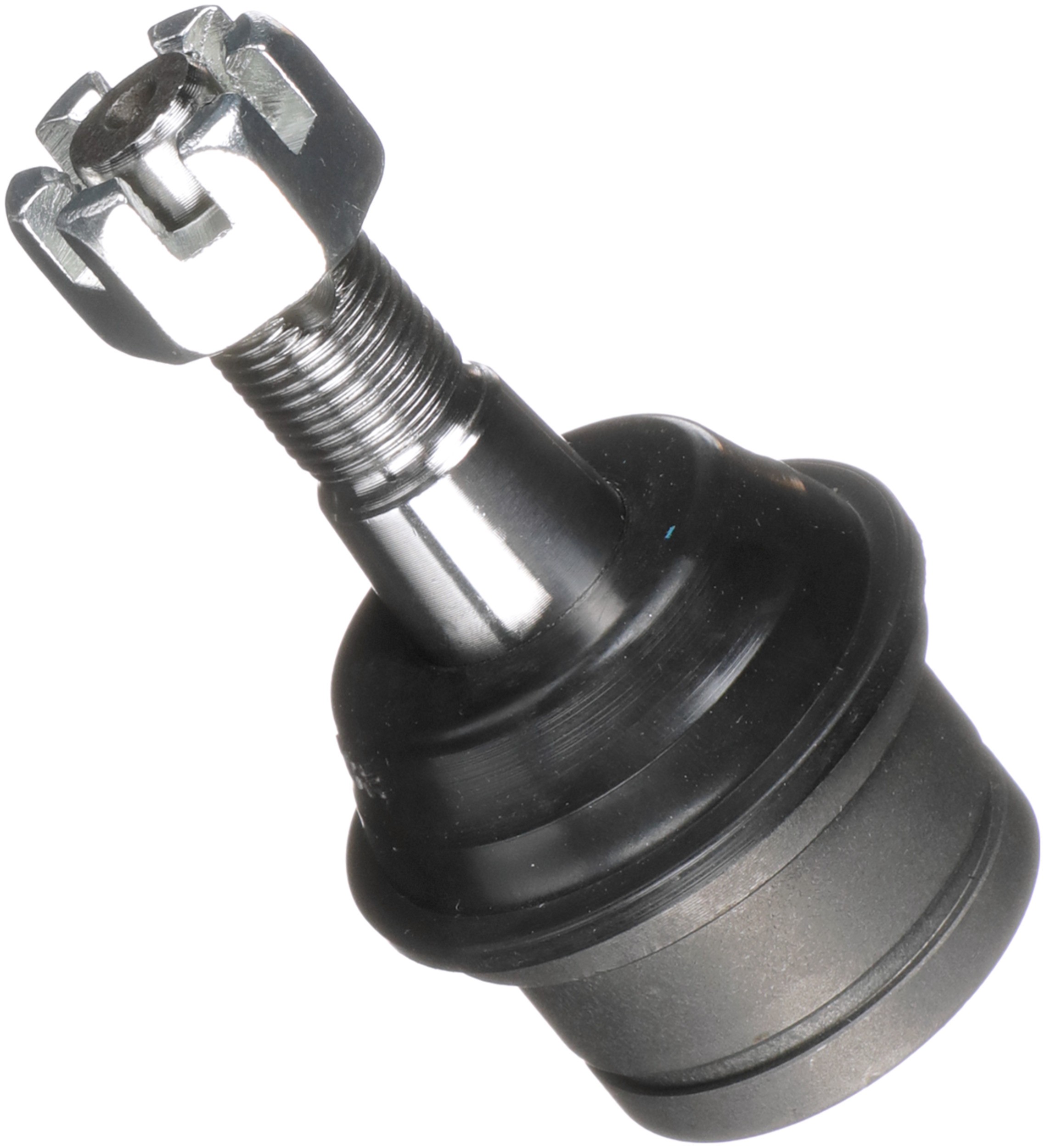

Delphi TC3665 Suspension Ball Joint

Delphi TC3665 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9212	21.5 MM
9209	No
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
2381	Yes
Position(s)	Front Lower
9090	Rubber
Height	110.00 MM
Height	4.331 IN
Width	64 MM
Length	2.520 IN
Length	64.00 MM
9210	Yes
9213	17.5 MM
9213	0.689 IN
9212	0.846 IN
4966	22.3 MM
4966	0.878 IN

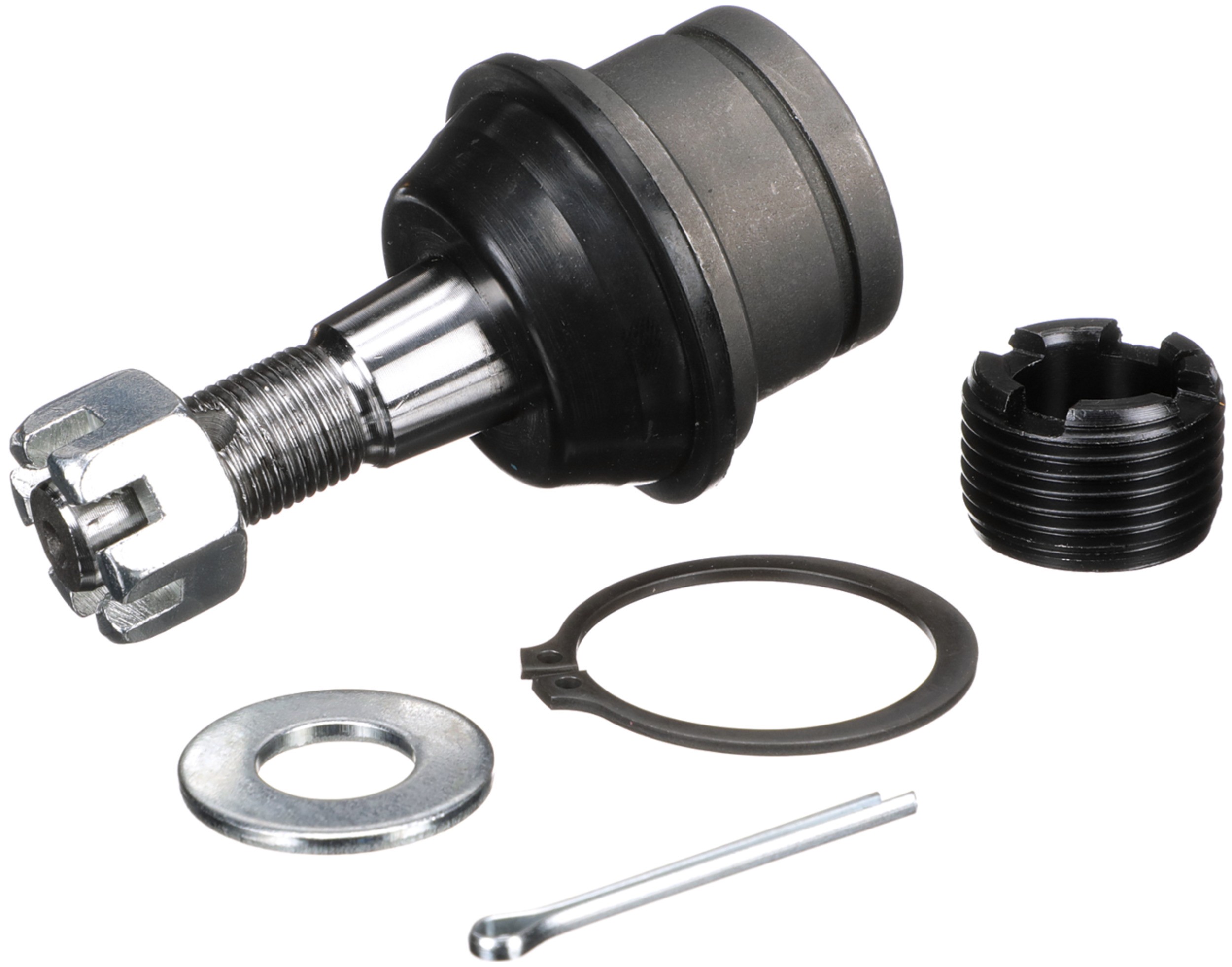

Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0
Adjustable	No
Greaseable	No
Mounting Type	Press-In
