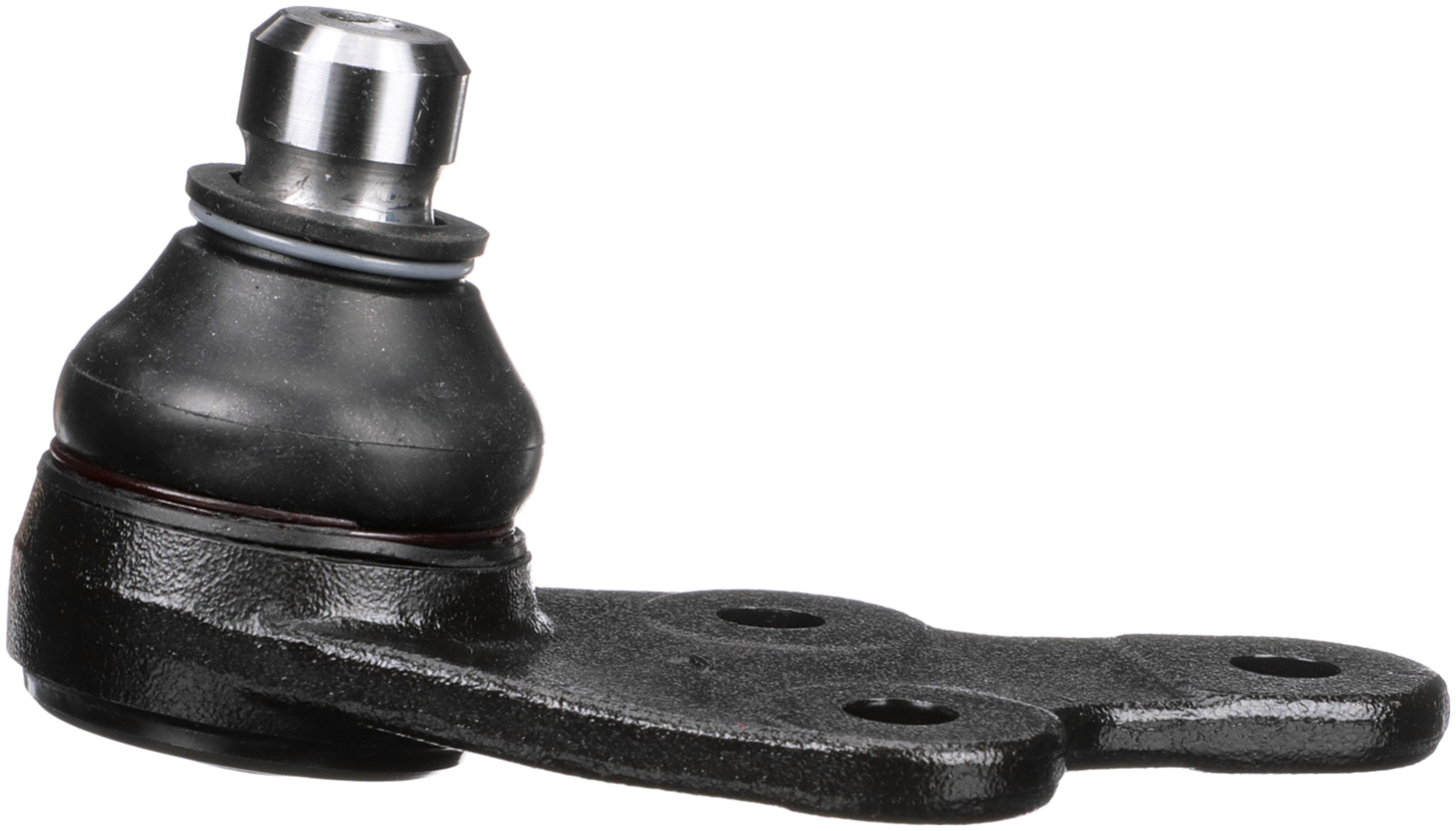

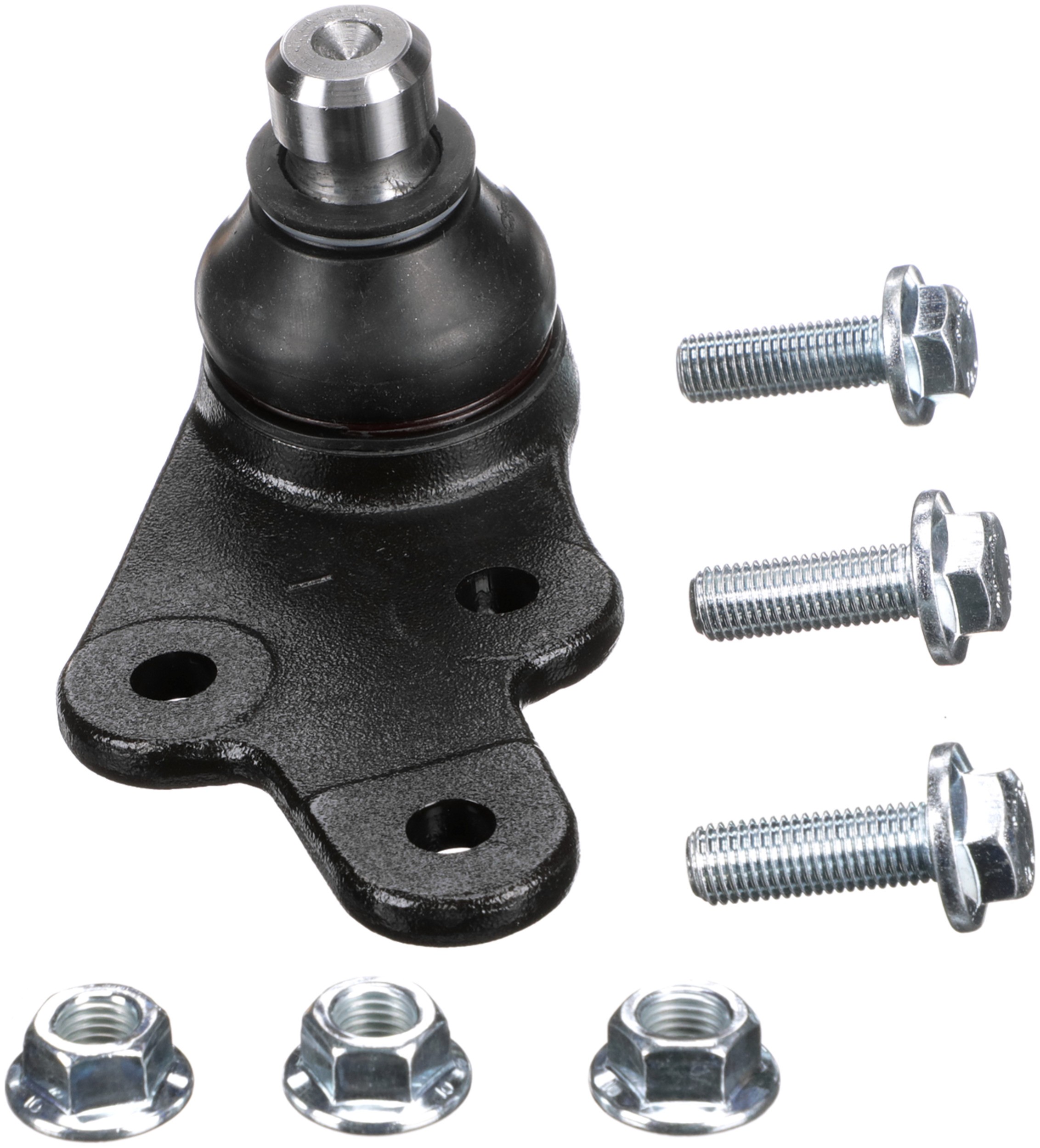

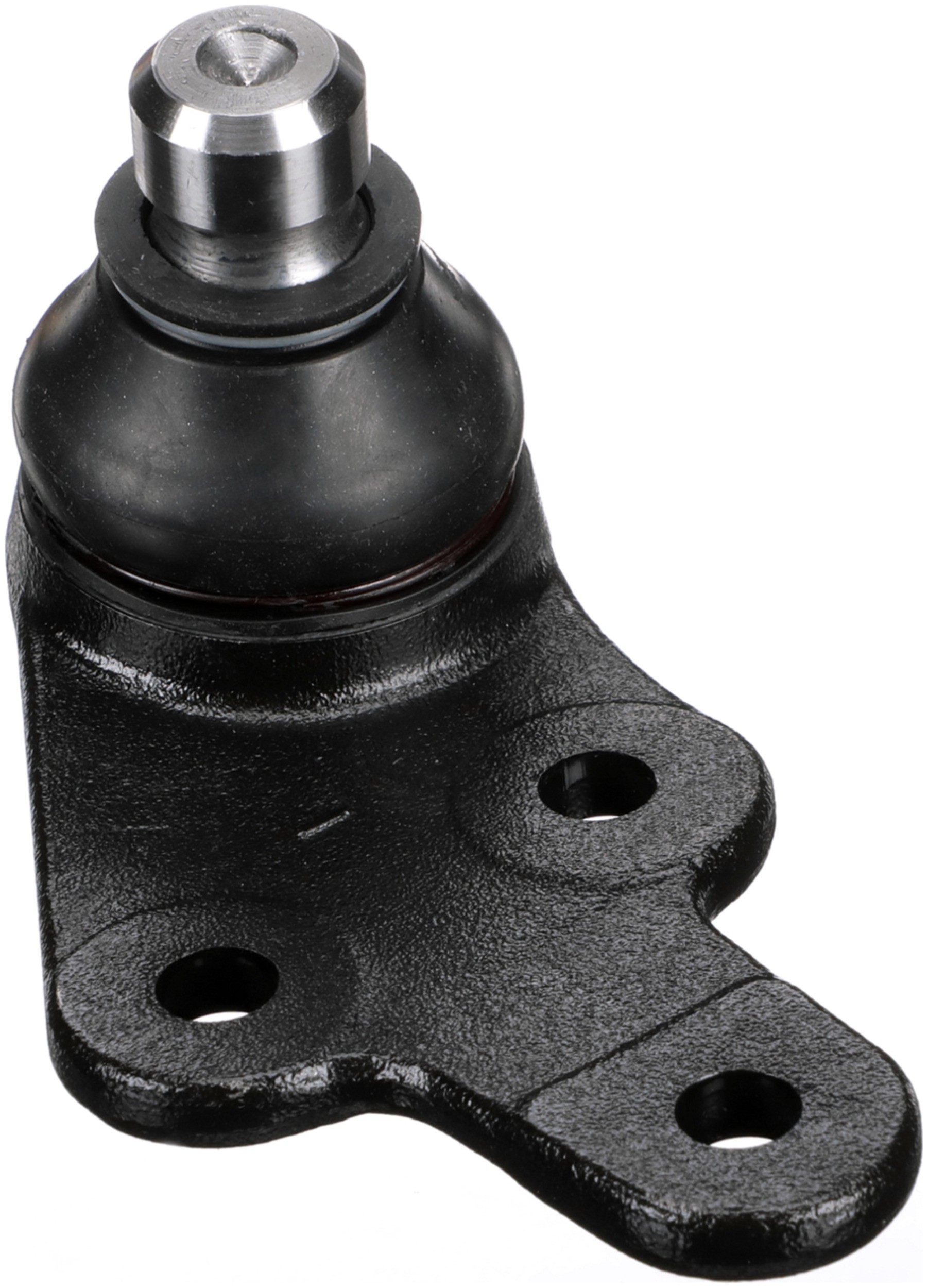

Delphi TC3671 Suspension Ball Joint

Delphi TC3671 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Type	Press-In
Greaseable	No
Adjustable	No
Height	107.80 MM
Height	4.244 IN
Width	49.6 MM
9204	Yes
9090	Rubber
Position(s)	Front Left
2334	No
Color	Gray
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
2381	Yes
2827	No
Mounting Hole Quantity	0
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
9209	No
9210	Yes
9213	17.3 MM
9213	0.681 IN
9212	25.3 MM
9212	0.996 IN
4966	17 MM
4966	0.669 IN
