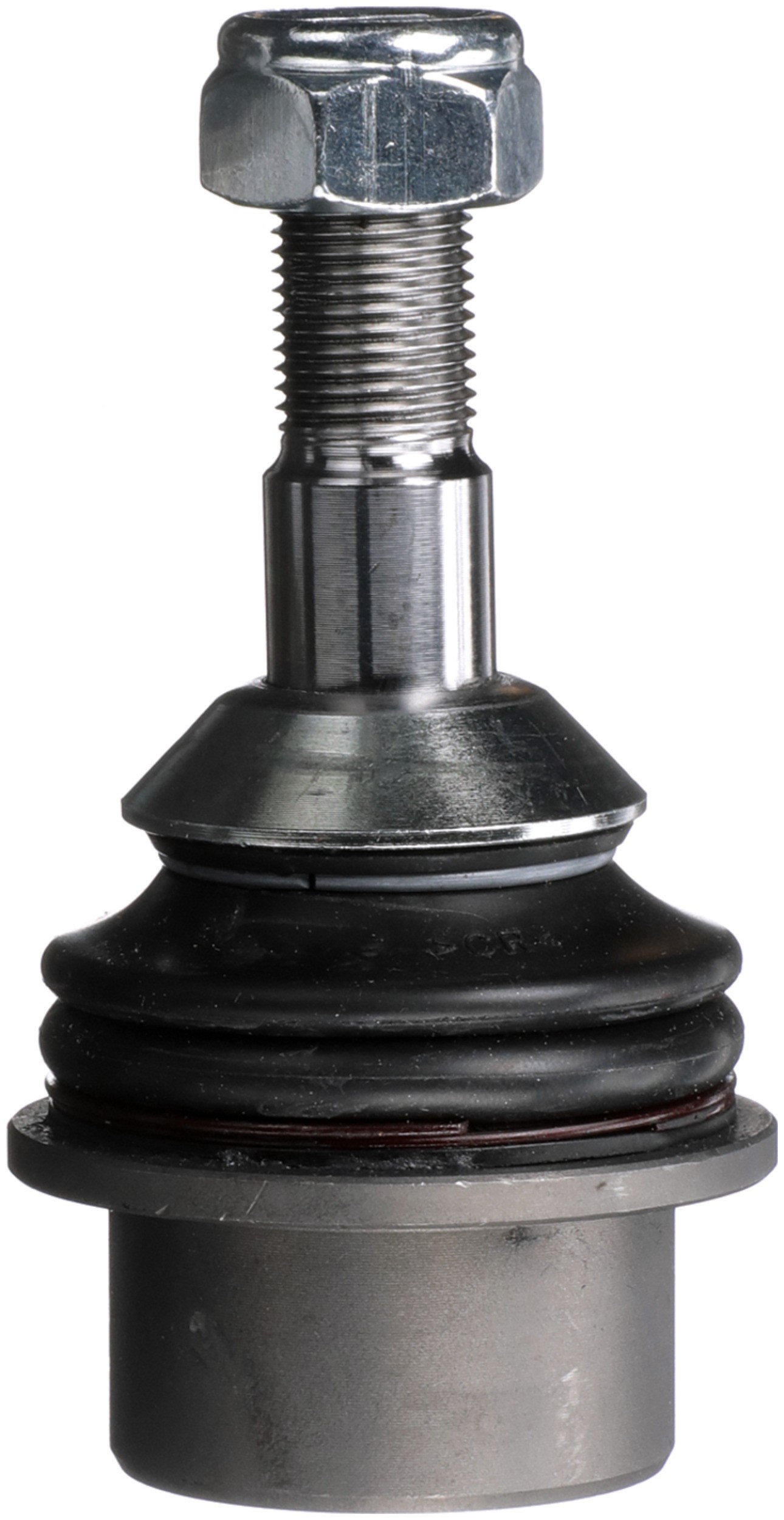

Delphi TC3677 Suspension Ball Joint

Delphi TC3677 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9209	No
Mounting Type	Press-In
Greaseable	No
Adjustable	No
Mounting Hole Quantity	0
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Gray
Material	Ball Material – Alloy Steel SAE 5140, Housing Material – Carbon Steel SAE 1040
Height	114.80 MM
4966	1.024 IN
4966	26 MM
9212	1.008 IN
9212	25.6 MM
9213	0.732 IN
2334	No
Position(s)	Front Lower, Rear Lower. For the position specific to your vehicle, refer to the Applications.
Height	4.520 IN
Width	59.2 MM
9213	18.6 MM
9210	Yes
9090	Rubber
839	14mm
2827	No
2381	Yes
