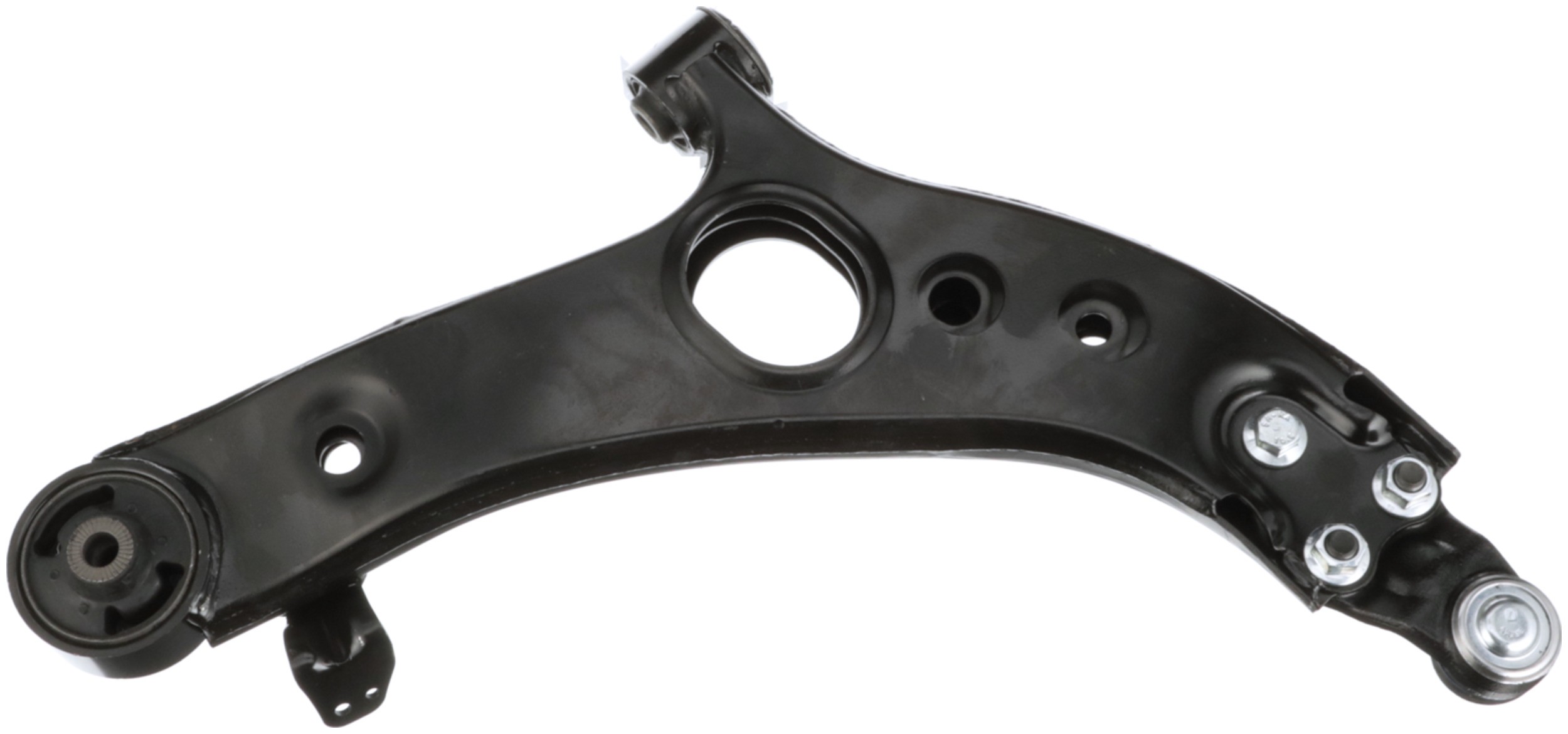

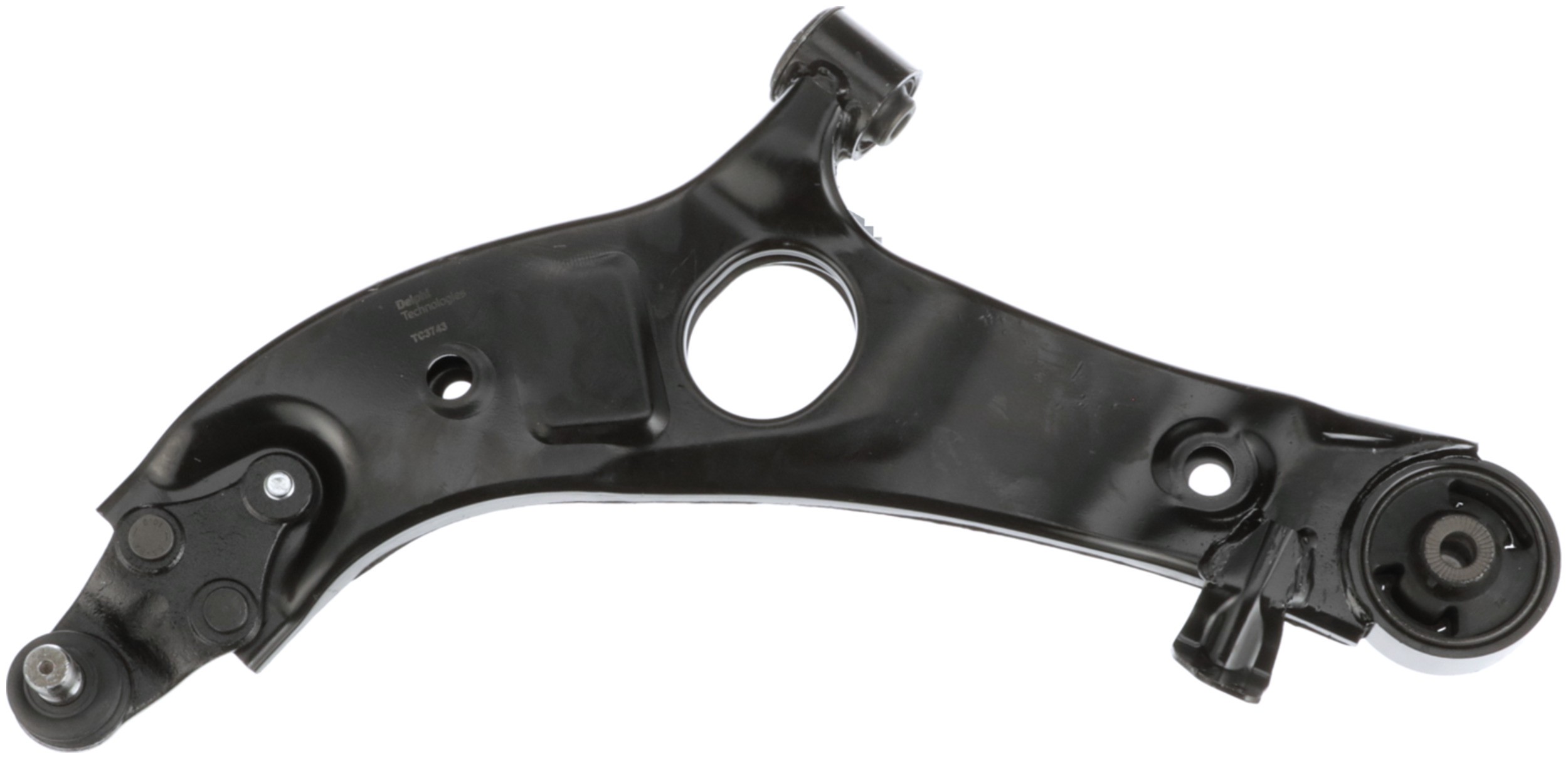

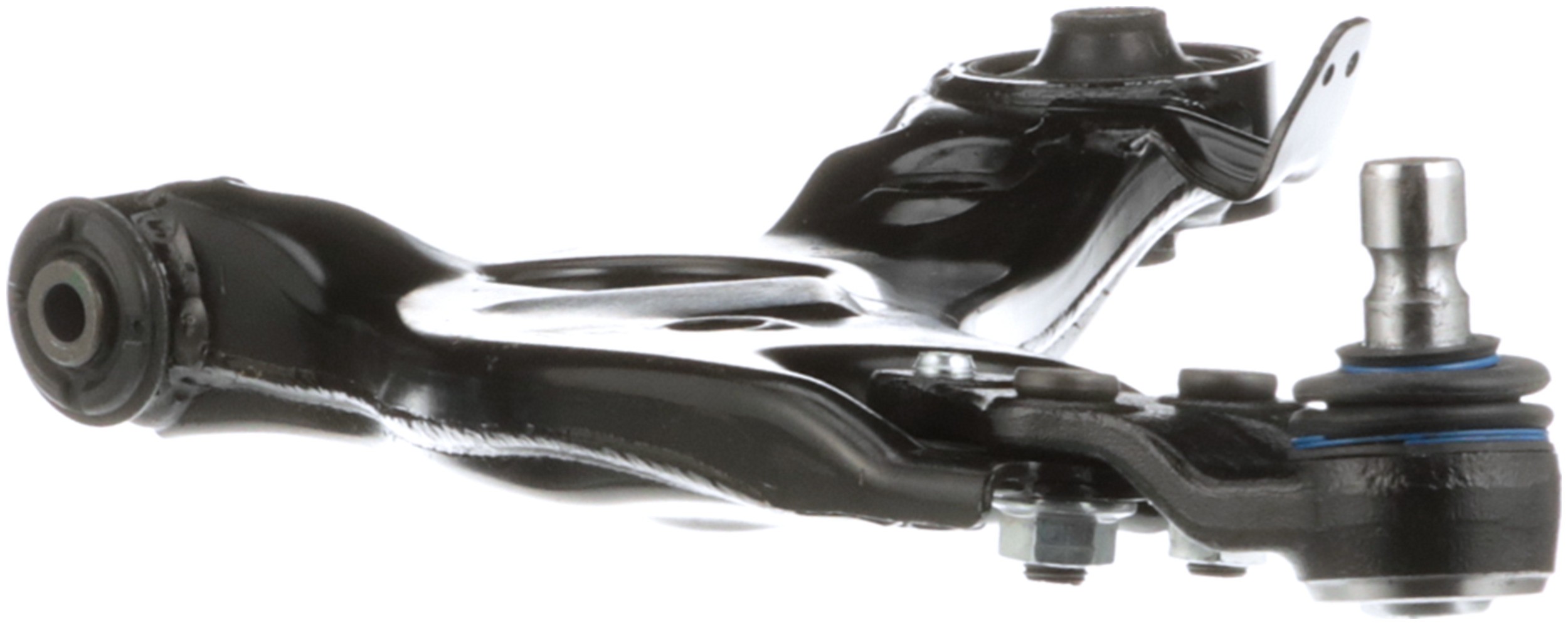

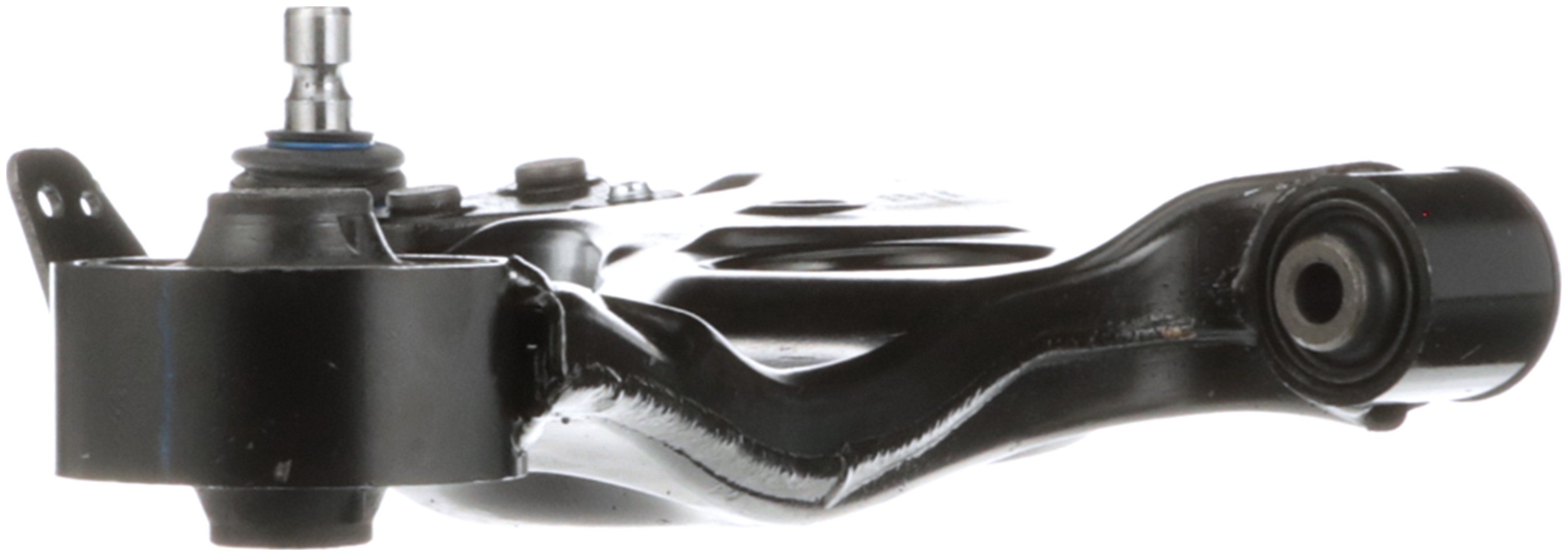

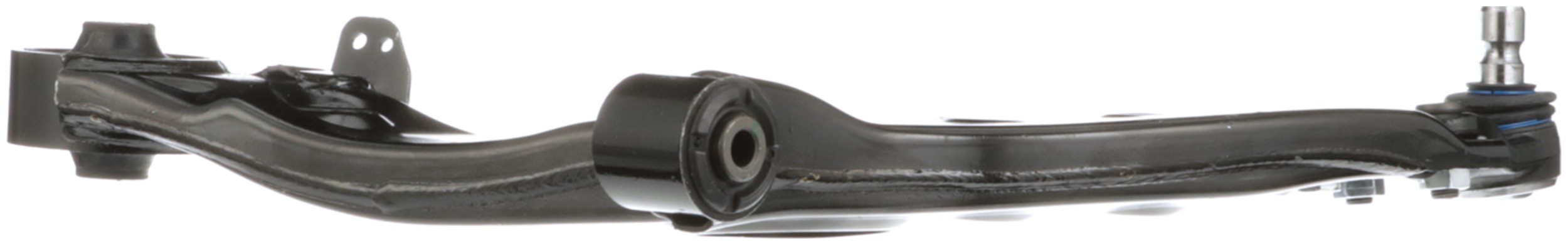

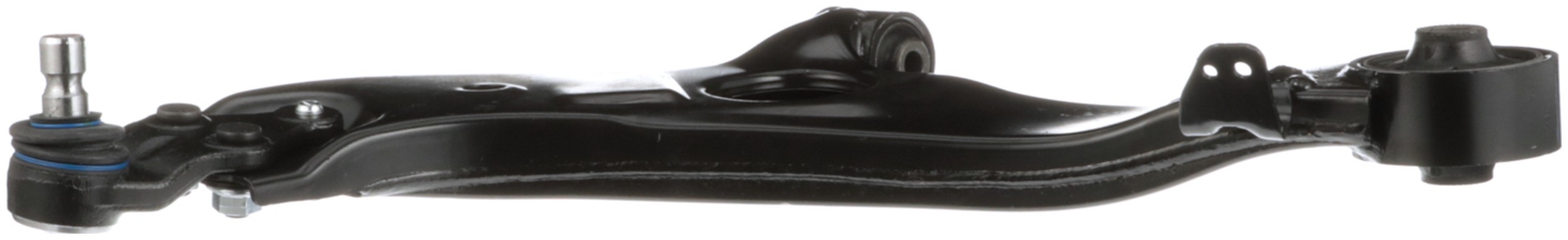

Delphi TC3743 Suspension Control Arm and Ball Joint Assembly

Delphi TC3743 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
Greaseable	No
Position(s)	Front Left Lower
2384	Yes
2386	Stamped
6529	Power
9090	Chloroprene Rubber (CR)
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Mounting Hole Diameter	0.217 IN
4887	3.929 IN
Mounting Hole Diameter	0.236 IN
Mounting Hole Diameter	6.00 MM
Mounting Hole Diameter	5.50 MM
4887	99.80 MM
Pre-greased	Yes
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Attachment Type	Bolt In
Material	Steel
Length	18.004 IN
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Bushings Included	Yes
Boot Material	Chloroprene Rubber (CR)
Dust Boot Included	Yes
Length	457.30 MM
