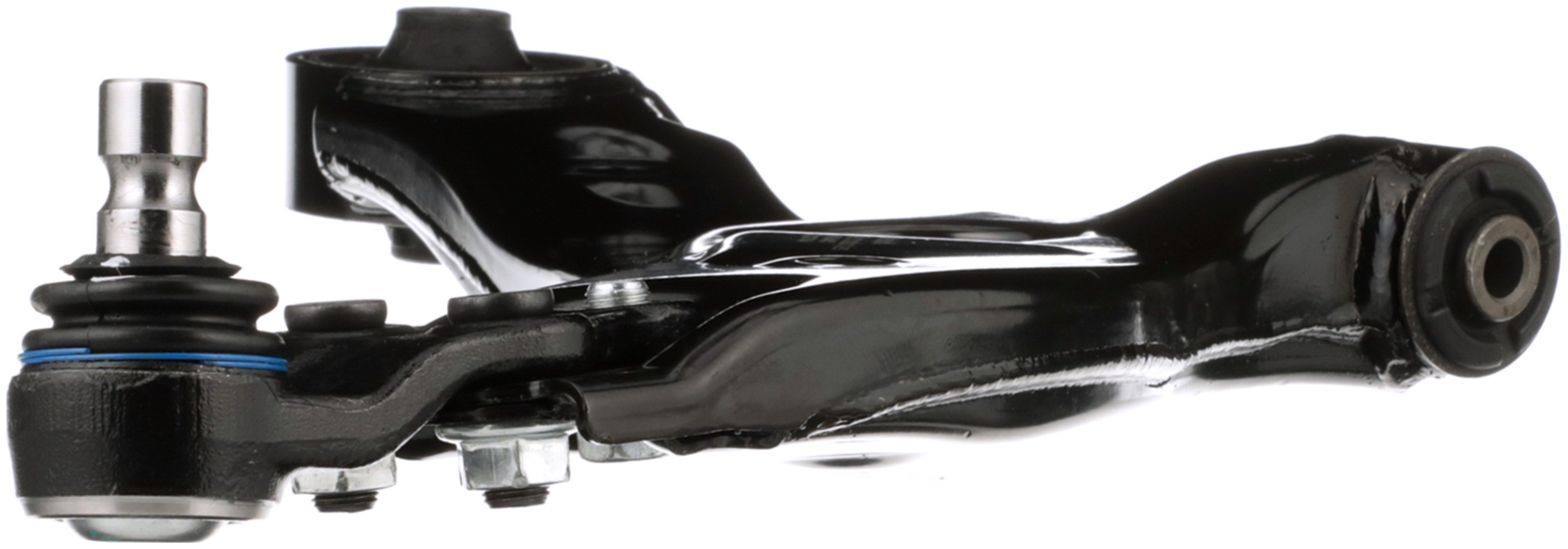

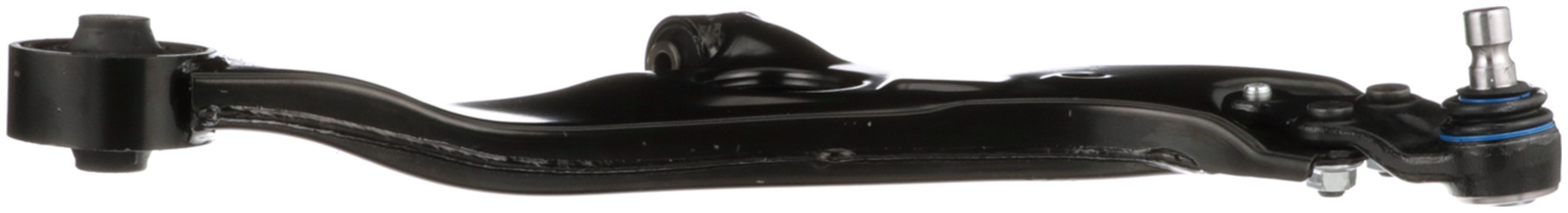

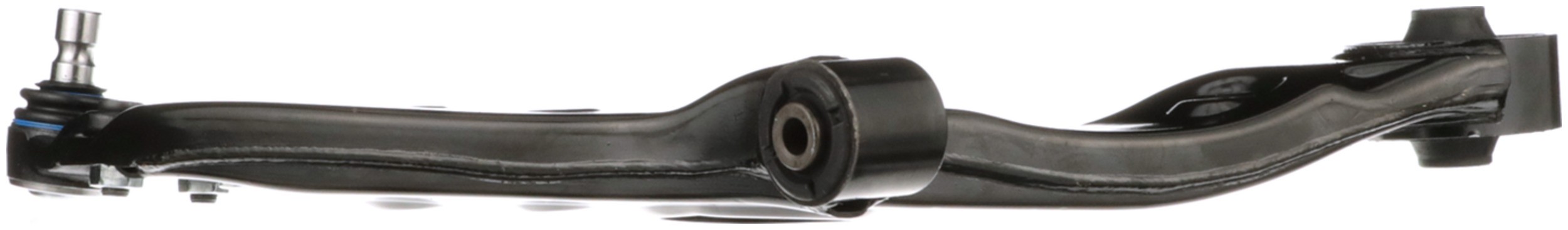

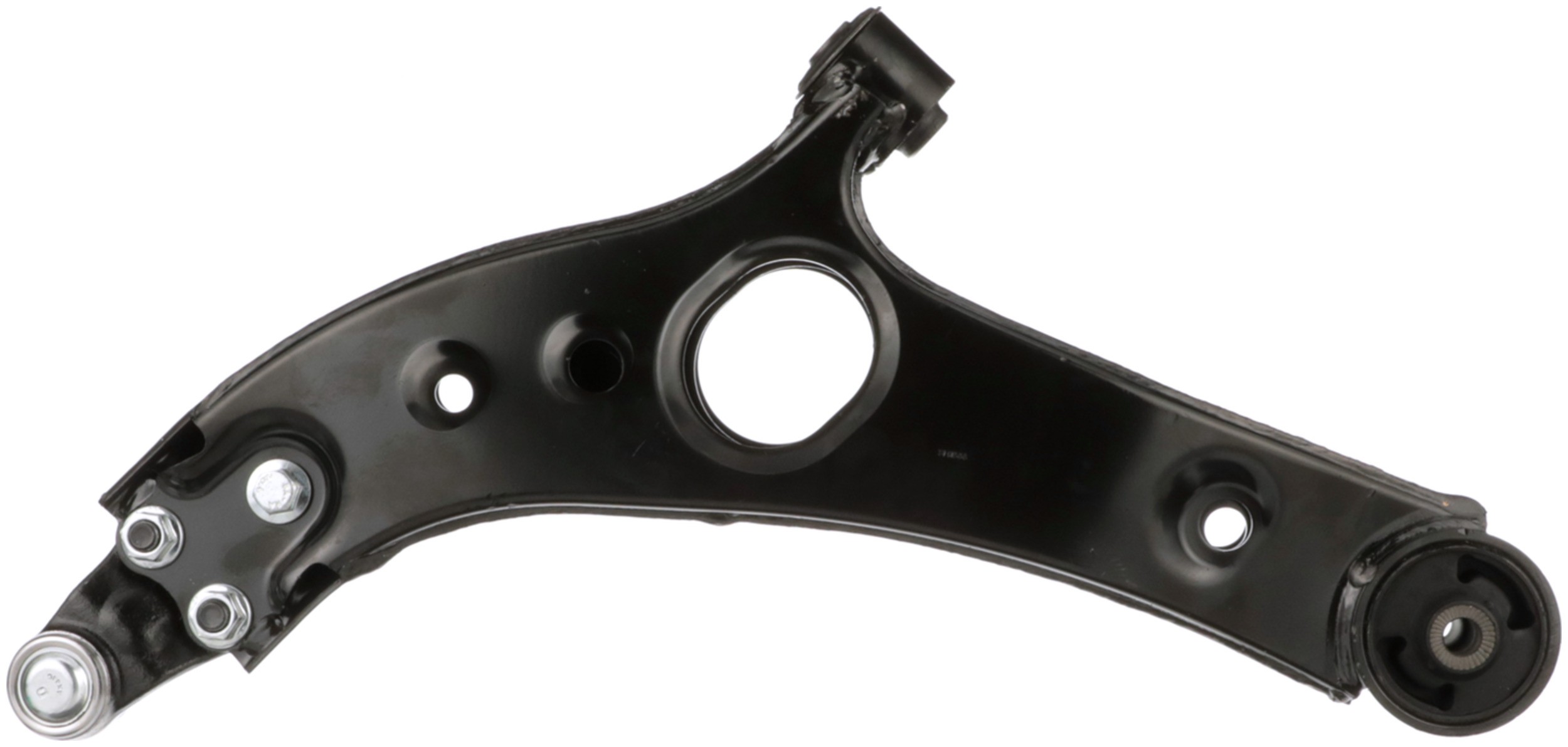

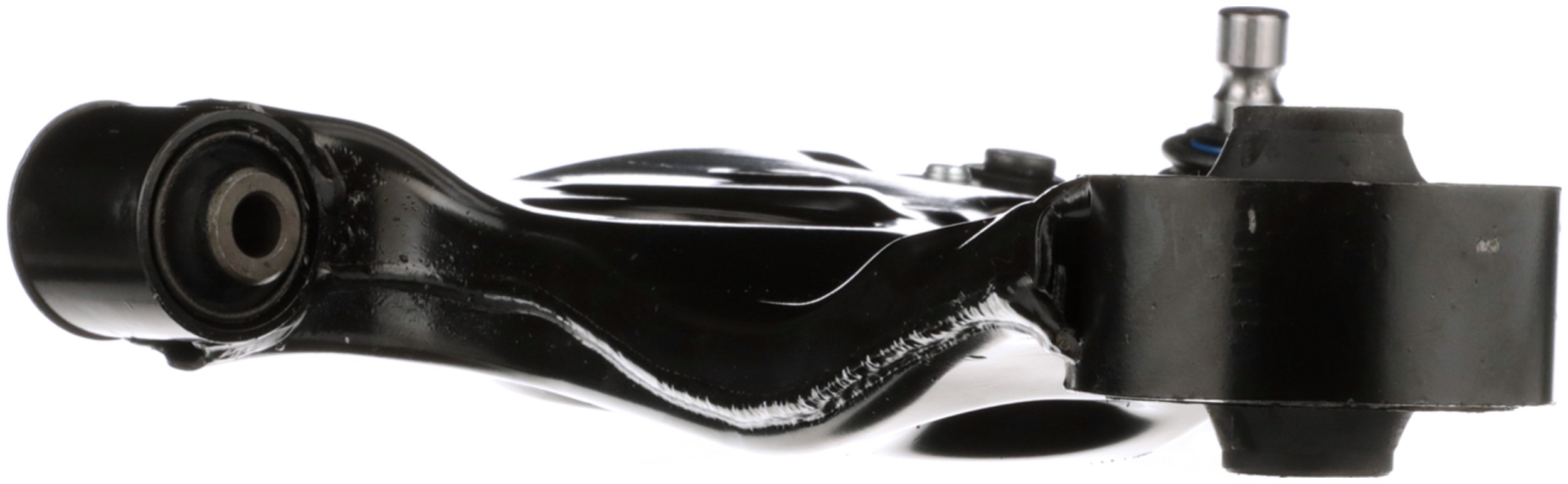

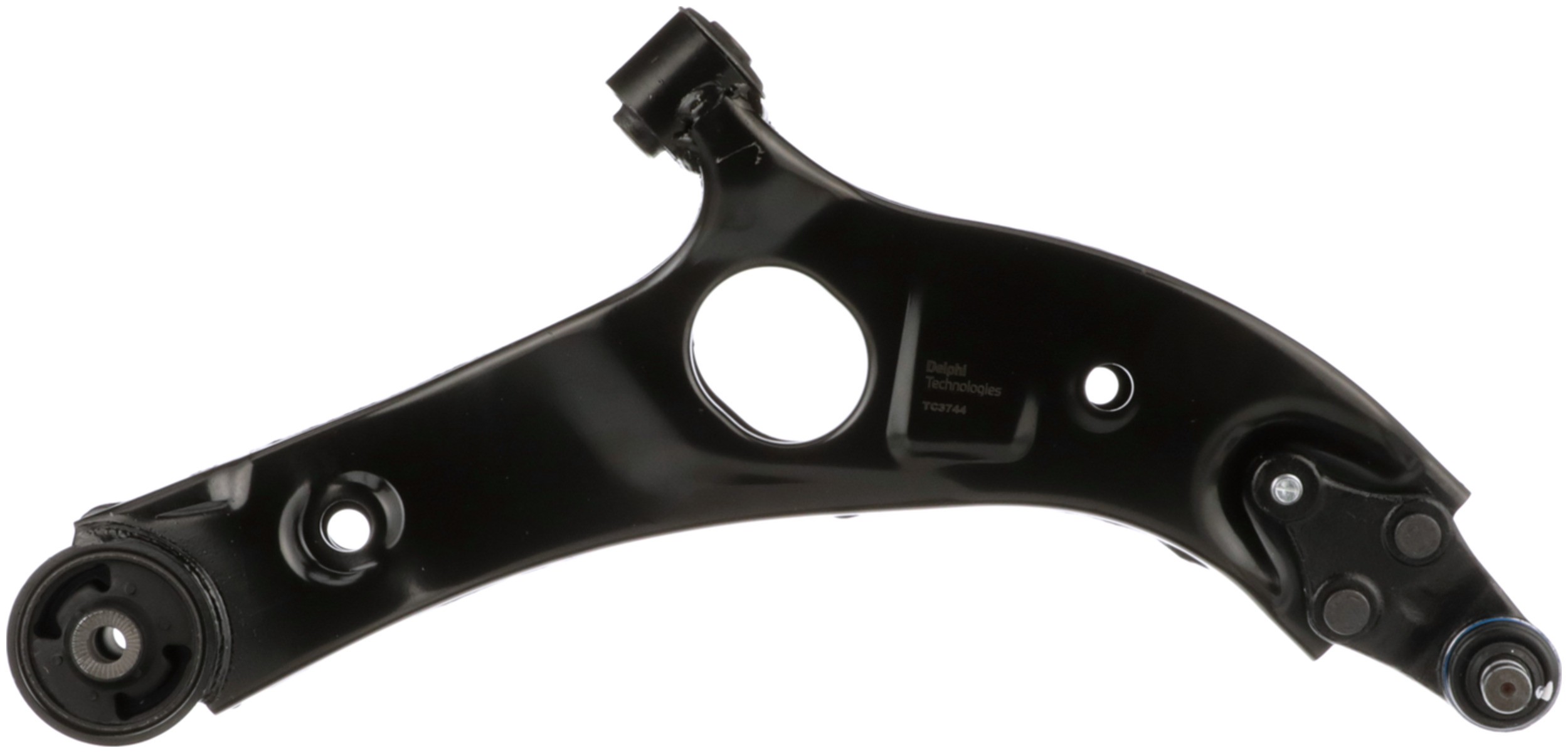

Delphi TC3744 Suspension Control Arm and Ball Joint Assembly

Delphi TC3744 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	0.217 IN
Mounting Hole Diameter	5.50 MM
Length	18.004 IN
Length	457.30 MM
4887	99.80 MM
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Bolt In
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Position(s)	Front Right Lower
2384	Yes
2386	Stamped
6529	Power
9090	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
4887	3.929 IN
Mounting Hole Diameter	0.236 IN
Mounting Hole Diameter	6.00 MM
