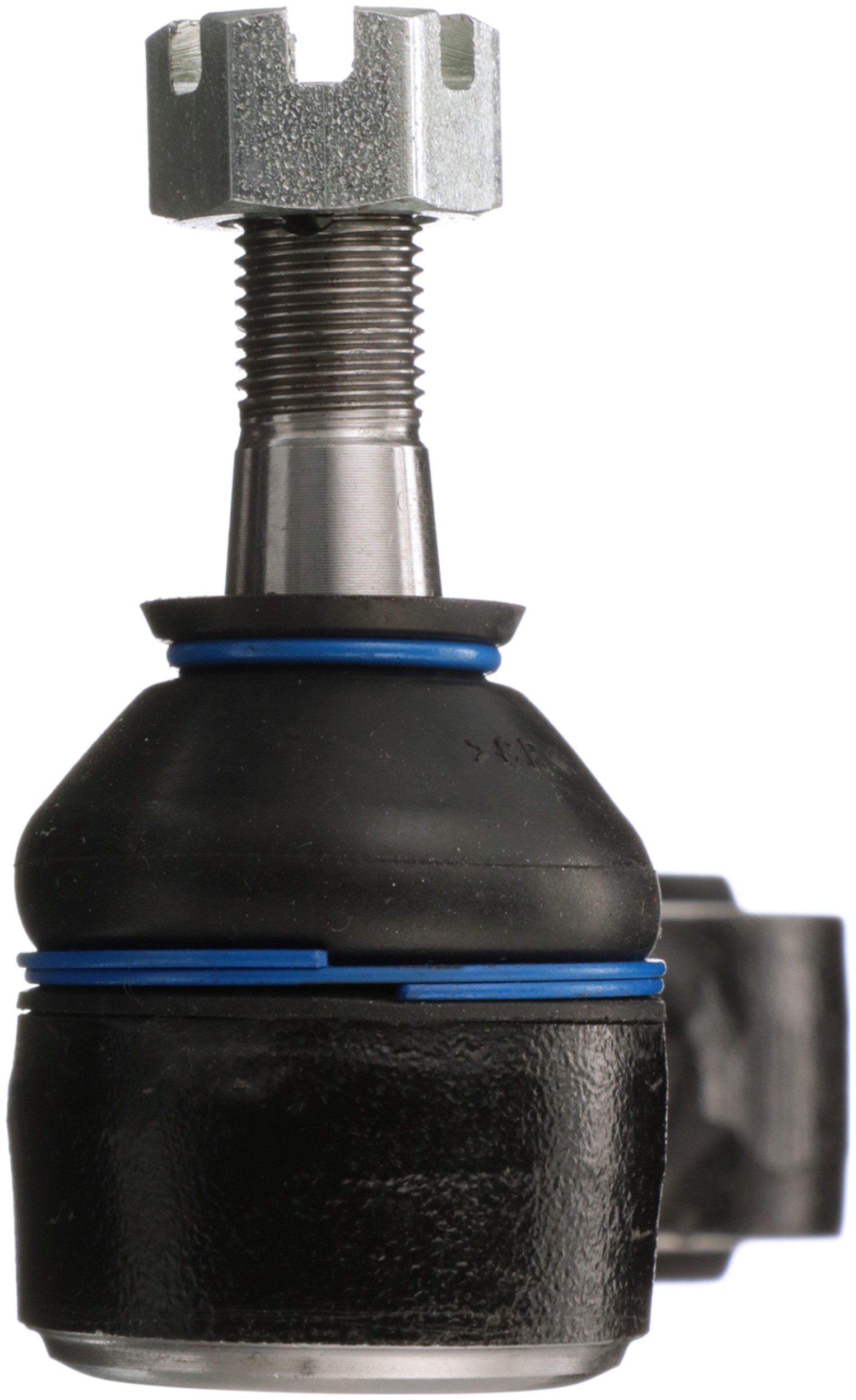

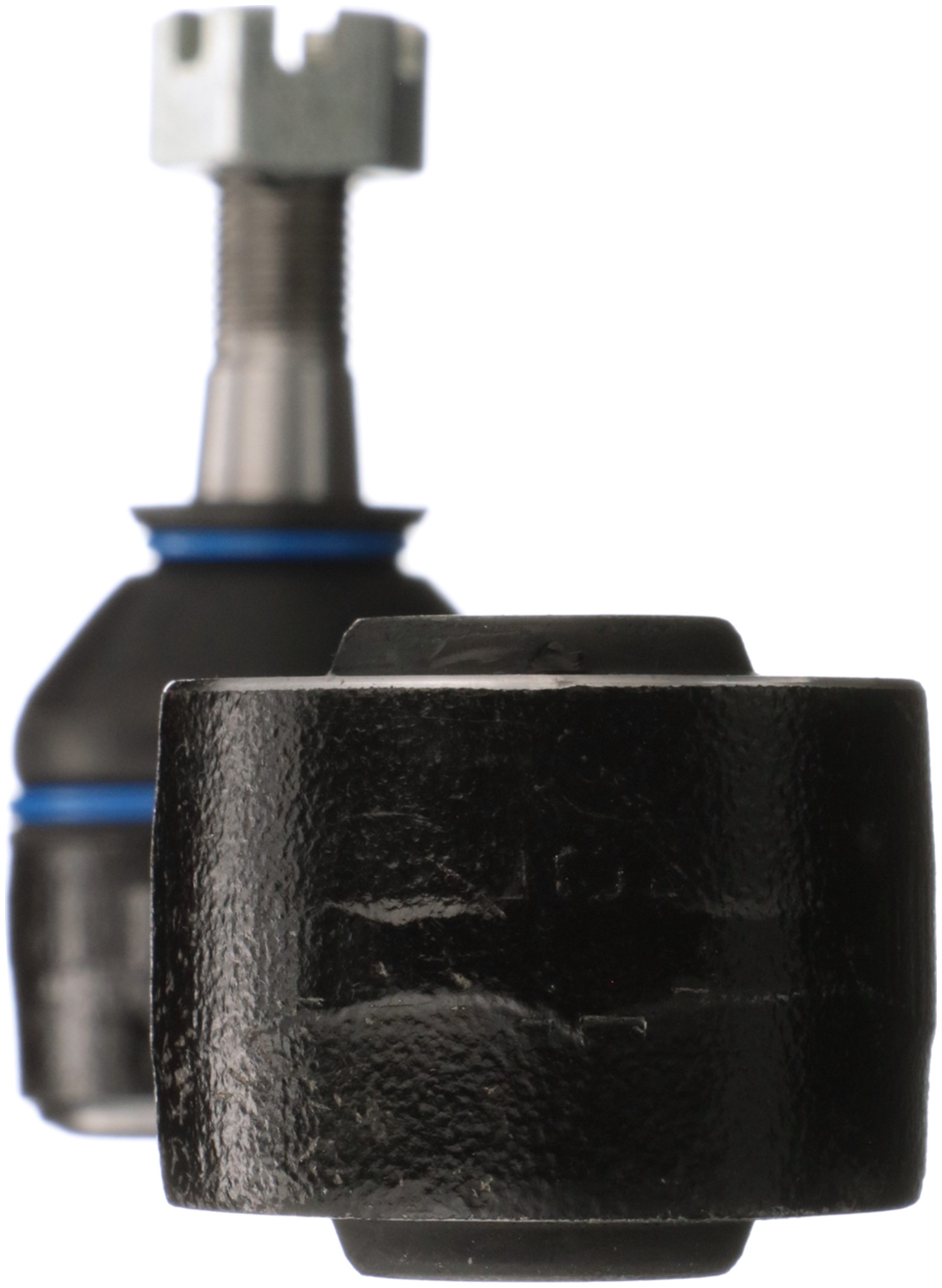

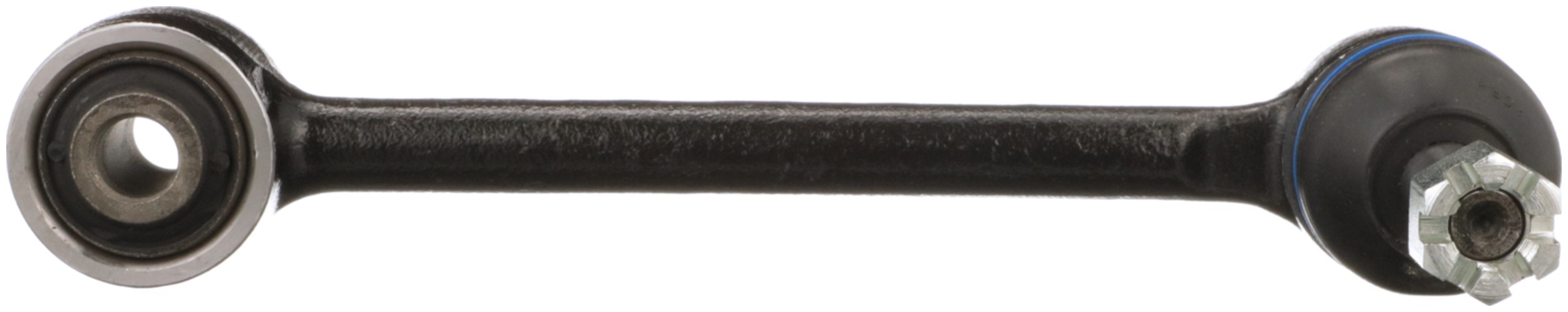

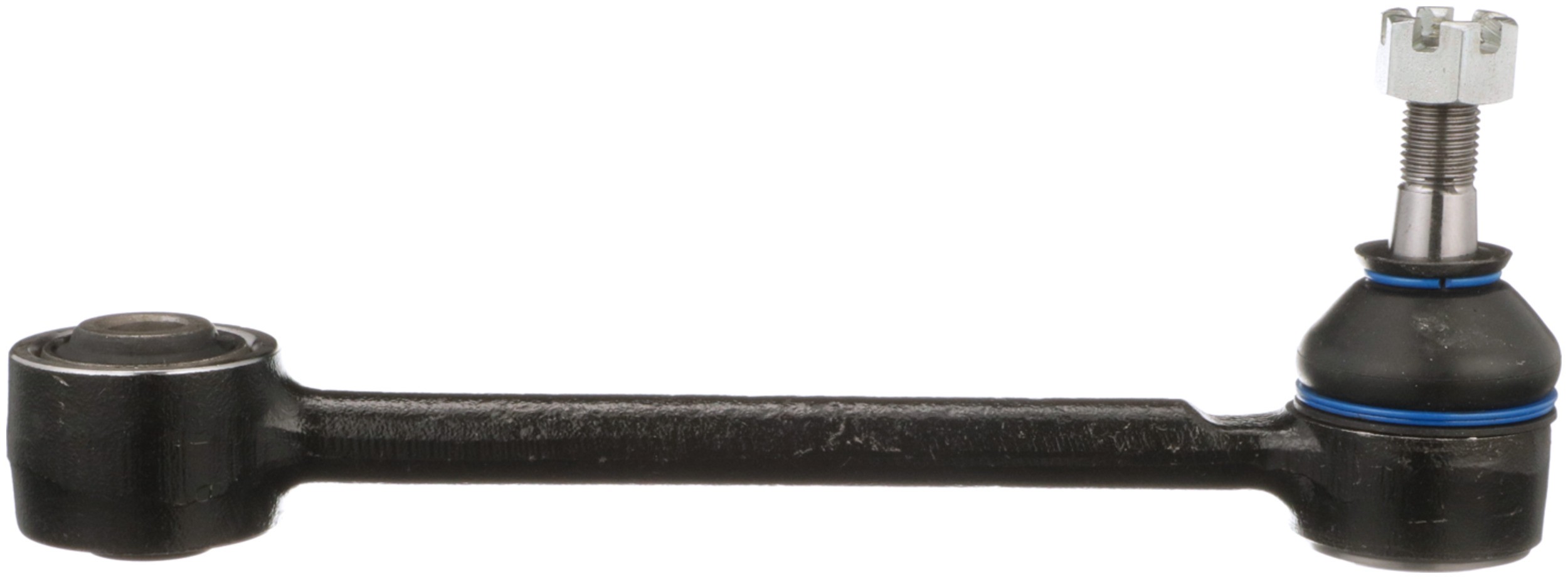

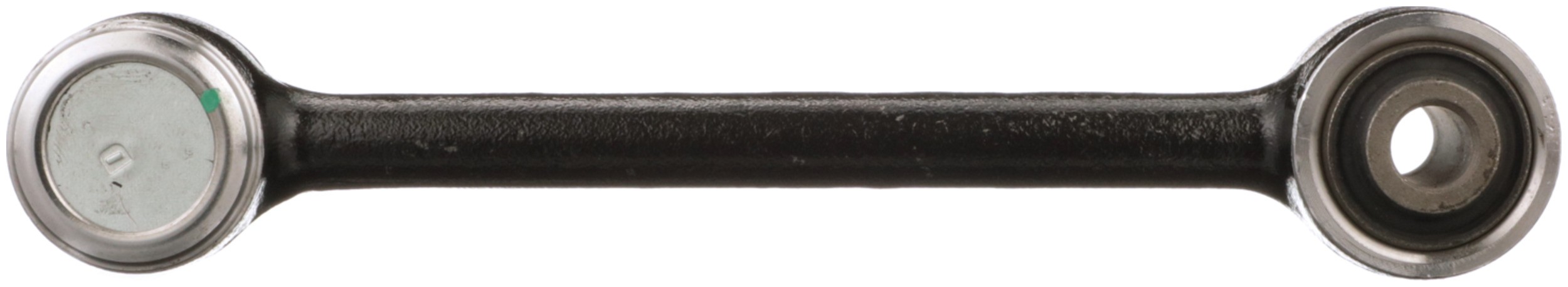

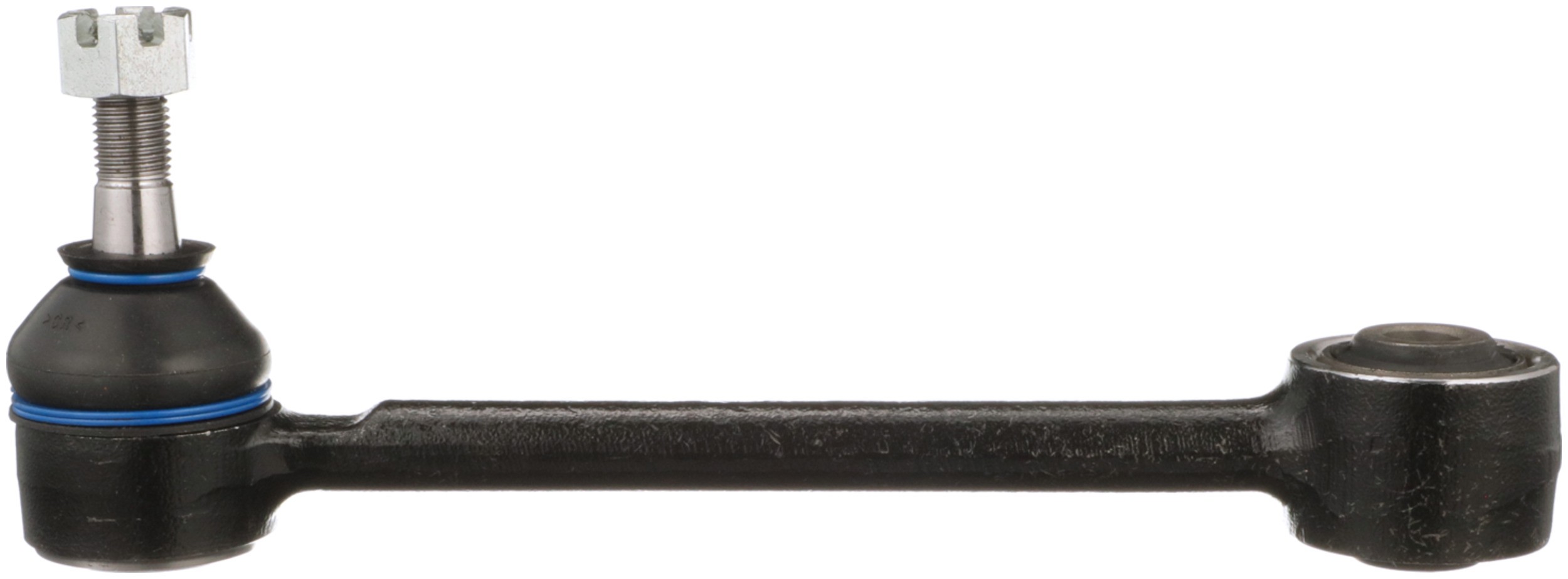

Delphi TC3750 Suspension Control Arm and Ball Joint Assembly

Delphi TC3750 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Finish	Painted
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	0.480 IN
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2384	Yes
Position(s)	Rear Upper Forward
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Bushing Type	Rubber
4890	0.866 IN
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
4890	22.00 MM
4887	1.772 IN
4887	45.00 MM
