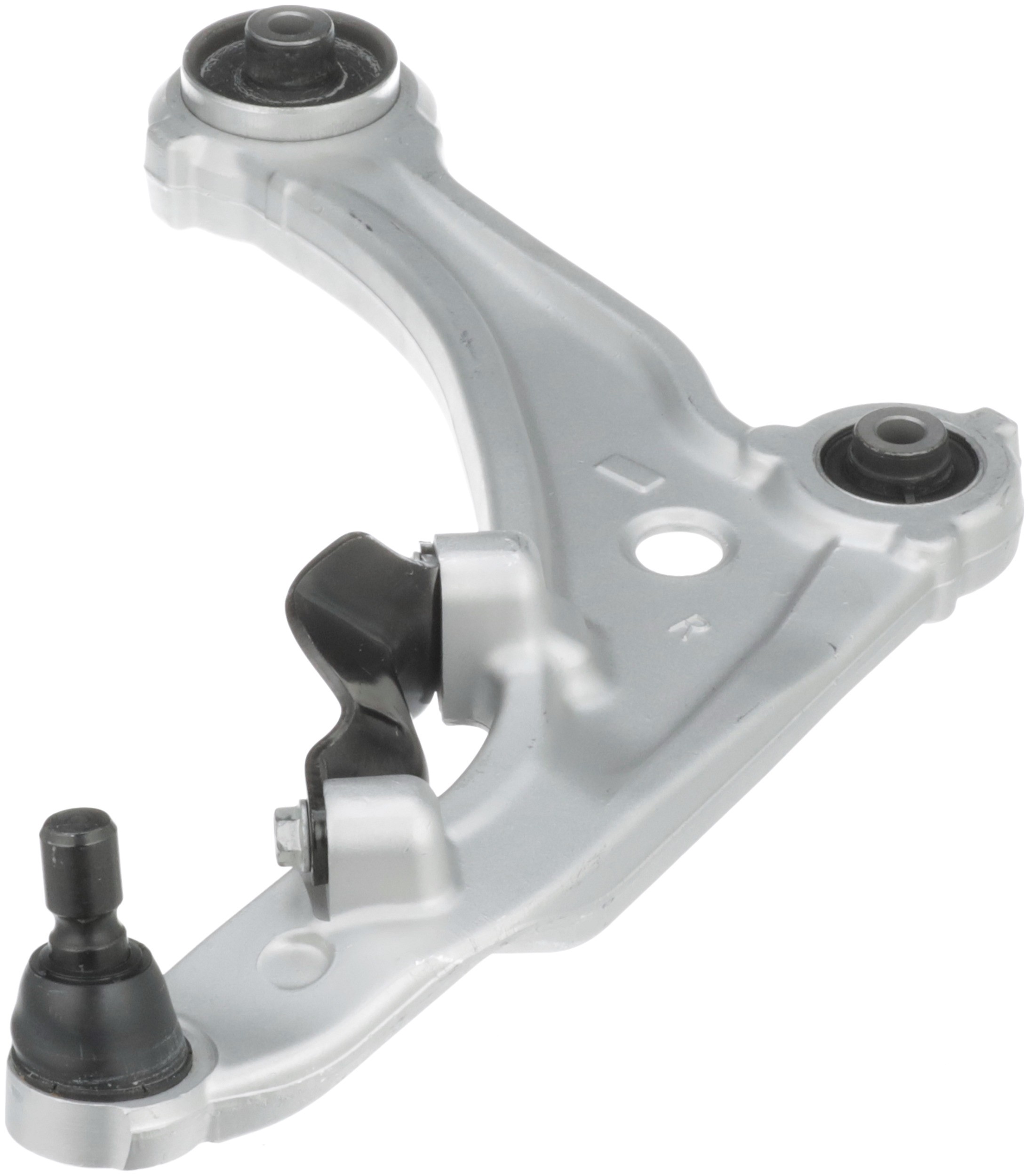

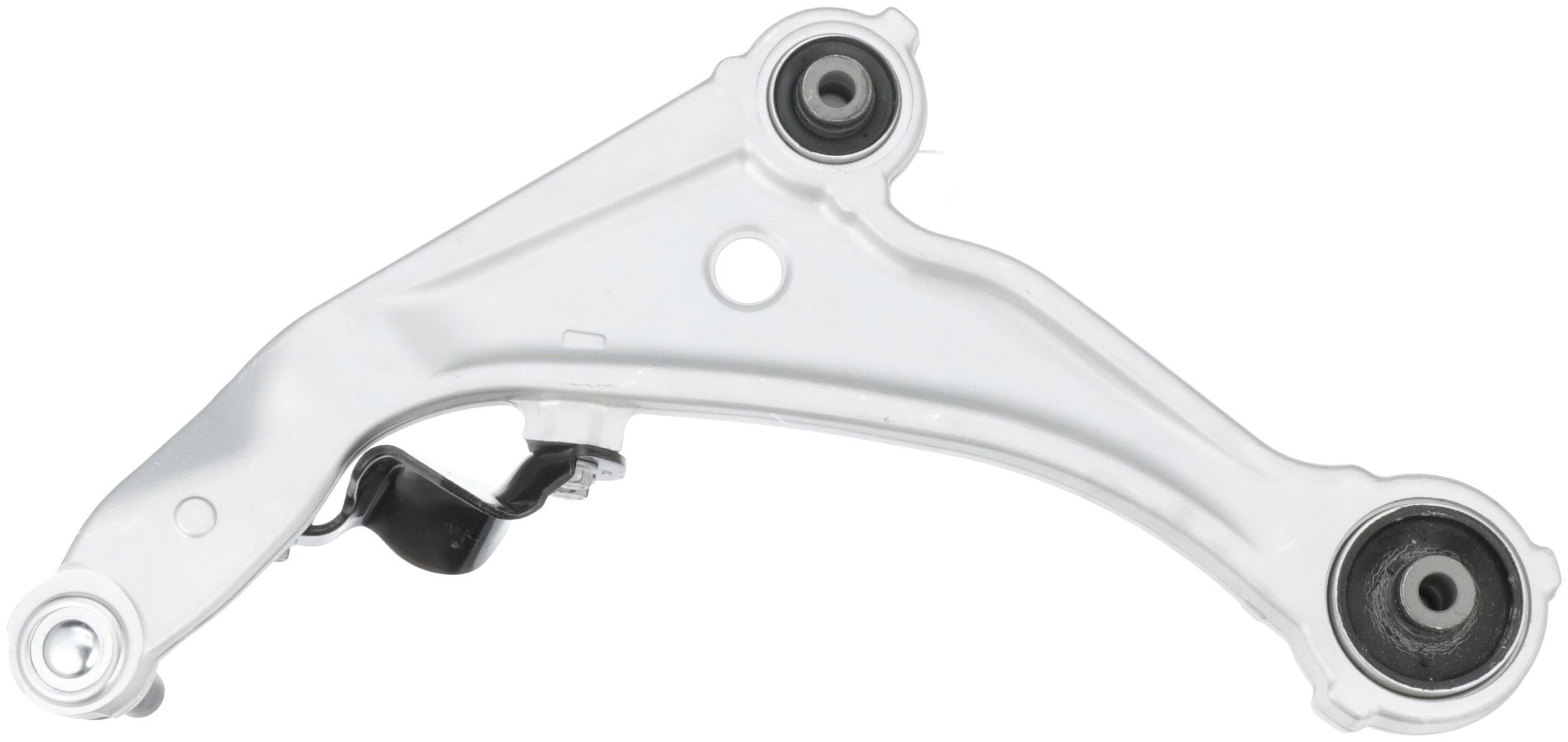

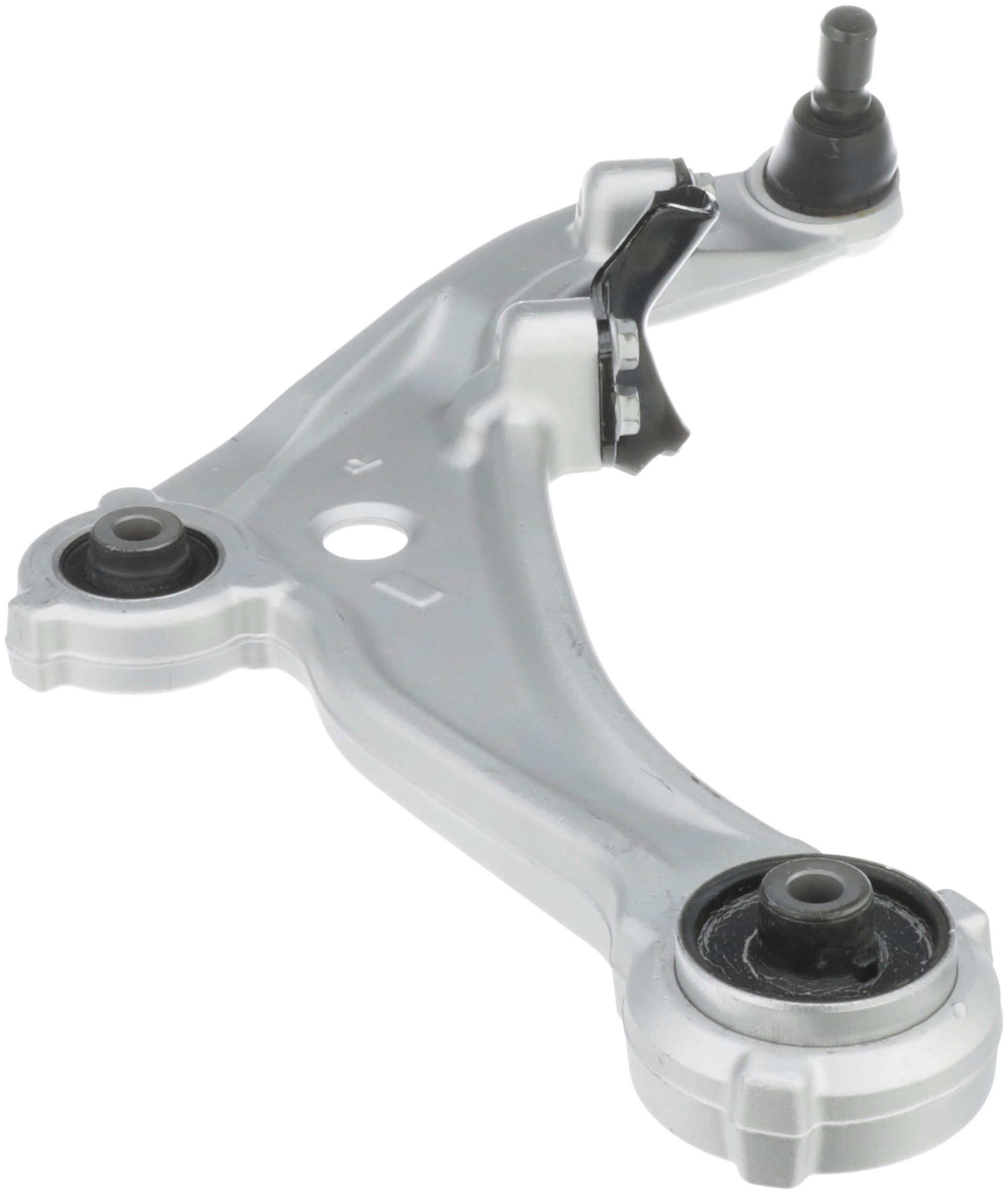

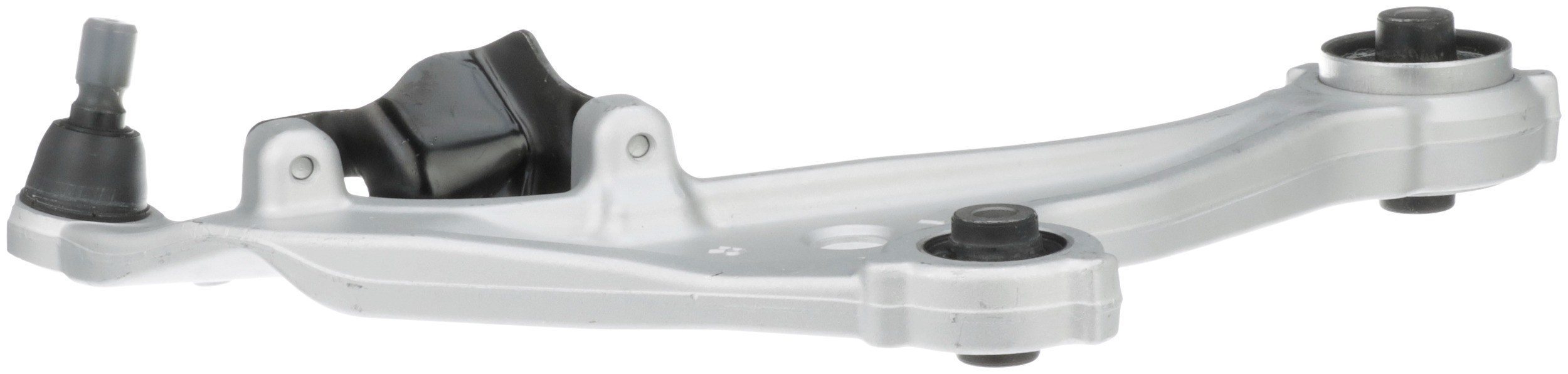

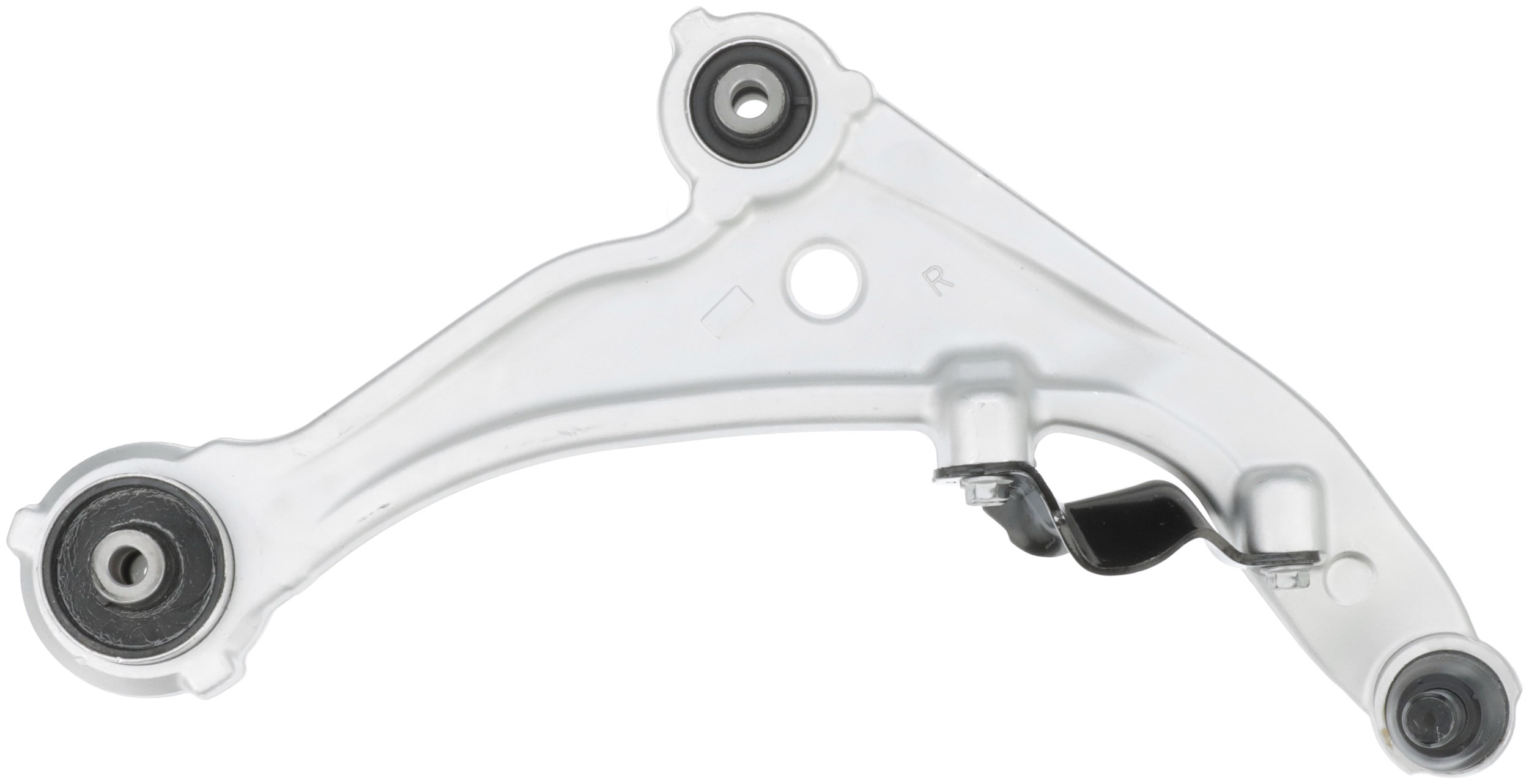

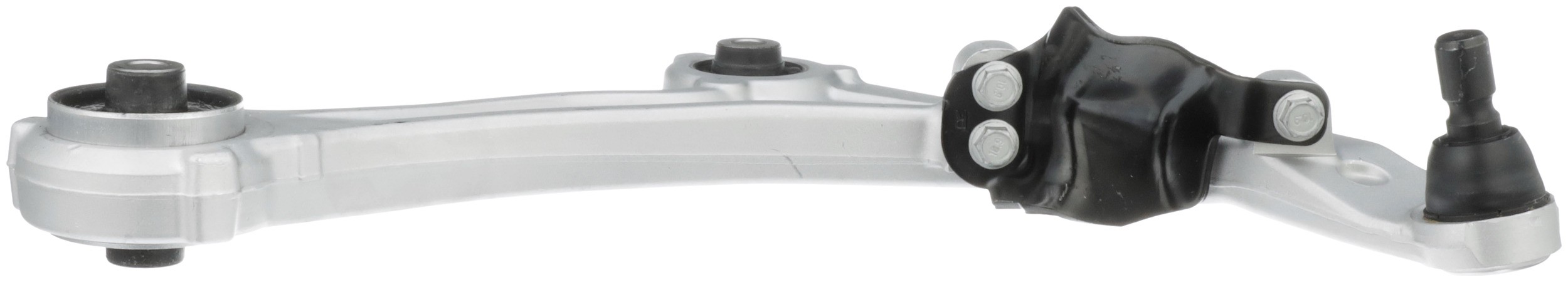

Delphi TC3965 Suspension Control Arm and Ball Joint Assembly

Delphi TC3965 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

6529	Power
Bushing Colour	Black
Finish	Uncoated
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Grooved
Material	Aluminum
Mounting Hardware Included	No
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Gray
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Position(s)	Front Right Lower
2384	Yes
2386	Casting/Forged
9090	Chloroprene Rubber (CR)
9532	11.516 IN
9532	292.50 MM
4890	2.776 IN
4890	70.50 MM
Bushing Length	1.929 IN
Bushing Length	2.953 IN
Bushing Length	49.00 MM
Bushing Length	75.00 MM
Bushing Inside Diameter	0.563 IN
Bushing Inside Diameter	14.30 MM
Mounting Hole Diameter	0.563 IN
Mounting Hole Diameter	14.30 MM
