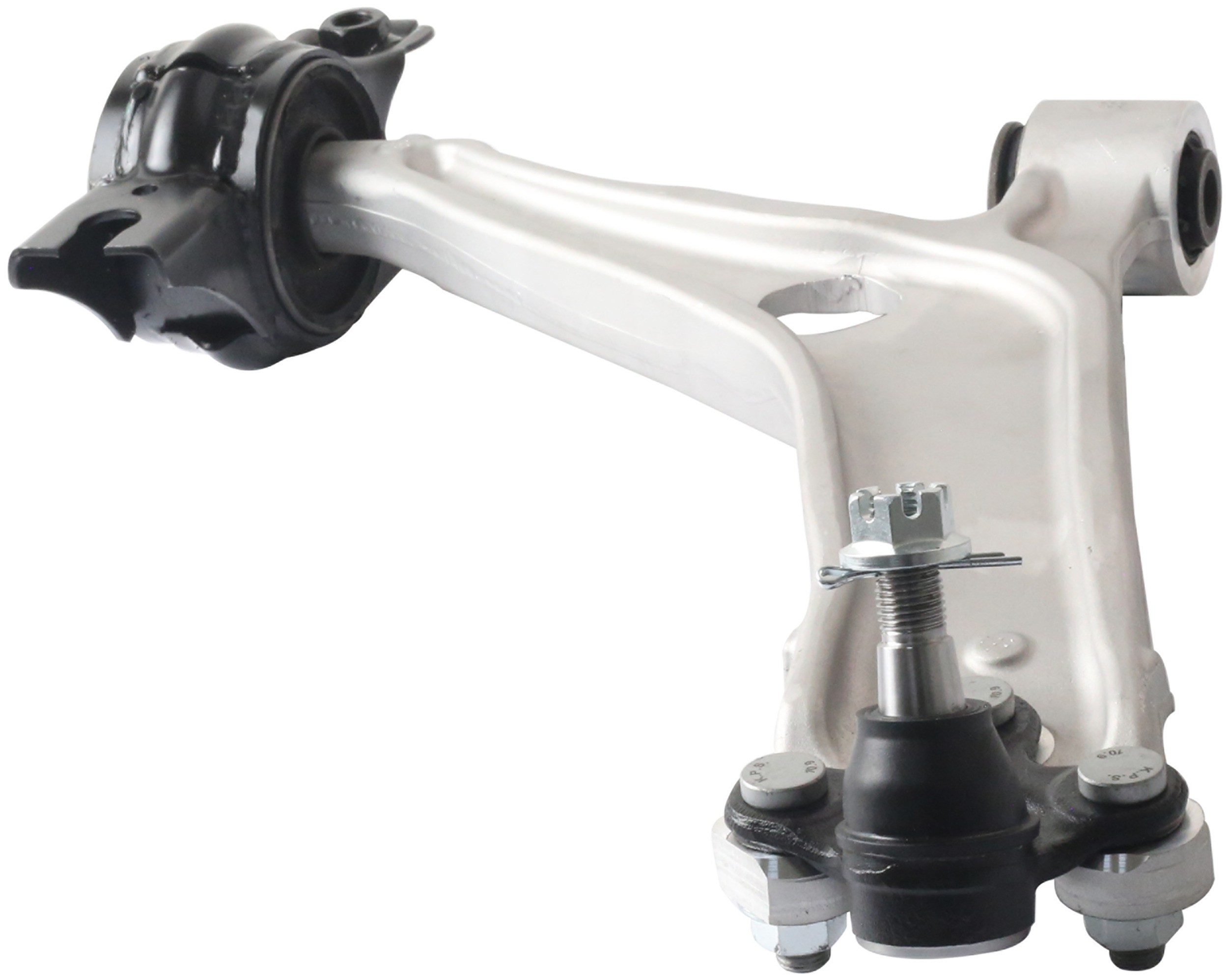

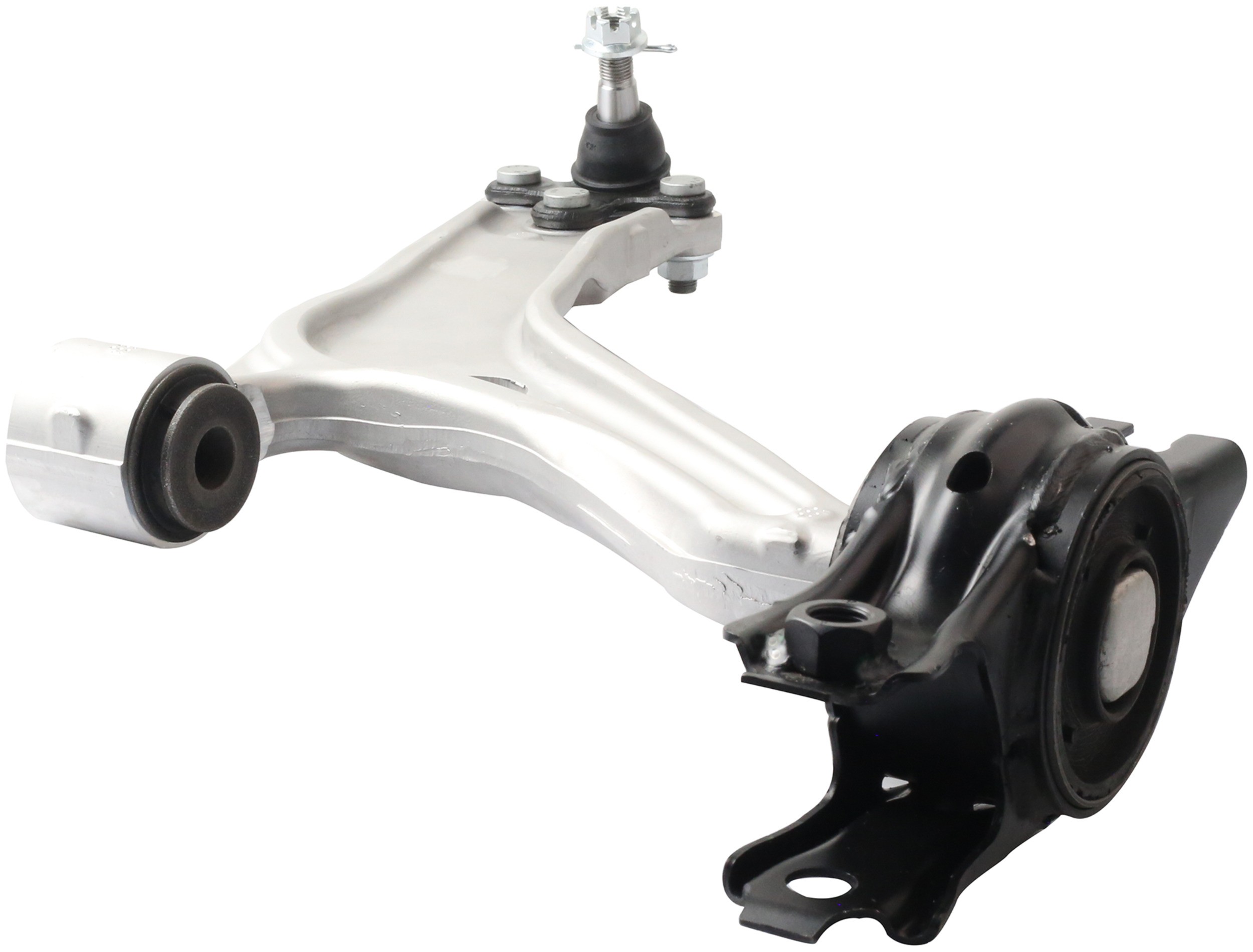

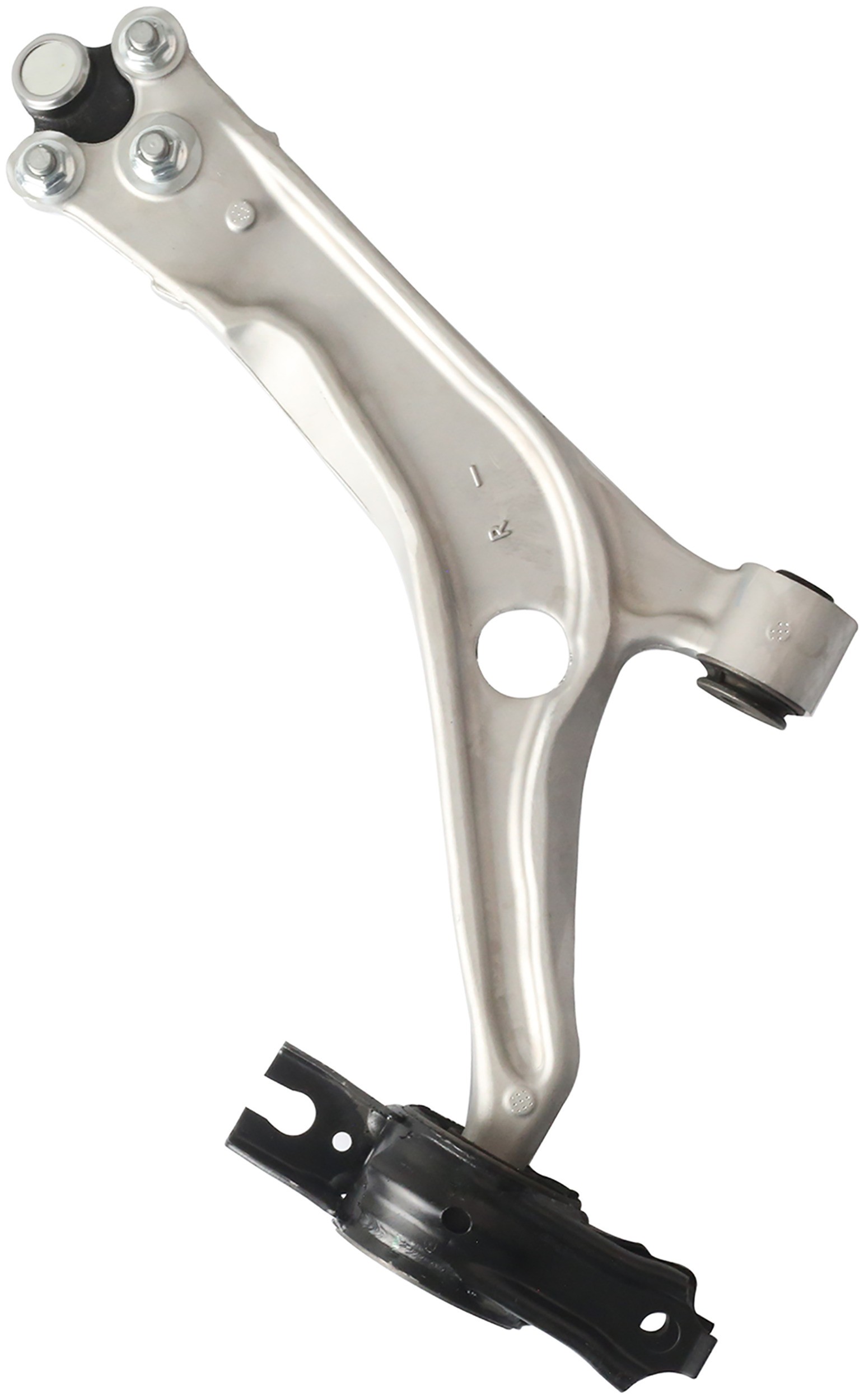

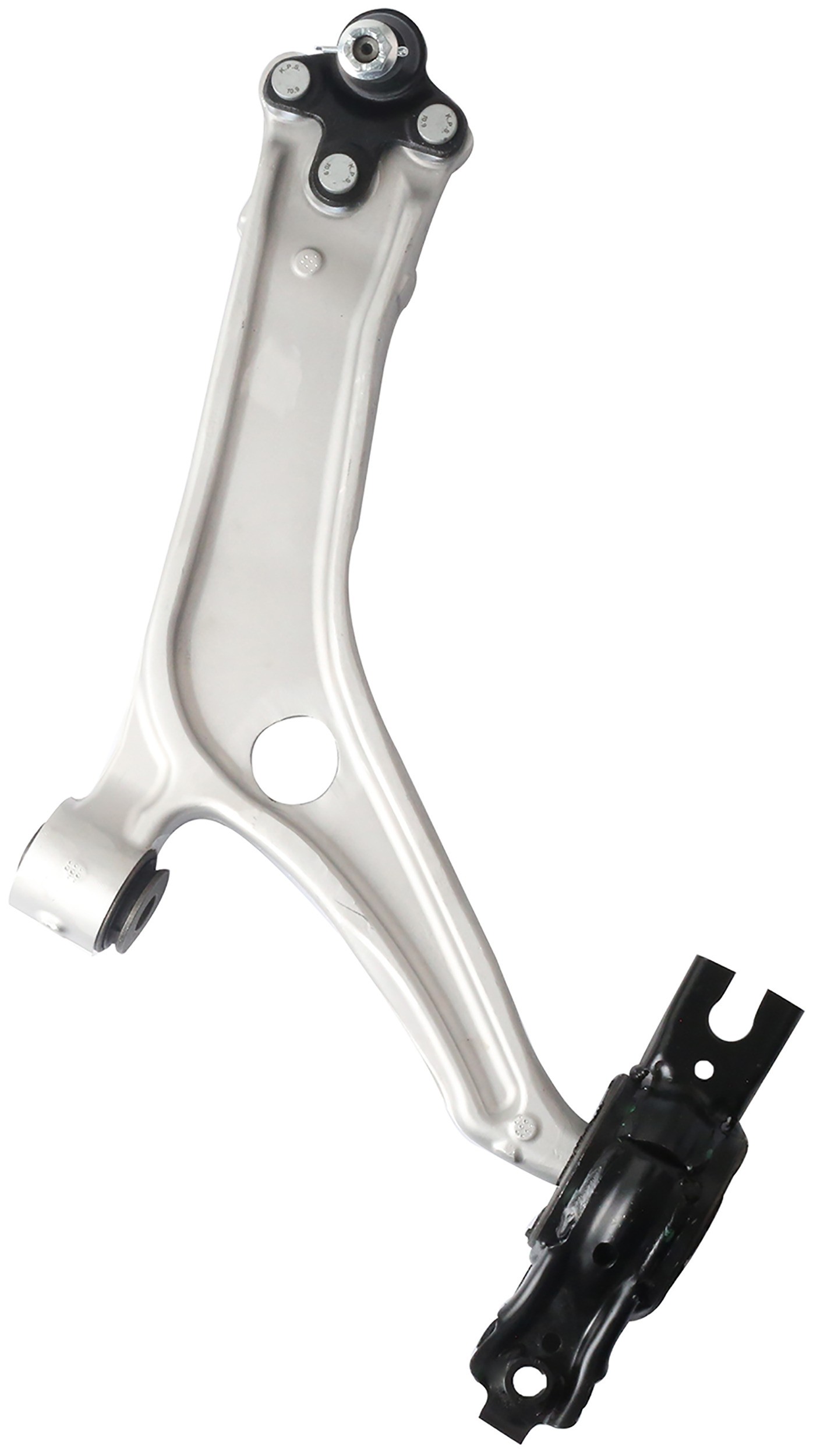

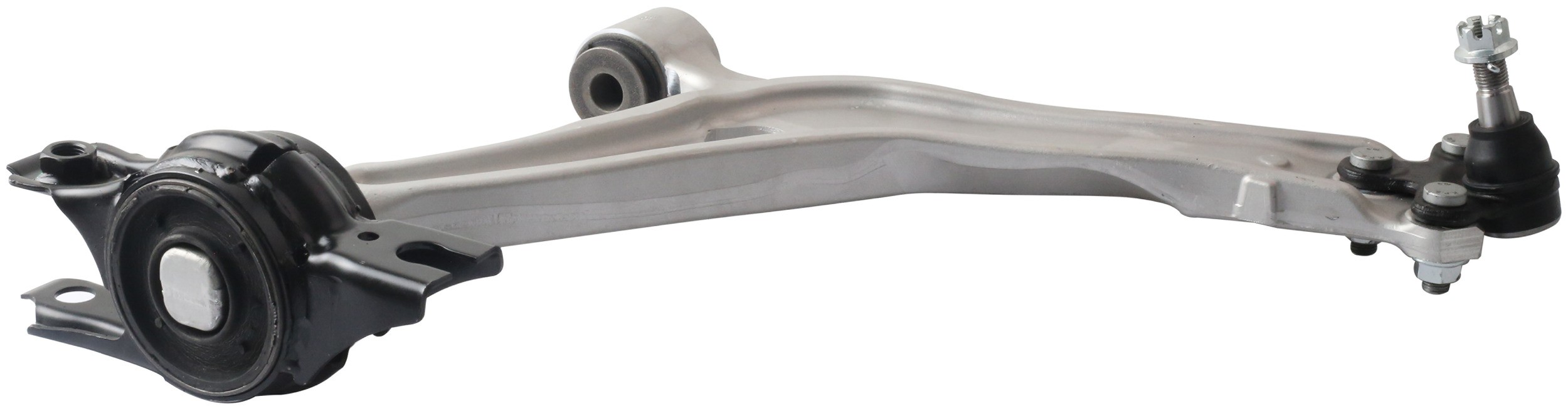

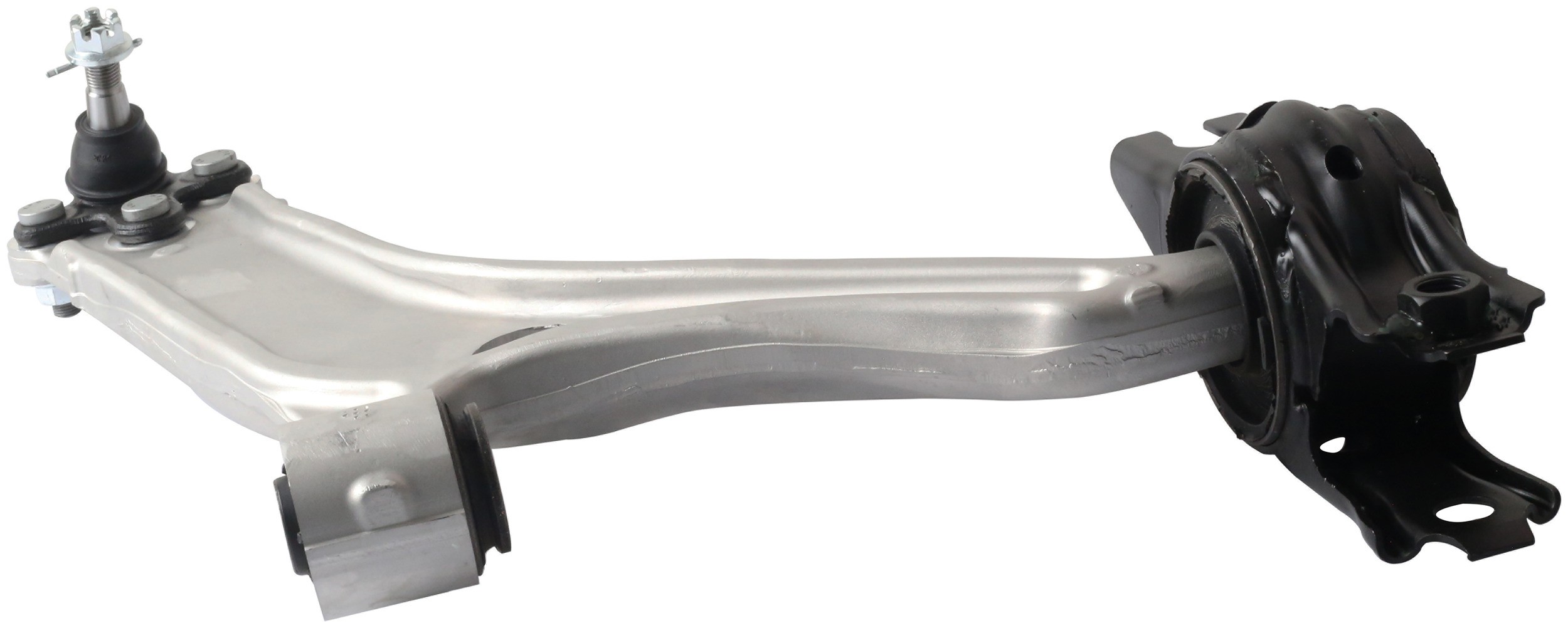

Delphi TC3984 Suspension Control Arm and Ball Joint Assembly

Delphi TC3984 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2384	Yes
Position(s)	Front Right Lower
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
4890	0.866 IN
Bushing Length	2.362 IN
Bushing Length	60.00 MM
Bushing Inside Diameter	0.642 IN
Length	535.00 MM
Mounting Hole Diameter	14.00 MM
Bushing Inside Diameter	16.30 MM
Mounting Hole Diameter	0.551 IN
Mounting Hole Diameter	16.30 MM
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
4887	426.00 MM
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Mounting Hole Diameter	0.642 IN
Grade Type	Premium
Attachment Type	Bolt In
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Ball Joint Stud Type	Threaded
4887	16.772 IN
9532	306.00 MM
9532	12.047 IN
4890	22.00 MM
Mounting Hardware Included	Yes
Material	Aluminum
Thread Direction	Clockwise (Right)
Length	21.063 IN
