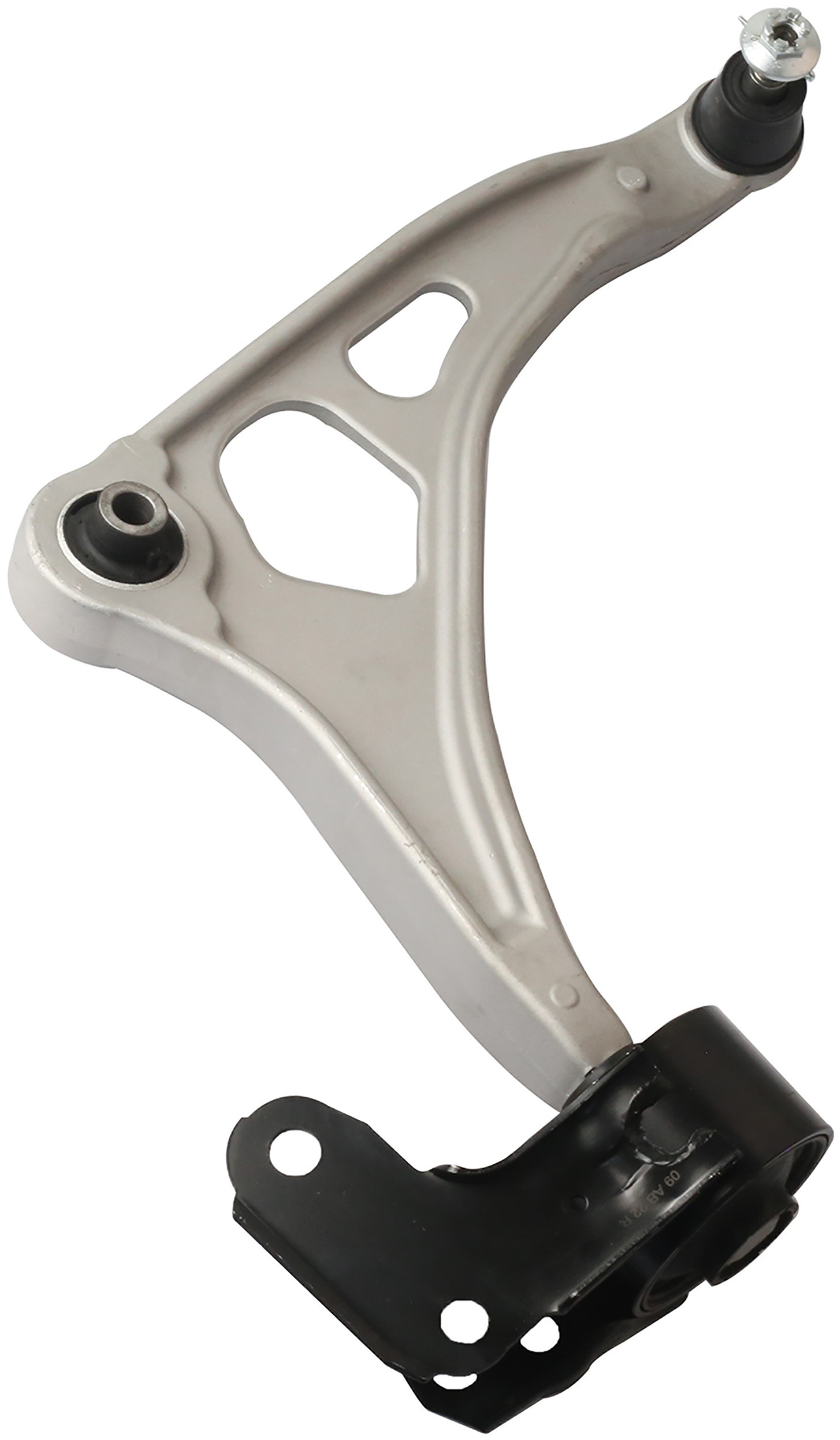

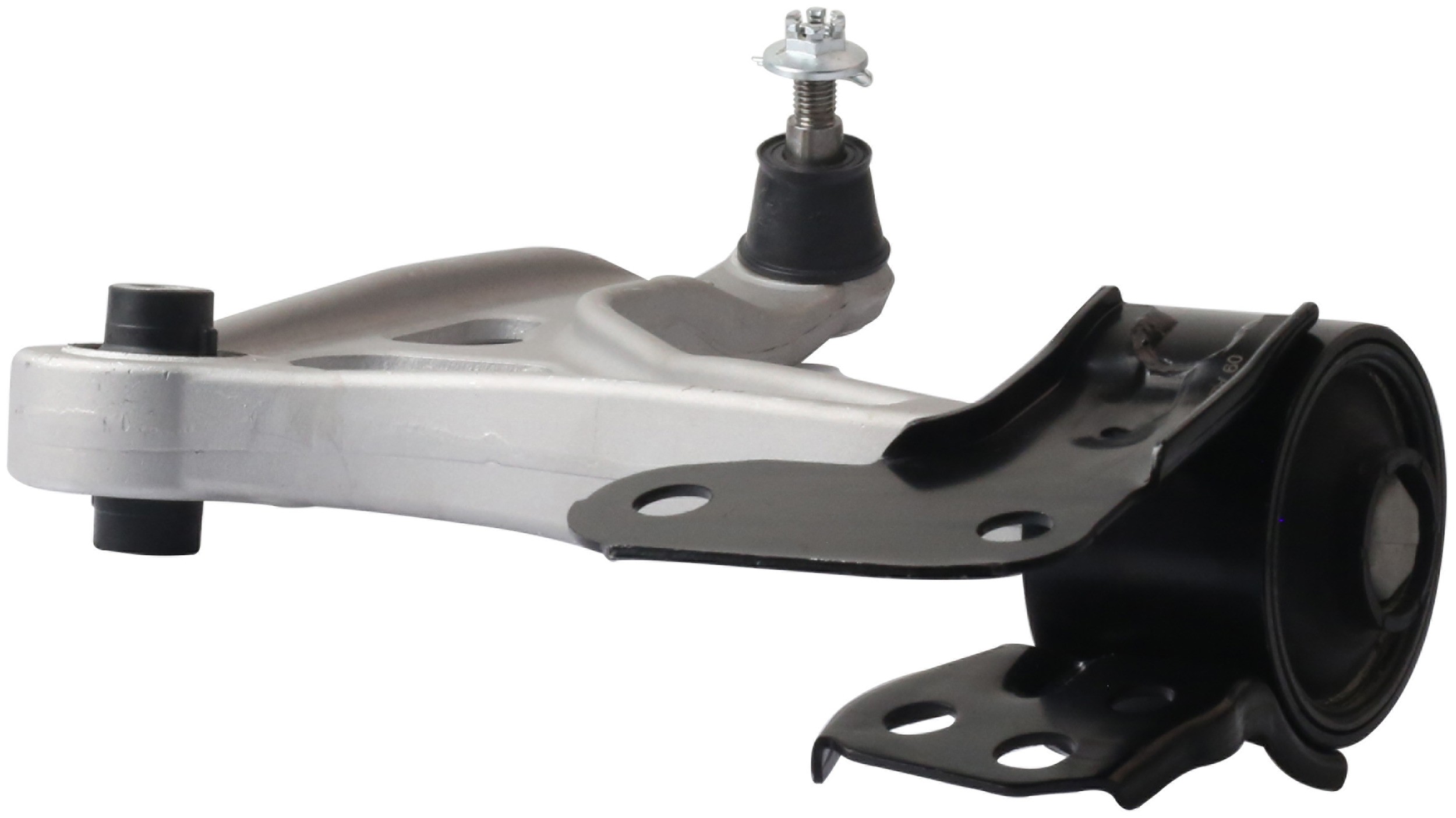

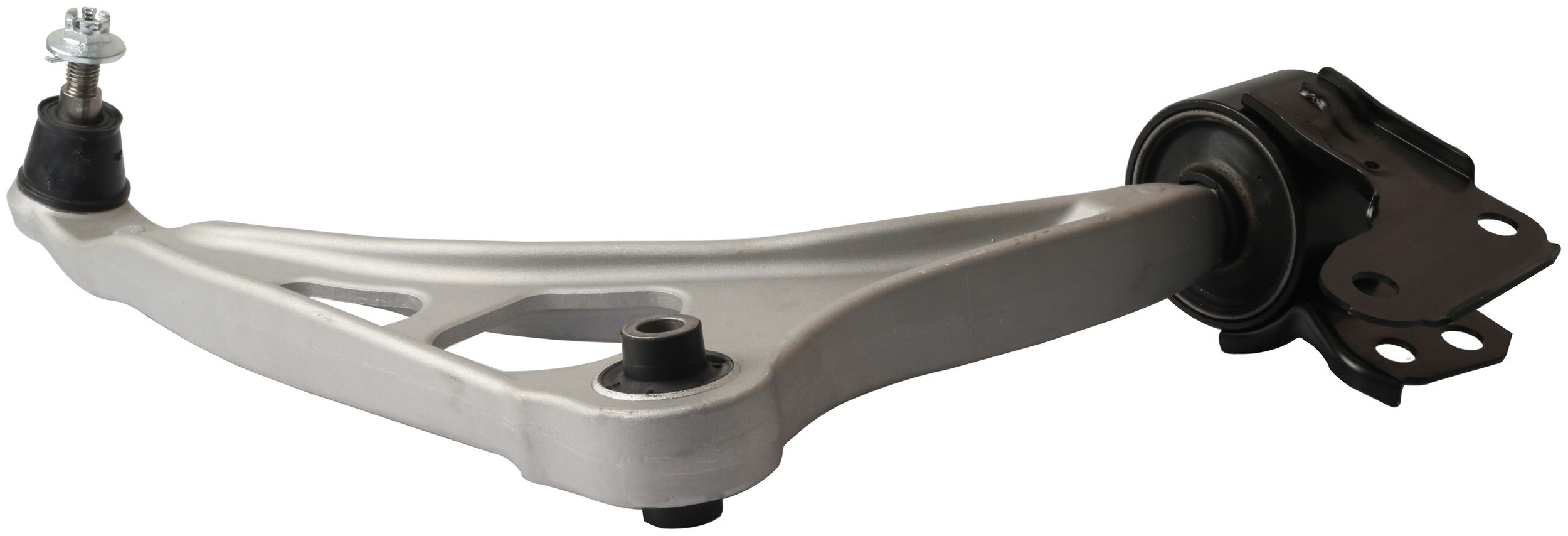

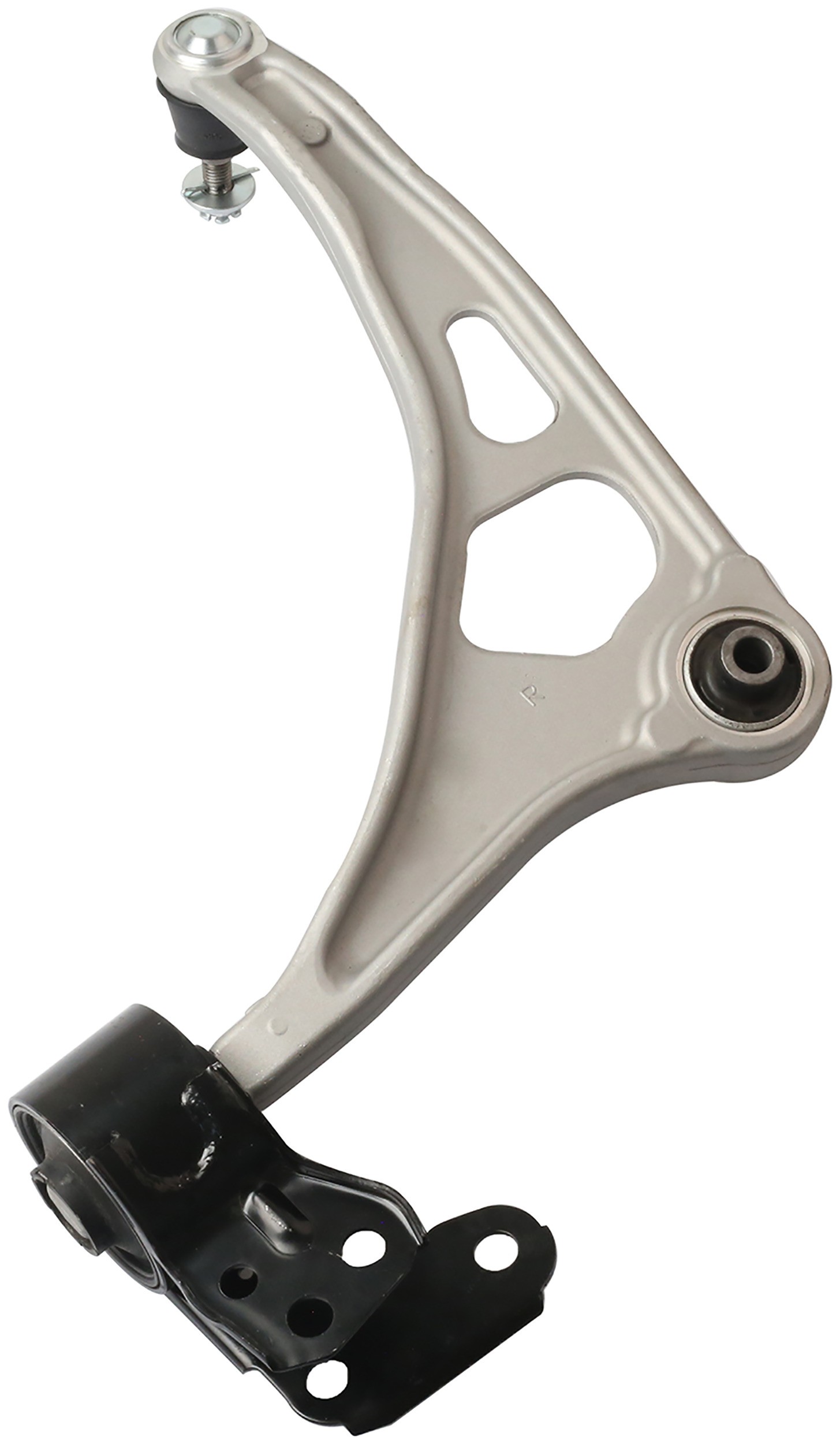

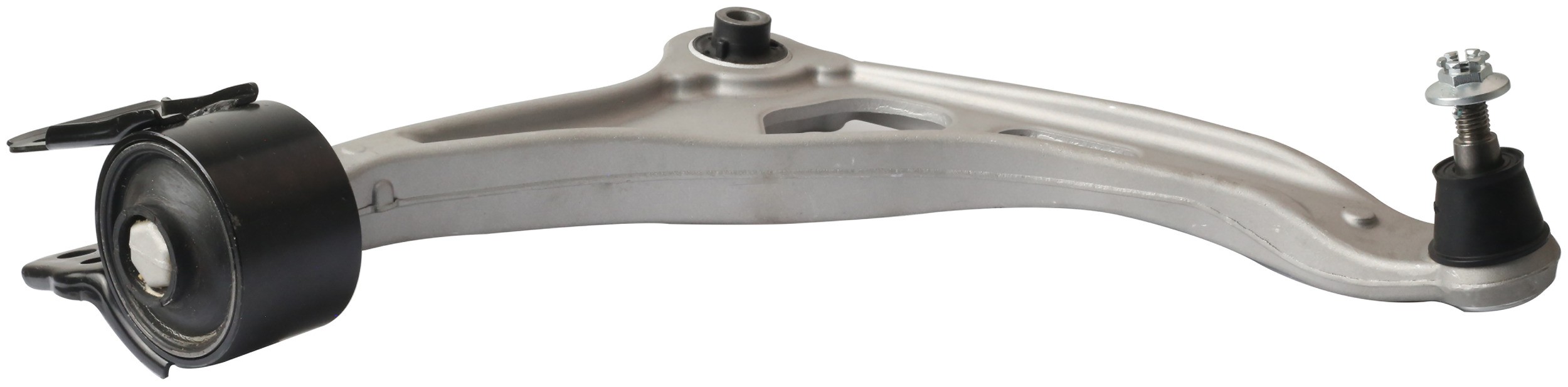

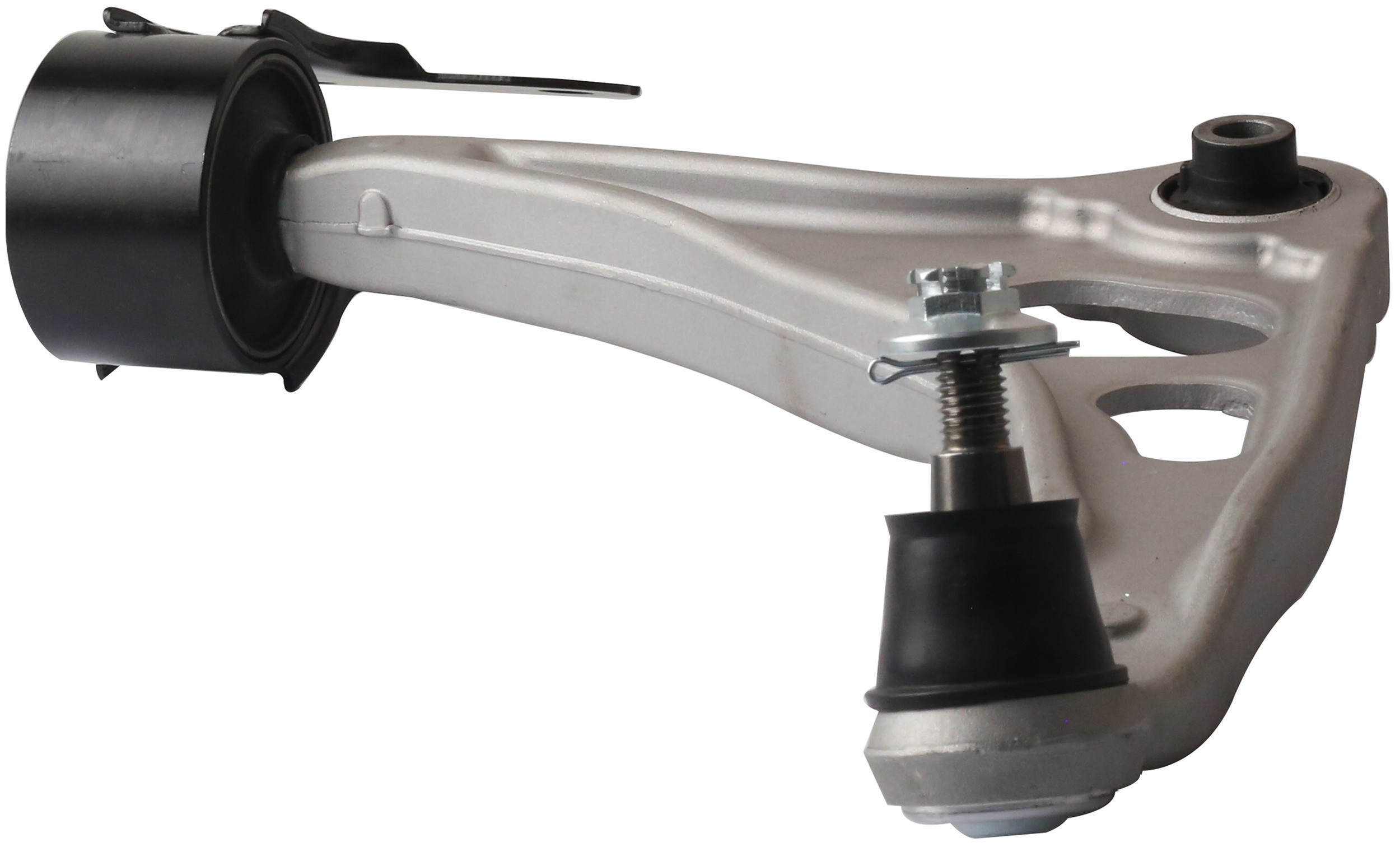

Delphi TC3998 Suspension Control Arm and Ball Joint Assembly

Delphi TC3998 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	18.20 MM
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	4
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Length	556.00 MM
Length	21.890 IN
Mounting Hole Diameter	16.20 MM
Mounting Hole Diameter	17.00 MM
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	0.638 IN
Mounting Hole Diameter	0.669 IN
Mounting Hole Diameter	0.559 IN
Mounting Hole Diameter	0.717 IN
Bushing Inside Diameter	16.20 MM
Bushing Inside Diameter	0.638 IN
Bushing Length	69.00 MM
Bushing Length	2.717 IN
Finish	Gray
Boot Colour	Black
Bearing Material	Plastic
4887	418.00 MM
4887	16.457 IN
4890	24.50 MM
4890	0.965 IN
9532	236.00 MM
9532	9.291 IN
Bushing Type	Rubber
Thread Direction	Clockwise (Right)
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Lower
