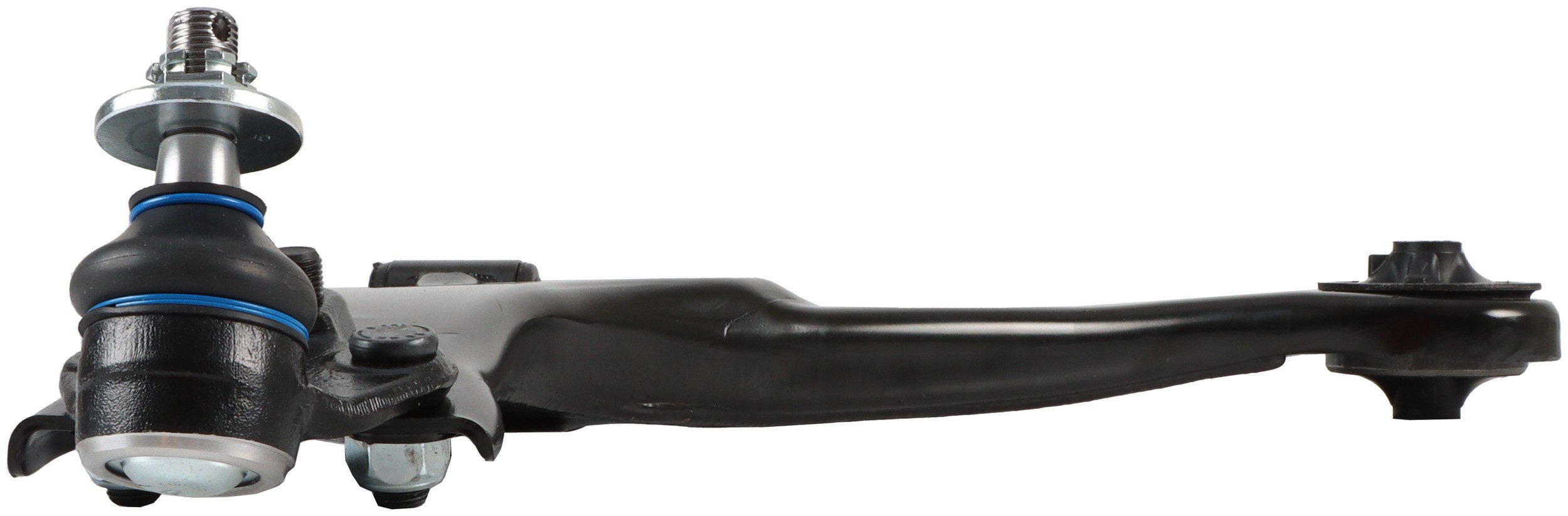

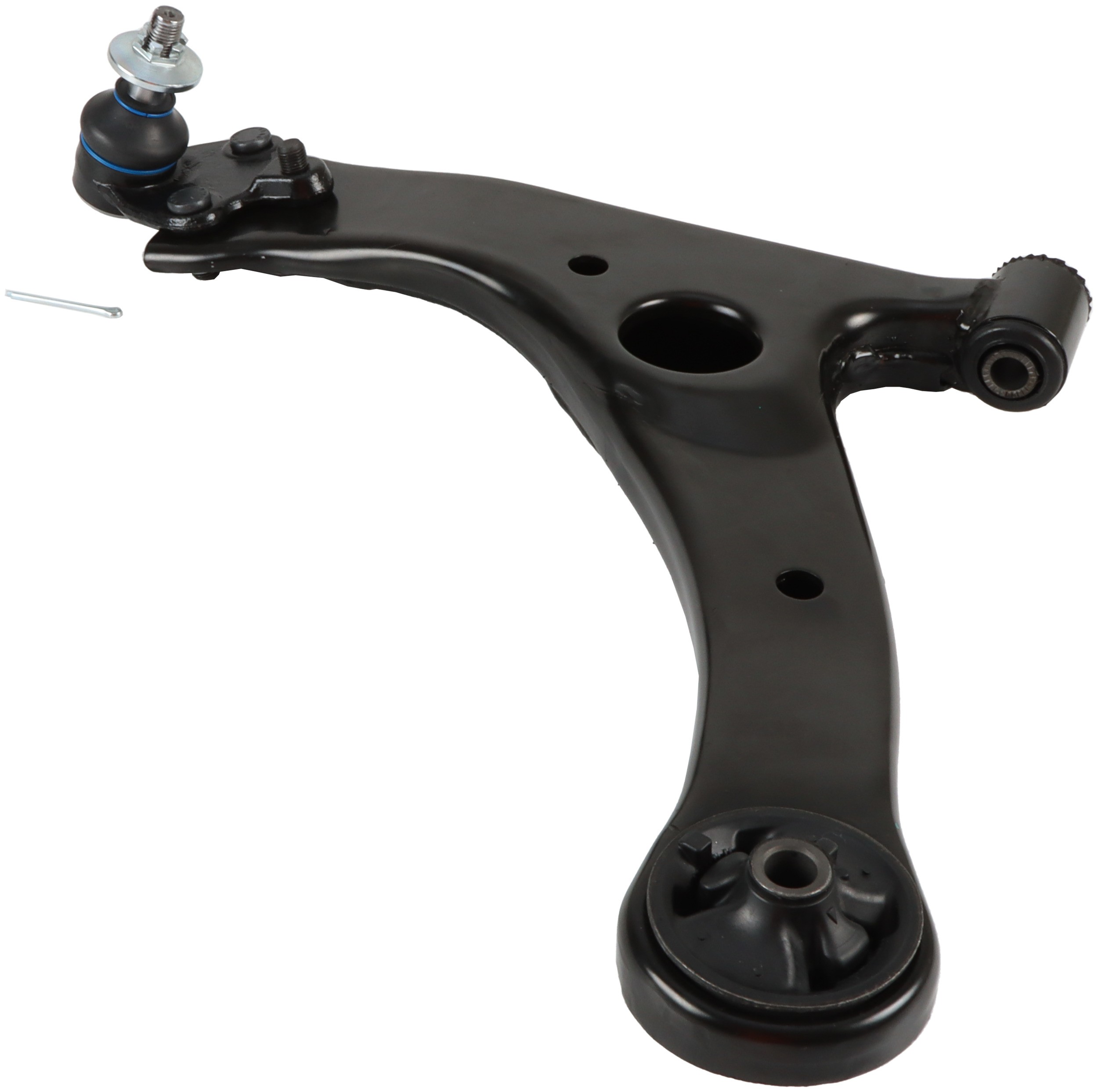

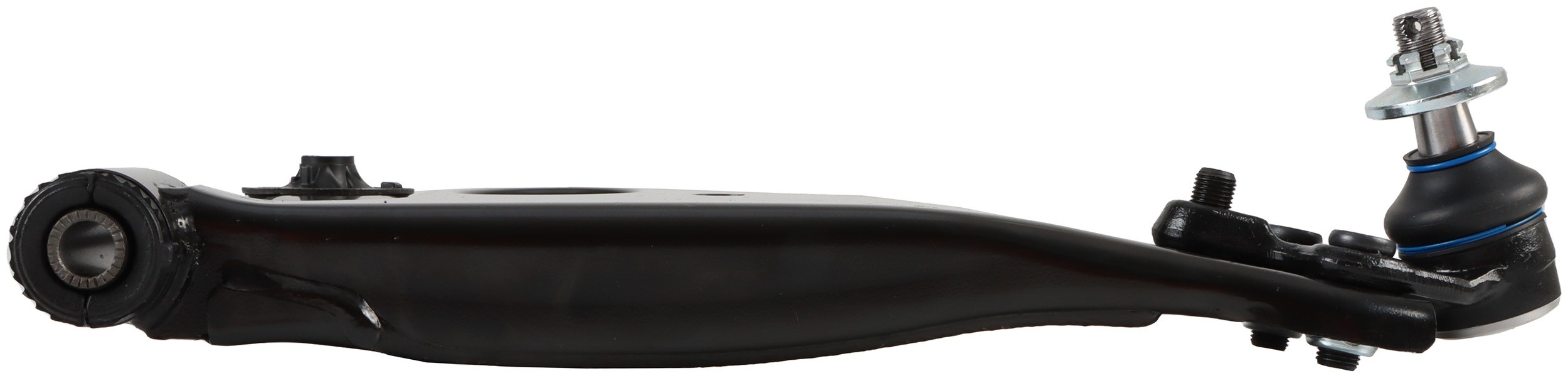

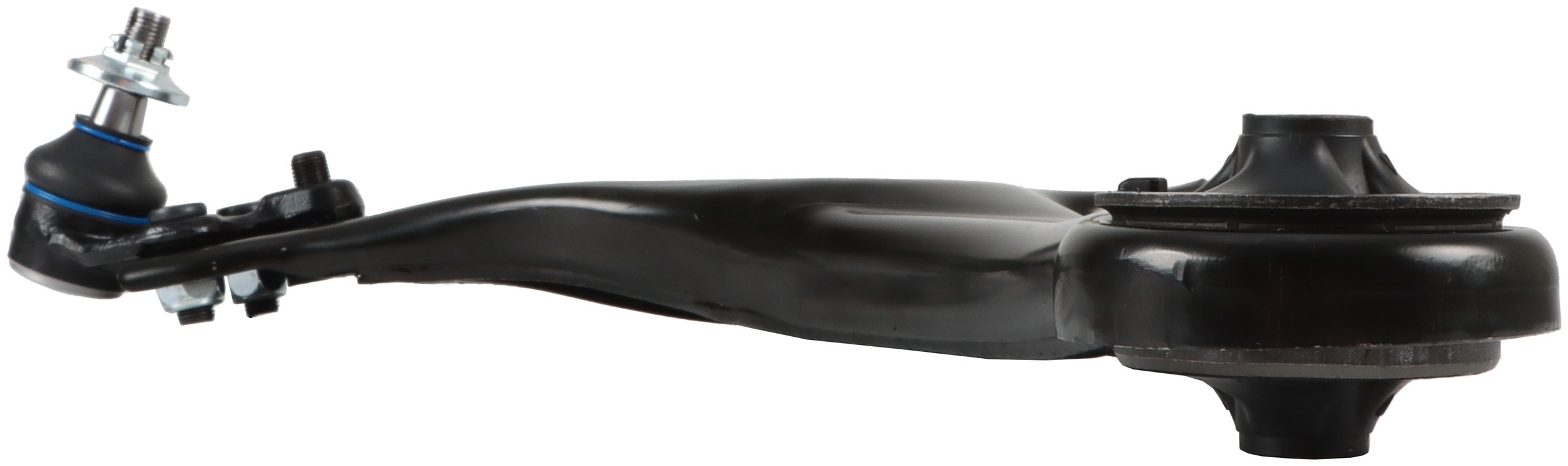

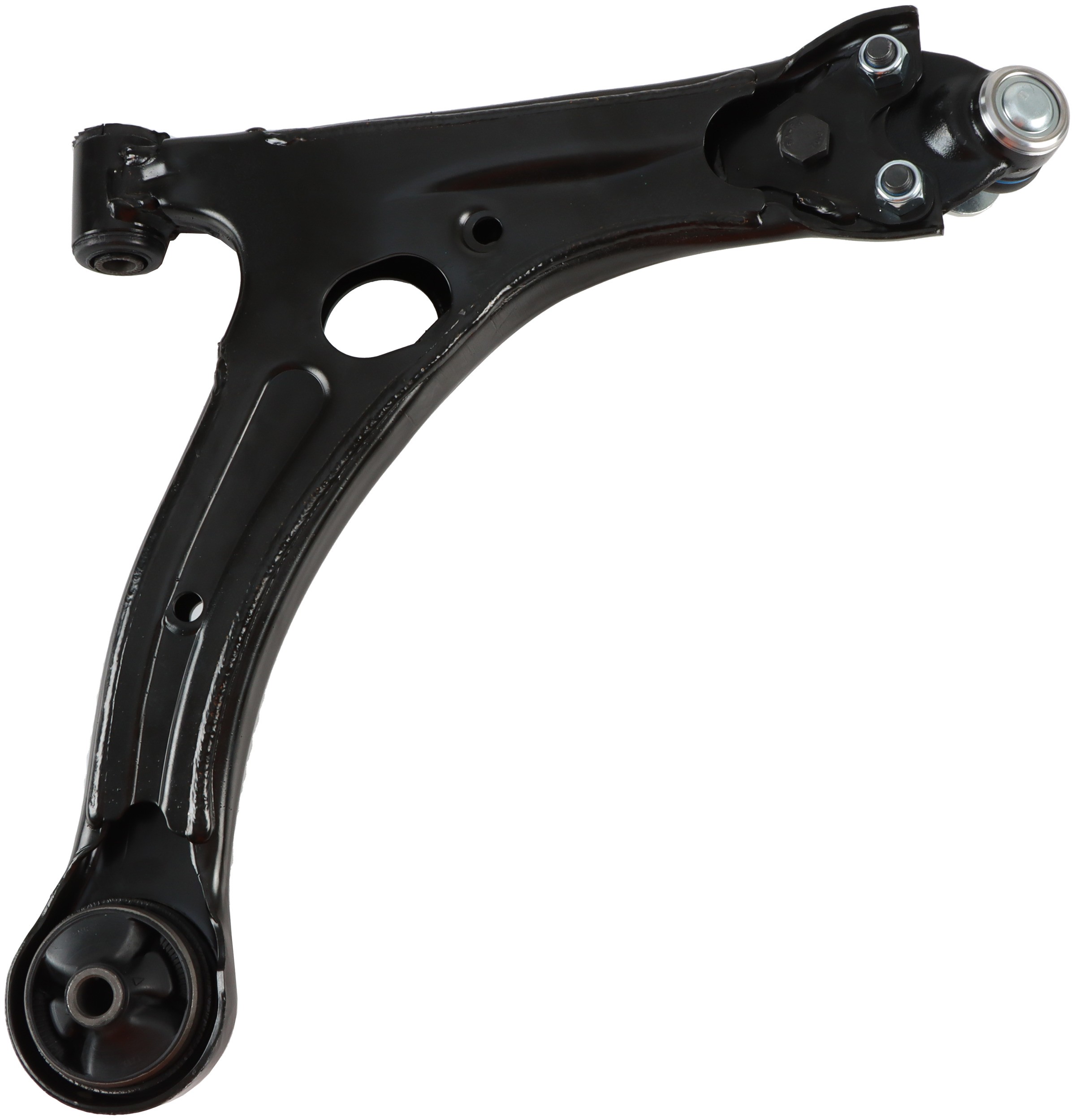

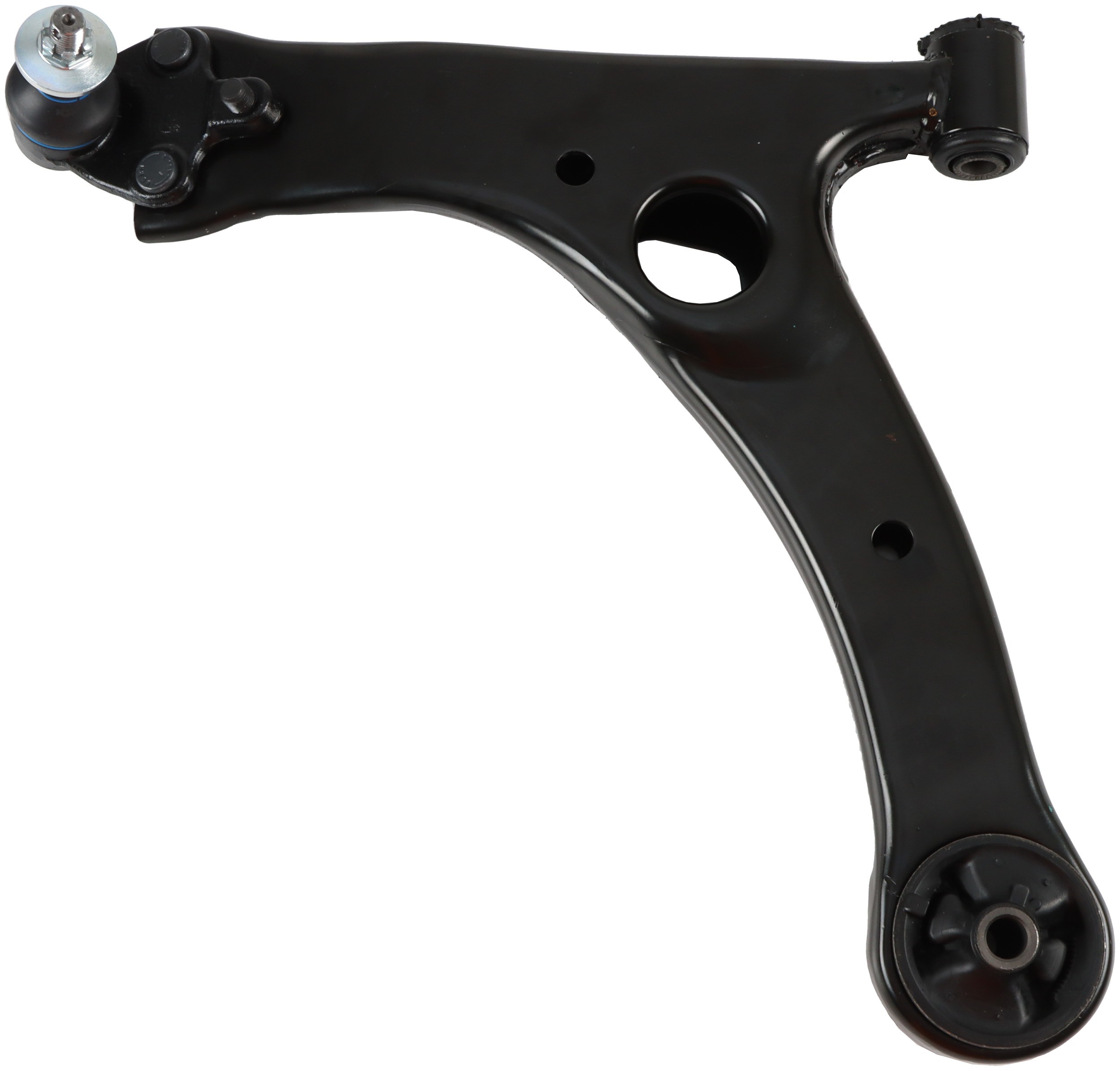

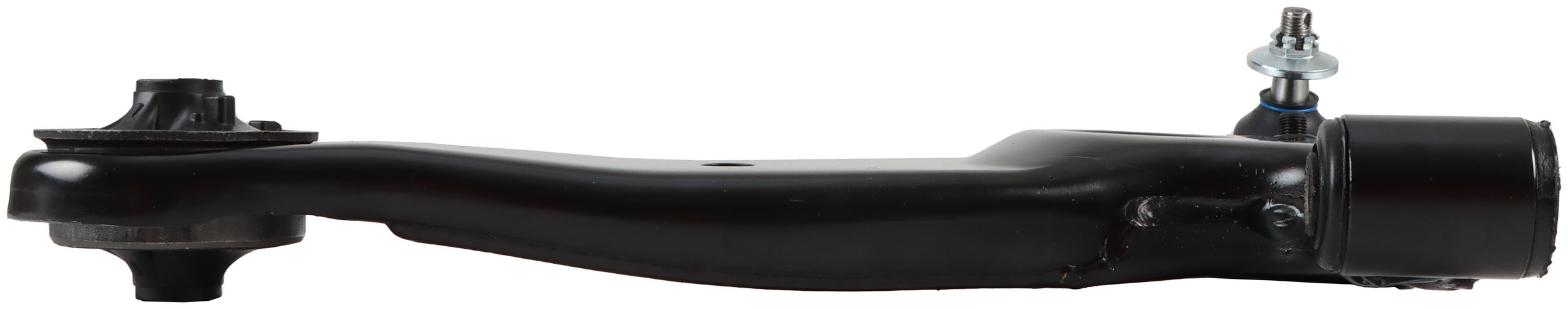

Delphi TC4001 Suspension Control Arm and Ball Joint Assembly

Delphi TC4001 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
4890	72.50 MM
4890	2.854 IN
9532	330.00 MM
9532	12.992 IN
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2386	Stamped
2384	Yes
Position(s)	Front Left Lower
Bushing Length	2.354 IN
Bushing Length	2.350 IN
Bushing Length	59.80 MM
Bushing Length	59.70 MM
Bushing Inside Diameter	0.559 IN
Bushing Inside Diameter	14.20 MM
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Bolt In
Ball Joint Stud Type	Threaded
Material	Steel
