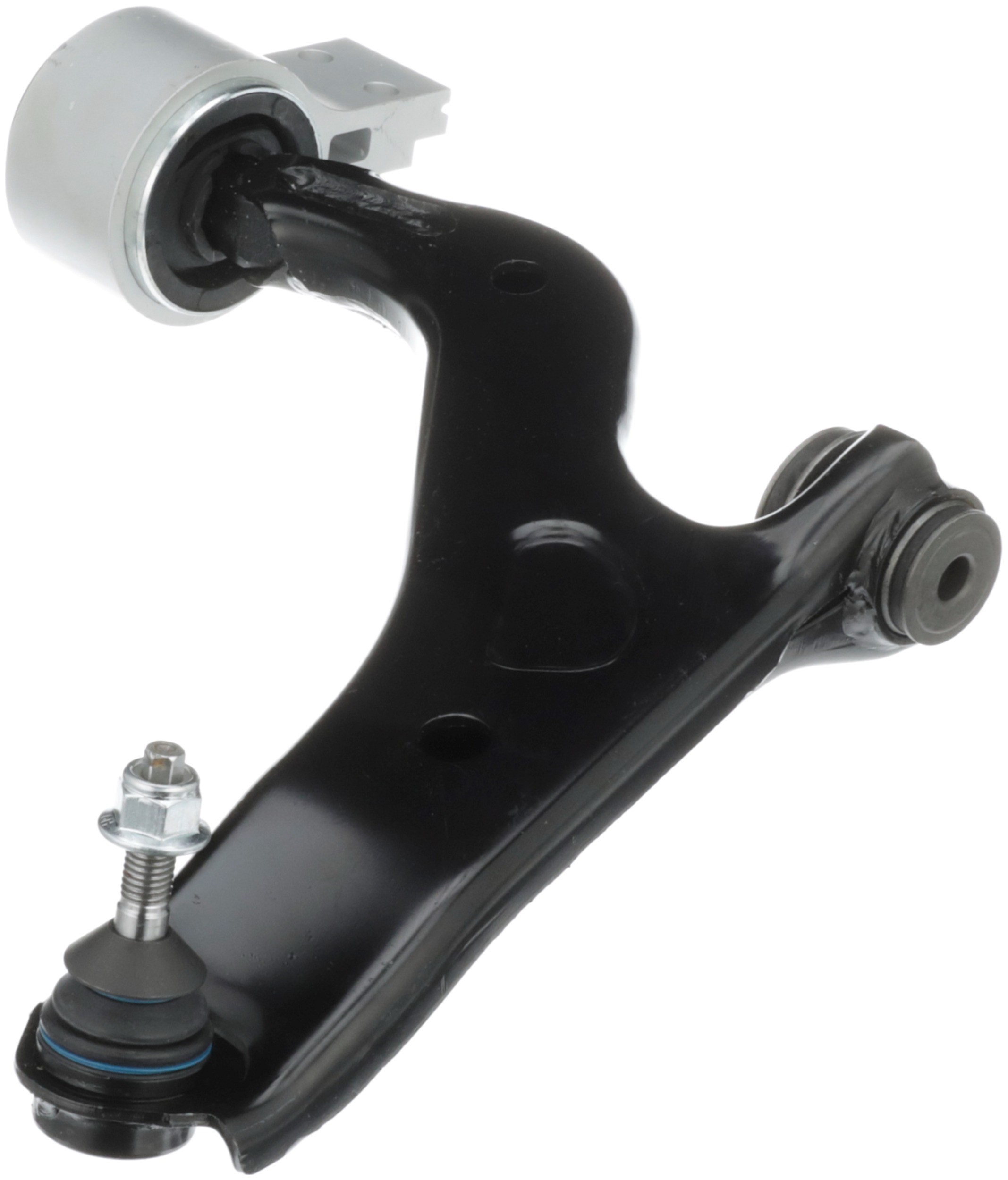

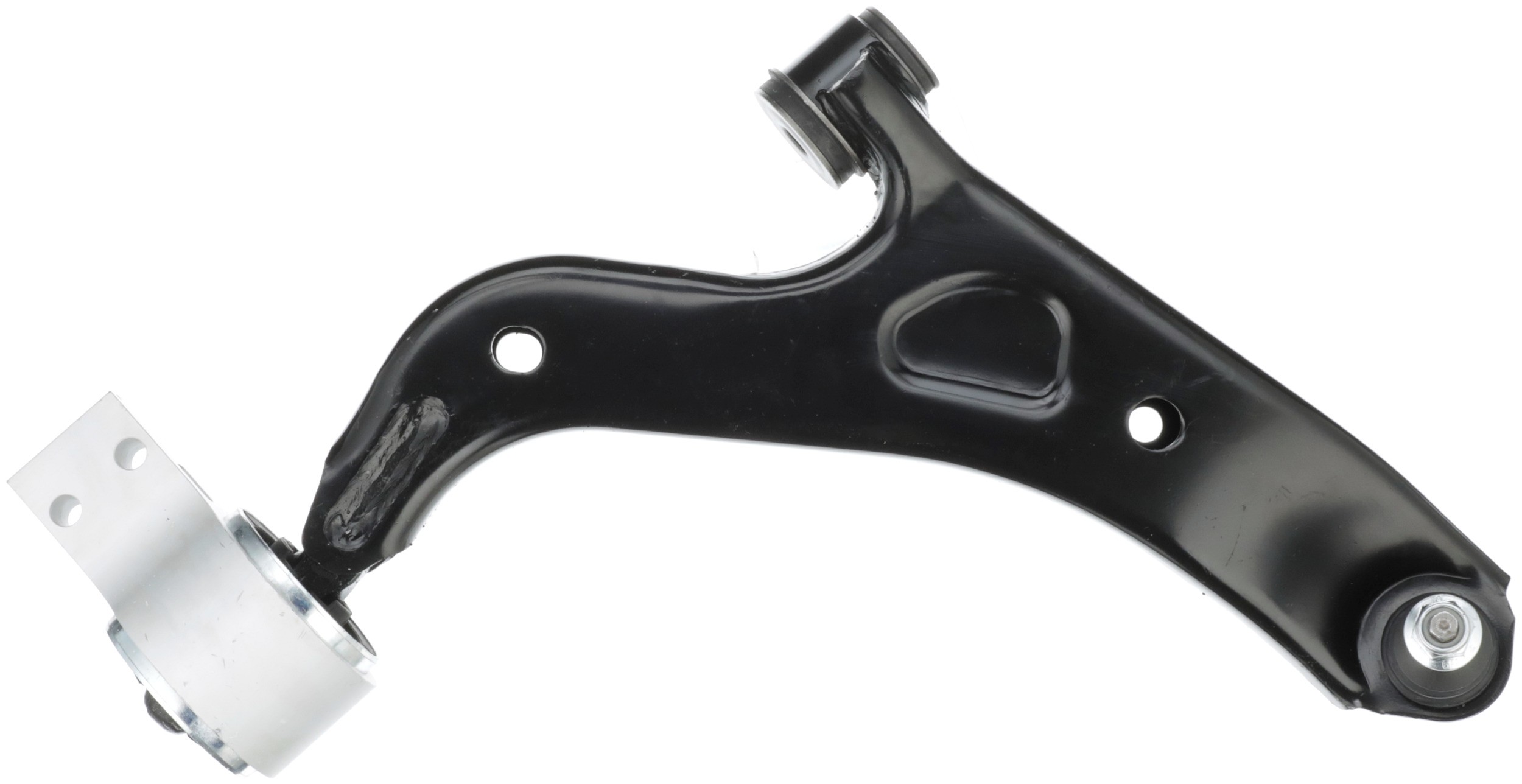

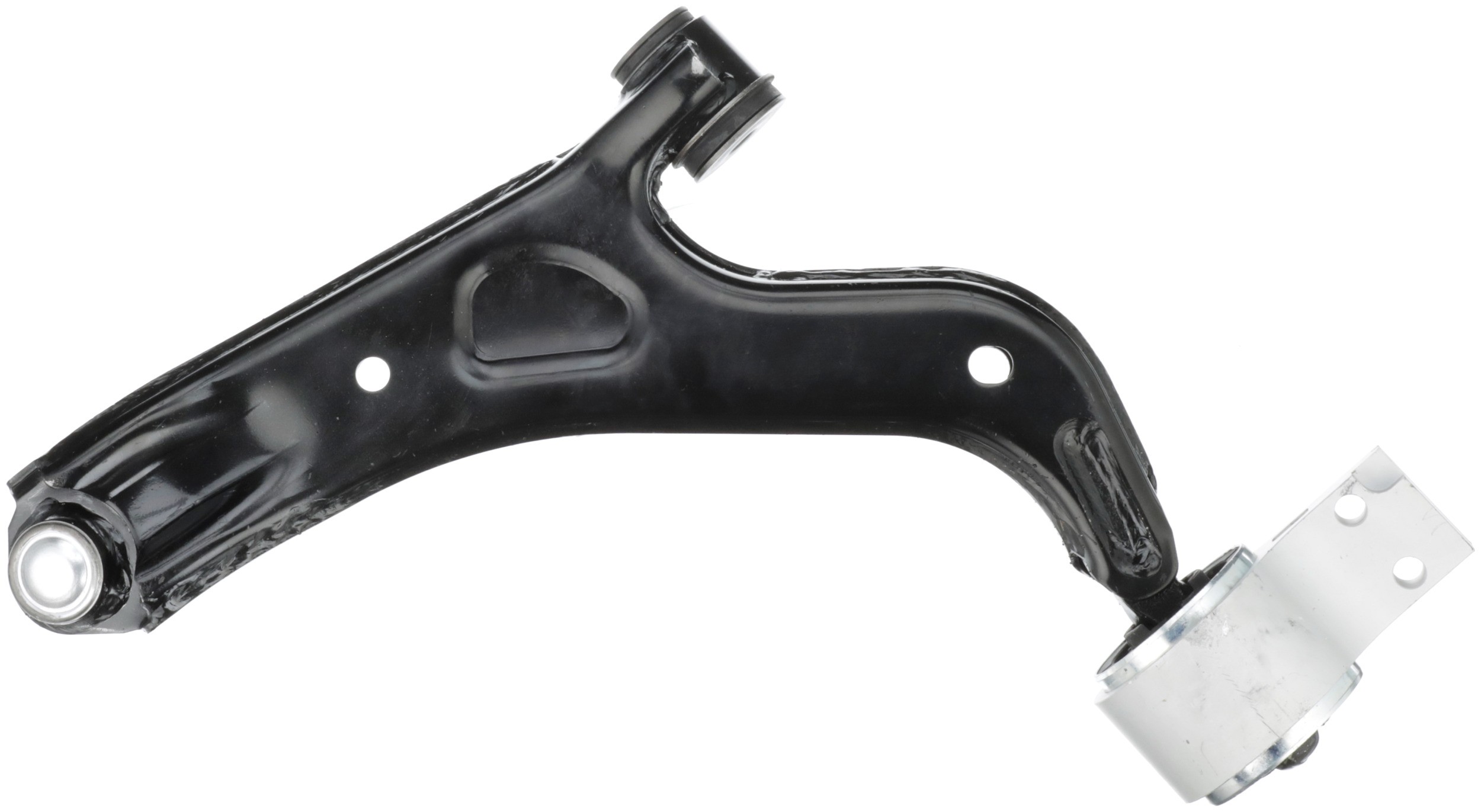

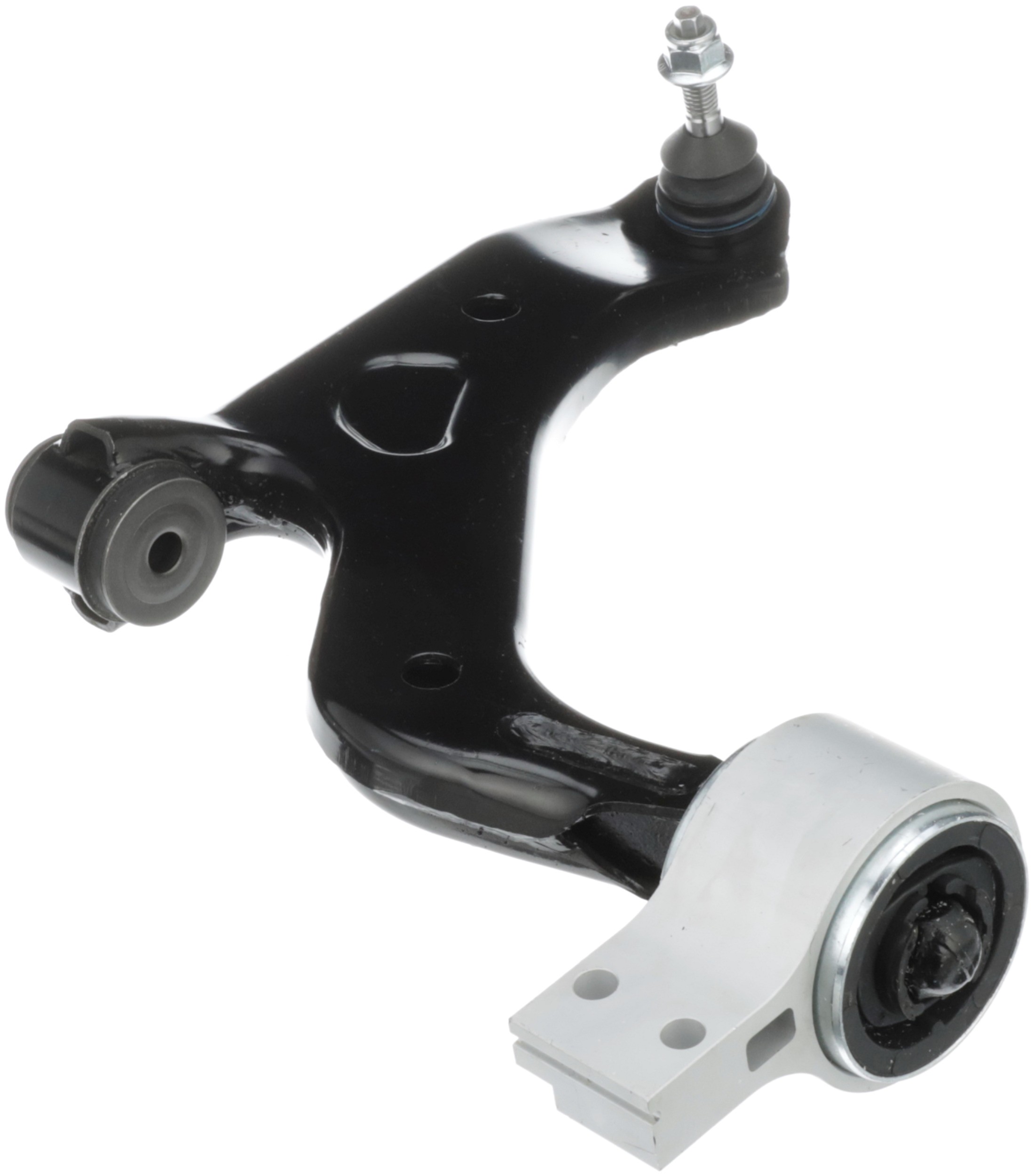

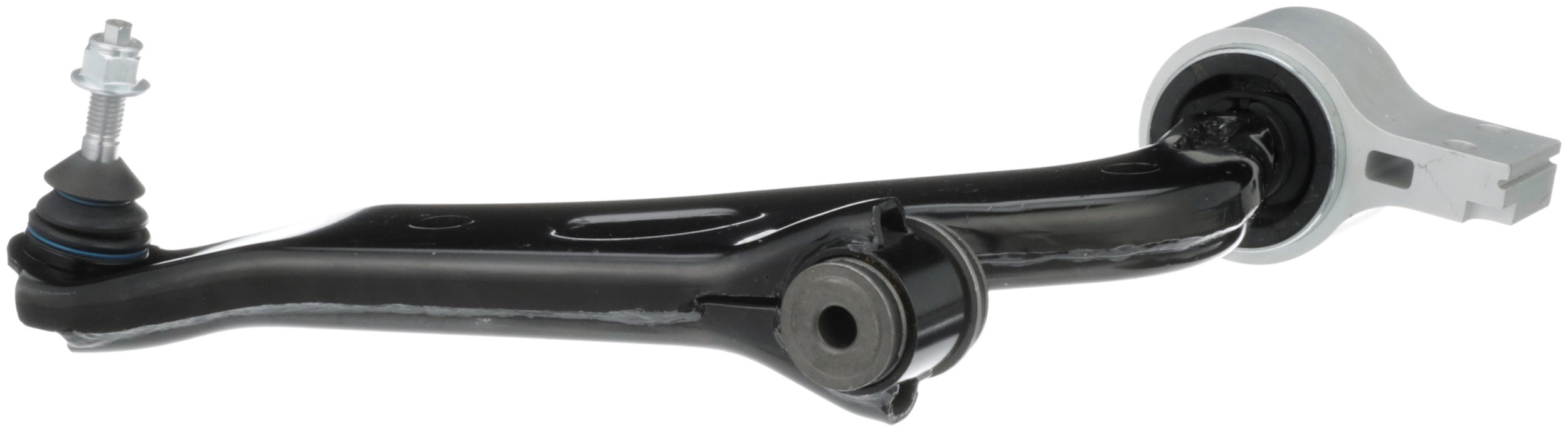

Delphi TC4026 Suspension Control Arm and Ball Joint Assembly

Delphi TC4026 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	12.80 MM
4890	3.681 IN
4890	93.50 MM
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Bushing Length	2.362 IN
Bushing Length	60.00 MM
Bushing Inside Diameter	0.563 IN
Bushing Inside Diameter	14.30 MM
9532	12.933 IN
9532	328.50 MM
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Position(s)	Front Left
2384	Yes
2386	Stamped
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Mounting Hole Diameter	0.504 IN
