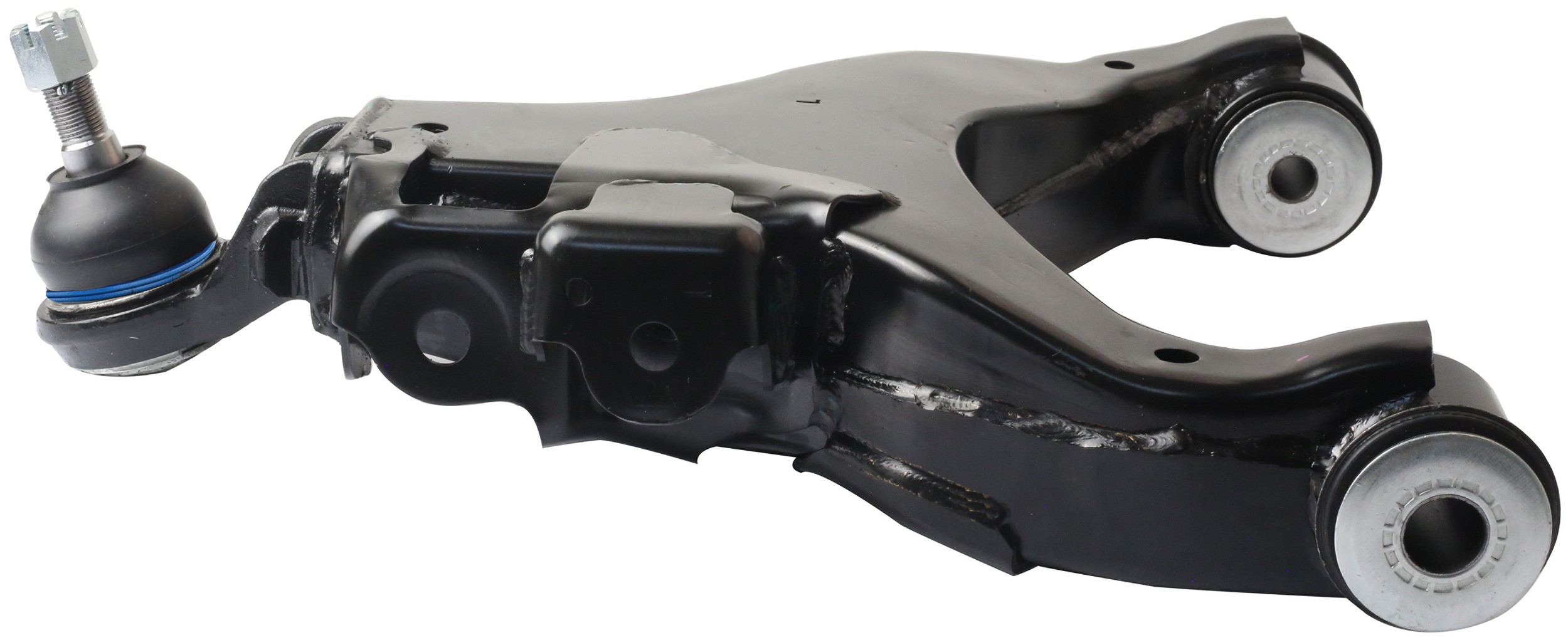

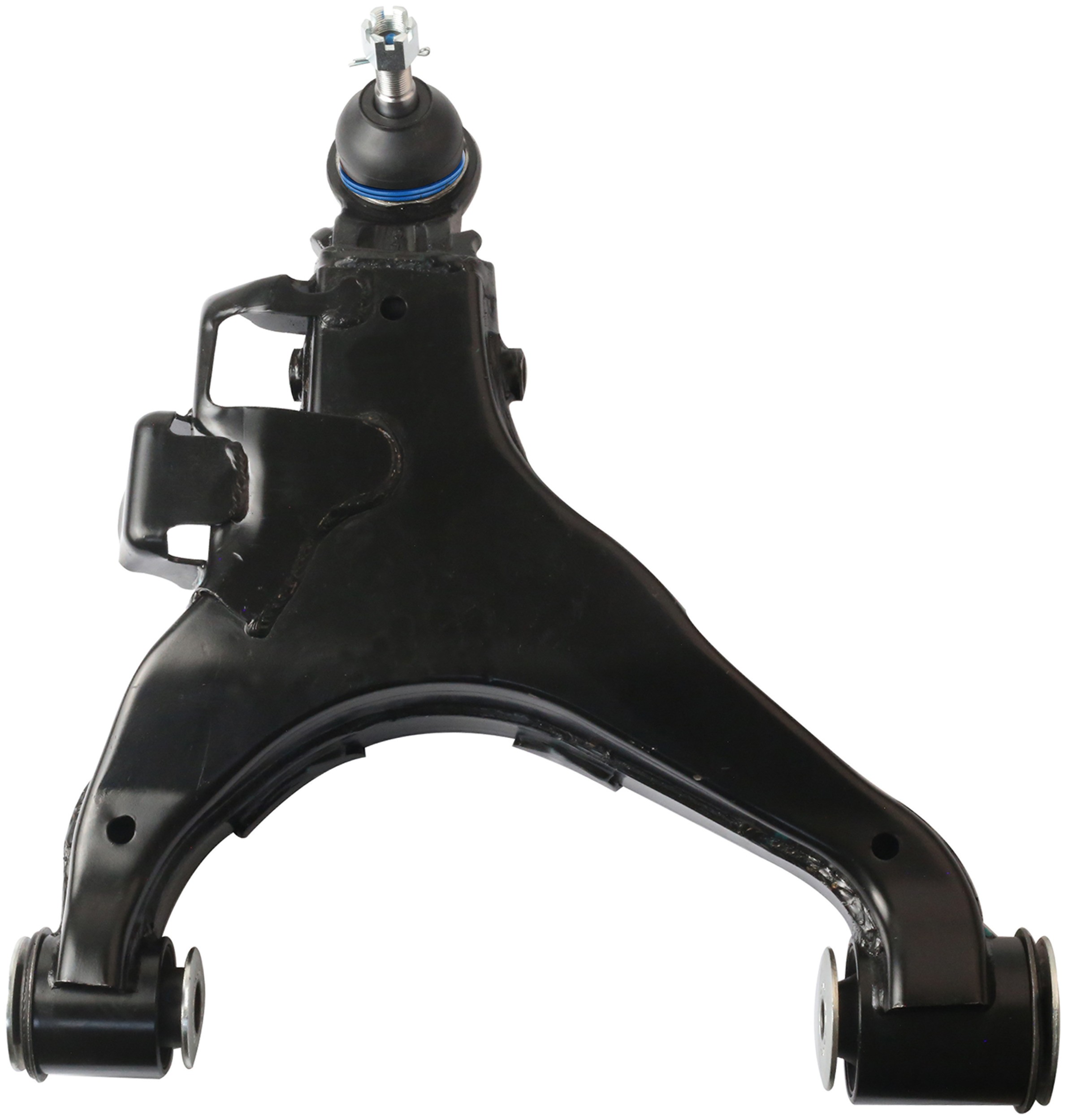

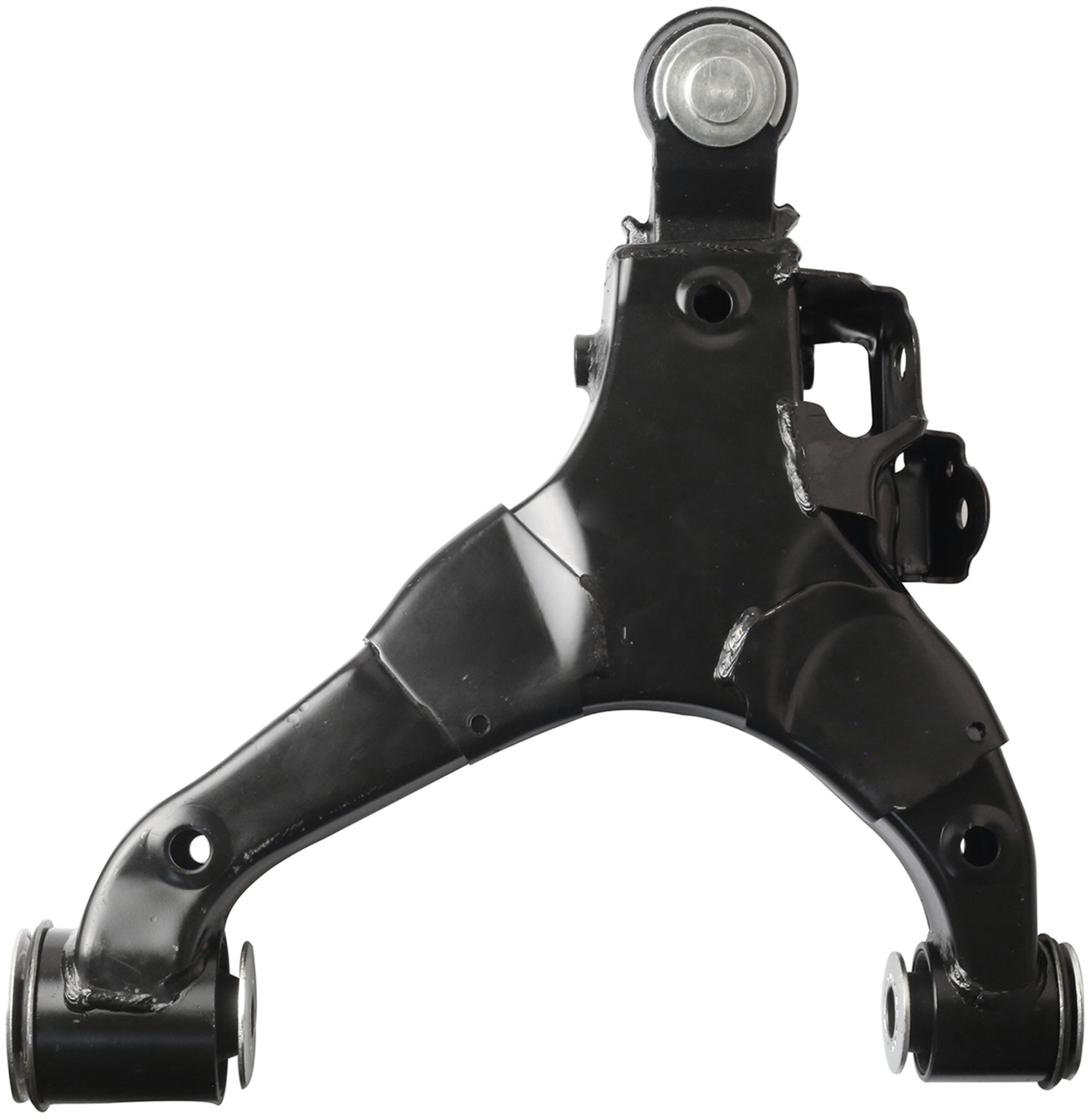

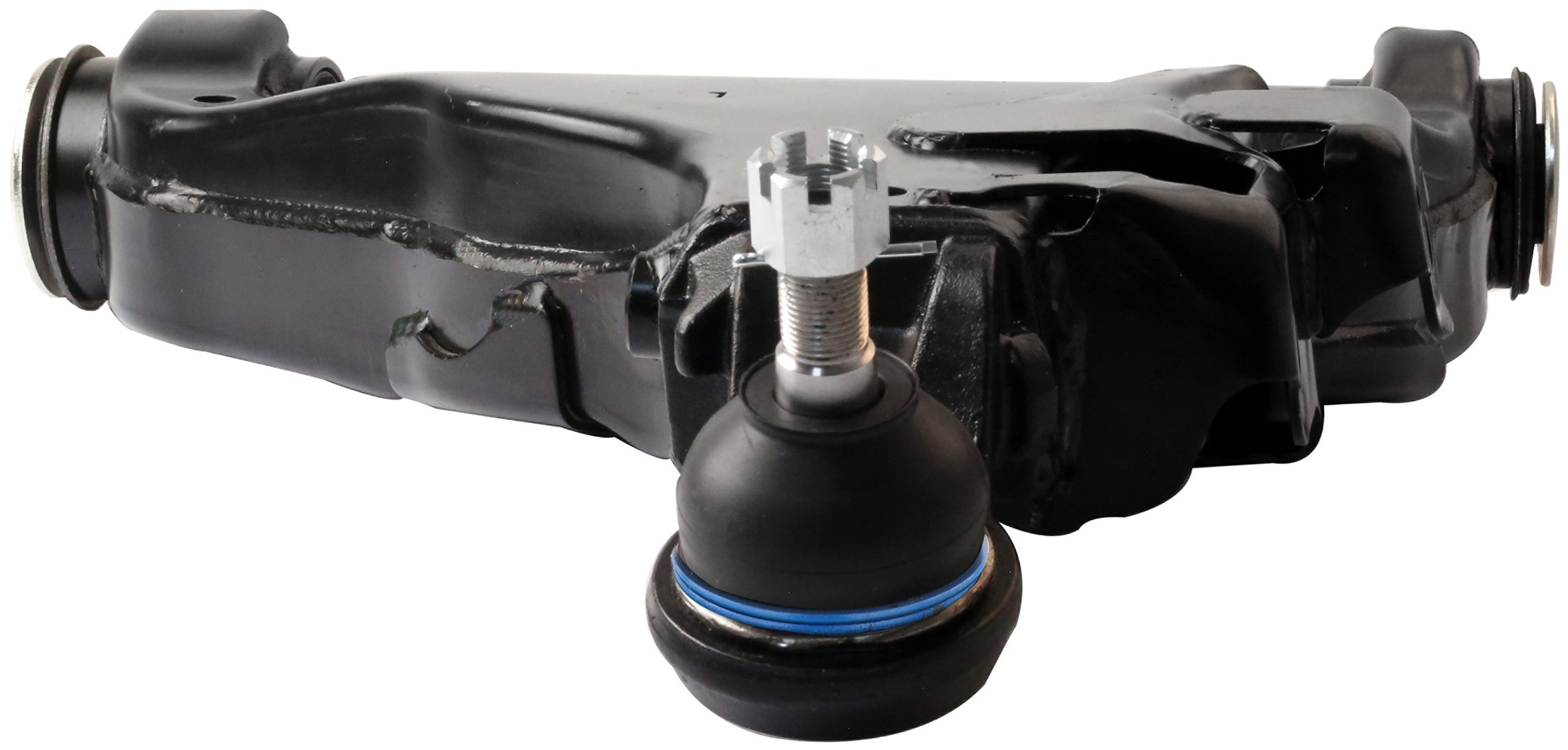

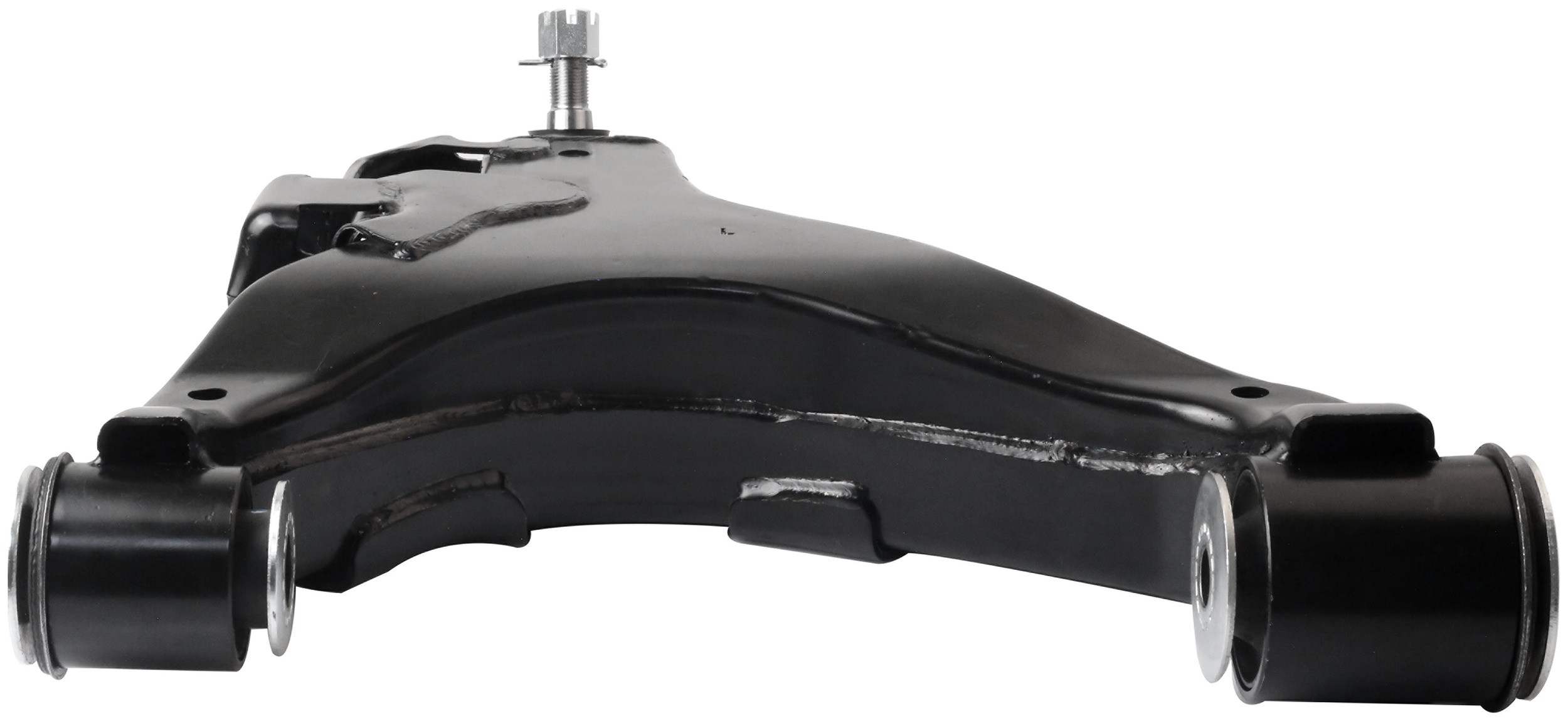

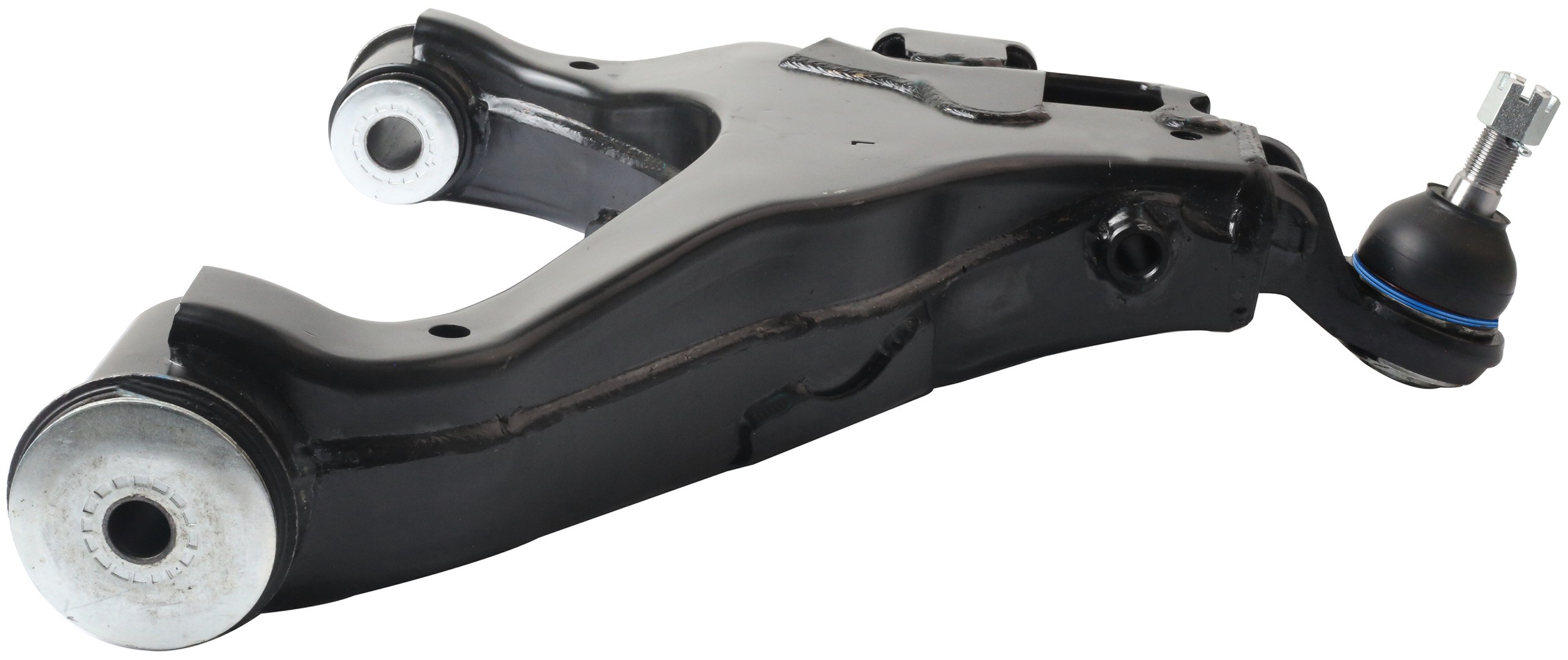

Delphi TC4028 Suspension Control Arm and Ball Joint Assembly

Delphi TC4028 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
2386	Stamped
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
9532	19.134 IN
9532	486.00 MM
4890	1.122 IN
4890	28.50 MM
4887	20.157 IN
4887	512.00 MM
Bushing Length	3.346 IN
Bushing Length	4.232 IN
Bushing Length	85.00 MM
Bushing Length	107.50 MM
Bushing Inside Diameter	0.925 IN
Bushing Inside Diameter	0.728 IN
Bushing Inside Diameter	23.50 MM
Bushing Inside Diameter	18.50 MM
Mounting Hole Diameter	0.925 IN
Mounting Hole Diameter	0.728 IN
Mounting Hole Diameter	23.50 MM
Mounting Hole Diameter	18.50 MM
Length	19.134 IN
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Steel
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Position(s)	Front Left Lower
2384	Yes
Length	486.00 MM
