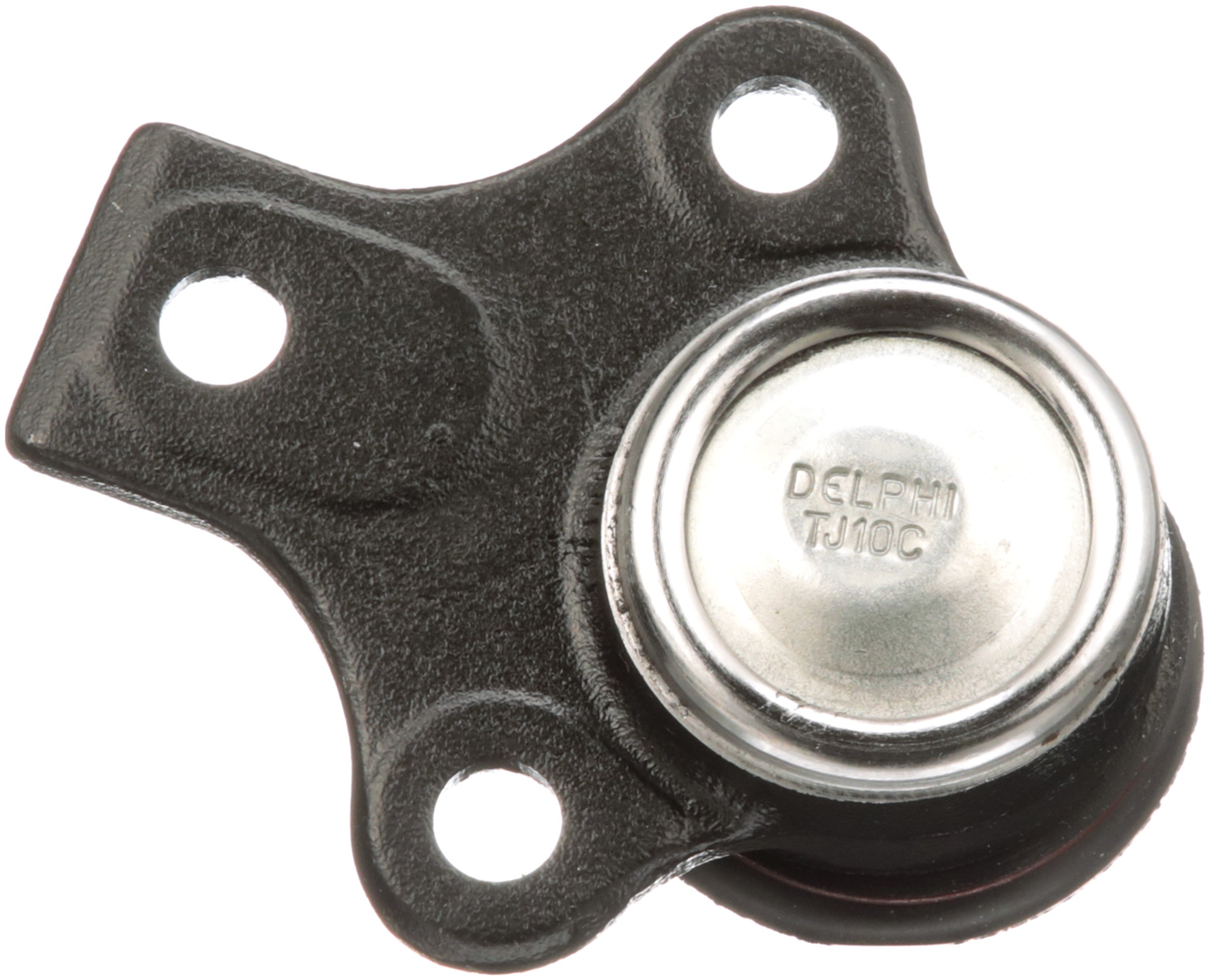

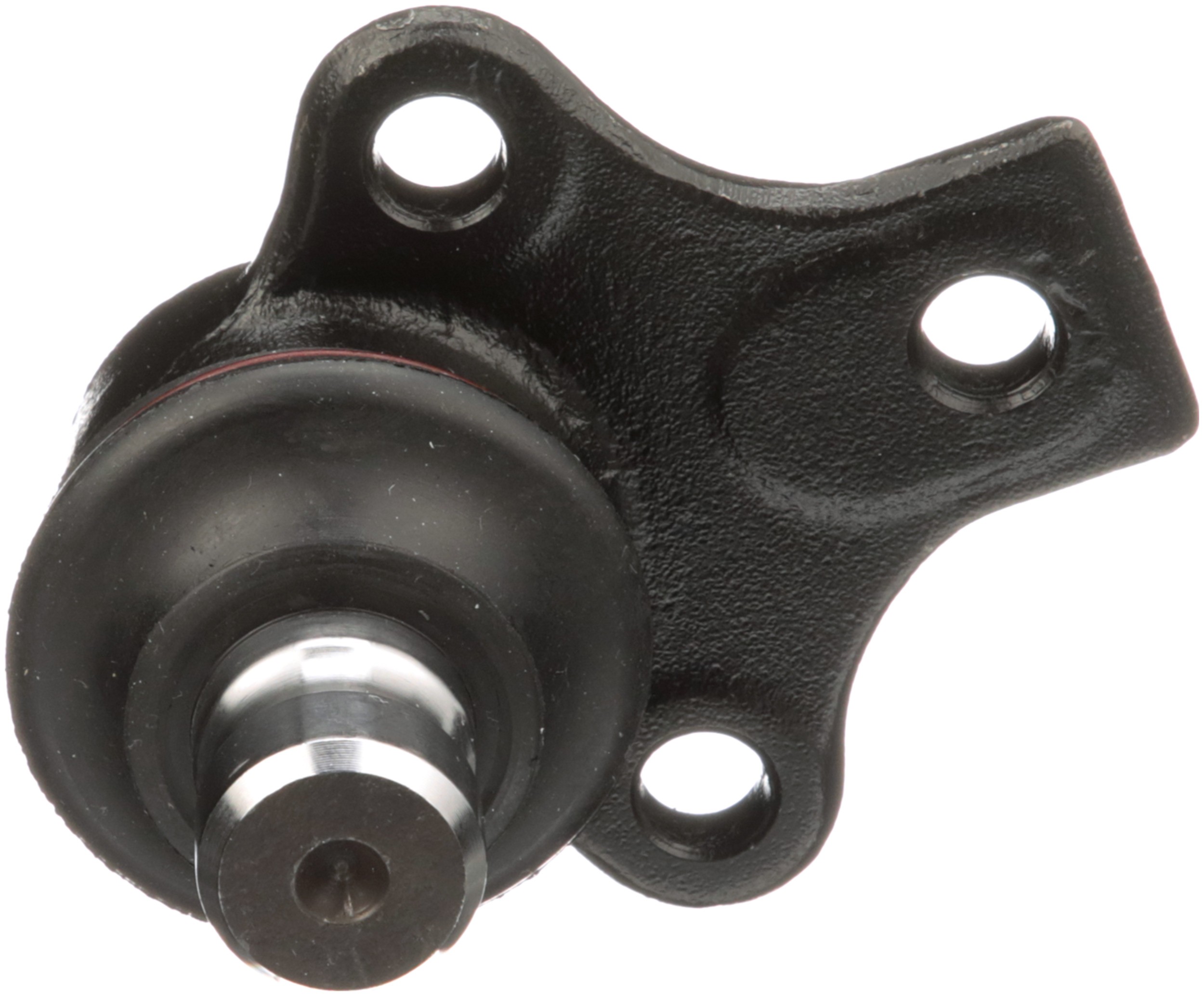

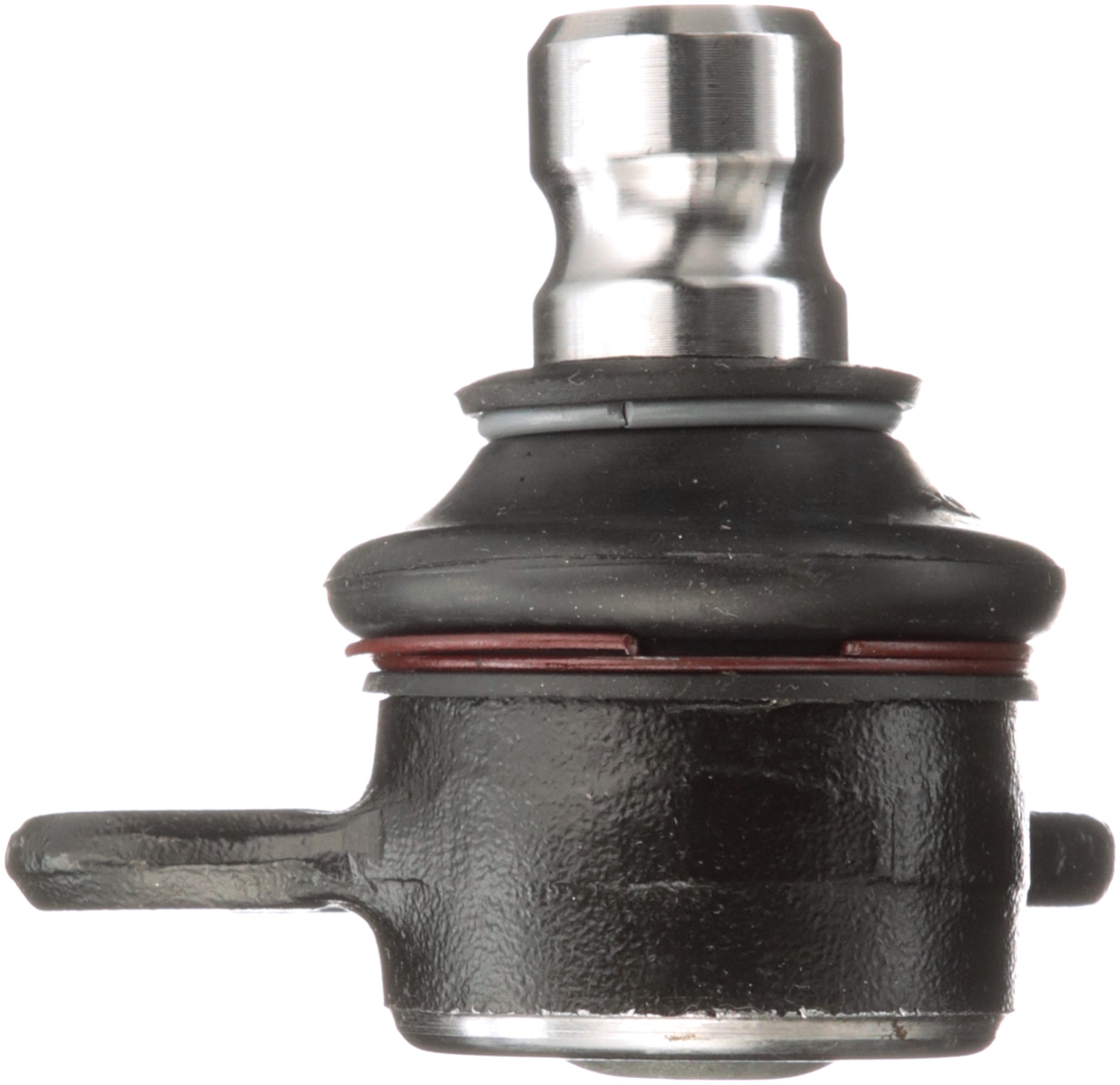

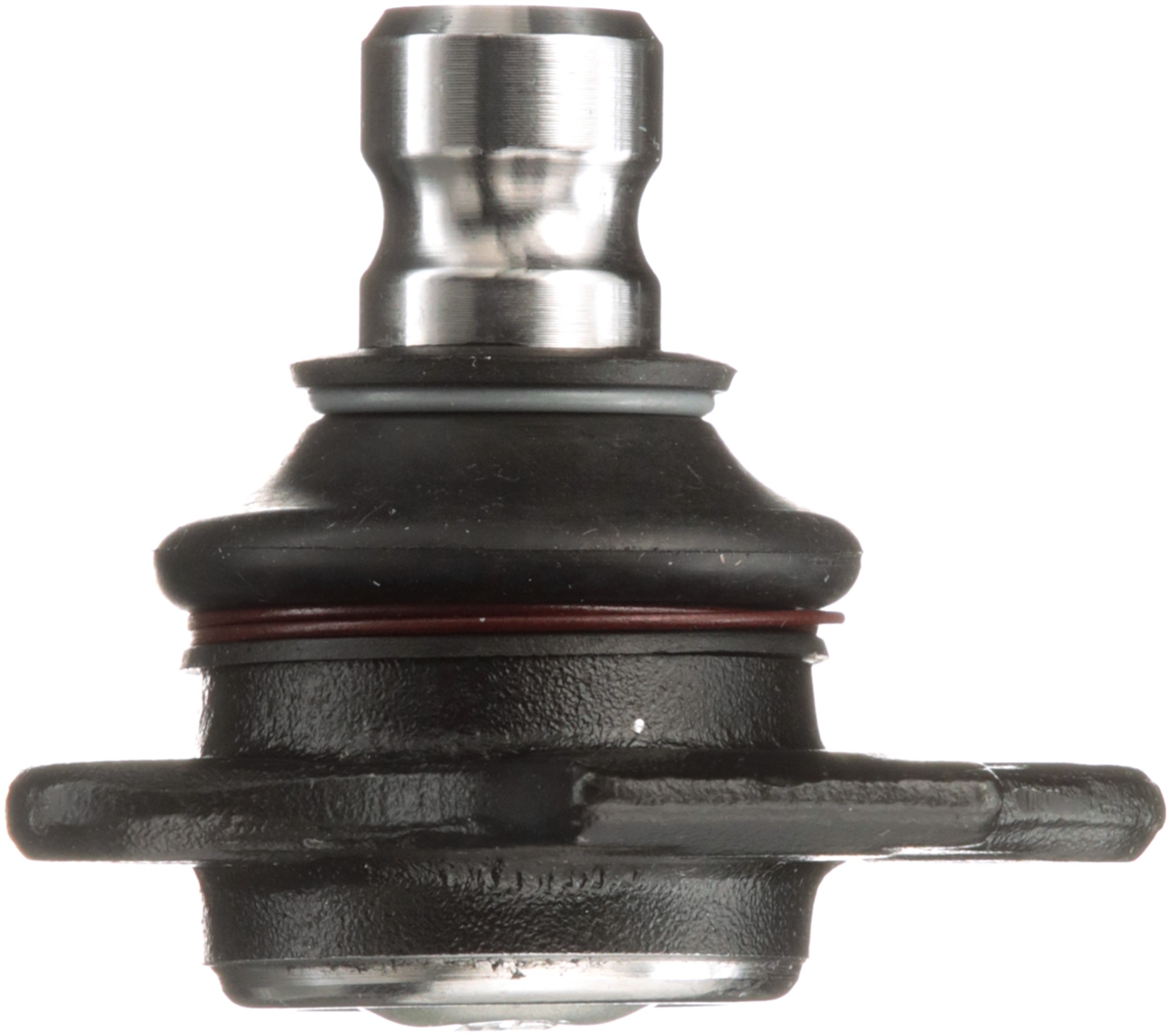

Delphi TC413 Suspension Ball Joint

Delphi TC413 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
9202	8.50 MM
9203	0.591 IN
9203	15.00 MM
9207	0.984 IN
9207	25.00 MM
Suspension Grade Type	Standard Replacement
Bushing Quantity	0
Mounting Type	Bolt-In
Greaseable	No
Adjustable	No
Mounting Hole Quantity	3
Washers Included	Yes

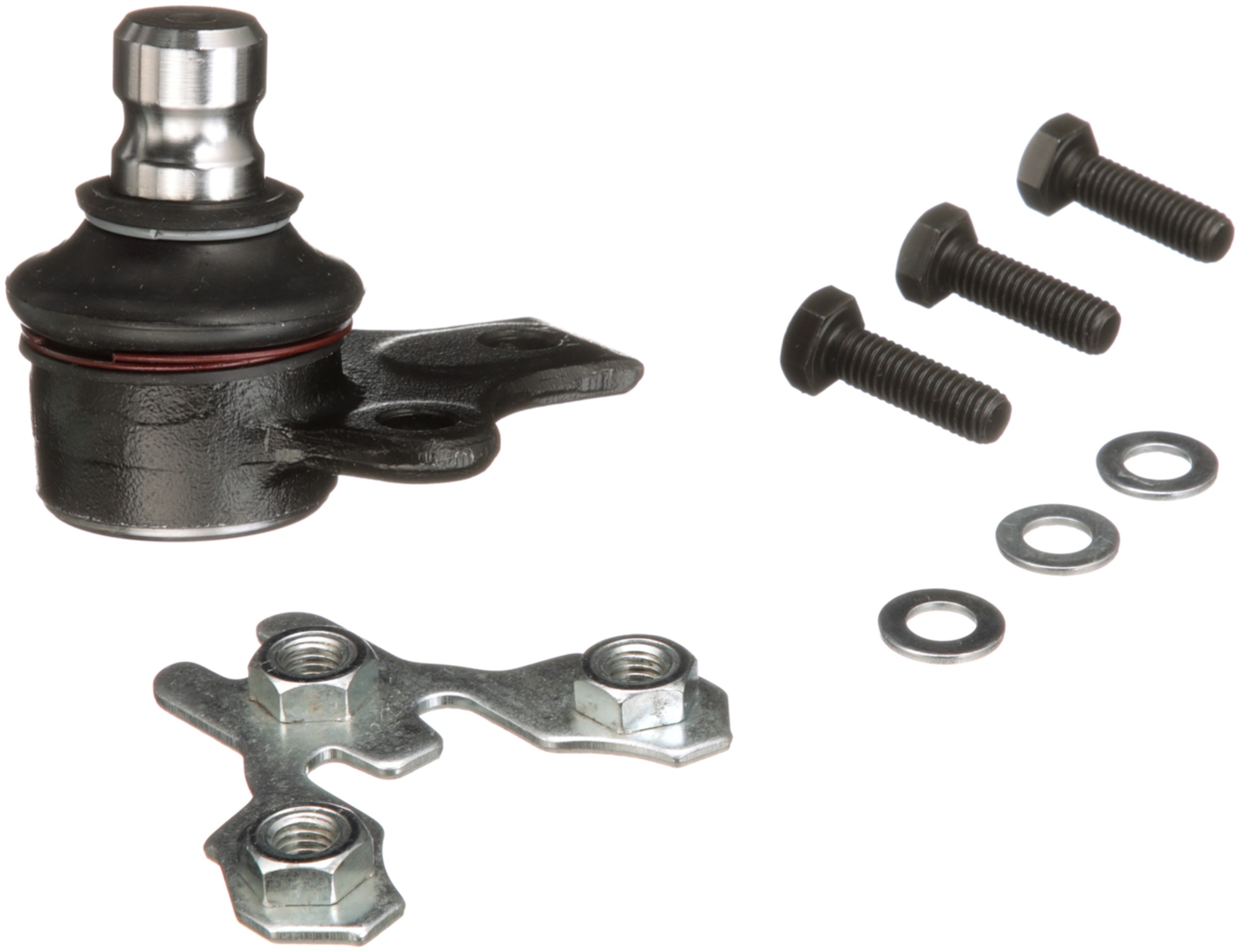

Mounting Hardware Included	Yes
Cotter Pin Hole	No
Type	Premium
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Material	Steel
Maximum Outside Diameter	2.874 IN
Maximum Outside Diameter	73.00 MM
Length	80.00 MM
Length	3.150 IN
Width	73 MM
Height	2.559 IN
Height	65.00 MM
9210	No
9209	Yes
9204	Yes
9202	0.335 IN
9058	51.80 MM
9058	30.00 MM
3068	30.30 MM
3068	1.193 IN

Vehicle Applications:

Make	Model	Years
Volkswagen	Cabrio	1995 to 2002
Volkswagen	Corrado	1990 to 1992
Volkswagen	Golf	1988 to 1999
Volkswagen	Jetta	1988 to 1999
Volkswagen	Passat	1990 to 1997
