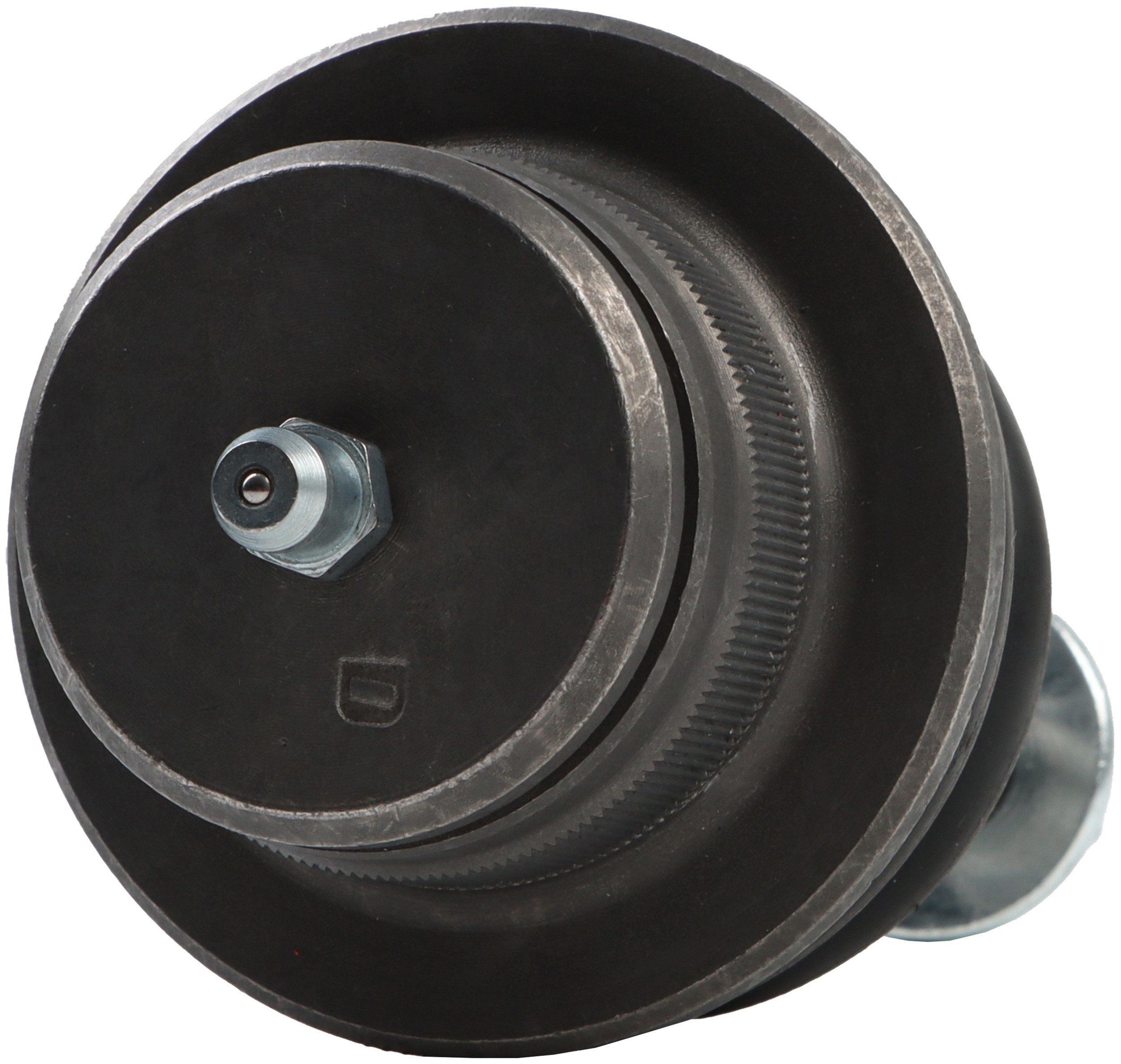

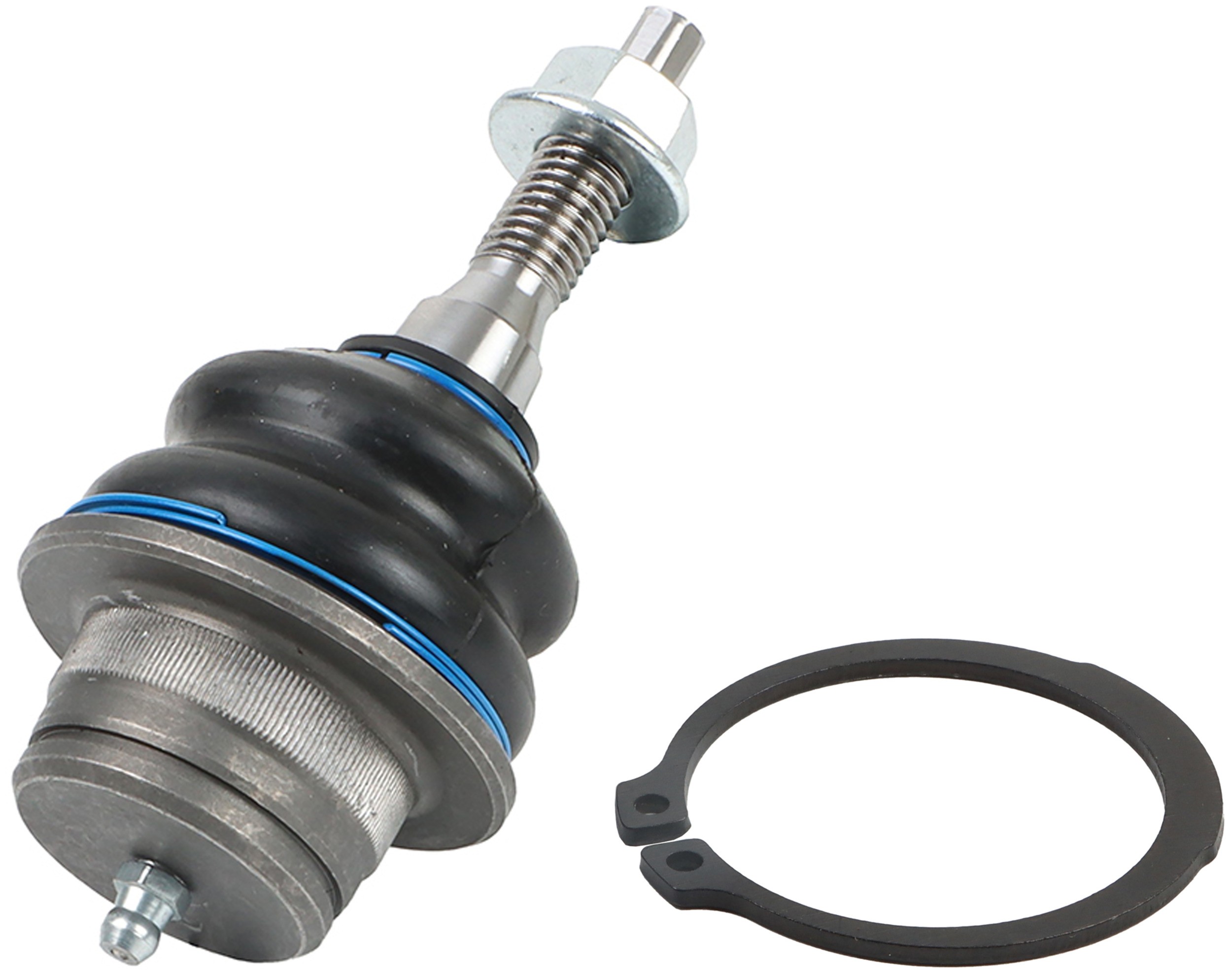

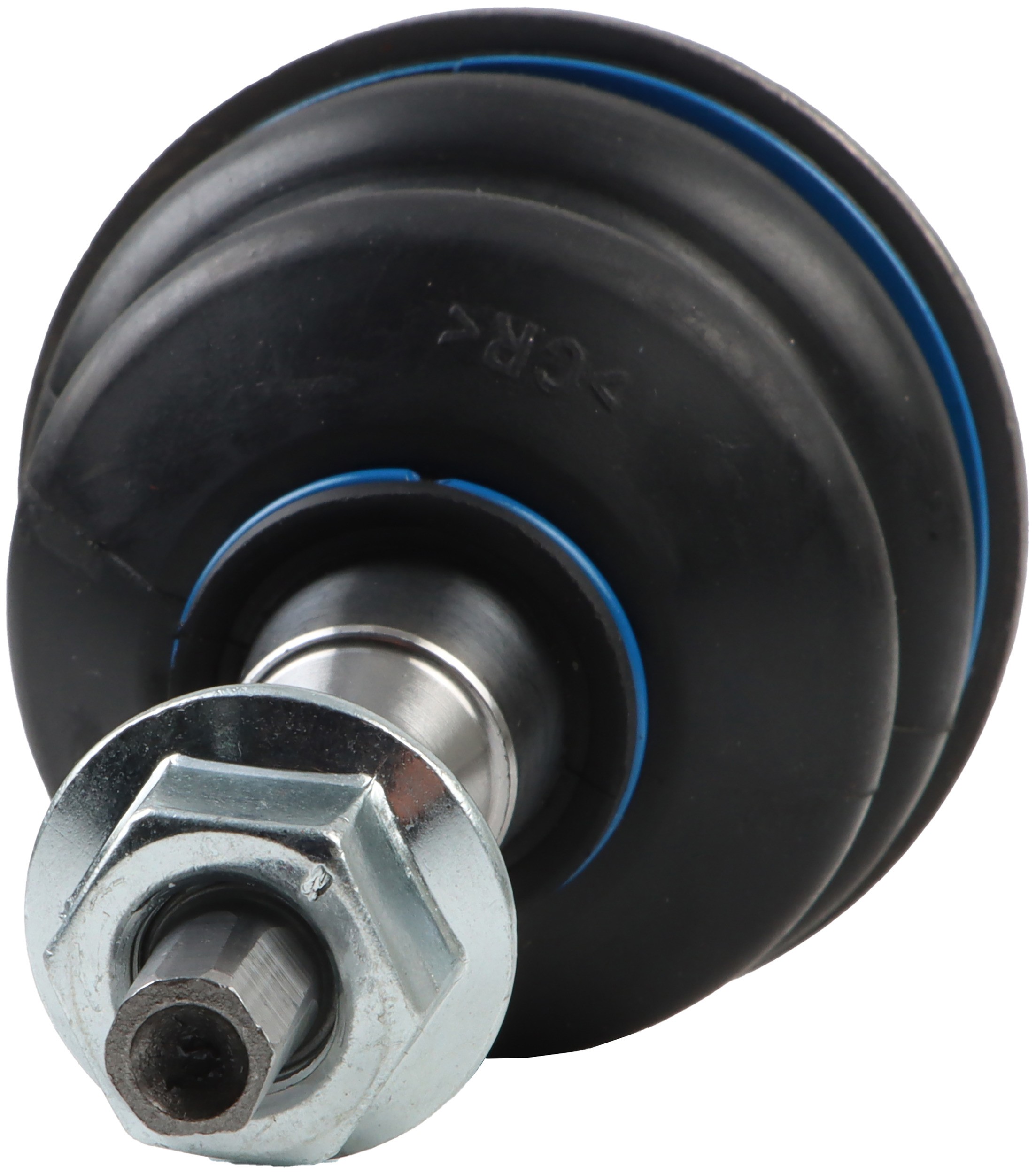

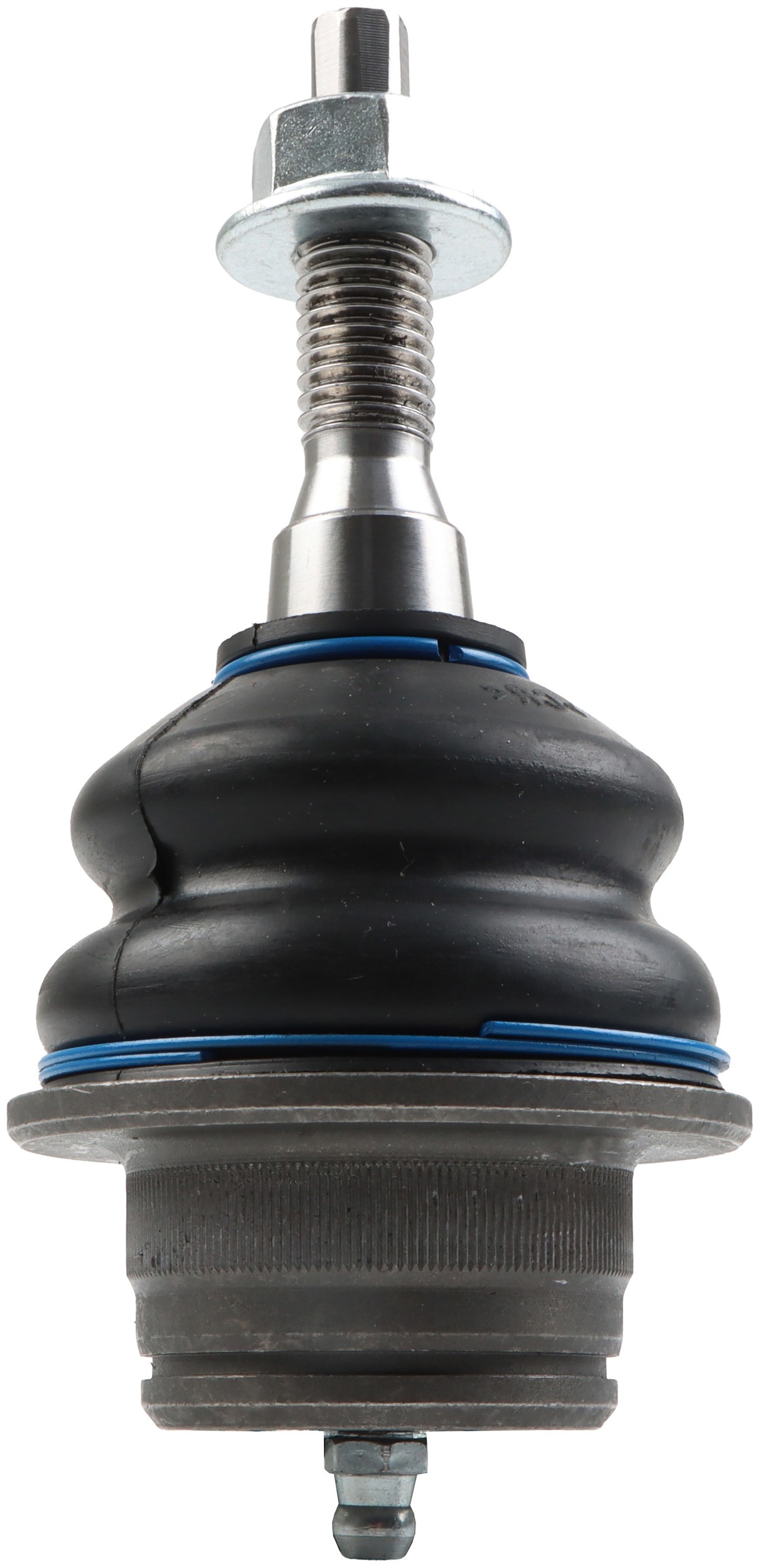

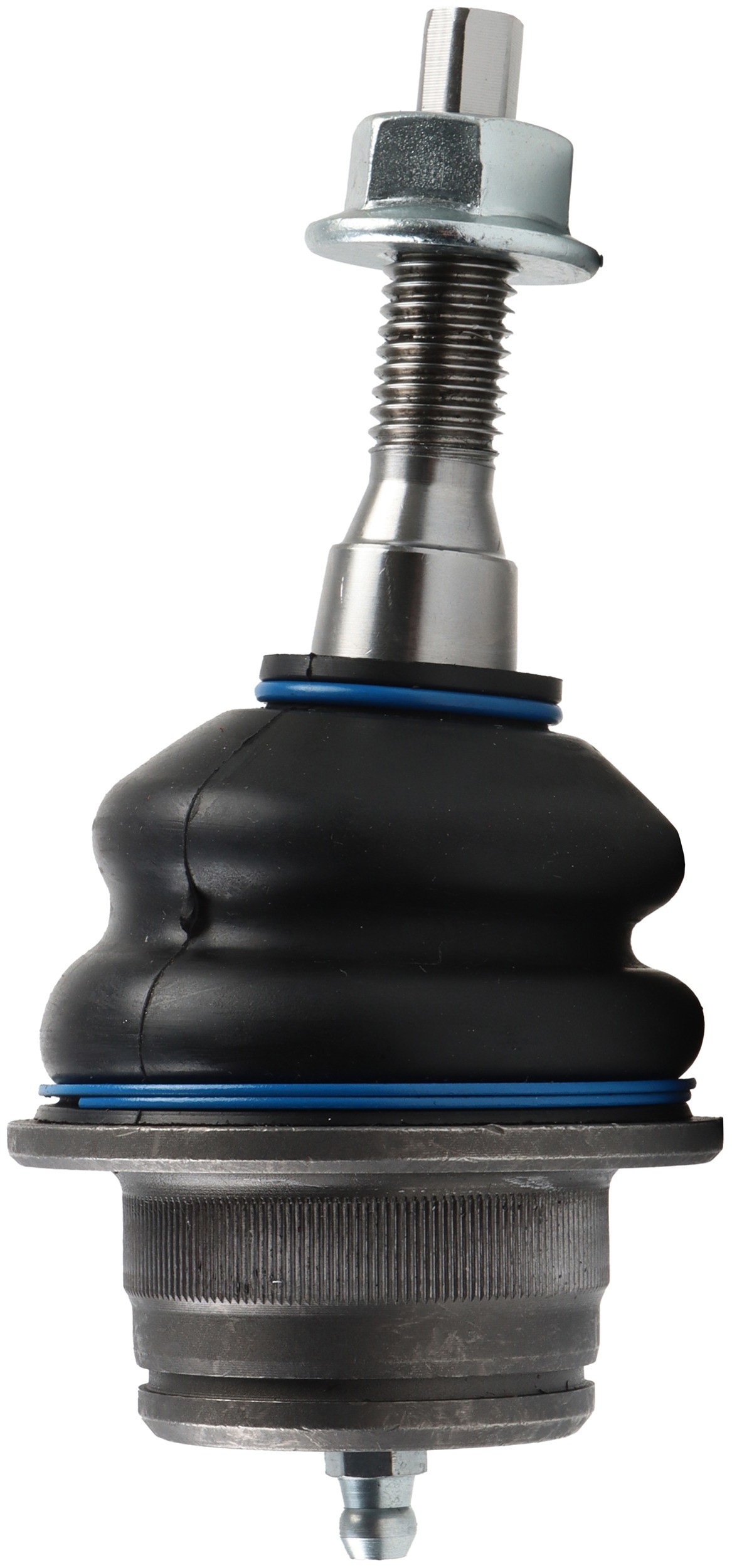

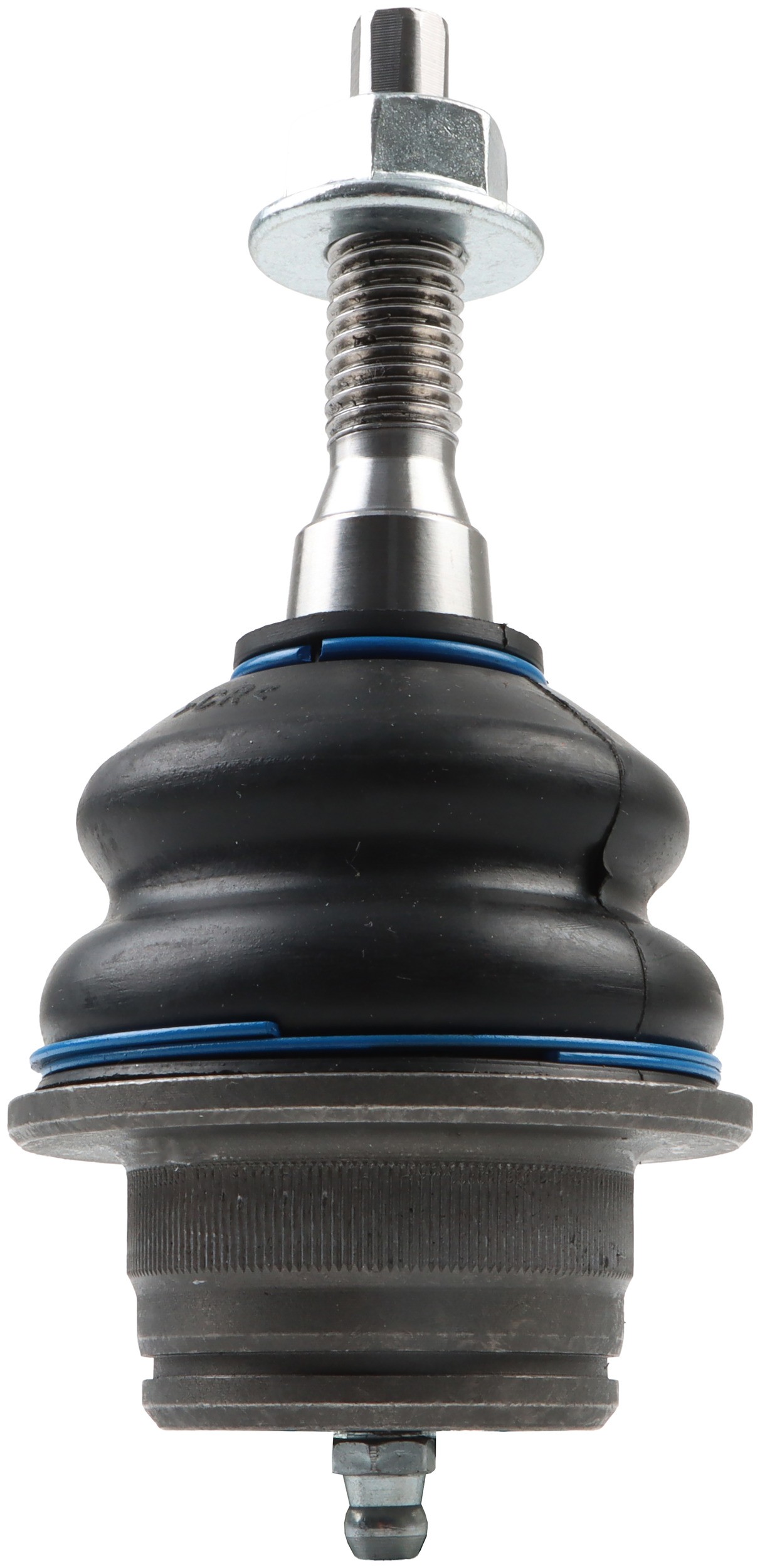

Delphi TC4193 Suspension Ball Joint

Delphi TC4193 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9213	0.661 IN
Grade Type	Standard Replacement
Greaseable	No
Pre-greased	Yes
Thread Direction	Counterclockwise (Left)
Grease Fitting Included	No
Bearing Type	Plastic
Maximum Outside Diameter	1.862 IN
Adjustable	No
Maximum Outside Diameter	47.30 MM
Cotter Pin Hole	Yes
Position(s)	Front Upper
10667	No
1260	No
2334	Yes
2381	Yes
2827	Yes
6529	Power
881	Threaded
9090	Rubber
9204	No
9209	No
9210	Yes
9906	Yes
Washers Included	No
9212	20.10 MM
9212	0.791 IN
4966	22.50 MM
4966	0.886 IN
Mounting Hardware Included	No
Dust Boot Included	Yes
Bushings Included	No
9213	16.80 MM
Type	Standard
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
